Vizio M3D420SR Manuale utente
M3D420SR / M3D470SR / M3D550SR
QUICK START GUIDE
THEATER 3D™LED LCD HDTV WITH VIZIO INTERNET APPS®
PACKAGE CONTENTS
Cleaning Cloth
for TV
VIZIO 3D LCD HDTV with Stand
Remote Control with
Batteries
User Manual and
Quick Start Guide
2 Pairs
Basic Theater 3D Glasses
2 Pairs
Premium Theater 3D Glasses
Cleaning Cloth
for Glasses
RF Adapter

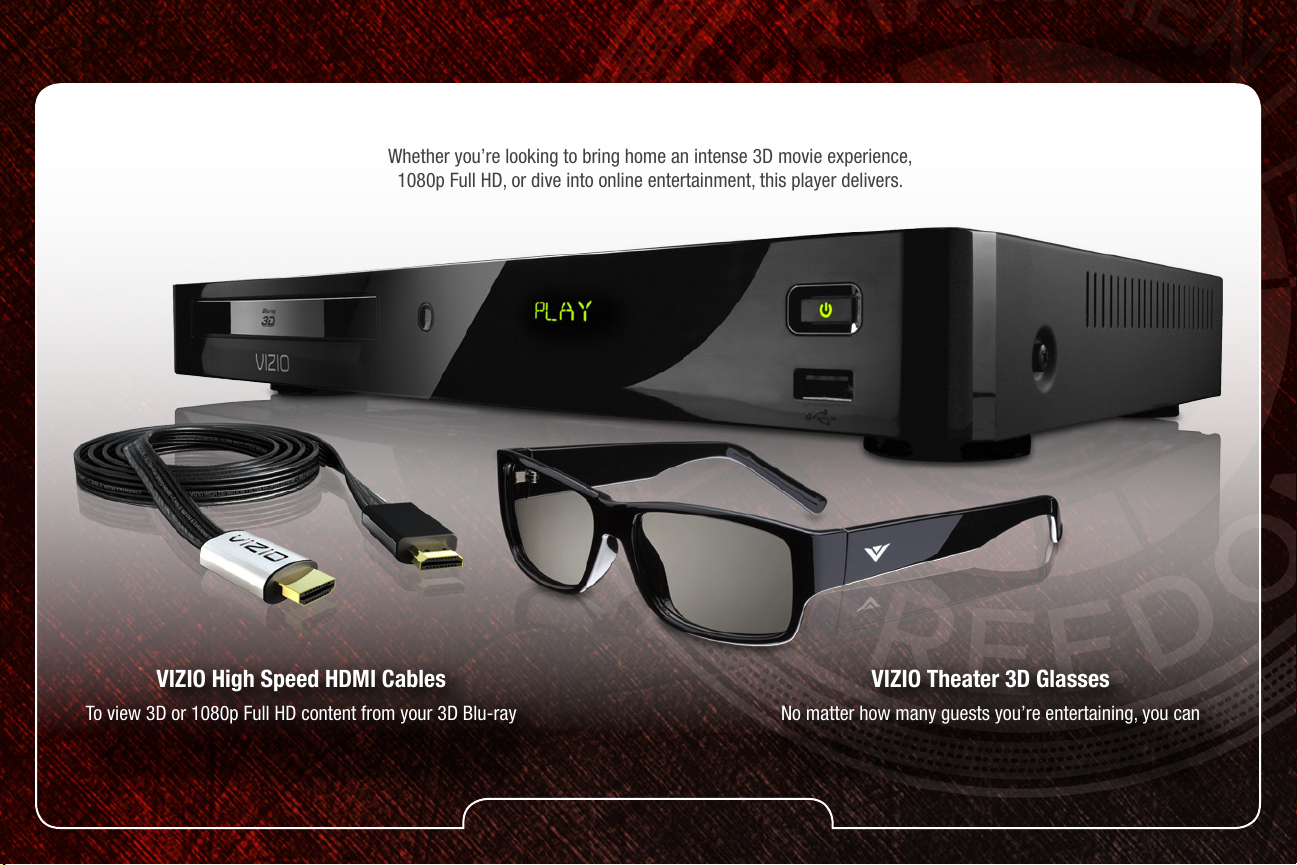

COMPLETE THE 3D EXPERIENCE
VIZIO 3D Blu-ray™Player with Internet Apps
Whether you’re looking to bring home an intense 3D movie experience,
1080p Full HD, or dive into online entertainment, this player delivers.
VIZIO Theater 3D Glasses
No matter how many guests you’re entertaining, you can
share your new 3D world with friends and family. These 3D
glasses are lightweight, comfortable, and battery-free.
AVAILABLE AT VIZIO.COM
VIZIO High Speed HDMI Cables
To view 3D or 1080p Full HD content from your 3D Blu-ray
player, you’ll need to connect it with an HDMI cable. VIZIO
HDMI cables feature a slim design for easy installation.
USING THE BLUETOOTH® REMOTE
Device Power
Input
A/V Controls
List
Exit
OK
Back
VIA
Volume
Up/Down
Mute
3D
Number Pad
Last
Channel
Up/Down
VIA Shortcuts
Guide
Arrow
Menu
Info
Power
QWERTY KeypadArrow
VIA Shortcuts
Dash
VIA Shortcuts
Move/Delete App from VIA Dock
Change Screen Size (when VIA Sidebar is open)
Exit App/Exit VIA Dock
View Settings for Active App
Device Power/Standby: Turn external device on or off.
Input: Change input device.
A/V Controls: Control external device.
List: Display list of available channels.
Exit: Close on-screen menu.
OK: Select highlighted menu option.
Back: Go to previous menu screen.
VIA: Start VIZIO Internet Apps.
Volume Up/Down: Increase or decrease volume.
Mute: Turn sound off or on.
3D: Activate 3D content.
Dash: Use with number pad to manually enter a digital
sub-channel. (For example, 18-4 or 18-5.)
Power/Standby: Turn the TV on or off.
Info: Display program information and time.
Menu: Display on-screen menu.
Arrow: Navigate on-screen menu or episode guide.
Guide: Display episode guide.
VIA Shortcuts: Control VIZIO Internet Apps (see diagram).
Channel Up/Down: Change channel up or down.
Last: Return to previous channel.
Number Pad: Enter a channel.
QWERTY Keypad: Enter letters and numbers. To enter a number or
character printed in blue, hold the ALT key while
pressing the button.
INSTALLING THE BASE
2
Using a phillips-head screwdriver, attach the stand neck to the
TV by inserting and tightening the included screws
1
Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft
surface, such as carpet, rug, or blanket.
Using a phillips-head screwdriver, attach the base to the stand
neck by inserting and tightening the included screws.
34
Move the TV with attached stand into an upright position and
place on a flat, level, and stable surface.
Remove the battery cover by pressing gently and sliding away
from the remote.
Insert the batteries. The +and -symbols on the batteries
must correspond to the +and -symbols inside the battery
compartment.
Replace the battery cover by gently sliding it back into place.
FIRST-TIME SETUP
2
Plug the power cord into an electrical outlet.
1
If you have an external antenna or a cable connection that
extends from a wall outlet, connect it to the TV with an
RF/Coaxial cable. Use the included RF Adapter if needed.
If you have a high-speed internet connection and would like to
connect the TV with an ethernet cable, connect it to the back of
the TV as shown.
4
Turn the TV on by pressing the Power/Standby button on the
remote.
The Setup App is displayed.
Use the Arrow buttons on the remote to highlight
Home Mode Setup and press OK.
3
To Router/Modem To Cable/Antenna
5
Use the OK and Arrow Up/Down buttons on the remote to read
and accept the Terms of Service and Privacy Policy for Yahoo! TV
Widgets.
When you are finished, highlight Next and press OK.
6
Select the name of your wireless network from the list of
available networks and press OK.
Enter your network key using the on-screen keyboard, then
highlight Connect and press OK.
If the TV is connected to your network with an ethernet
cable, you will not see this screen.
