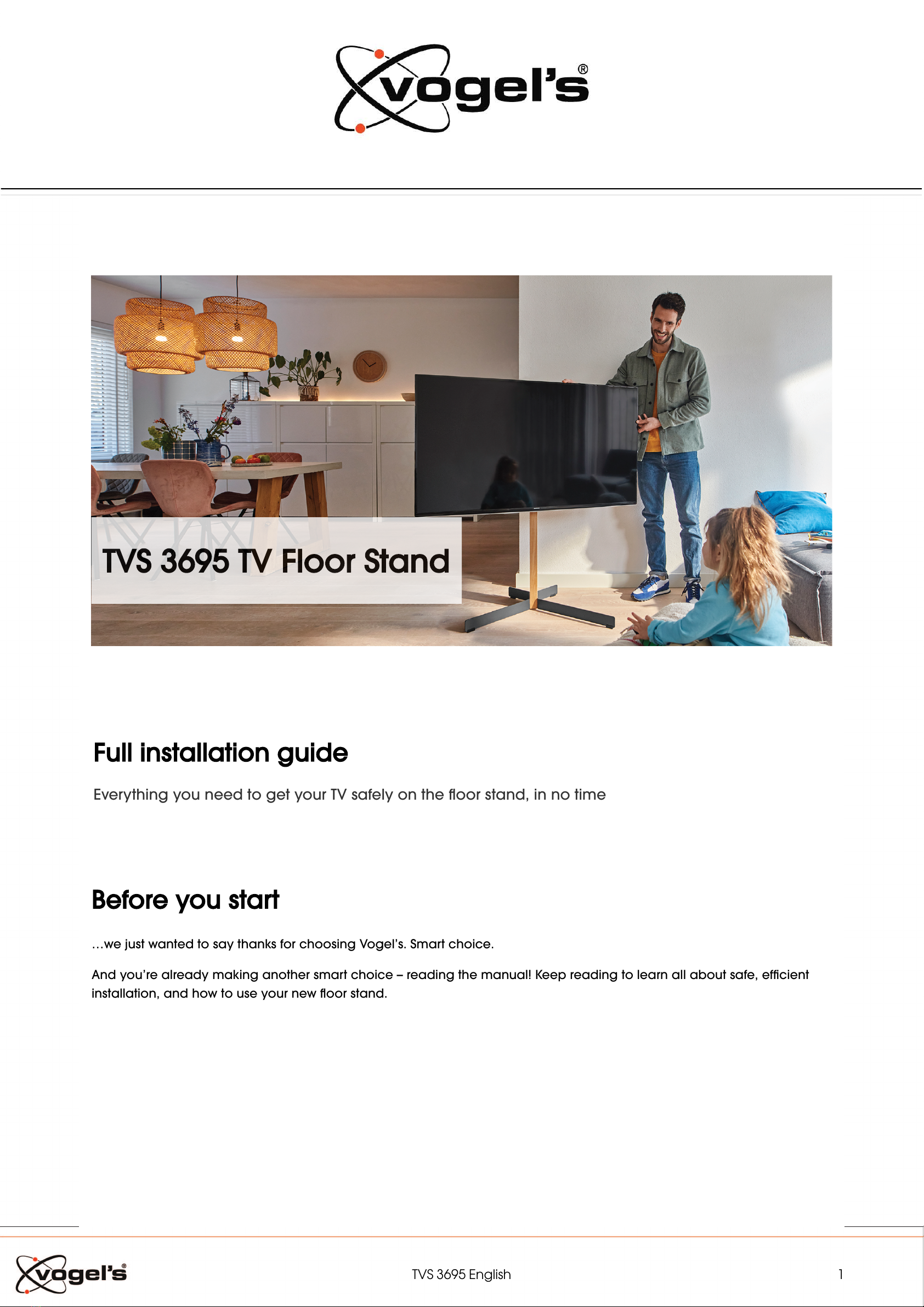

VOGELS TVS 3695 Manuale utente
TVS 3695 TV Floor Stand
Full installation guide
Everything you need to get your TV safely on the floor stand, in no time
Before you start
…we just wanted to say thanks for choosing Vogel’s. Smart choice.
And you’re already making another smart choice – reading the manual! Keep reading to learn all about safe, efficient
installation, and how to use your new floor stand.
TVS 3695 English
1
Stay safe
Warning
Always read these safety instructions carefully before installing and using this product.
Following these instructions is strictly required. Incorrect mounting/and or installation could put you, your TV, and
your family at substantial risk.
Don’t dare risk it… Read all
Vogel’s recommends that the mounting and/or installation of this product should be carried out by a suitably
qualified expert.
Vogel’s cannot be held responsible for any injury and/or damage caused by incorrect installation.
Please consult the manual for your TV and ensure that the weight and size of the TV is within the maximum weight
and size limits specified for this product, and that the TV mounting bolts used are of a suitable length and diameter.
Note that not all the TV mounting accessories provided are required for the installation of any one TV.
Clean the product with a dry, lint-free cloth. Do not use detergents or other solvents to clean the product.
Only qualified, certified personnel may repair the product. Use only original spare parts. The use of other parts will
result in voiding the warranty, and could lead to injuries.
Alterations to the product and technical modifications are not permitted. This will void the warranty, and could
lead to injuries.
Always store the product in a dry and safe place with a temperature between -10°C to +50°C.
Handle and transport the product with care.
Repack the product when transporting or not using it for a longer period of time.
Lifting your TV is a two-person job. Don’t be bold!
TVS 3695 English
2

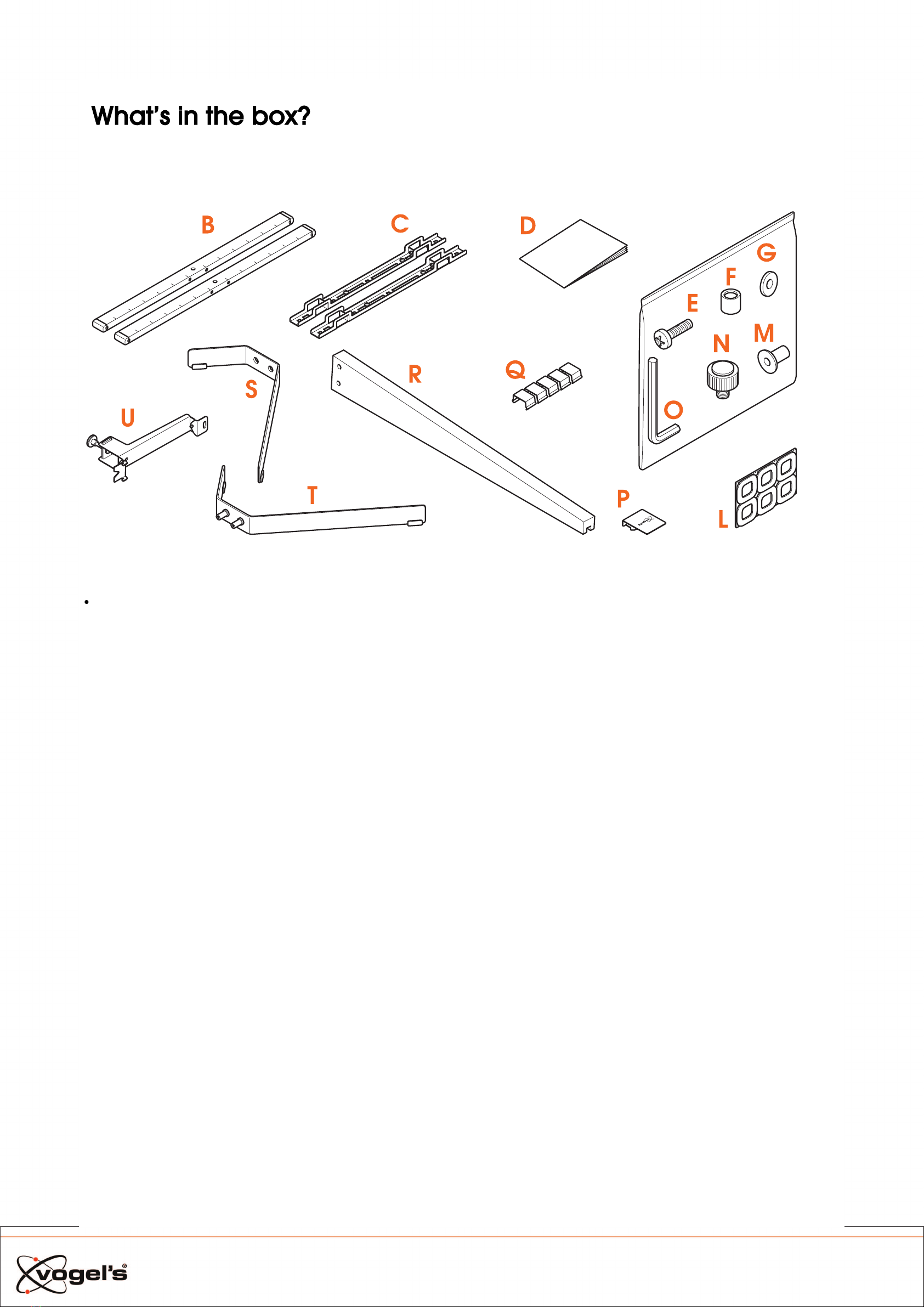

What’s in the box?
Something missing? Make sure your packaging has everything in place:
B. Interface bars
C. Interface strips
D. Safety instructions
E. Bolts for fastening strips on TV (see contents of the TV fasteners kit)
F. Spacers
G. Washers 18mm
L. Protective TV patches
M. Bolts for attaching feet to stand (see contents below)
N. Thumb nuts
O. Allen key
P. Cover plate
Q. Cable clips
R. Wooden stand
S. Foot (left)
T. Foot (right; with pre-attached bolts)
U. Steel bracket
TVS 3695 English
3

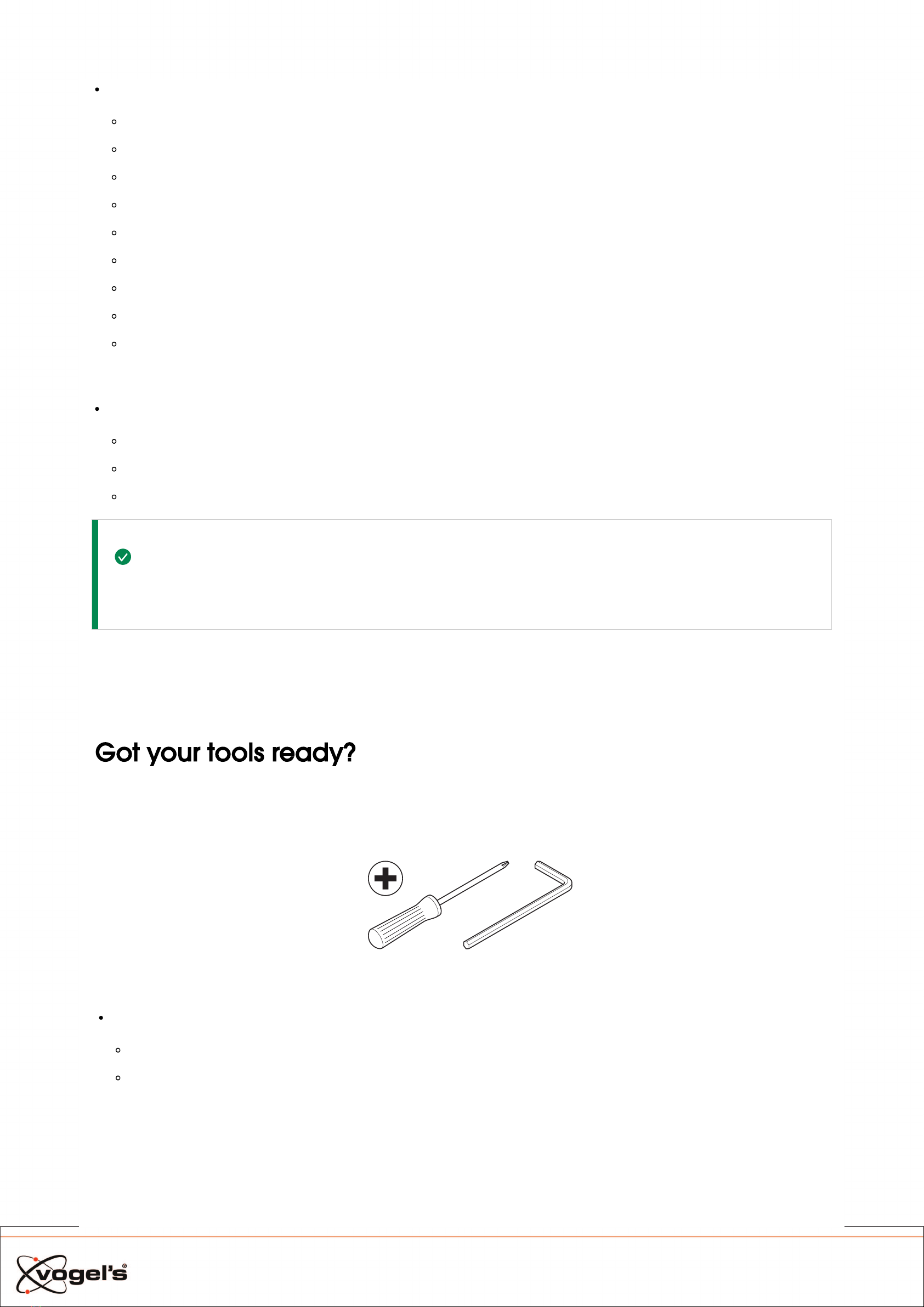

Contents of the TV fasteners kit:
4x M6*12mm bolts
4x M6*25mm bolts
4x M8*12mm bolts
4x M8*25mm bolts
4x M6*35mm bolts
4x M8*45mm bolts
4x M6 washer
4x spacer 10mm
4x spacer 5mm
Contents of the floor stand fasteners kit:
2x M8*20mm bolts
2x M6*10mm thumb nuts
Allen key
You don't need all fasteners to mount your TV. Store the rest for later or other use!
Got your tools ready?
Don’t start without all the necessary tools:
Crosshead screwdriver
M4 (4mm) Allen key
TVS 3695 English
4

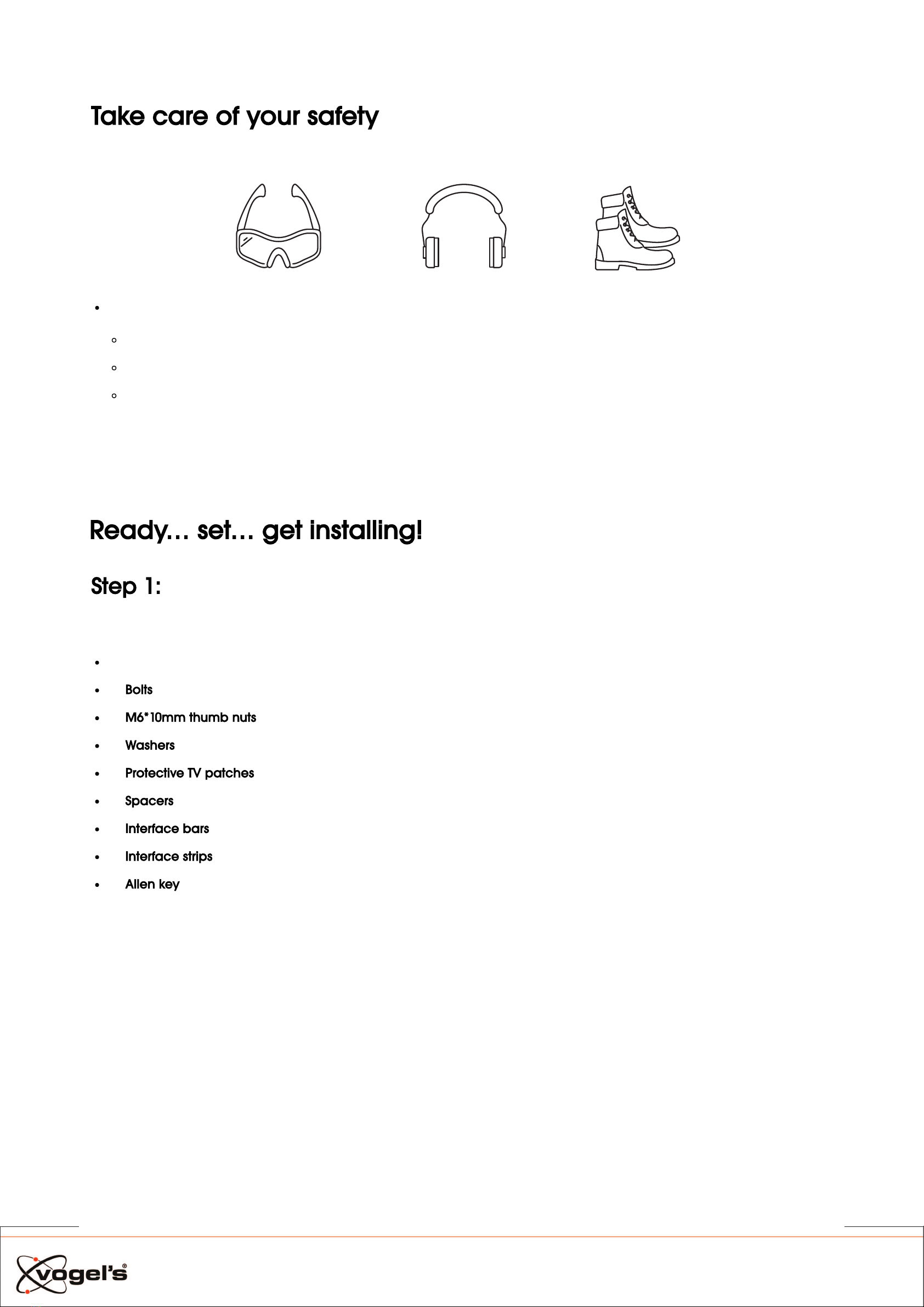

Take care of your safety
Who cares about looking cool? Always wear personal protective equipment:
Eye protection
Ear protection
Safety shoes
Step 1: Attach the strips to the TV
For this step you will need:
A crosshead screwdriver
4x Bolts (Not sure which size you need for your TV? Then please consult our website for help.) Ⓔ
2x M6*10mm thumb nuts Ⓝ
4x Washers Ⓖ
4x Protective TV patches Ⓛ
4x Spacers (optional; depending on your type of TV, use either the 5mm or 10mm spacers) Ⓕ
2x Interface bars Ⓑ
2x Interface strips Ⓒ
1x Allen key Ⓞ
Ready… set… get installing!
TVS 3695 English
5

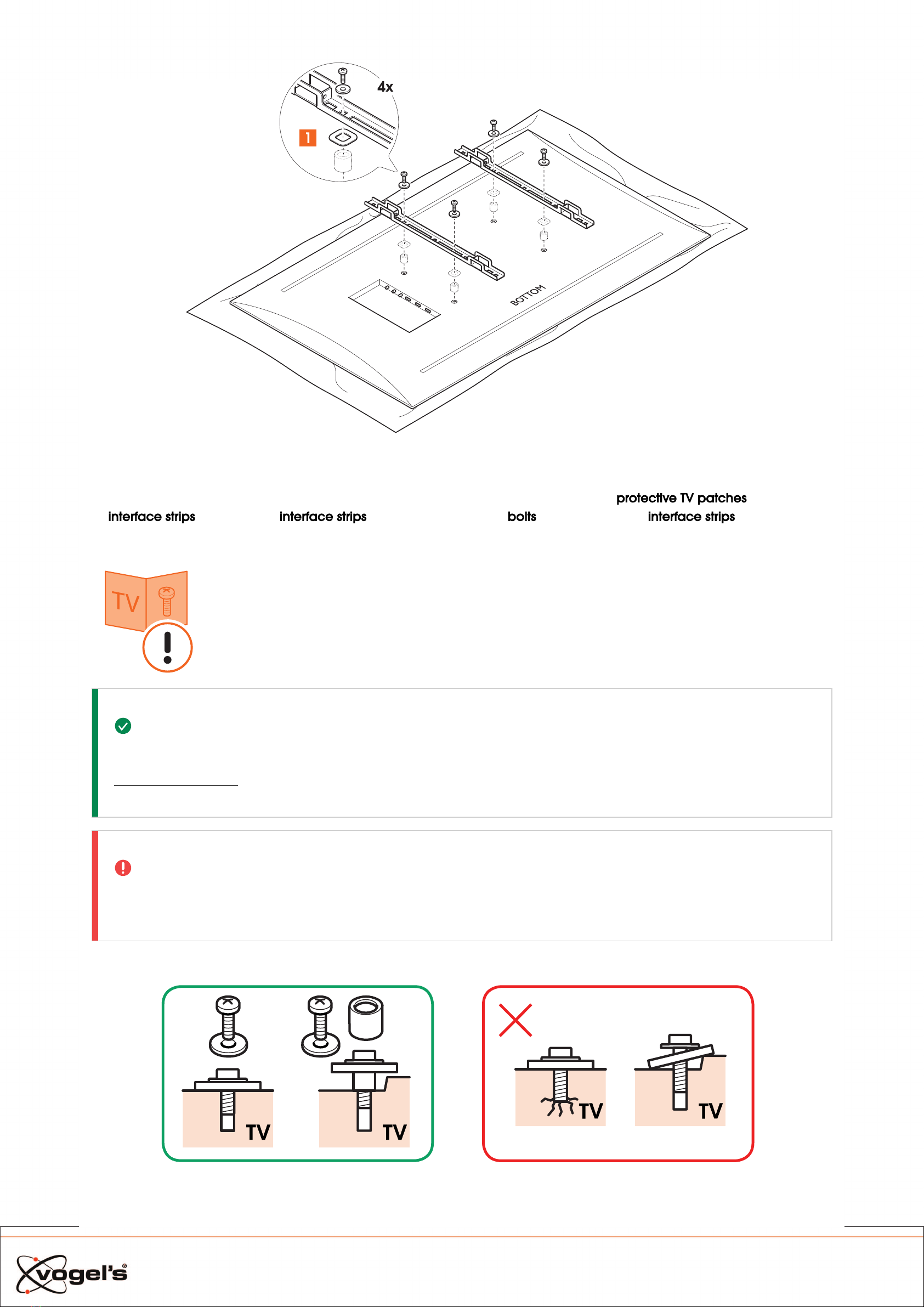

1. Carefully place the TV face down, on a clean surface without any obstacles. Fix the protective TV patches Ⓛ onto the
interface strips Ⓒ. Screw the interface strips Ⓒ onto the TV with the bolts Ⓔ. Make sure the interface strips Ⓒ are at the
same height and do not stick out.
Are you missing any bolts? Or need different ones? The friendly team at Vogel’s Consumer Care are waiting to help:
vogels.com/contact
Make sure bolts and spacers are positioned correctly.
TVS 3695 English
6
Refer to the user manual of your TV for the correct mounting material.

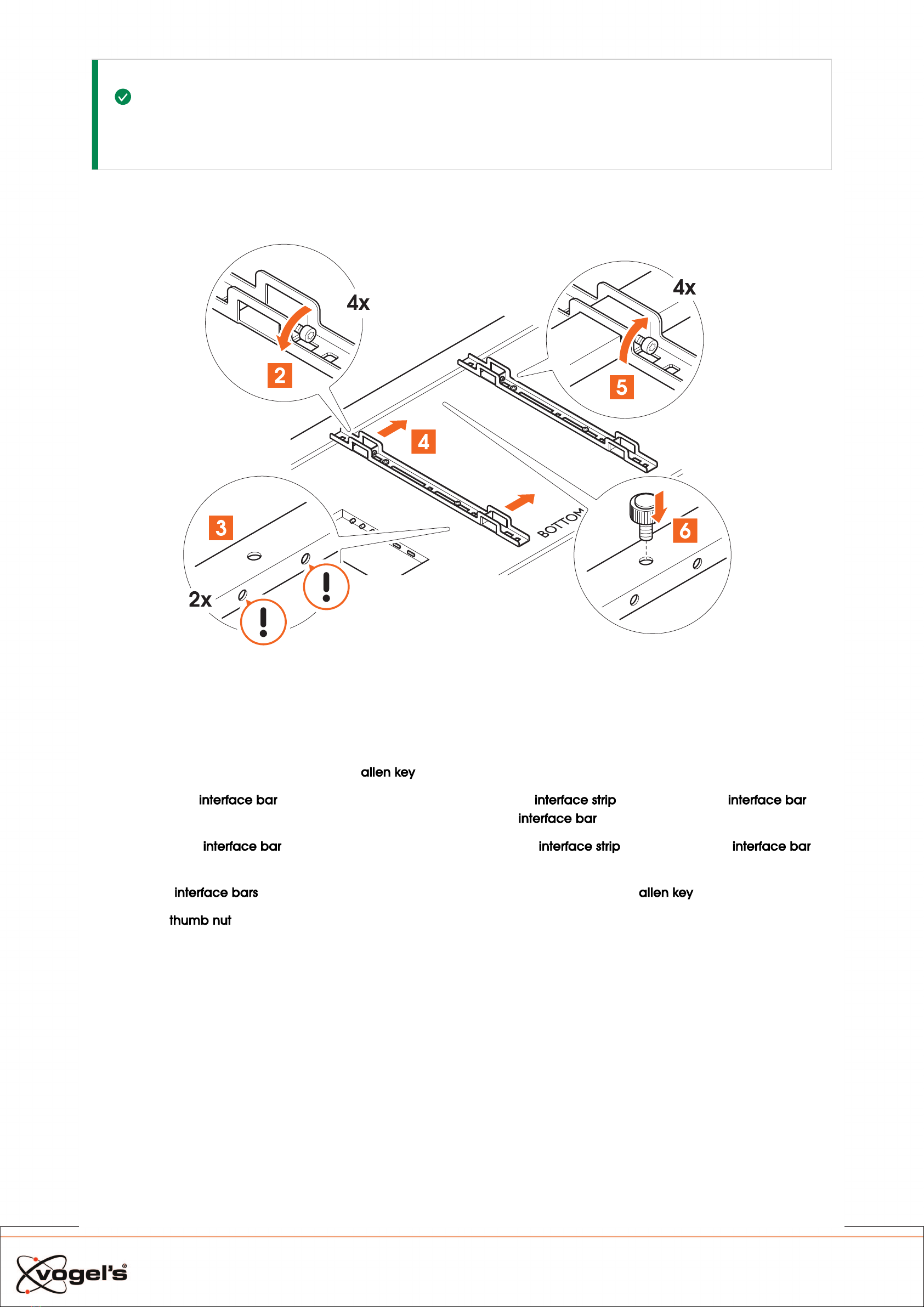

2. Loosen the pre-attached bolts Ⓒ with the allen key Ⓞ.
3. Slide the lower interface bar Ⓑ through the designated spacing of the interface strip Ⓒ. Make sure the interface bar Ⓑ
is placed in a centered position. Notice the holes on the side of this interface bar Ⓑ. They need to face downwards.
4. Slide the upper interface bar Ⓑ through the designated spacing of the interface strip Ⓒ. Make sure this interface bar Ⓑ
is also placed in a centered position.
5. Attach the interface bars Ⓑ to the strips by tightening the pre-attached bolts Ⓒ with the allen key Ⓞ.
6. Screw the thumb nut Ⓝ into the upper bar. Make sure you don’t screw it in completely, yet.
TVS 3695 English
7
Step 2: Install the floor stand
For this step you will need:
1x Wooden stand Ⓡ
1x Left foot Ⓢ
1x Right foot (with pre-attached bolts) Ⓣ
2x M8*20mm bolts Ⓜ
1x Steel bracket Ⓤ
1x Cover plate Ⓟ
1x Allen key Ⓞ

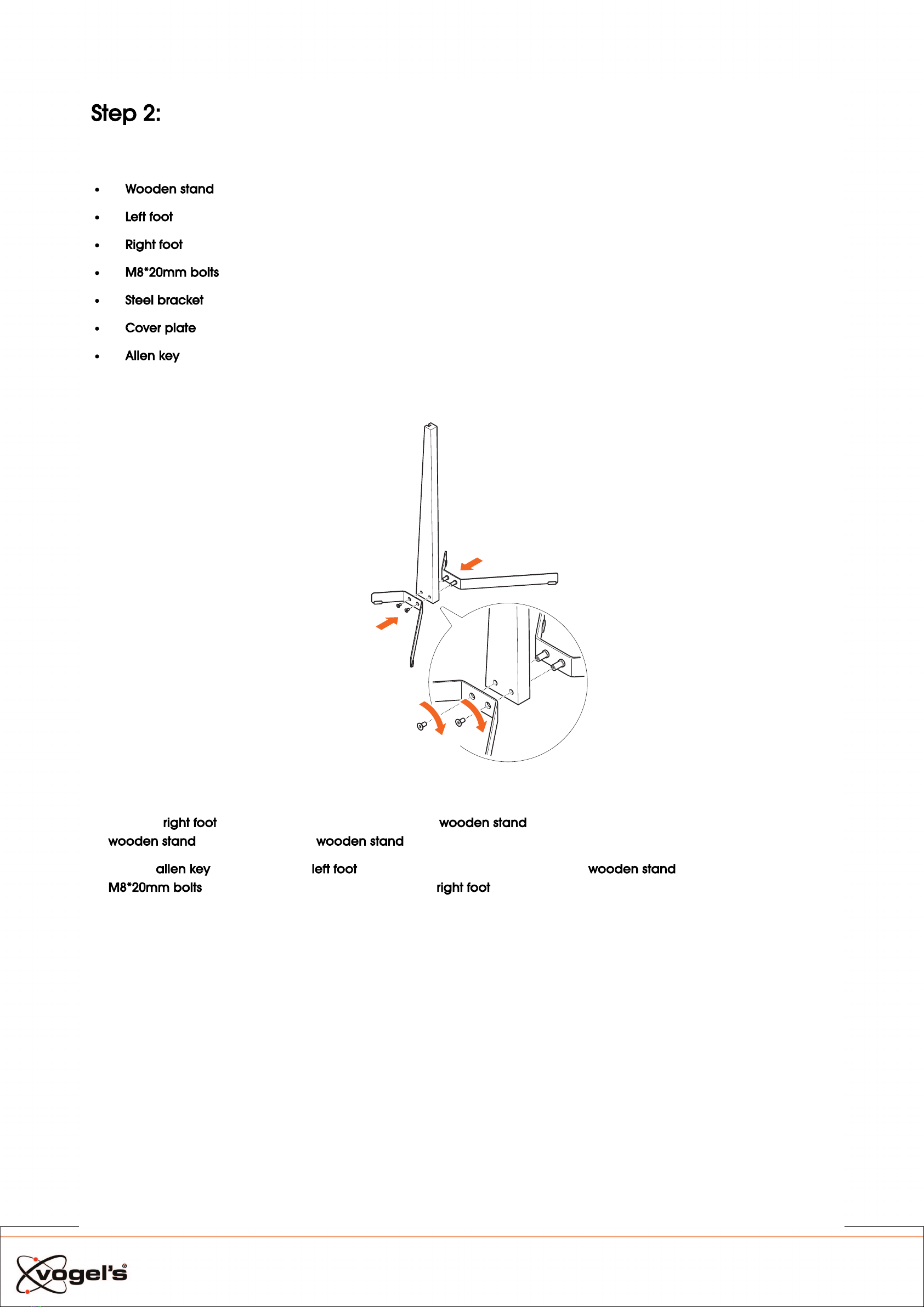

1. Slide the right foot (with pre-attached bolts) Ⓣ into the wooden stand Ⓡ. Make sure the longer leg is at the front of the
wooden stand Ⓡ. The back of the wooden stand Ⓡ includes a hidden notch for cable management.
2. Use the allen key Ⓞ to attach the left foot Ⓢ (without pre-attached bolts) to the wooden stand Ⓡ by screwing the two
M8*20mm bolts Ⓜ into the pre-attached screws of the right foot Ⓣ.
TVS 3695 English
8

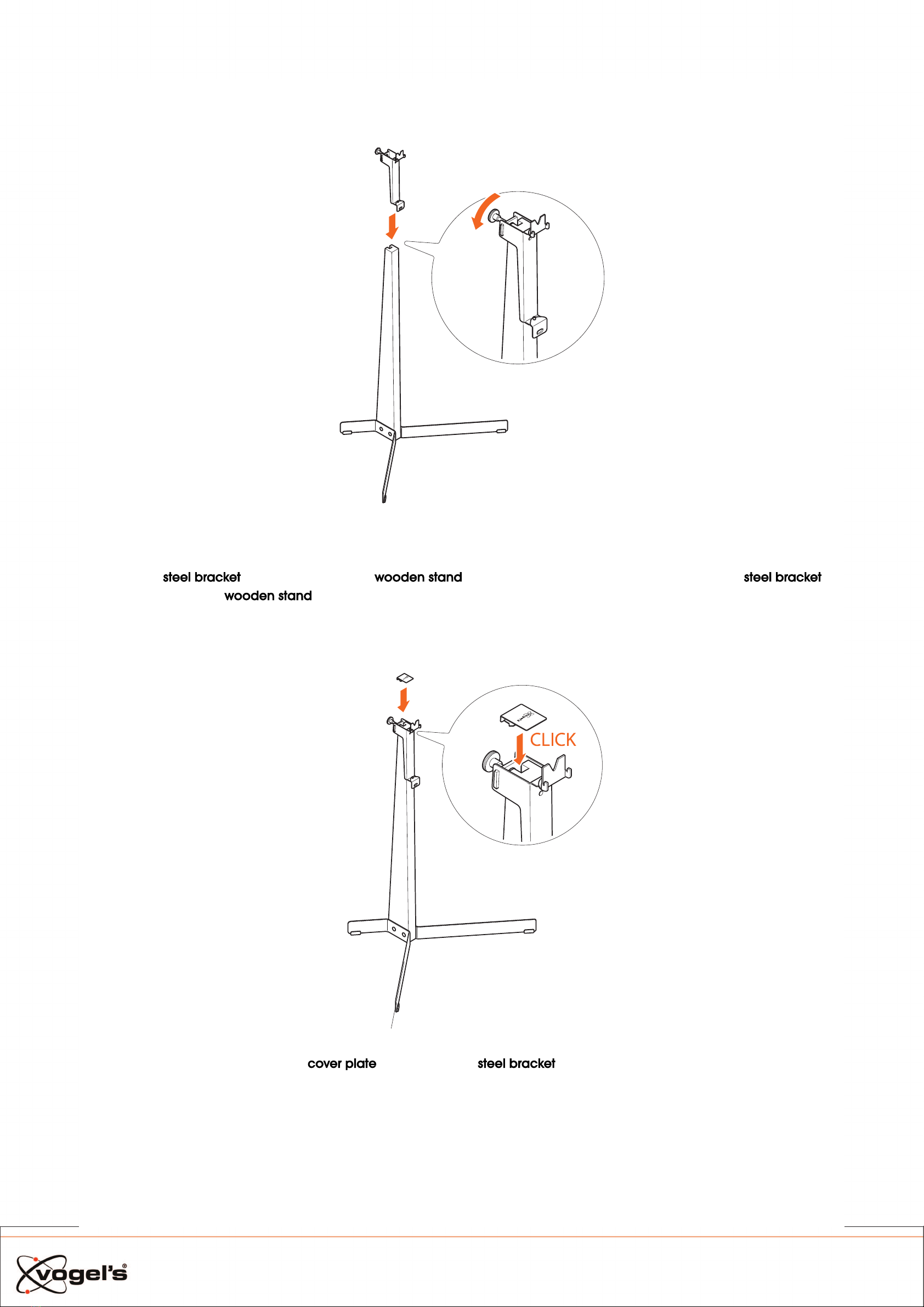

3. Slide the steel bracket Ⓤ over the top of the wooden stand Ⓡ. Use the knob (see illustration) to fasten the steel bracket
Ⓤto the top of the wooden stand Ⓡ.
4. Apply the click-on stainless-steel cover plate Ⓟ on top of the steel bracket Ⓤ.
TVS 3695 English
9
Step 3: Attach the TV to the floor stand
Lifting your TV is a two-person job. Don’t be bold!

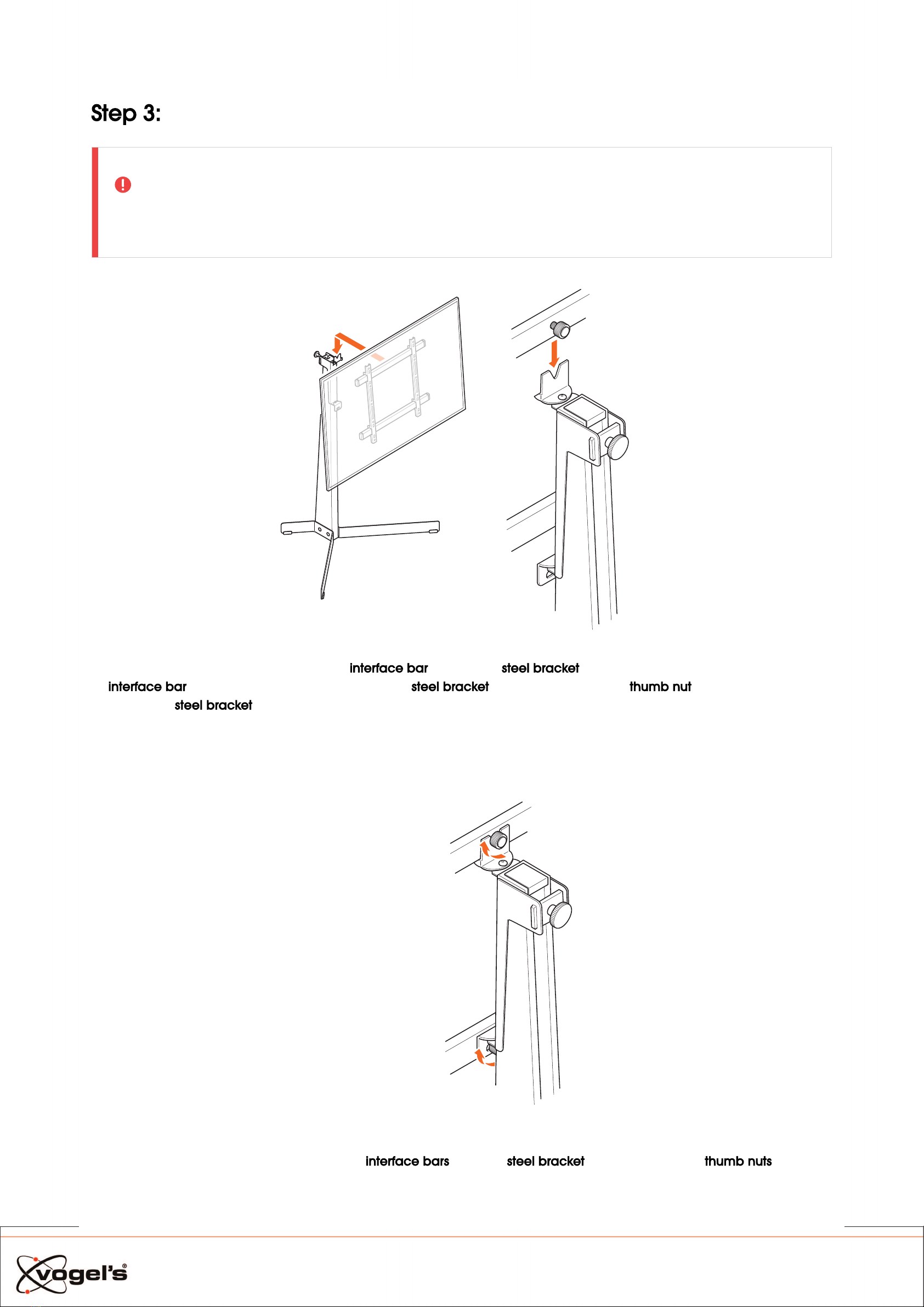

1. Carefully lift the TV and lower the upper interface bar Ⓑ onto the steel bracket Ⓤ. Make sure the holes in the upper
interface bar Ⓑ slide over the two clutches on the steel bracket Ⓤ. Also make sure the thumb nut Ⓝ slides into V-cut
part of the steel bracket Ⓤ.
2. When the TV is mounted, secure the interface bars Ⓑ to the steel bracket Ⓤ by fastening the thumb nuts Ⓝ.
TVS 3695 English
10
