Volt VFL-450X-BBZ Manuale utente

VOLT®Low Voltage Landscape Lighting

VOLT®12V LED Brass Flood Light with Yoke Mount

VFL-450X-BBZ

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

Package Contents

Parts Required

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

A. (1) Fixture body

A. (1) Mounting Accessory

B. (1) Coupler

www.voltlighting.com [email protected] • 813.978.3700

Important Safety Instructions

- 2 - - 3 -

VOLT®12V Brass Flood Light with Yoke Mount

VFL-450X-BBZ

C. (1) Hex Nut

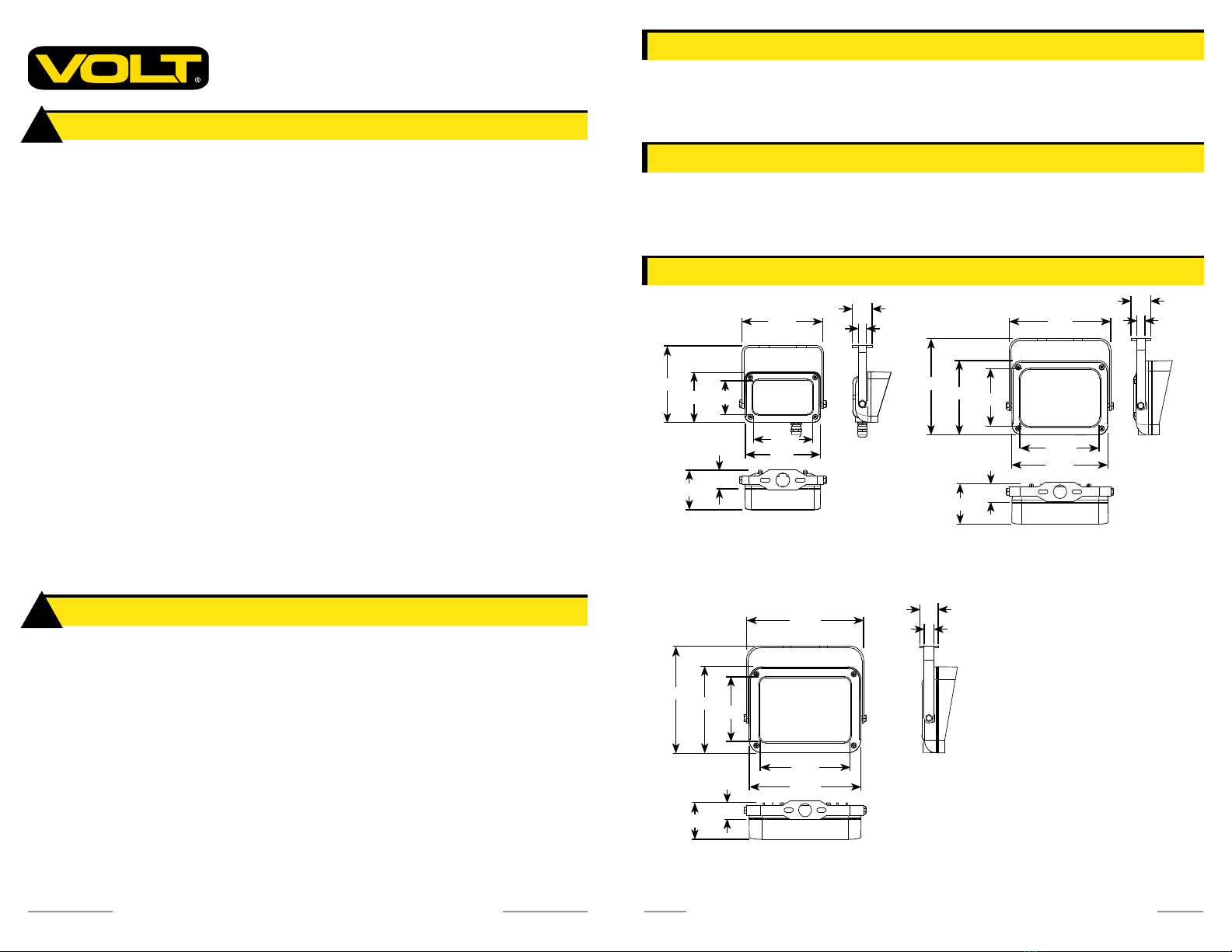

Product Dimensions

2.92”

4.45”

5.35”

6.65”

4.48”

5.81”

1.98”

4”

3.43”

1.1”

2.29”

2.41”

1.04”

2.28”

1.15”

4.5”

7.48”

7.12”

4.91”

3.55”

4.84” 6.3”

5.77”

5.94”

1.18”

0.47”

0.63”

0.55”

12VAC 12W 12VAC 17W & 22W

12VAC 27W

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 12V AC.

4. Wiring connections must be made with wire connectors that are suitable

for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

- 4 - - 5 -

VOLT®12V Brass Flood Light with Yoke Mount

VFL-450X-BBZ

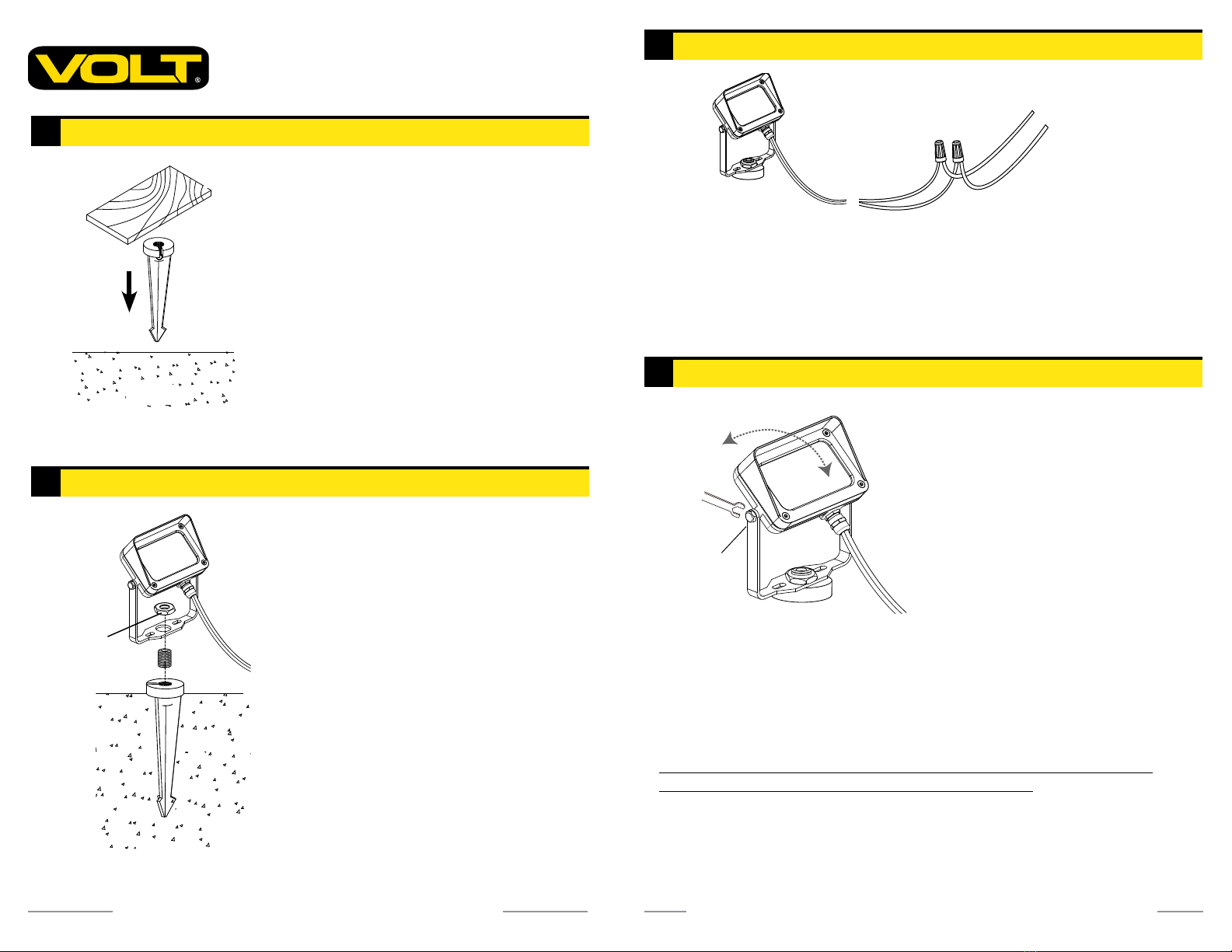

Install Stake

Install Fixture Body to Stake

Board

Ground

Soil

Stake

Adjust Fixture Body Direction

Wire Connections

Determine the desired location

for mounting the stake. Hammer

the stake into the ground until

ange of stake is ush to grade.

To avoid damage to the stake,

place a board on top of the stake

while hammering.

Note: If the ground is hard and

the stake is dicult to install,

make a crosscut in the ground

using a at shovel.

Ground

Fixture Body

Supply Wires

Hex Nut

Yoke Mount

Coupler

Soil

Stake

Thread the coupler onto the

stake. Place the yoke mount

of the xture body over the

coupler and secure with the

hex nut. Hand tighten until

snug.

Main Supply Cable

Fixture Wires

Wire Connectors

Strip both leads from the xture wires. Using two UL listed wire

connectors (sold separately), connect the leads from the xture wires

to the main supply cable leads.

Screw

Wrench

Rotate

Fixture Body

Adjust the xture body to the

desired orientation and tighten

the screws with the wrench.

After installation,

A. Check to make sure the xture is mounted properly.

B. Check to make sure the wires are connected properly.

Last, turn on the power and check if the lighting xture works. If not,

turn o the power and contact your local electrician.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

VOLT®12V Brass Flood Light with Yoke Mount

VFL-450X-BBZ

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VFL-450X-BBZ-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
