Volt VAL-2000-4-BBZ Manuale utente

VOLT®Low Voltage Landscape Lighting

VOLT® All-Star™ Spotlight

VAL-2000-4-BBZ

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®All-Star™ Spotlight

VAL-2000-4-BBZ

Important: Please Read Before Installation

IMPORTANT SAFETY INSTRUCTIONS

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situation.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact

www.voltlighting.com or call 1-813-978-3700.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

Package Contents

A. (1) Fixture

Parts Required

A. (1) MR16 Lamp (sold separately)

Product Dimensions

2.65”

2.6”

4.25”

1.56”

Remove Glare Guard and Shield from Fixture

Glare Guard

Lock Screw

Shield

Fixture

Unlock the lock screw and remove the

glare guard from the shield. Unscrew the

shield and remove it from the xture.

- 2 - - 3 -

INSTALLATION INSTRUCTIONS

www.voltlighting.com [email protected] • 813.978.3700

VOLT®All-Star™ Spotlight

VAL-2000-4-BBZ

Install MR16 Lamp

Install Glare Guard and Shield to Fixture

Insert the lamp with the correct

wattage and type as marked on the

xture label.

CAUTION: Do not exceed maximum

wattage marked on luminaire label.

NOTE: DO NOT touch lamp with bare

hands. Use soft cloth to handle lamp.

Screw the shield back onto the

xture. Pass the glare guard over

the shield and secure with the

lock screw. Tighten until snug.

Socket

MR16 Lamp

(sold separately)

Install/Replace Lamp

Remove the glare guard and the shield to expose the lamp and

replace it with the correct wattage and type marked on the xture

label. Then reinstall the shield and glare guard to the xture.

IMPORTANT: Halogen lamps must be protected from moisture and

dust at all times. Always reinstall shield when moved.

Wire Connections

Strip both leads from the xture pigtail. Using two wire

connectors (sold separately), connect the leads from the xture

to the main low voltage supply cable lead.

Pigtail

Main Supply Cable

Wire Connectors

Clear away an area in the

ground at the wireway slot

on top of the stake. Lay

the luminaire pigtail into

the wireway slot and screw

the xture onto the stake.

Tighten until snug.

Install Fixture to Stake

Fixture

Pigtail

Wireway Slot

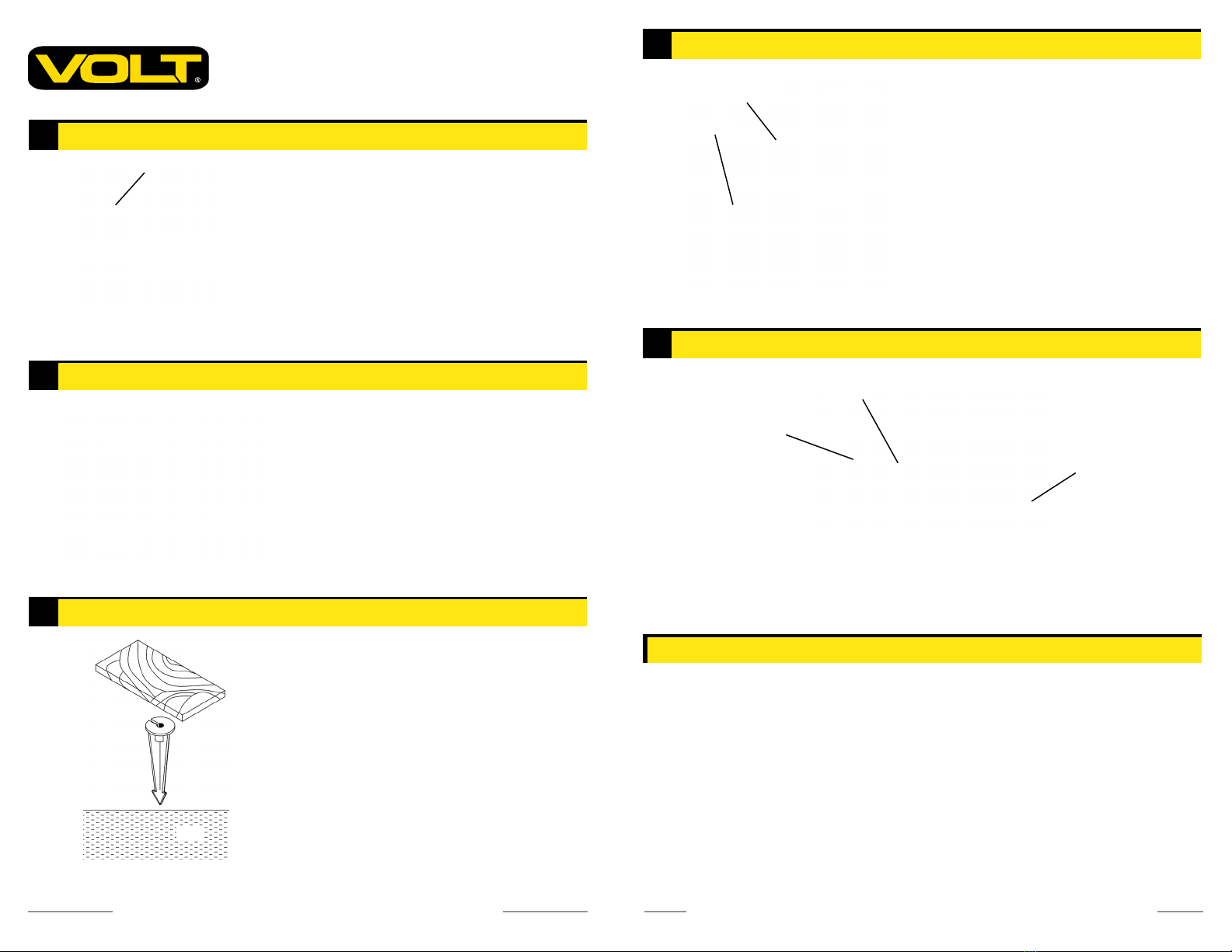

Install Stake

Board

Stake

Soil

Ground

Determine the desired location for

mounting the xture. Hammer the stake

into the ground until ange of stake is

ush to grade. To avoid damage to the

stake, place a board on top of the stake

while hammering.

NOTE: If the ground is hard and the

stake is difcult to install, make a

crosscut in the ground using a at

shovel.

Glare Guard

Lock Screw

Shield

Fixture

- 4 - - 5 -

www.voltlighting.com [email protected] • 813.978.3700

- 6 - - 7 -

is-val-2000-ver3.pdf

Specications and product details subject to change without notice.

reserved. [email protected] • 813.978.3700

www.voltlighting.com

- 8 -
