Volt VFL-4007-4-BBZ Manuale utente

VOLT®Low Voltage Landscape Lighting

VOLT®Wide Splash R7S Flood Light

VFL-4007-4-BBZ

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

7. If additional lengths of low voltage cable are required, please contact

www.voltlighting.com or call 1-813-978-3700.

www.voltlighting.com

Important Safety Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

- 2 -

VOLT®Wide Splash R7S Flood Light

VFL-4007-4-BBZ

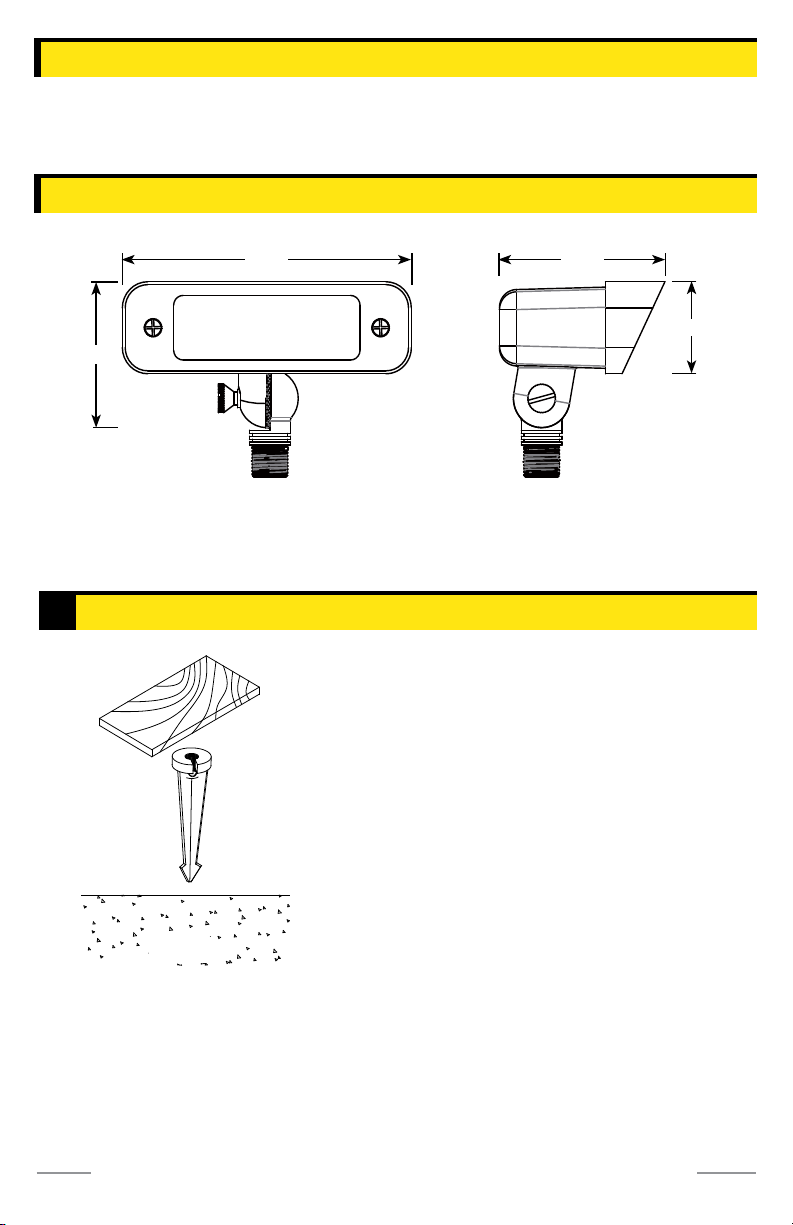

Package Contents

Product Dimensions

A. (1) Fixture Body

[email protected] • 813.978.3700

- 3 -

6.42” 3.75”

3.15”

2”

Install Stake

Determine the desired location

for mounting the xture.

Hammer the stake into the

ground until ange of stake

is ush to grade. To avoid

damage to the stake, place a

board on top of the stake while

hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 4 -

Install Fixture Body to Stake

Clear away an area in the

ground at the wireway slot on

top of the stake. Lay the supply

wires into the wireway slot and

screw the xture body on to the

stake. Tighten until snug.

Fixture Body

Ground

Supply Wires

Wireway Slot

Soil

Stake

Wire Connection

Strip both leads from the luminaire pigtail. Using two wire connectors

(sold separately), connect the leads from the luminaire to the main

supply cable leads.

Pigtail

Main Supply

Cable

Wire Connectors

VOLT®Wide Splash R7S Flood Light

VFL-4007-4-BBZ

[email protected] • 813.978.3700

- 5 -

Remove Glare Guard

Loosen the set screws and remove the glare guard from the xture body.

Fixture Body

Set Screw

Glare Guard

Install R7S Bulb

Insert the R7S bulb with the

correct wattage and type

marked on the xture label and

push into place.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

Bulb Base

R7S Bulb

Rotate

Before installing the glare guard back onto the xture, adjust the R7S

bulb.

Rotate the bulb inside it’s socket towards the back of the xture to

decrease the light output. To return to the normal lumen output, rotate

the bulb towards the lens.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

VOLT®Wide Splash R7S Flood Light

VFL-4007-4-BBZ

ROTATE

Adjust Fixture Direction

Fixture

Set Screw

Then place the glare guard back onto the xture body and secure with the

previously removed set screws. Hand tighten until snug.

Fixture

Body

Set Screw

Glare Guard

Install Glare Guard

Loosen the set screw and

adjust the xture to the

desired direction. Once the

desired direction is achieved,

tighten the set screw until

snug.

[email protected] • 813.978.3700

- 7 -

Install/Replace Bulb

Remove the glare guard to expose the R7S bulb and replace it

with the correct wattage and type marked on the xture label. Then,

reinstall the glare guard.

IMPORTANT: R7S bulb must be protected from moisture and dust at all

times. Always reinstall the glare guard when removed.

- 8 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VFL-4007-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
