Volt VPL-1012-BBZ Manuale utente
VOLT®Low Voltage Landscape Lighting
VOLT® Brass Regal Path & Area Light
VPL-1012-BBZ
INSTALLATION INSTRUCTIONS
Specications and product details subject to change without notice.
© Copyright 2019, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- 1 -
VOLT®Regal Path & Area Light
VPL-1012-BBZ
Package Contents
Product Dimensions
INSTALLATION INSTRUCTIONS
A. (1) Fixture Body
B. (1) Fixture Hood
www.voltlighting.com [email protected] • 813.978.3700
9”
3”
25.5”
C. (1) Inner Shade
D. (1) Stake
Parts Required
A. (1) LED Bulb
- 2 - - 3 -
Important: Please Read Before Installation
IMPORTANT SAFETY INSTRUCTIONS
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situation.
1. Make sure that the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M) or
more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with UL Listed wire connectors that are
suitable for outdoor use.
5. Position the low voltage wire and wire connector so that it is located
within 6 inches (15.2 cm) from a building structure, a luminaire or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm)
7. If additional lengths of low voltage cable is required, please contact www.
voltlighting.com or call 1-813-978-3700.
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damage shield.
SAVE THESE INSTRUCTIONS
!
!
INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT®Regal Path & Area Light
VPL-1012-BBZ
[email protected] • 813.978.3700
Install Fixture Body to Stake
5
Fixture Body
Stake
Pigtail
Wireway Slot
Remove Hat and Inner Shield
2
Remove the nial and the hat from the
inner shield. Pull the inner shield off of
the xture body to expose the socket.
Finial
Fixture
Body
Inner Shield
Install Lamp
3
Insert the bulb with the correct
wattage and type marked on the
xture label.
CAUTION: Do not exceed maximum
wattage marked on luminaire label.
NOTE: DO NOT touch bulb with bare
hands. Use a soft cloth to handle bulb.
Socket
Bulb

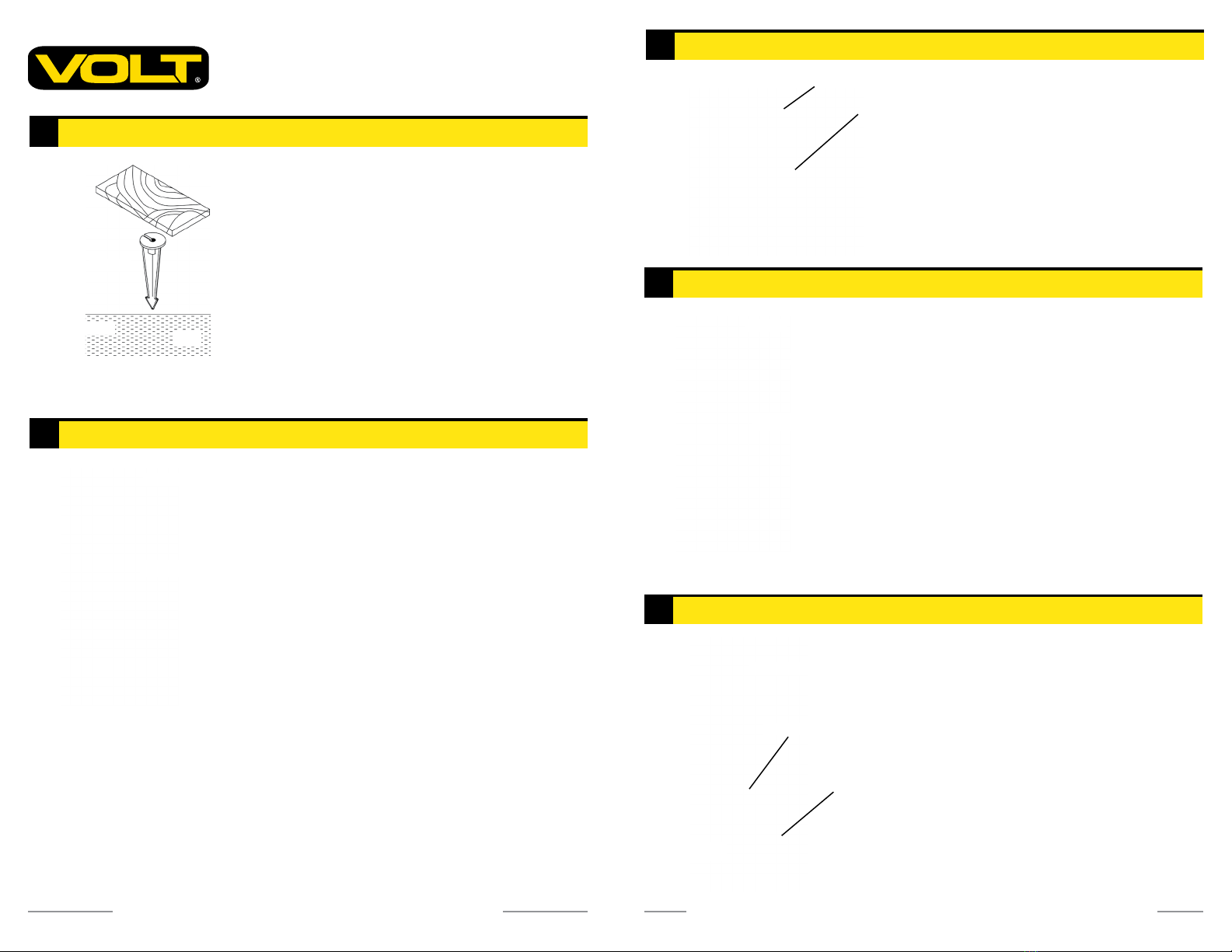

Install Stake
1
Board
Stake
Soil
Ground
- 4 - - 5 -
Install Hat and Inner Shield
4
Push the inner shade onto the xture
body. Place the hat back onto the
inner shield and secure with the nial
previously removed. Hand tighten.
Hat
Fixture
Body
Inner Shield
Determine the desired location for mounting
the xture. Hammer the stake into ground
until ange of stake is ush to grade. To avoid
damage to the stake, place a board on top of
the stake while hammering.
NOTE: If the ground is hard and the stake is
difcult to install, make a crosscut in ground
using a at shovel.
Clear away area in the ground at the
wireway slot on top of the stake. Lay
the luminaire pigtail into the wireway
slot and thread the stem into the
stake. Tighten to secure the base.
Hat
Finial
INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT®Regal Path & Area Light
VPL-1012-BBZ
Install/Replace Bulb
Please refer to Step 2 - Step 4 to expose the Lamp and replace it with the
correct wattage and type marked on the xture label.
IMPORTANT: LED Lamp must be protected from moisture and dust at all
times. Always reinstall lens when removed.
- 6 -
Wire Connection
6
Pigtail
Main Supply Cable
Wire Connectors
Strip both leads from the luminaire pigtail. Using two wire connectors
(sold separately), connect the leads from the luminaire to the main low
voltage supply cable leads.
- 8 -
Specications and product details subject to change without notice.
© Copyright 2019, VOLT® Lighting, Lutz FL USA 33549 • All rights
reserved. [email protected] • 813.978.3700
www.voltlighting.com
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
