Volt VAL-2102-0-BBZ Manuale utente
VOLT®Low Voltage Landscape Lighting
VOLT®Tri-Hub Ultra- Slim Brass Downlight
VAL-2102-0-BBZ
INSTALLATION INSTRUCTIONS
Specications and product details subject to change without notice.
© Copyright 2021, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
- 1 -
Important: Please Read Before Installation
INSTALLATION INSTRUCTIONS
!
www.voltlighting.com
Important Safety Instructions
!
- 2 -
VOLT®Tri-Hub Ultra-Slim Brass Downlight
VAL-2102-0-BBZ
This luminaire is intended for installation in accordance with local codes
and the National Electric Code (NEC). Failure to adhere to these codes and
instructions may result in serious injury, property damage and void the
warranty.
These instructions do not intend to cover all variations in installation,
operation maintenance or mounting situations.
1. Make sure the power is turned OFF before installing or servicing this
luminaire.
2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)
or more from pool, spa or fountain.
3. This luminaire is intended to be used only with a power supply
(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.
4. Wiring connections must be made with UL listed wire connectors that are
suitable for outdoor use.
5. Position the low voltage wire and UL listed wire connector so that it is
located within 6 inches (15.2 cm) from a building structure, a luminaire
or tting.
6. The main low voltage cable is intended for shallow burial - less than 6
inches (152 mm).
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
Lighted lamp is HOT!
WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.
1. Turn off/unplug and allow to cool before replacing lamp.
2. Lamp gets HOT quickly! Contact only switch/plug when turning on.
3. Do not touch the hot lens, guard or enclosure.
4. Keep lamp away from materials that may burn.
5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may
damage lamp.
6. Do not operate the luminaire tting with a missing or damaged shield.
SAVE THESE INSTRUCTIONS
Package Contents
Parts Required (sold separately)

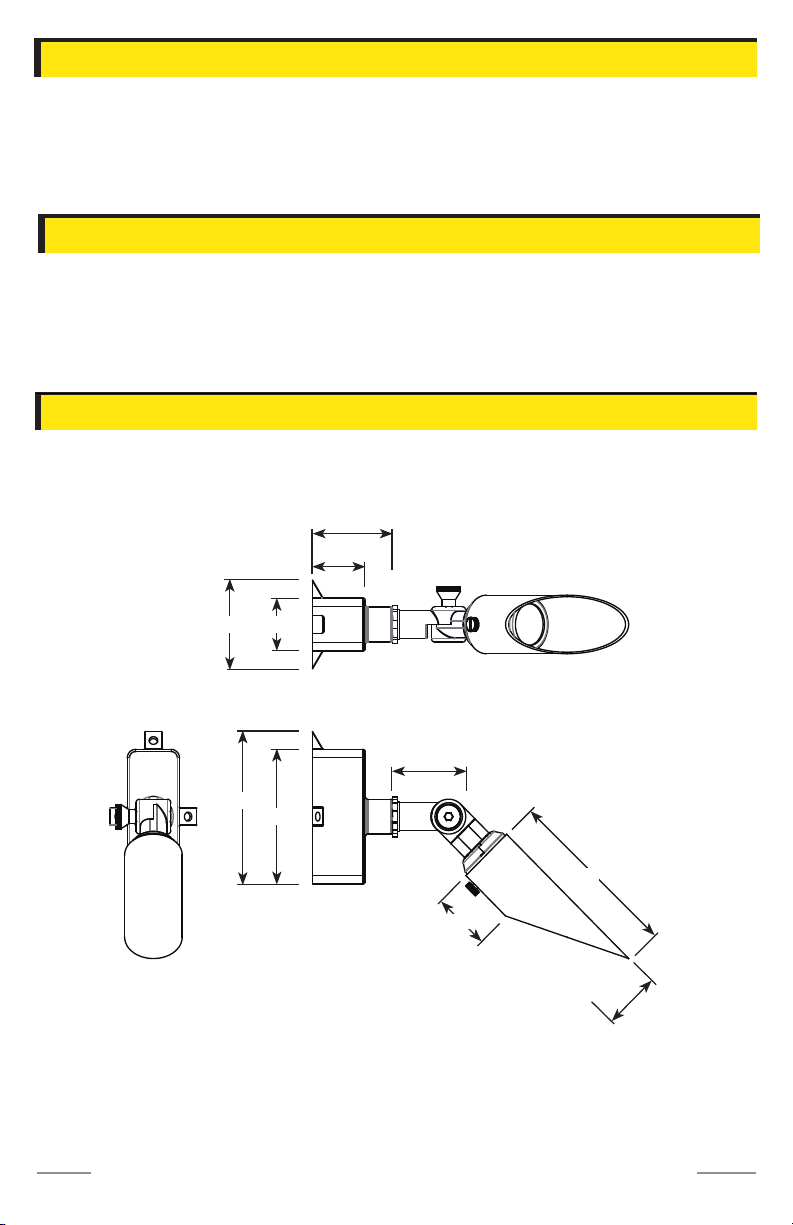

Product Dimensions
[email protected] • 813.978.3700
- 3 -
A. Fixture
B. Mounting Hardware
C. Tool
D. Grommet
A. (1) MR11 Bulb
1.5”
3.8”
1.5”
2.5”
4.3”
5”
1.6”
1.65”
2.3”
2.1”
INSTALLATION INSTRUCTIONS
www.voltlighting.com
- 4 -

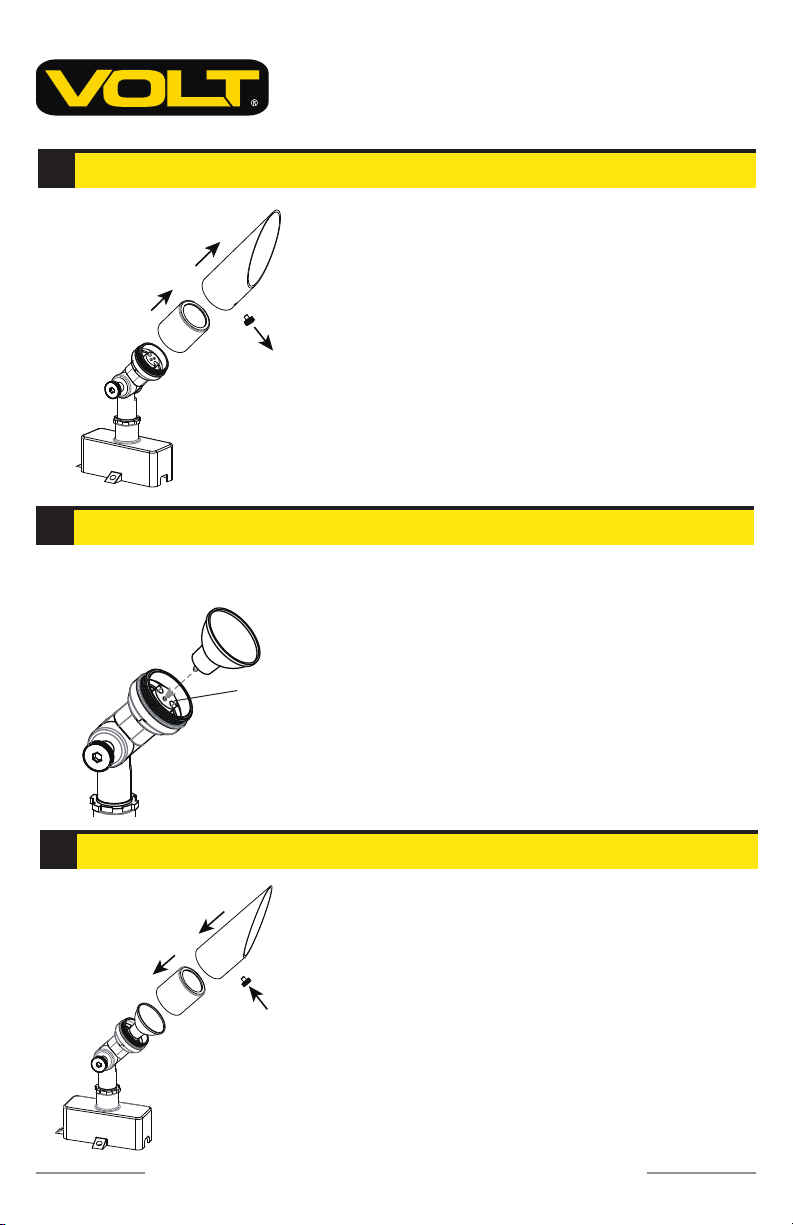

Remove Glare Guard and Lens
1
Bulb Installation
Install MR11 Bulb
2
VOLT®Tri-Hub Ultra-Slim Brass Downlight
VAL-2102-0-BBZ
Loosen the set screw to remove
the glare guard from lens.
Then unthread the lens and
remove it from the xture body.
Fixture Body
Lens Set Screw
Glare Guard
Insert the MR11 bulb with the
correct wattage and type marked
on the xture label and secure
into place.
CAUTION: Do not exceed
maximum wattage marked on
luminaire label.
MR11 Bulb
Socket
Bulb Installation
3
Install Lens and Glare Guard
Fixture Body
Lens Set Screw
Glare Guard
Thread the lens back onto the
xture body and hand tighten
until snug.
Place the glare guard back onto
the lens and secure by using the
previously removed set screw.
[email protected] • 813.978.3700
- 5 -
4
5
Remove Backplate
Take off the backplate from the
hub by removing the screws on
the back.
Hub
Screw
Backplate
Wire Connection
2nd Wire
Connection
Main Supply Cable
Backplate
Hub
Terminal Block
Terminal Block
Pass the main supply cable and 2nd wire connection through the center
hole on the backplate.
Strip the ends of both the main supply cable and 2nd wire connection
leads. Insert one side of the wire into one terminal block, then insert the
other side of the wire into the opposite terminal block.
INSTALLATION INSTRUCTIONS
www.voltlighting.com
- 6 -
6
7
VOLT®Tri-Hub Ultra-Slim Brass Downlight
VAL-2102-0-BBZ
Install Backplate
Hub
Screw
Backplate
Carefully tuck all the extra wire
inside of the hub and place
the backplate onto the hub.
Secure by using the previously
removed screws. Tighten with a
screwdriver.
Install Hub
Make sure the wire exit is facing
down when placing the mount
onto the surface. Secure using the
self-tapping screws.
Self-tapping Screw
Mounting
Surface
Cables
Wire Exit
Hub
[email protected] • 813.978.3700
- 7 -

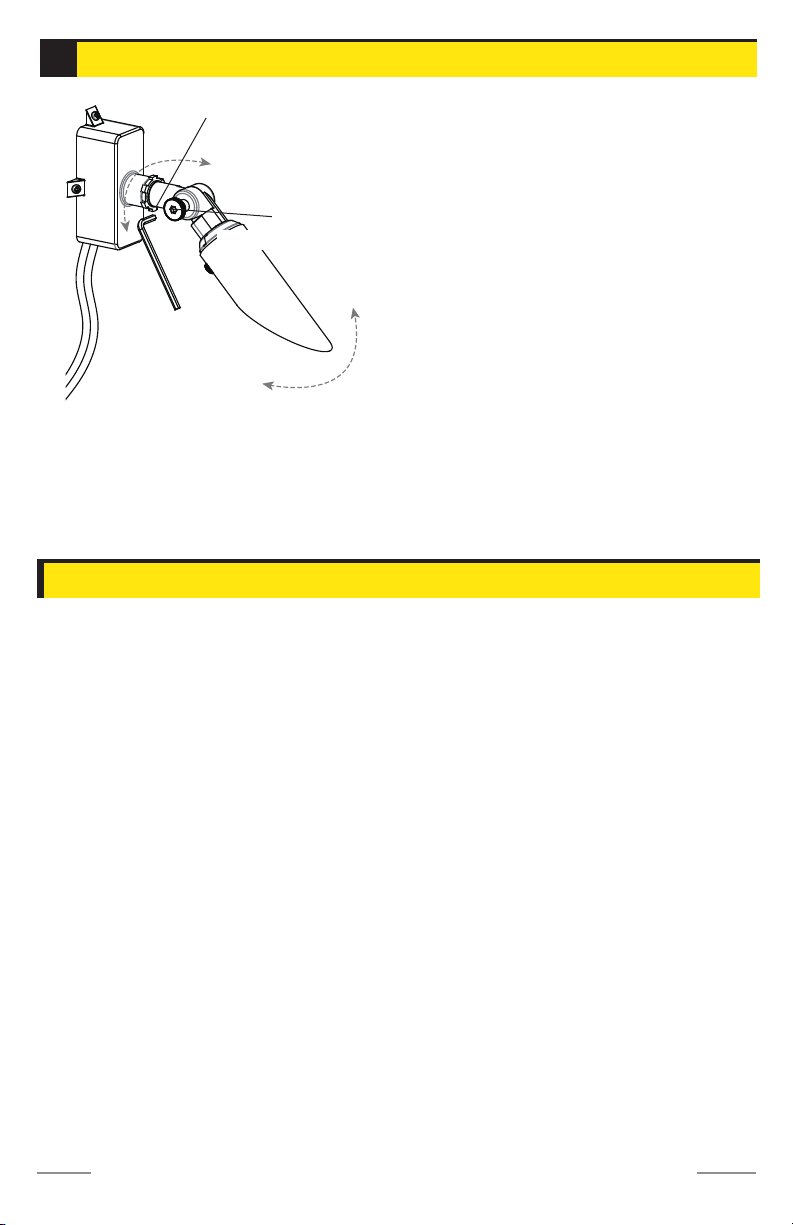

Adjust Lamp Direction
8
Install/Replace Lamp
Glare Guard
Allen
Wrench
Knuckle
Allen Screw
ROTATE
Using an Allen wrench, loosen the
knuckle and adjust the xture
up and down to your desired
direction.
Once your desired direction is
achieved, tighten the knuckle
with the Allen wrench into place.
Using a smaller Allen wrench,
loosen the smaller Allen screw
underneath the xture to rotate
the xture side to side. Do not
rotate 3600. Tighten the Allen
screw when the desired direction
is achieved.
ROTATE
Remove the glare guard and the lens to expose the MR11 bulb and replace it
with the correct wattage and type marked on the xture label. Then,
reinstall the lens and the glare guard.
IMPORTANT: MR11 bulb must be protected from moisture and dust at all
times. Always reinstall the lens and the glare guard when removed.
- 8 -
Specications and product details subject to change without notice.
© Copyright 2021, VOLT® Lighting, Lutz FL USA 33549 • All rights reserved.
[email protected] • 813.978.3700
www.voltlighting.com
IS-VAL-2102-0-BBZ-ver1.pdf
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
