VORON Mobius2 Manuale utente
!
EXTRUDER
VORON Mobius2
Part
Qty
625-2RS Ball bearing
2
BondTech Extruder Gears set
1
20T GT2 (5mm bore) Drive Pulley
1
40T GT2 (5mm bore) Drive Pulley
1
188mm 2GT 6mm belt loop
1
5mm x 50mm shaft
1
M3 x 6mm hex screws
2
M3 x 8mm hex screw
2
M3 x 10mm hex screw
4
M3 x 12mm hex screw
3
M3 x 20mm hex screw
1
M3 x 30mm hex screw
4
M3 hex nut
10
M3 hex locknut
2
1/8 BSP Bowden connector
2
NEMA17 Stepper Motor
1
Astrosyn NEMA17 Vibration Dampener
1
BILL OF MATERIALS
!
M3 hex nut

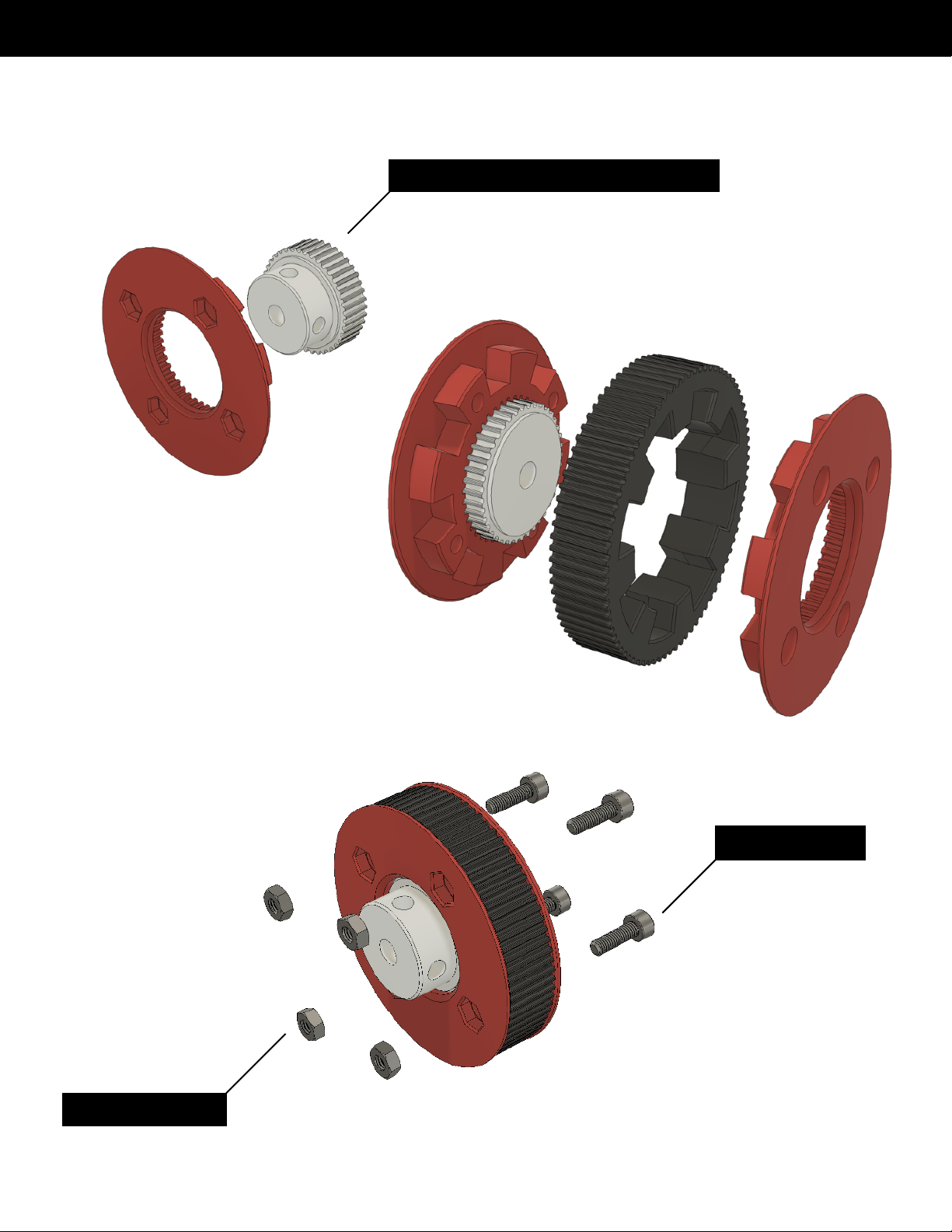

40T GT2 Pulley [ Remove flanges ]
ASSEMBLY

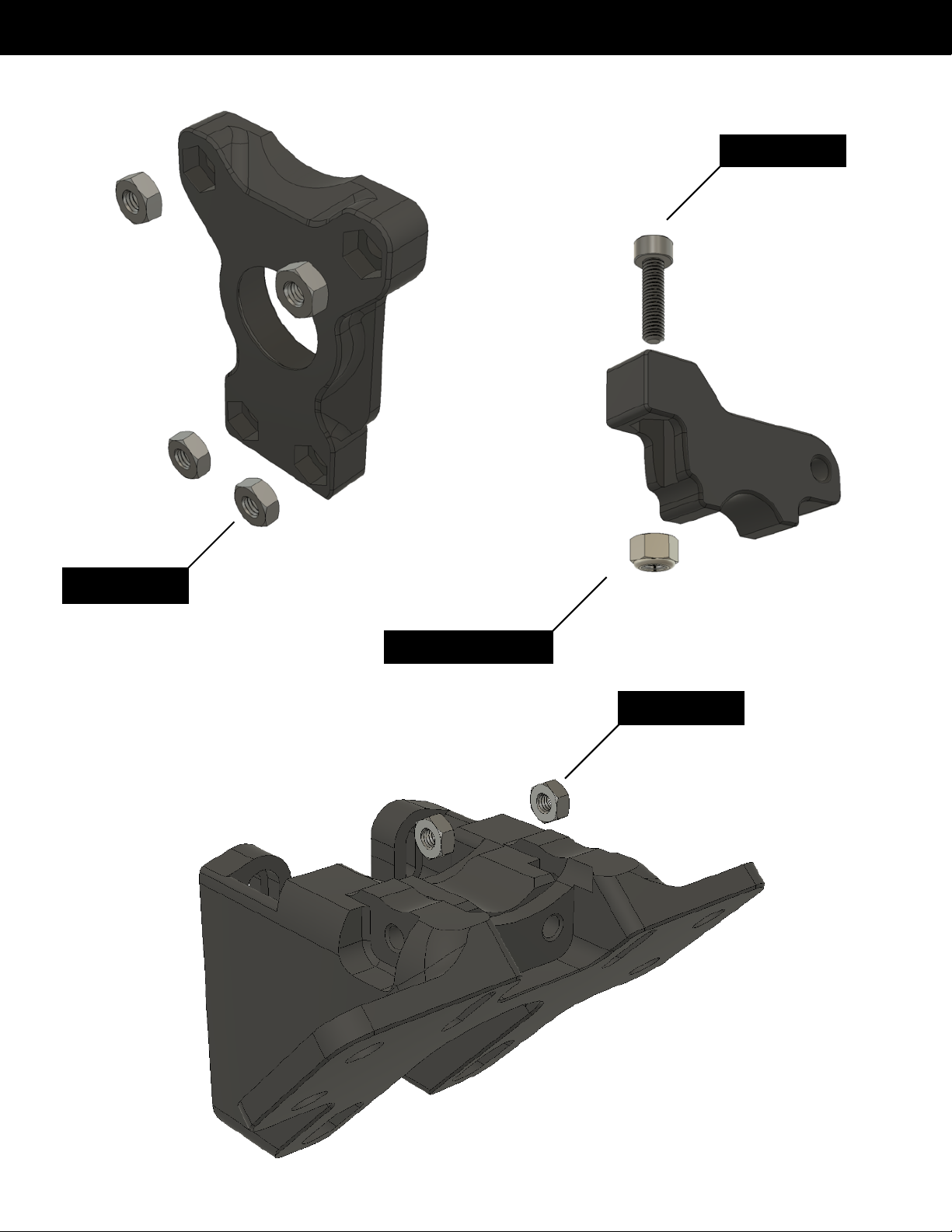

M3 x 10mm
M3 hex nut
M3 hex locknut
M3 x 12mm
M3 hex nut
ASSEMBLY
!
5mm x 50mm shaft
625-2RS Ball Bearing [ Both sides ]
BondTech Drive gear
ASSEMBLY
BondTech Idler gear
M3 x 20mm
M3 hex locknut
ASSEMBLY
Ensure filament can move freely
!
188mm GT2 Belt loop
ASSEMBLY
M3 x 30mm
!
M3 x 30mm
Astrosyn Dampener
M3 x 6mm
ASSEMBLY
M3 x 8mm
!
M3 x 12mm
Bowden connector [1/8 BSP]
GT2 20t pulley
ASSEMBLY
Lock / Unlock for filament loading
Adjust filament tension
OPERATION
