TURNTABLE WITH AUX/BLUETOOTH USB RECORDING FUNCTION
BV-T002
INSTRUCTION MANUAL
OPERATING INSTRUCTIONS
PLEASE READ OPERATING INSTRUCTIONS CAREFULLY
BEFORE USE AND KEEP FOR FUTURE REFERENCE.
2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning bolt with an arrowhead within a triangle indicates the presence of uninsulated
dangerous voltage within the product enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within a triangle indicates the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the unit.
WARNING:
1. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
2. To avoid any damage, do not force the cover into position.
CAUTION!
Visible and invisible laser radiation when open and with interlocks disabled. Avoid direct exposure to
beam.
ACCESSORIES INCLUDED
1. AC adaptor
2. User manual
3. Aux in cable
PARTS / BUTTONS

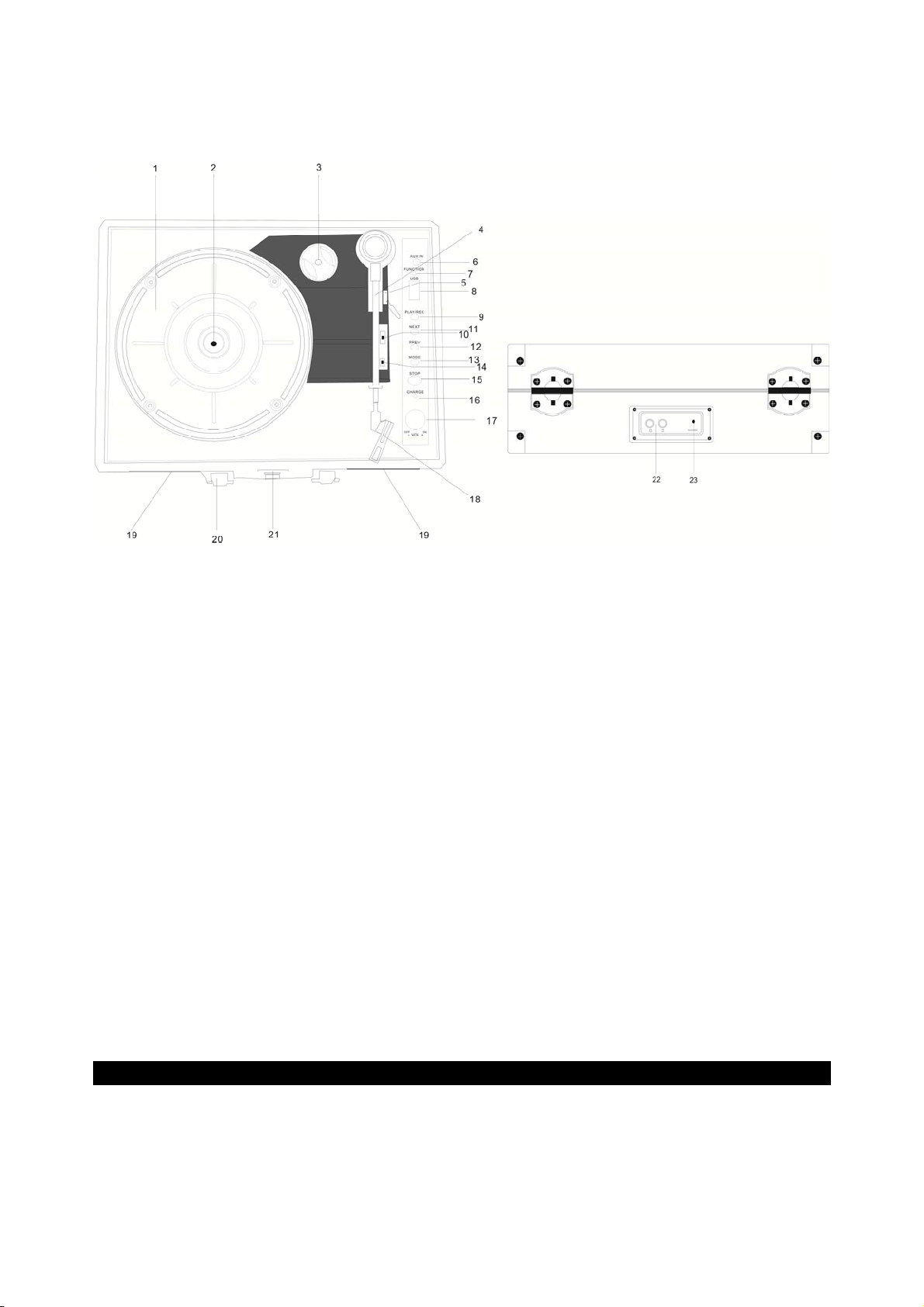

MAIN UNIT
3
1. Turntable platter
2. Turntable Shaft
3. 45 RPM Adaptor
4. Tone arm
5. Lift lever
6. Aux in jack
7. Power and function LED indicator
8. USB socket
9. Play & REC button
10. Auto stop on/off switch
11. Next button
12. PREV button
13. Function mode selection
14. Speed control selection
15. Stop button
16. Charging battery led light indicator
17. Power/volume control knob
18. Stylus(needle)cartridge
19. Buit-in speaker
20. Handle
21. Lock
22. RCA line out L/R
23. DC in power jack
GETTING STARTED
POWER SUPPLY
AN AC-DC Adaptor with the output 5V DC 1A (included)is required for operating the main unit .To connect
the AC-DC Adaptor to the unit and 120V~60Hz AC outlet:
4
1. Firmly and securely insert the DC plug of the adaptor to the DC IN JACK on the back of the unit.
2. Plug the adaptor’s AC plug into a power outlet rated at 120V AC~60Hz.
Rotate the POWER/VOLUME ON/OF SWITCH clockwise to turn on the system. The power indicator
Will light on.
Built-in battery charging
Once the adaptor plugged, the built-in battery LED indicator will lights up in Red color.
Once the battery is fully charge,the LED indicator light will off.
OPERATING THE GRAMOPHONE
Before use, please make sure to:
- Remove the stylus protector.
- Ensure the tone arm is free to move from the tone arm rest. Lock the tone arm in place again when not in
use.
Listening to records
1. Set the MODE selector (13) on the PHONO position and lift the turntable dust cover
2. Place a record on the turntable, over the central spindle. Place the EP adapter over the central spindle
when playing 17cm EP records.
3. Set the Speed selector (14) to 33, 45 or 78 rpm depending on the record.
4. Lift the tone arm from the tone arm rest by using the Lift lever (5) and slowly move it over the record. The
Turntable platter (1) will start turning.
5. Place the tone arm (4) on the desired position of the record.
6. Gently lower the tone arm onto the record to start playing.
7. When the record is finished the tone arm will automatically stop. Lift the tone arm from the record and put it
back on the rest.
8. To stop manually, lift the tone arm from the record and return it to the rest.
Note: Do not stop or turn the platter manually.
Moving or jarring the turntable without securing the tone arm clamp could result in damage to
the tone arm.
Replace the protective cap on the stylus when not in use.
AUTO-STOP SWITCH OPERATION
Certain types of records may have an auto-stop area outside the pre-set limit, so the turntable may stop
before the last track finishes. If this occurs, set the AUTO-STOP switch (10) to the OFF position. This allows
the record to play to the end, but please note that it will not stop automatically. You must manually raise the
tone arm and place it back in the rest and then turn the power OFF to stop the turntable from spinning.
LINE-OUT CONNECTION
You can connect this unit to an external stereo system or amplifier by connecting the RCA LINE-OUT jacks
(22) to the auxiliary input jacks on your stereo or amplifier with RCA cables (not included).
Note: The unit’s Volume Control (17) will not adjust the volume when line-out jacks are in use.
5
OPERATING THE BLUETOOTH
AN external device with Bluetooth connectivity can be wirelessly connected to this apparatus
using the bluetooth function.
1. Set the MODE selector (13) on BT function the blue light will begin to flash.
2. Turn your external device’s Bluetooth setting on, wait a moment, and then look for the Bluetooth
pairing name ”BV-T002”.
3. Select the Bluetooth pairing name,to connect the unit.Once connected,the blue light will stop
flashing.
4. After initial pairing, the unit will stay paired unless unpaired manually by the user or erased due
to a reset of the device. If your device should become unpaired or you find it is unable to connect,
repeat the above steps.
5.Rotate the volume control knob to adjust the sound level.
AUXILIARY INPUT
1. Set the MODE button (13) on Aux position and then use an audio cable (not included) with a 3.5 mm
stereo plug on each end of the cable.
2. Plug one end of the cable into the LINE IN jack (6) on the center board of the unit and the other end
into the Line-out jack or Headphone jack of your external audio device to be able to listen to the external
source through that system’s speakers.
3. The volume level can now be controlled through the main unit. Operate all other functions on the
auxiliary device as usual.
Note:
If the Line-Out jack of your external device is connected, you only need to adjust the system’s volume
control. If your external device’s Headphone jack is connected, you may need to adjust the volume control
on both your external device and this system to achieve the desired volume.
LISTEN TO THE DEVICE USB
1. Connect the USB device containing MP3 player to the USB port.
2. When the units is on,repeatedly press MODE button to select the USB mode until function indicator
light becomes purple.
3. Press PLAY/REC to start playback,indicator purple turns red with flashing.
4. Adjust the volume control to the desired level.
5. Press NEXT to the skip forward to the next track or repeatedly to several tracks.Press PREV return to
the beginning of the track ,or press repeatedly to skip backwards several tracks.
6. Press stop to stop the USB playback.
Removing the USB device
Please be sure to stop playback and turn the unit OFF before removing the USB to avoid damage
the USB and system.
ENCODING FROM PHONE,AUX-IN TO USB
1. Connect the USB device to the USB port( Make sure the USB device have enough space to save the
encoding).
2. Select one of your favourite mode (PHONO or AUX IN) and start your mode playback.
3. Press PLAY/REC for two seconds until function RED light indicator flashing ,then recording starts.
4. Press STOP to stop encoding.
5. To listen the recording,repeatedly press MODE to select the USB mode until function indicator
become PURPLE.
6. Press PLAY/REC to listen,indicator light turns red with flashing.
7. Press STOP to stop playback.
6
NOTE:Due to many different types of USB is available in the market place,not all USB memory
sticks are supported. If you experience any issues such as files not recording or music
skipping ,try a different type of USB memory stick.
TROUBLESHOOTING GUIDE
Problem Possible cause Solution
The unit does not
respond (no power)
The unit is disconnected from
the AC outlet.
The AC outlet has no power.
Connect to the AC outlet.
Try the unit on another outlet.
No sound
Volume not adjusted.
Wrong source selected.
.
Device not turned ON.
Volume set too low.
Adjust the volume level.
Select the correct source.
Turn ON the device.
Press the Volume + button to turn
the sound level up.
Sound is distorted Volume level is set too high. Decrease the volume.
Unit becomes warm
after extended play
at high volume.
This is normal. Turn the unit off for some time or
lower the volume.
Specifications
AMPLIFIER
Outputpower……………………………………………..…2W+2W
Frequencyresponse………………………………………60TO20,000Hz
GRAMOPHONE
Motor……………………………………………………….… DCservomotor
Drivesystem………………………………………………… Beltdrive
Speed………………………………………………………….. 33‐1/3rpm,45rpmand78rpm
Wow&Flutter……………………………………………….Lessthan0.35%(WTD)
SNR…………………………………………………………... Morethan35dB
Cartridgetype……………………………………………… Ceramicstereocartridge
Outputlevel………………………………………………… 1KHz‐1200mV
SPEAKERSYSTEM
Impedance………………………………………………… 4ohm
Inputpower………………………………………………. Max.3W
7
GENERAL
Powerrequirements……………………………………. AC100/240V~50/60Hz
Powerconsumption………………………………………6W
Dimensions(LxDxH)…………………………………….. 18.5'' x 15.0'' x 9.6''
Standardaccessories………………………………….. Instructionmanual
ACadaptor
Don’t discard electrical and electronic appliances with regular waste.
Take them to an official collection point.
Some components may be hazardous to health and the environment.
Notes:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna. -- Increase the separation
between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
This device and its antenna(s) must not be co-located or operation in
conjunction with any other antenna or transmitter.
