Wali GSMP001 Manuale utente

INSTALLATION MANUAL

[email protected]

75x75/100x100 32"

MAX 2 9kg

(4.4~19.8lbs)

RATED

GSMP001

Single Monitor Desk Mount

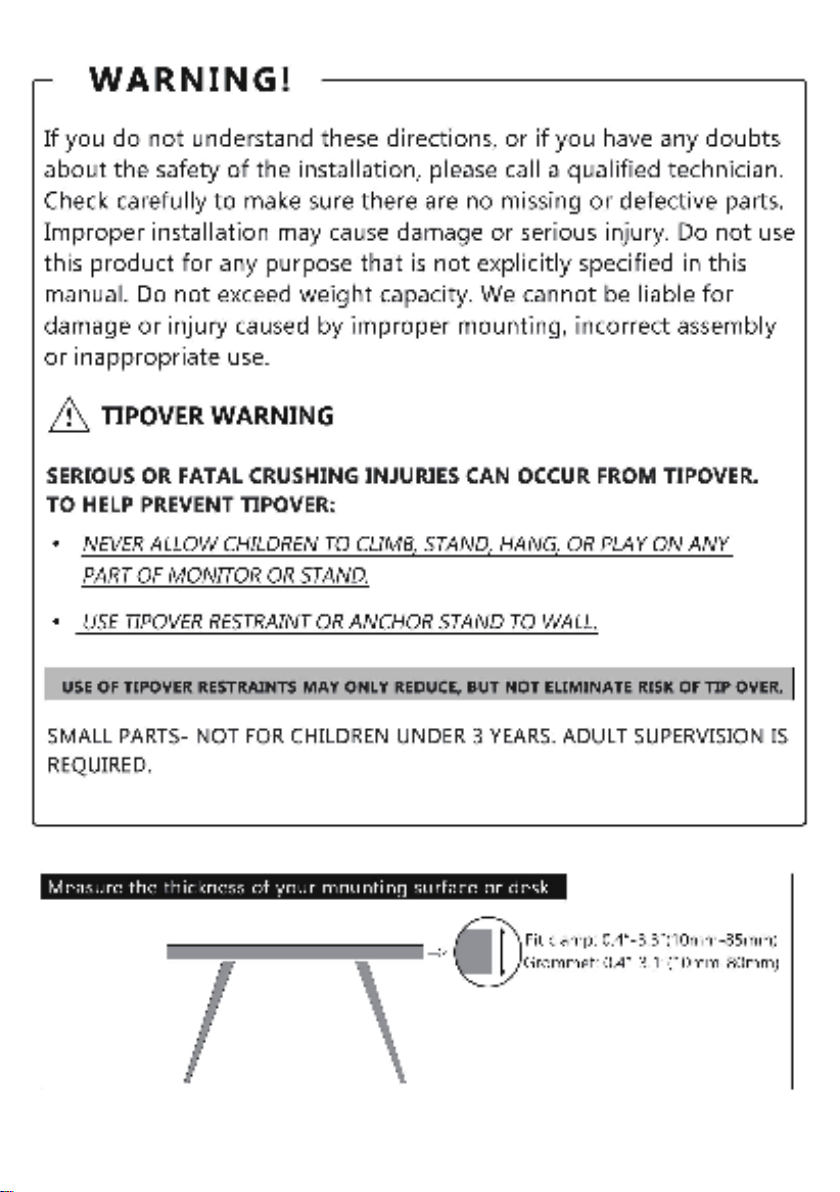

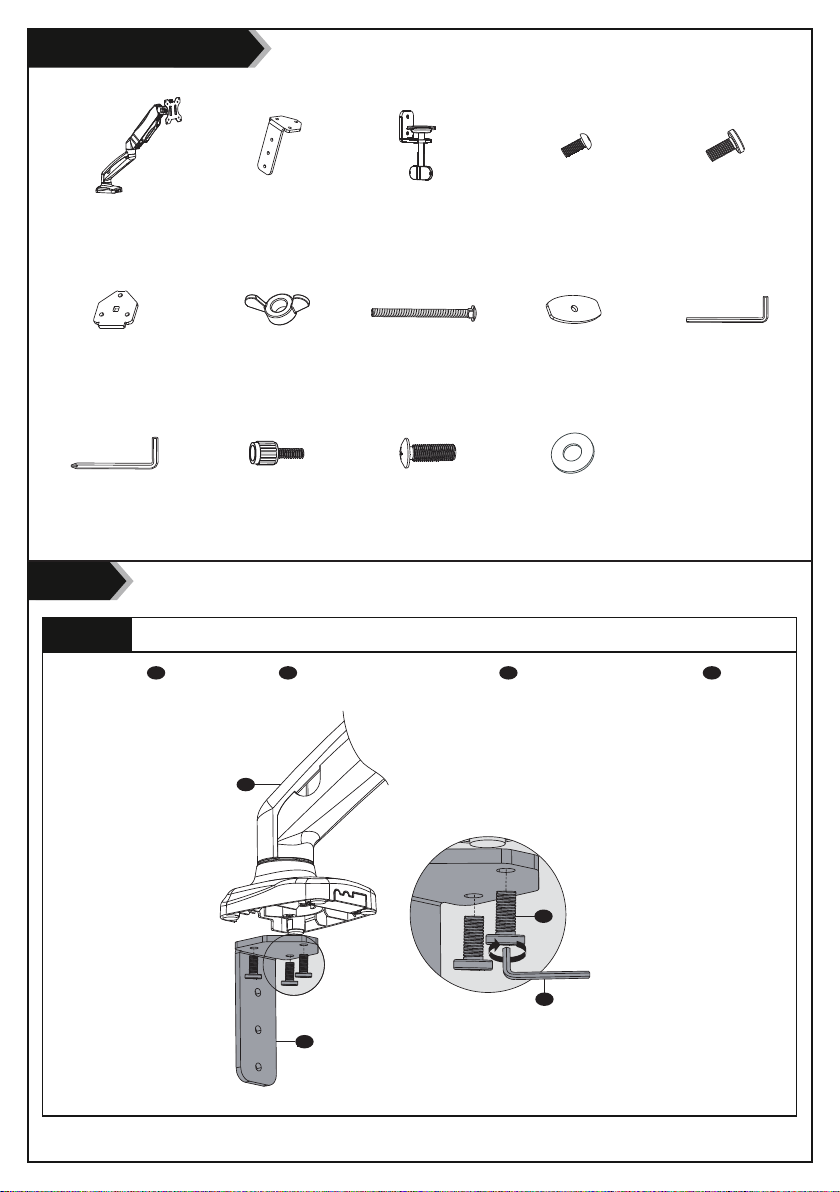

Supplied Parts List

Arm

A(x1)

Metal Pad

F(x1)

Nut

G(x1)

C-Clamp Brace

B(x1)

C-Clamp

C(x1)

Bolt

H(x1)

Allen Key 4mm

J(x1)

Support Plate

I(x1)

Allen Key 5mm

K(x1)

M4x12 Bolt

M-A(x4)

M5x12 Bolt

M-B(x4)

M6x10 Bolt

D(x2)

M6x12 Bolt

E(x3)

D5 Washer

M-C(x4)

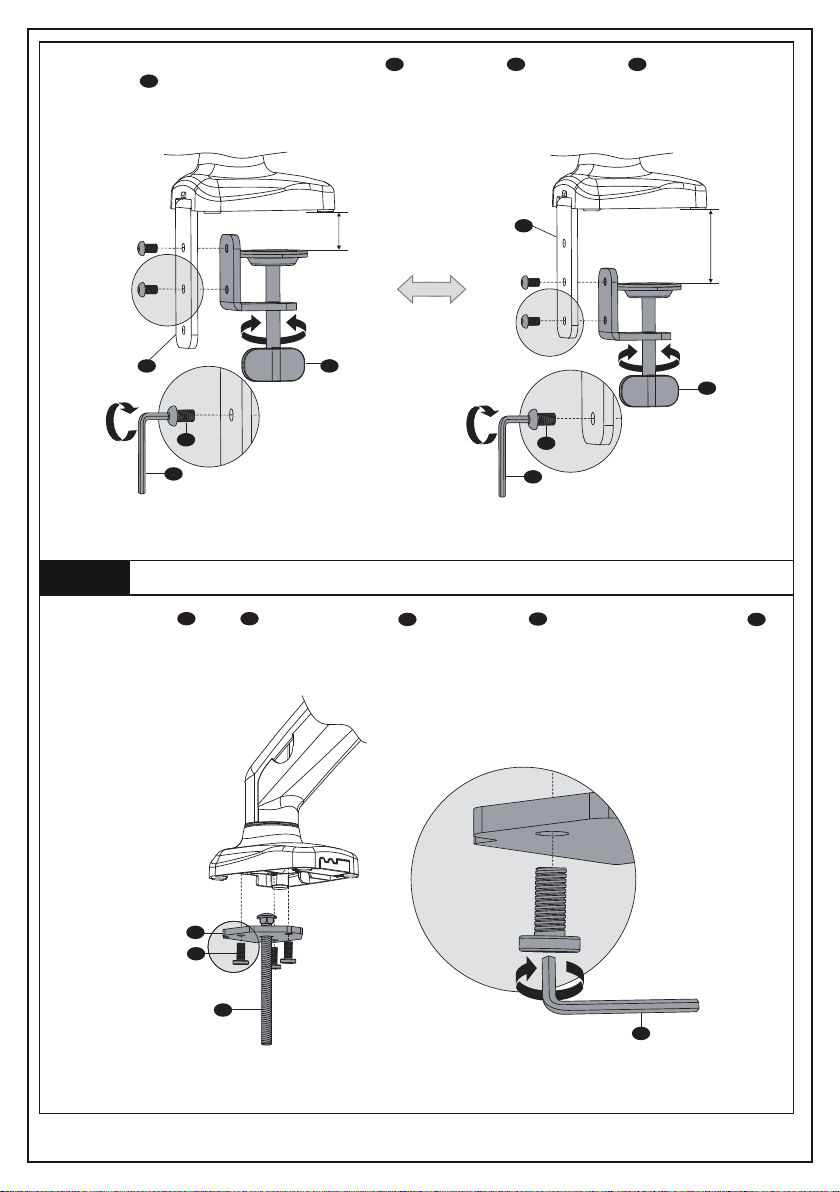

Step 1

Option A

Clamp Installation

1. Connect Arm Aand C-Clamp Brace Bfrom the bottom using M6x12 Bolt Eand tighten with Allen Key 4mm J.

1. Attach Metal Pad F& Bolt Hto the bottom of Arm Ausing M6x12 Bolt E, tighten up with Allen Key 4mm J.

2"-3.3"

2. Select the preferred height firstly and connect C-Clamp Cto C-Clamp Brace Busing M6x10 Bolt Dand tighten with

Allen Key 4mm J.

0.4"-2.2"

Option B

Grommet Base Installation

ø 10mm

(ø ")3/8

Step 2.1

Select TV Screws

Step 2.2

Step 2.3

Step 2

0.4”-3.3”

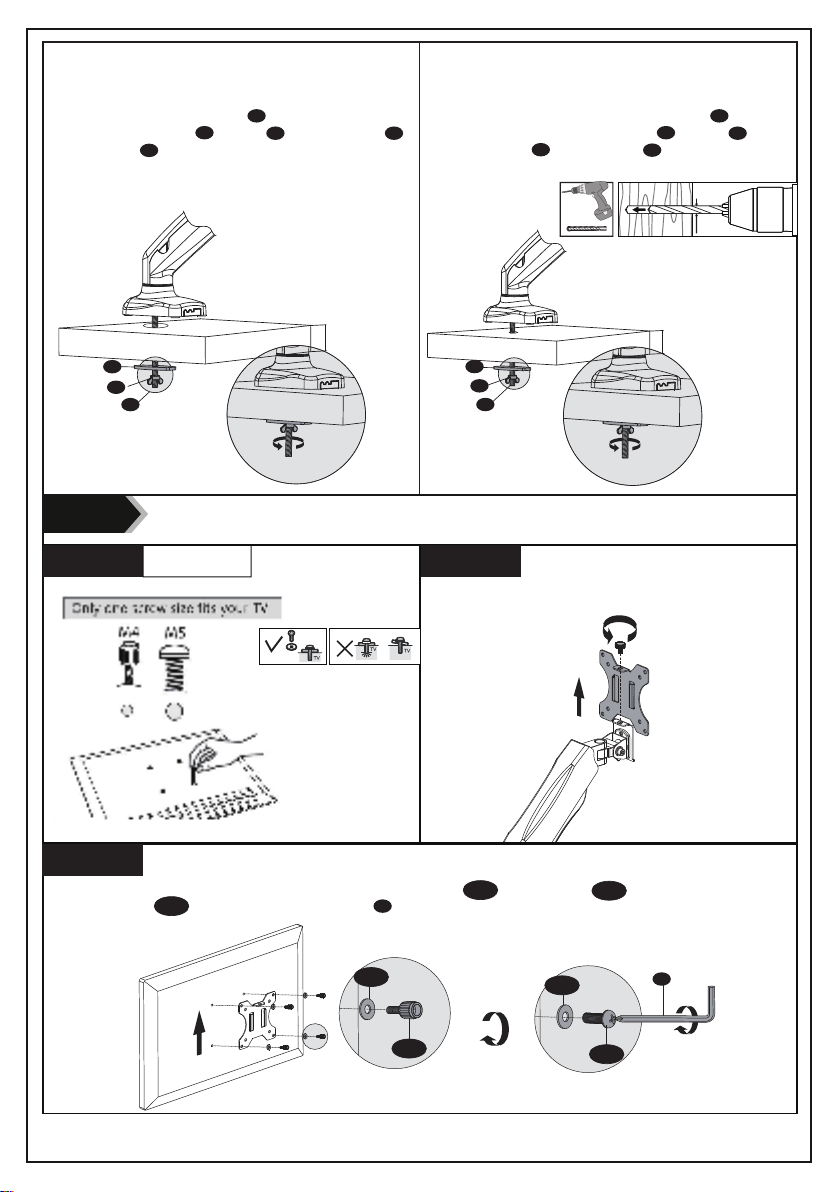

If the existing grommet hole comes with a plastic protector,

remove it to ensure a flat surface before installing the desk

mount. Insert the assembled Bolt H through the desk hole,

guide the Support Plate Iand Nut Gthrough the Bolt H,

rotate the Nut Gclockwise to fasten for stability.

2a Existing Grommet Hole Installation

Mark the position of the hole on your mounting surface. Drill

a 3/8"(10mm) diameter hole at the marked position through

the mounting surface. Insert the assembled Bolt Hthrough

the desk hole, guide the Support Plate Iand Nut G

through the Bolt H, rotate the Nut Gclockwise to fasten

for stability.

2b Self-drilled Grommet Hole Installation

Manually thread screws

into the mounting holes

on the back of your TV to

determine what size of

screws will fit. (M4/M5)

M-C M-C

M-A M-B

Attach the VESA Plate to your TV/Monitor, and thread M4x12 Bolt M-A or M5x12 Bolt M-B into the mounting holes

with D5 Washer M-C , tighten with Allen Key 5mm K.

Detach the VESA Plate by threading the Top Screw counter clockwise.

Step 3

for stability.

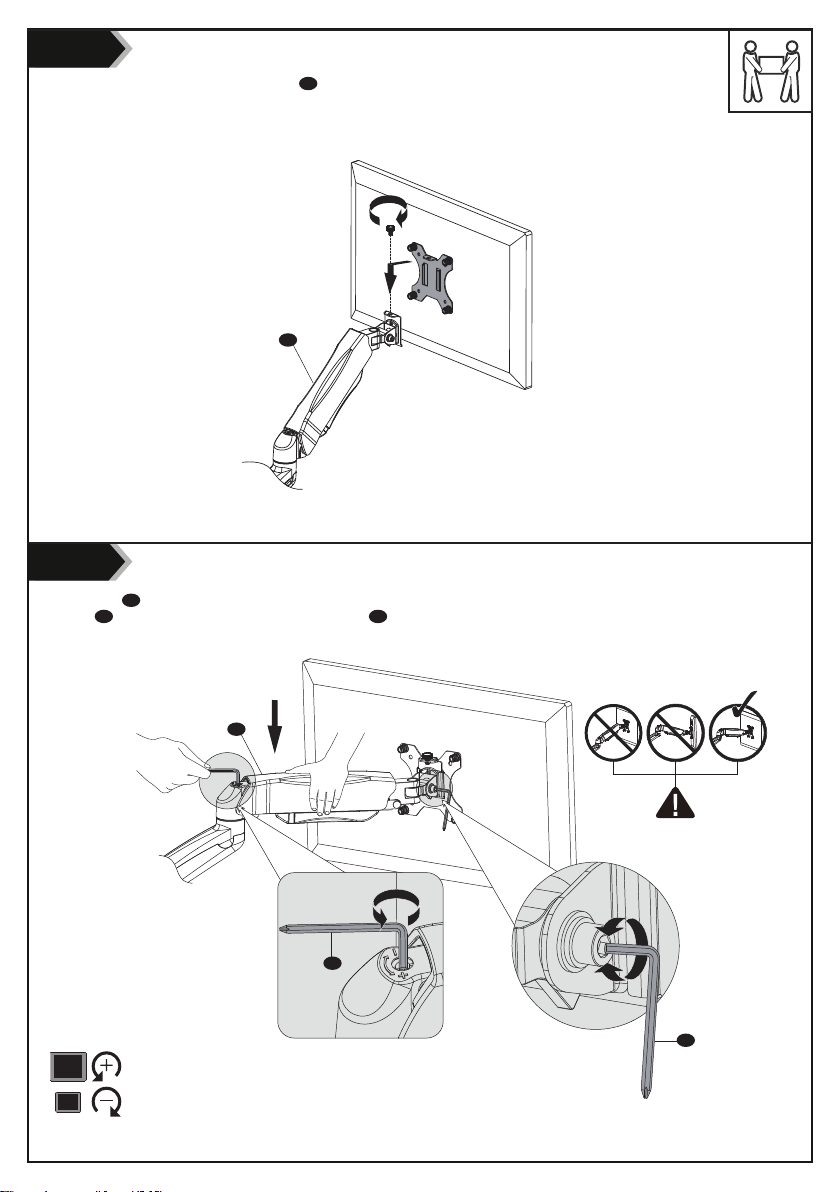

Put the assembled TV/Monitor onto the Arm Aand ensure the stability, tighten the VESA plate using Top Screw.

Step 4

Press the Arm Aon horizontal level as image shown, adjust gas spring tension to your personal preference using Allen

Key 5mm K, adjust the tilt tension using Allen Key 5mm K.

For Heavier Monitors

For Lighter Monitors

Step 5

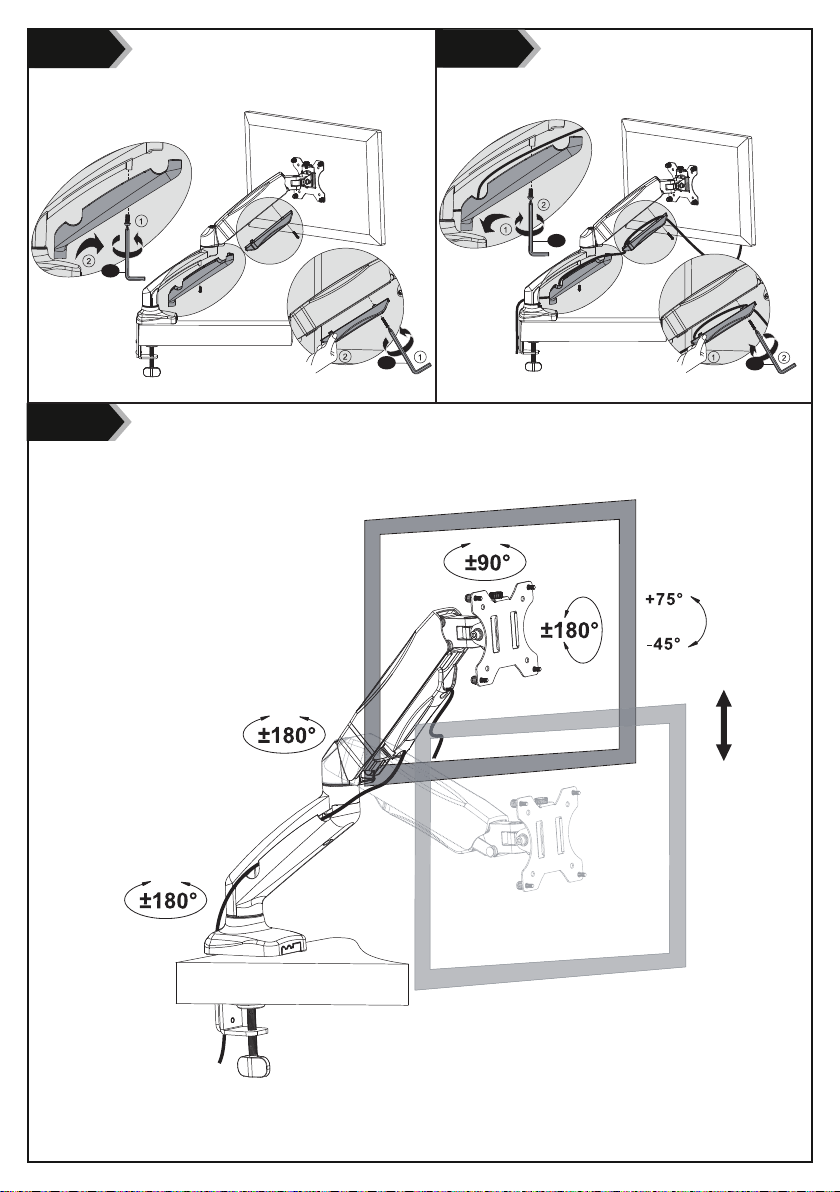

Screw out the bolts and take off the cable cases.

Step 7

Manually swivel, tilt , and rotate the monitor for the best viewing angle.

Guide the cables through and put the cable cases back.

Step 6

1-844-SATTLER (18447288537) [email protected]

If you have any questions,please contact us.

We support the technology that brings your home to life.

We offer high quality products, professional customer service,

and extensive technical support.

www.walielectric.com
