Wali PTT007T-B Manuale utente
INSTALLATION MANUAL
PTT007T-B
Monitor Stand Riser
20kg/44lbs
RATED
1-844-SATTLER (18447288537)
www.walielectric.com
Supplied Parts List
2
Step 1
Left
Board
B (x1)
Right Board
C (x1)
Bolt
F (x8)
Center
Board
A (x1)
Nut
G (x8)
Sticker
I (x8)
D
G
E
Storage Slot
J (x2)
Side Support Stand
E (x2)
Center Support Stand
D (x2)
Metal Retainer Pin
H (x2)

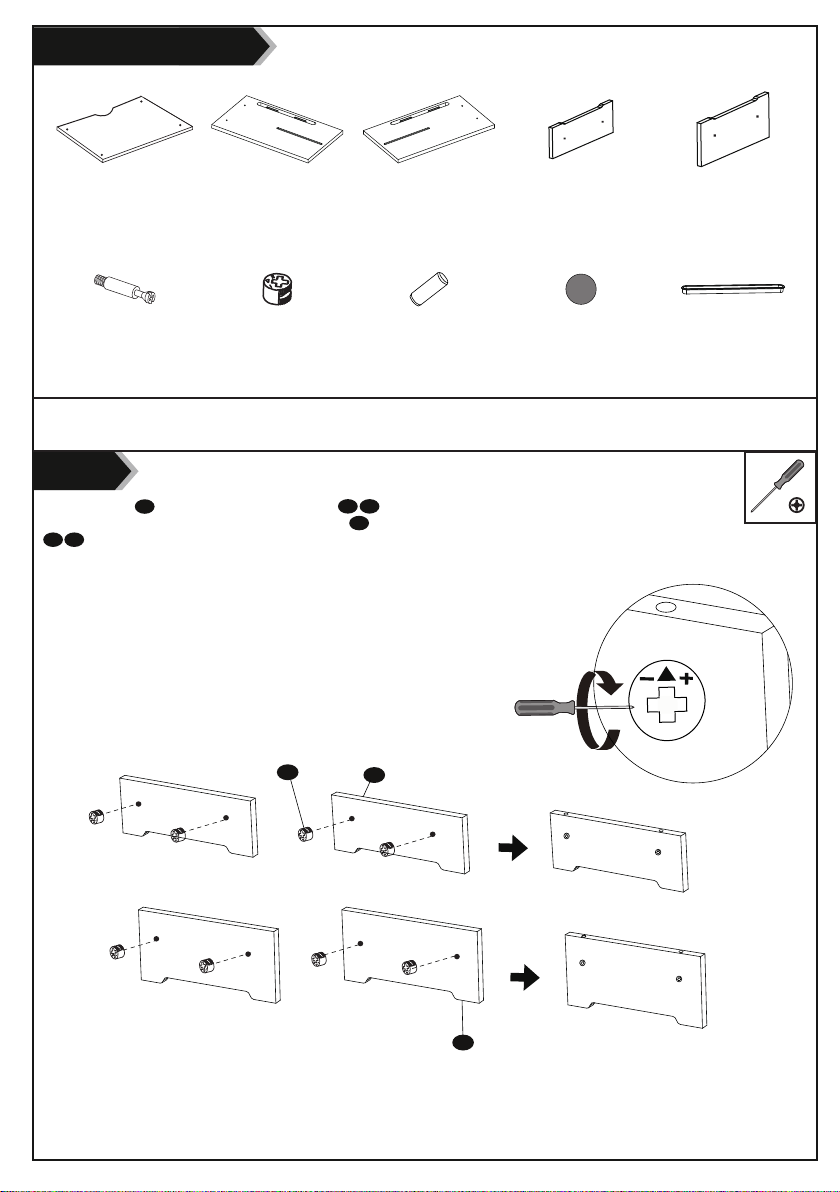

Attach the Nut G to the hole on Support Stand D E as the image shown.
Caution: Please make sure the arrow on the Nut G is pointing upright towards the hole on the Support Stand
D E as the image shown.
D E
D E
G
G
Caution: Frequently assembling and disassembling may cause damage to the wood board.
Board surface
3
Step 2
F
F
F
BC
B
C
A
A
Place Board A B C on a flat surface with bottom upward, insert the Bolt F to the hole on Board A B C and
tighten with a screwdriver. (Screwdriver not included)
Caution: Please make sure the Bolt C is vertically straight at an 90° angle to the surface of Board A B C as
the image shown.
BA B
AF C
BC
C
A
F
FA
90° Angle
Bolt
4
Step 3
B
D
E
D
E
F
G
B
B
C
C
A
A
Insert Center Support Stand D to the Center Board A .
Insert Side Support Stand E to the Left and Right Board B C .
Tighten all the Nut G clockwise to fasten for stability. (Screwdriver not included)
A
C
B
D
G
E
Insert Metal Retainer Pin H to the hole on Center Board A.
5
Step 5
Step 4
H
A
B
B
C
C
A
A
H
HA
Insert Metal Retainer Pin H on Center Board A to the pre-drilled slot on Left and Right Board B C . Combine the three
boards and prevent the Left and Right Board B C from sliding out.
H
CB
CB
A
Tear off the sticker I and attach it to the designated position of Support Stand D E as the image shown.
Insert the Storage Slot J to the designated position on Left and Right Board B C .
Notice: The
Storage Slot J
is removable. Push it from the back of the Board to remove it if necessary.
Optional Step
6
Step 6
D
E
G
J
B
C
I
C
B
J
J
I D E
