S-cape 2MR

hand control

S-cape™2MR Function .................................................................................................... 4

“J Box” Programming Procedure .................................................................................. 5

Power Down Box Operation ........................................................................................... 5

S-cape™2MR Programming (1 hand control - 1 bed) .................................................. 6

S-cape™2MR Programming (2 hand controls - 1 bed) ................................................ 7

S-cape™2MR Programming (1 hand control - 2 beds) ................................................ 8

S-cape™2MR Programming (2 hand controls - 2 beds) ............................................... 9

S-cape™2MR Reprogramming (separating 2 beds) ................................................... 10

CONTENTS

S-Cape

™

2MR Hand Control Operation Guide 99300906

S-CAPE

™

2MR FUNCTION

IMPORTANT INFORMATION

READ ADVISORY INFORMATION IN THE OWNERS MANUAL CAREFULLY BEFORE USING

THIS PRODUCT. THE POTENTIAL FOR ELECTRICAL SHOCK EXISTS IF ELECTRICAL

COMPONENTS ARE NOT INSTALLED OR OPERATED PROPERLY.

TRANSMISSION INDICATOR LIGHT

Verifies a button is being pressed and

data is being sent to the bed.

POSITION BUTTONS

The adjustable base is equipped

with 3 factory preset positions.

Press and release a button and the

bed will automatically move to the

preset position. To stop the bed

while in motion, press and hold

any button until the bed stops.

LEVEL BUTTON

Press to return the bed to the

flat position. Note: to stop bed

while in motion, press any

button until bed movement

stops. Pressing this button will

shut off the massagers.

HEAD UP/DOWN BUTTON

Press and hold to raise or lower

the head section.

HEAD MASSAGE BUTTONS

Press and hold to increase or

decrease head massage

intensity.

WAVE SPEED BUTTONS

Press and hold—after the head

and/or foot massage, and the

wave system have been

activated—to increase or

decrease the wave speed.

HEAD MASSAGE ON/OFF

BUTTON

Switches the head massage on

or off. When switched on, the

massage feature will

automatically shut off after 30

minutes. WAVE ON/OFF BUTTON

Press to activate or deactivate

the wave vibration system.

CUSTOM POSITION

RECALL BUTTON

Press to return the bed to the

custom programmed position.

CUSTOM POSITION SET

BUTTON

Press to capture any position or

function (massage or wave) of

the bed as a programmed

position. Press the custom

position recall button to return

the bed to the custom

programmed position.

FOOT UP/DOWN BUTTON

Press and hold to raise or lower the

foot section.

FOOT MASSAGE BUTTONS

Press and hold to increase or

decrease foot massage intensity.

FOOT MASSAGE ON/OFF

BUTTON

Switches the foot massage on or

off. When switched on, the

massage feature will automatically

shut off after 30 minutes.

HAND CONTROL REQUIRES FOUR (4) AAA SIZE BATTERIES. TO CONSERVE BATTERY

LIFE, THE TRANSMITTER TURNS OFF ALL FUNCTIONS WHEN ANY BUTTON IS

PRESSED FOR MORE THAN 50 SECONDS.

NOTE

S-Cape

™

2MR Hand Control Operation Guide 99300906

“J BOX” PROGRAMMING PROCEDURE

When programming the hand control,

unplug the adjustable bed electrical

power cord. Wait 30 seconds, then plug

the cord back in to the power source.

This simple process automatically sets

the bed to the program mode for 90

seconds. For convenience, use this

procedure in lieu of pressing the learn

button (located on the J box, mounted to

the underside of the bed base frame).

“J BOX” PROGRAMMING

For adjustable beds equipped with “J box” only—no power down box.

At any point where “press the learn

button” is designated, disconnecting and

reconnecting the electrical power cord

will achieve the same function. Note that

this alternate programming feature is only

applicable to beds without a power down

box. Power down equipped adjustable

beds require use of the learn button

when programming the hand control.

POWER DOWN BOX OPERATION

In case of a power outage, press and hold

the learn button on the power down box

to lower the bed to the flat position

(FIGURE 1).

This function is only for lowering the bed

and will not operate the bed to any other

position. The (2) 9 volt batteries should

be replaced after this function is used.

In the event the power down feature does

not work, check to make sure the (2) 9

volt batteries are good.

LEARN

BUTTON

FIGURE 1: Power down box learn button.

POWER

DOWN BOX

S-Cape

™

2MR Hand Control Operation Guide 99300906

The two step procedure below is required to program 1 hand control to operate 1 bed. Before

beginning, make certain the bed is plugged into a working grounded electrical outlet. If

programming fails, initiate the programming procedure a second time.

S-CAPE

™

2MR PROGRAMMING 1 hand control - 1 bed

STEP 1

The bed will be equipped with either a

power down box or J box receiver unit

(FIGURE 2). Locate the receiver unit for the

bed and press the learn button for 1 second

and release. Note: If you experience

difficulty locating or reaching the learn

button on a J box equipped adjustable bed,

refer to J Box Programming on page 5.

STEP 2

On the hand control, simultaneously press

and hold the POS 1 and head massage

on/off buttons (FIGURE 3). The

transmission indicator light will flash

slowly and then flash rapidly to indicate

programming mode. Continue to hold for 5

seconds and then release the buttons.

One hand control is now programmed to

operate one bed.

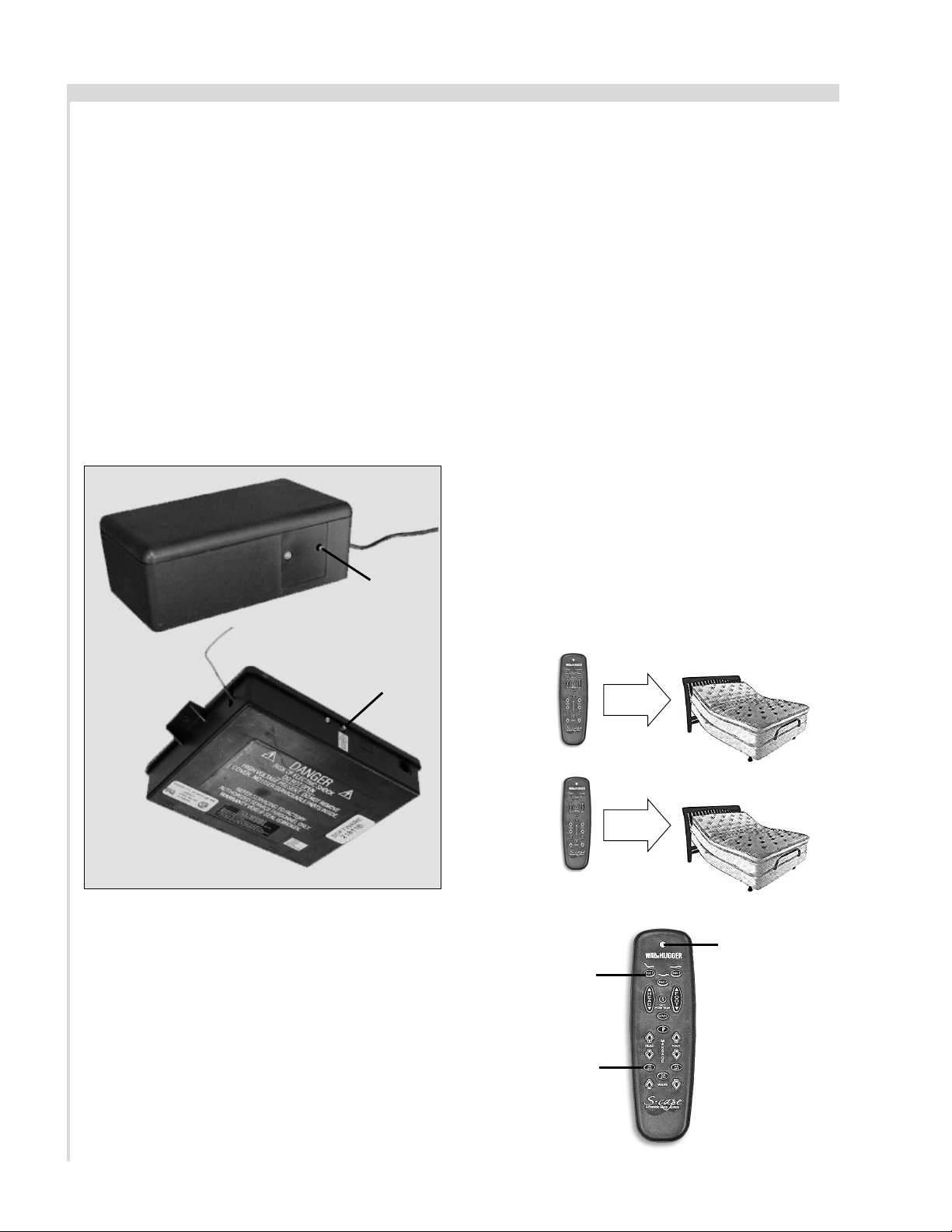

POS 1

BUTTON

TRANSMISSION

INDICATOR

LIGHT

FIGURE 3

HEAD MASSAGE

ON/OFF

BUTTON

J BOX

FIGURE 2: Power down box and J box receiver units.

LEARN

BUTTON

LEARN

BUTTON

POWER

DOWN BOX

POWER DOWN

BOX RECEIVER

UNIT IS NOT

MOUNTED TO

BED FRAME.

J BOX RECEIVER

UNIT IS MOUNTED

TO THE BOTTOM

SIDE OF THE

BED FRAME.

S-Cape

™

2MR Hand Control Operation Guide 99300906

The three step procedure below is required to program 2 hand controls to operate 1 bed.

Before beginning, make certain the bed is plugged into a working grounded electrical outlet.

If programming fails, initiate the programming procedure a second time.

S-CAPE

™

2MR PROGRAMMING 2 hand controls - 1 bed

POS 1

BUTTON

TRANSMISSION

INDICATOR

LIGHT

FIGURE 3

HEAD MASSAGE

ON/OFF

BUTTON

STEP 1

The bed will be equipped with either a

power down box or J box receiver unit

(FIGURE 2). Locate the receiver unit for the

bed and press the learn button for 1 second

and release. Note: If you experience

difficulty locating or reaching the learn

button on a J box equipped adjustable bed,

refer to J Box Programming on page 5.

STEP 2

On hand control 1, simultaneously press

and hold the POS 1 and the head massage

on/off buttons (FIGURE 3). The

transmission indicator light will flash

slowly and then flash rapidly to indicate

programming mode. Continue to hold for 5

seconds and then release the buttons.

HAND

CONTROL 1

HAND

CONTROL 2

STEP 3

Repeat Step 1 and Step 2 with hand control

Two hand controls are now programmed to

operate one bed.

J BOX

FIGURE 2: Power down box and J box receiver units.

LEARN

BUTTON

LEARN

BUTTON

POWER

DOWN BOX

POWER DOWN

BOX RECEIVER

UNIT IS NOT

MOUNTED TO

BED FRAME.

J BOX RECEIVER

UNIT IS MOUNTED

TO THE BOTTOM

SIDE OF THE

BED FRAME.

NOTE

OPERATE ONLY ONE (1) HAND CONTROL AT A

TIME. OPERATING TWO (2) HAND CONTROLS

AT THE SAME TIME WILL MOMENTARILY

BLOCK BOTH RF SIGNALS AND PREVENT BOTH

CONTROLS FROM FUNCTIONING.

S-Cape

™

2MR Hand Control Operation Guide 99300906

The three step procedure below is required to program 1 hand control to operate 2 beds.

Before beginning, make certain the beds are plugged into a working grounded electrical

outlet. If programming fails, initiate the programming procedure a second time.

S-CAPE

™

2MR PROGRAMMING 1 hand control - 2 beds

POS 1

BUTTON

TRANSMISSION

INDICATOR

LIGHT

FIGURE 3

HEAD MASSAGE

ON/OFF

BUTTON

STEP 1

The bed will be equipped with either a

power down box or J box receiver unit

(FIGURE 2). Locate the receiver unit for bed

1 and press the learn button for 1 second

and release. Note: If you experience

difficulty locating or reaching the learn

button on a J box equipped adjustable bed,

refer to J Box Programming on page 5. BED 1

BED 2

STEP 3

Repeat Step 1 and Step 2 with bed 2.

One hand control is now programmed to

operate two beds.

J BOX

FIGURE 2: Power down box and J box receiver units.

LEARN

BUTTON

LEARN

BUTTON

POWER

DOWN BOX

POWER DOWN

BOX RECEIVER

UNIT IS NOT

MOUNTED TO

BED FRAME.

J BOX RECEIVER

UNIT IS MOUNTED

TO THE BOTTOM

SIDE OF THE

BED FRAME.

STEP 2

On hand control 1, simultaneously press

and hold the POS 1 and the head massage

on/off buttons (FIGURE 3). The

transmission indicator light will flash

slowly and then flash rapidly to indicate

programming mode. Continue to hold for 5

seconds and then release the buttons.

S-Cape

™

2MR Hand Control Operation Guide 99300906

The six step procedure below is required to program 2 hand controls to operate 2 beds.

Before beginning, make certain the beds are plugged into a working grounded electrical

outlet. If programming fails, initiate the programming procedure a second time. NOTE:

OPERATE ONLY ONE (1) HAND CONTROL AT A TIME. OPERATING TWO (2) HAND CONTROLS AT THE

SAME TIME WILL MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT BOTH CONTROLS FROM

FUNCTIONING.

STEP 5

On hand control 1, simultaneously press

and hold the POS 1 and the head massage

on/off buttons (FIGURE 3). The

transmission indicator light will flash

slowly and then flash rapidly to indicate

programming mode. Continue to hold for 5

seconds and then release the buttons.

STEP 6

Repeat Step 4 and Step 5 with hand control 2.

Two hand controls are now programmed to

operate two beds.

S-CAPE

™

2MR PROGRAMMING 2 hand controls - 2 beds

STEP 1

The bed will be equipped with either a

power down box or J box receiver unit

(FIGURE 2). Locate the receiver unit for

bed 1 and press the learn button for 1

second and release. Note: If you experience

difficulty locating or reaching the learn

button on a J box equipped adjustable bed,

refer to J Box Programming on page 5.

STEP 2

On hand control 1, simultaneously press

and hold the POS 1 and the head massage

on/off buttons (FIGURE 3). The

transmission indicator light will flash

slowly and then flash rapidly to indicate

programming mode. Continue to hold for 5

seconds and then release the buttons.

STEP 3

Repeat Step 1 and Step 2 with hand control 2.

STEP 4

The bed will be equipped with either a

power down box or J box (FIGURE 2).

Locate the receiver unit for bed 2 and press

the learn button for 1 second and release.

J BOX

FIGURE 2: Power down box and J box receiver units.

LEARN

BUTTON

LEARN

BUTTON

POWER

DOWN BOX

POWER DOWN

BOX RECEIVER

UNIT IS NOT

MOUNTED TO

BED FRAME.

J BOX RECEIVER

UNIT IS MOUNTED

TO THE BOTTOM

SIDE OF THE

BED FRAME.

POS 1

BUTTON

TRANSMISSION

INDICATOR

LIGHT

FIGURE 3

HEAD MASSAGE

ON/OFF BUTTON

HAND

CONTROL 1

BED 1

HAND

CONTROL 2

BED 2

S-Cape

™

2MR Hand Control Operation Guide 99300906

The six step procedure below is required to seperate 2 hand controls from operating 2 beds. One

hand contol per bed operation will result. Before beginning, make certain the beds are plugged into a

working grounded electrical outlet. If programming fails, initiate the programming procedure a

second time. NOTE: OPERATE ONLY ONE (1) HAND CONTROL AT A TIME. OPERATING TWO (2) HAND

CONTROLS AT THE SAME TIME WILL MOMENTARILY BLOCK BOTH RF SIGNALS AND PREVENT BOTH

CONTROLS FROM FUNCTIONING.

S-CAPE

™

2MR REPROGRAMMING separating 2 beds

STEP 4

The bed will be equipped with either a

power down box or J box (FIGURE 2). Locate

the receiver unit for bed 2 and press the learn

button for 1 second and release.

STEP 5

On hand control 2, simultaneously press and

hold the POS 1 and the head massage on/off

buttons (FIGURE 3). The transmission indicator

light will flash slowly and then flash rapidly to

indicate programming mode. Continue to hold

for 5 seconds and then release the buttons.

STEP 6

Repeat Step 4 and Step 5 with hand control 2.

Independent hand control operation is now

restored (hand control 1 operating bed 1; hand

control 2 operating bed 2).

STEP 2

On hand control 1, simultaneously press and

hold the POS 1 and the head massage on/off

buttons (FIGURE 3). The transmission indicator

light will flash slowly and then flash rapidly to

indicate programming mode. Continue to hold

for 5 seconds and then release the buttons.

STEP 3

Repeat Step 1 and Step 2 with hand control 1.

Note: wait 90 seconds before proceeding to

Step 4.

STEP 1

The bed will be equipped with either a power

down box or J box receiver unit (FIGURE 2).

Locate the receiver unit for bed 1 and press the

learn button for 1 second and release. Note: If

you experience difficulty locating or reaching

the learn button on a J box equipped

adjustable bed, refer to J Box Programming on

page 5.

POS 1

BUTTON

TRANSMISSION

INDICATOR LIGHT

FIGURE 3

HEAD MASSAGE

ON/OFF BUTTON

HAND CONTROL 1 BED 1

BED 2

HAND CONTROL 2

J BOX

FIGURE 2: Power down box and J box receiver units.

LEARN

BUTTON

LEARN

BUTTON

POWER

DOWN BOX

POWER DOWN

BOX RECEIVER

UNIT IS NOT

MOUNTED TO

BED FRAME.

J BOX RECEIVER

UNIT IS MOUNTED

TO THE BOTTOM

SIDE OF THE

BED FRAME.

Indice

Altri manuali wallhugger Telecomando

wallhugger

wallhugger s-cape II MR Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione

wallhugger S-cape 2MR Manuale utente

Manuali Telecomando popolari di altre marche
