WATANABE G1000 Series Manuale utente

GRAPHIC MULTI-METER

MODEL : G1000 SERIES

SIMPLIFIED INSTRUCTION MANUAL

( STRAIN GAUGE / PROCESS )

Simplified instruction manual MODEL G1000

2/44

■Contents

1. Configurations of model......................................................................................................................3

2. Screen Configurations ........................................................................................................................3

2-1. NAMEAND FUNCTION OF DISPLAY SCREEN.............................................................................................................3

2-2. FUNCTIONAL DESCRIPTION.......................................................................................................................................5

3. Setting..................................................................................................................................................6

3-1. WAVEFORM COMPARISON /WAVEFORM &DISPLACEMENT COMPARISON (EXAMPLE) .........................................6

3-2. SET-VALUE INPUT SCREEN ........................................................................................................................................7

3-3. DATA SETTING LIST ....................................................................................................................................................8

4. Basic Function Setting (Setup) ........................................................................................................13

5. Input Setting.....................................................................................................................................17

5-1. STRAIN GAUGE ........................................................................................................................................................ 17

5-2. ANALOG INPUT SETTING (ACH).............................................................................................................................. 17

5-3. PROCESS INPUT (BCH) ............................................................................................................................................ 21

6. Comparison Set Value (Comparator) (A/Bch) .................................................................................25

7. Hold Function (Hold)........................................................................................................................28

7-1. HOLD FUNCTION SETTING ..................................................................................................................................... 28

8. Waveform Comparison / Waveform & Displacement Comparison (Waveform)............................31

8-1. VARIOUS SETTING AND CORRECTION METHODS .................................................................................................. 31

9. Graphic Display Setting (Graph Disp) ............................................................................................35

10. Linearization...................................................................................................................................38

11. Basic Function Setting 2 (System).................................................................................................39

11-1. PROTECT................................................................................................................................................................. 39

11-2. INITIALIZATION ...................................................................................................................................................... 39

11-3. FUNCTION CHECK ................................................................................................................................................. 39

12. Output .............................................................................................................................................41

12-1. ANALOG OUTPUT SETTING ................................................................................................................................... 41

12-2. BCD OUTPUT SETTING......................................................................................................................................... 41

13. About Error Messages ....................................................................................................................42

14. Accessories.......................................................................................................................................43

Simplified instruction manual MODEL G1000

3/44

1. Configurations of model

The G1000 Series are configured as follows :

Check that there is no discrepancy between the model and its specifications you have chosen when ordering

and the model and its specifications under your hand.

11G

SD memory card function 0 : No function available

1 : Function available

Drive power supply 1 : AC/FREE (100 to 240V AC)

5 : RS-232C

6 : RS-485

3 : BCD parallel + RS-232C

4 : Analog output + RS-232C

Output unit

0 : Strain Gauge + Process input unitInput unit

Series name

* Standard equipment of the comparison output (Photocoupler output) is carried out.

Display model 2 : Japanese, English

* SD memory card is not attached.

(Please purchase the product made from Panasonic separately.)

2 : 24VDC ± 15%

5 0 0 2

2. Screen Configurations

2-1. Name and Function of Display Screen

1) Single Display Screen (Achannel, B channel)

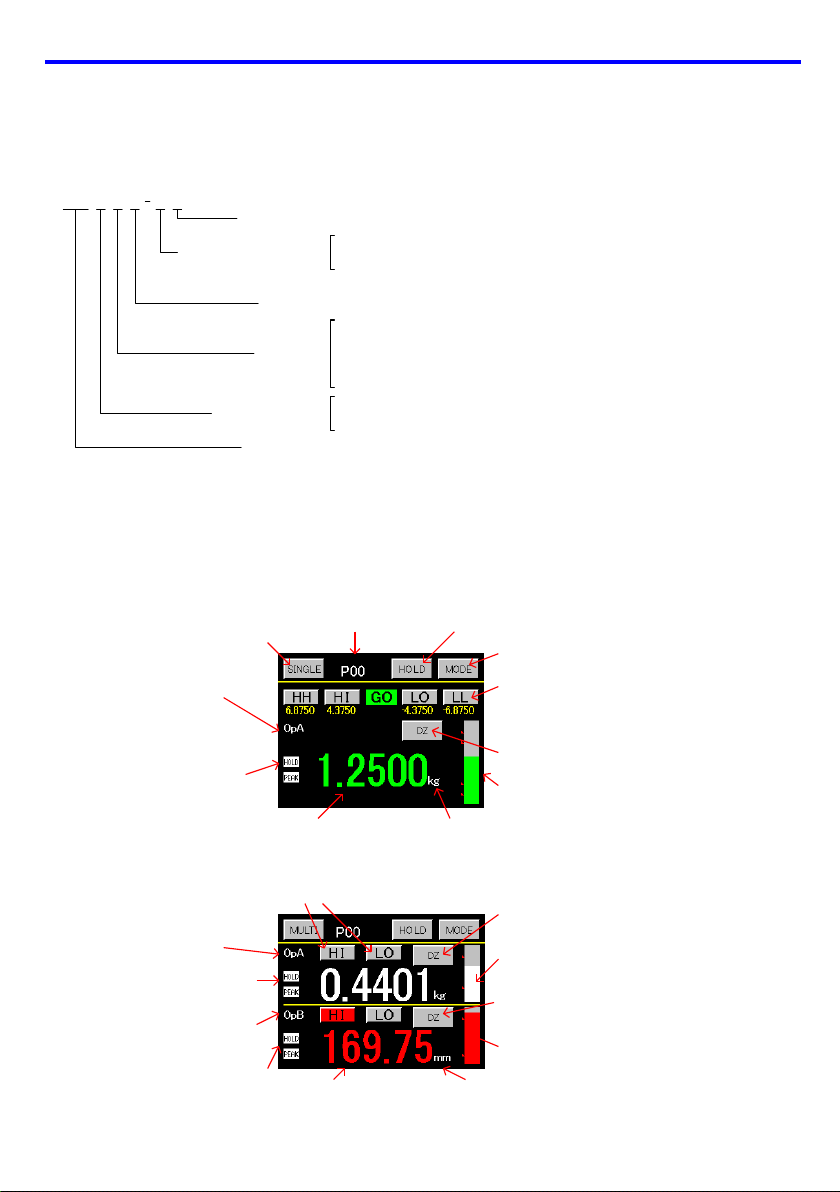

(1)“Display screen

change”key

(2)Pattern used (3)“HOLD”key

(4)“MODE”key

(5)Ach indication

(6)“HOLD PEAK”

operating state

monitor (7)Indicated value

(8)Bar graphic display

(9)“DZ”digital zero key

(10)Comparison

output monitoｒ：

Display of

comparison set value

Unit on display

2) Multi Display Screen (2ch meter)

“HI,LO”comparison output monitor

Ach “DZ”digital

zero key

Ach indication

“HOLD PEAK”

operating state

monitor (Bch) Top Ach indicated value

Bch bar graphic display

Bch “DZ”digital zero key

“HOLD PEAK”

operating state

monitor (Ach)

Bch indication

Bottom Bch indicated value

Unit (kg)

Unit (mm)

Ach bar graphic display

Simplified instruction manual MODEL G1000

4/44

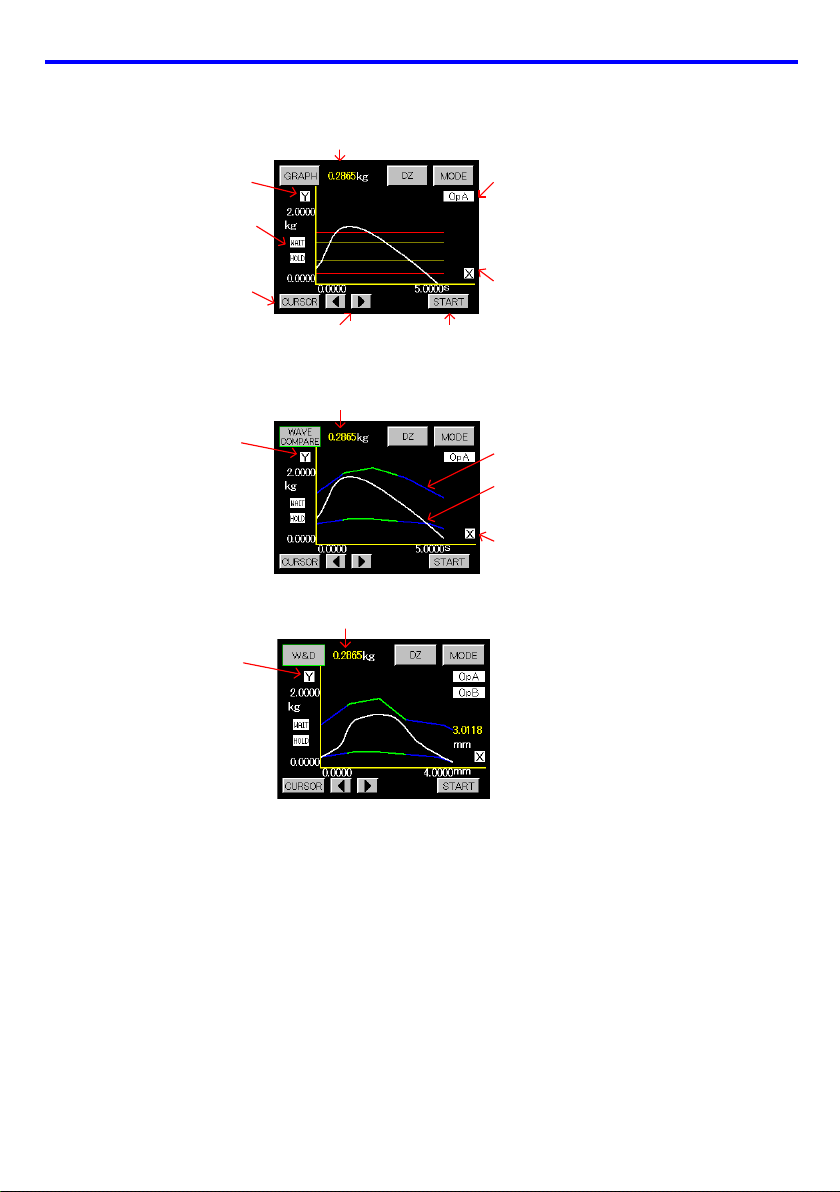

3) Graphic Display Screen

Ach indication

Y-axis indicated value and unit

Y-axis scale unit

(6)“WAIT”

state unit

(11)“Cursor

indication”key

(12)“Cursor movement”key (13)“START/STOP”key

X-axis scale and time (s)

4) Waveform Comparison Display Screen (Ach,Bch)

Y-axis indicated value and unit

Y-axis scale unit

X-axis scale and time (s)

HI limit waveform

set value

LO limit waveform

set value

5) Waveform & Displacement Comparison Display Screen

(14) Y-axis indicated value and unit

Y-axis scale unit

(15)X-axis Indicted

value and unit

X-axis scale and

displacement (unit)

・"MODE" Key

Various settings can be performed with the measurement operation stopped and each output turned off.

When the caution screen for start settings appears and "YES" is selected on it, the main setting screen is

displayed, making it possible to perform setting.

・Comparison output monitors "HH", "HI", "GO", "LO", "LL"

When the comparison output ON/OFF state is displayed on the single screen, a comparison set value is

also displayed. In case of the multi-display screen (2 channel), each ofAch and Bch is independently

displayed. "HH", "HI", "LO", "LL" are used as setting keys. Pressing it displays a 10-key pad on the screen,

allowing data setting. (It can be set during measurement operation)

・Others

I perform control of this product by a screen key and external control. (External control connector)

In external control, control is possible independently by digital zero, hold ofAch and Bch. In addition, as for

the pattern change of setting, a change is possible from external control (P0 to P3) and RS communication.

Simplified instruction manual MODEL G1000

5/44

2-2. Functional Description

The touch panel is used for setting and operation on the screen. If 2 or more points are pressed

simultaneously or quickly pressed continuously, the point so pressed may be detected incorrectly. Be sure

to press only one point at intervals.

It changes according to 1) Meter Setup of ”4. Basic Function Setting (Setup)”.

Display screen of three kinds are available. The state when each of be pressed is

shown according to each meter setting.

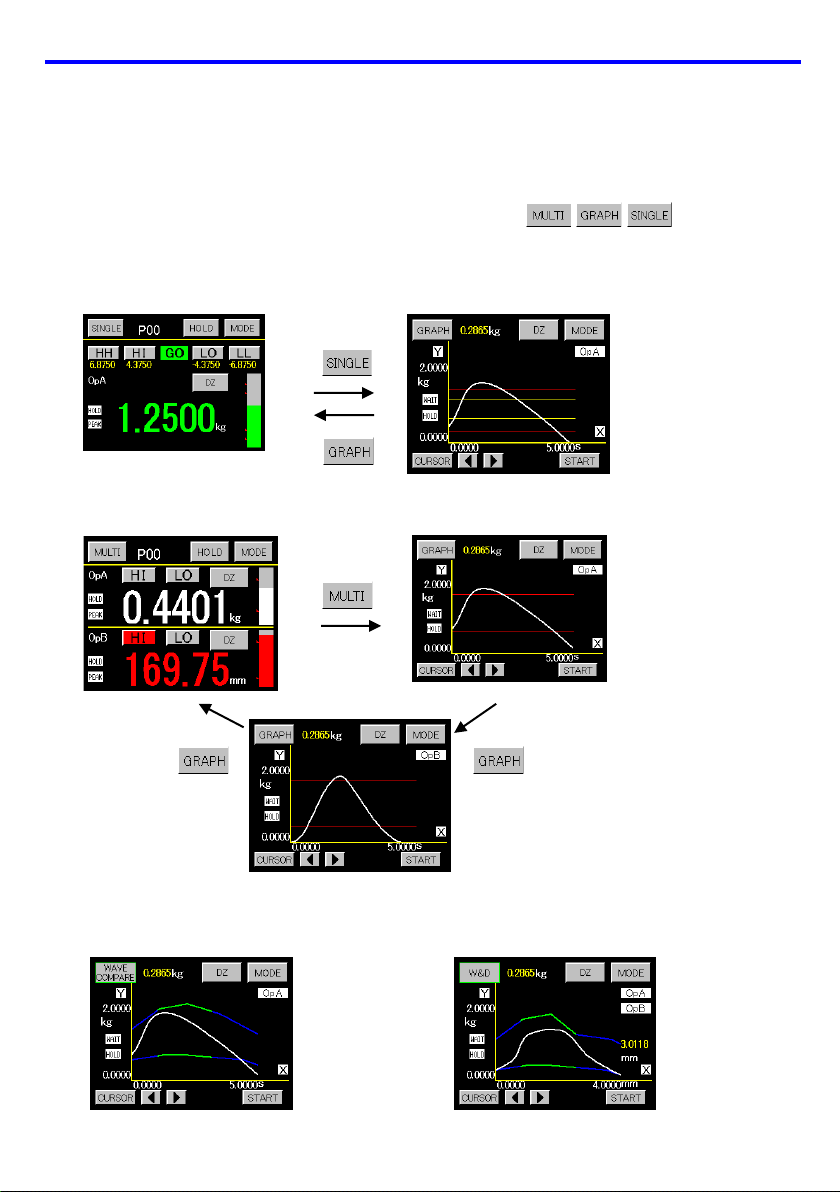

◎The display screen changes as follows, when Ach and Bch are selected by meter setting :

Ach (Bch) single screen Ach (Bch)graphic screen

Y-axis = Ach or Bch

X-axis = time (s)

◎Display screen change when 2 channel meter is selected by meter setting

2 channel screen Ach graphic screen

X-axis = time (s)

Bch graphic screen

X-axis = time (s)

◎When Waveform Comparison Ach/Bch or Waveform & Displacement Comparison are selected, no screen

will change

Waveform comparison screen Waveform & Displacement Comparison screen

Y-axis = Ach or Bch Y-axis =Ach

X-axis = time (s) X-axis = Bch

Simplified instruction manual MODEL G1000

6/44

3. Setting

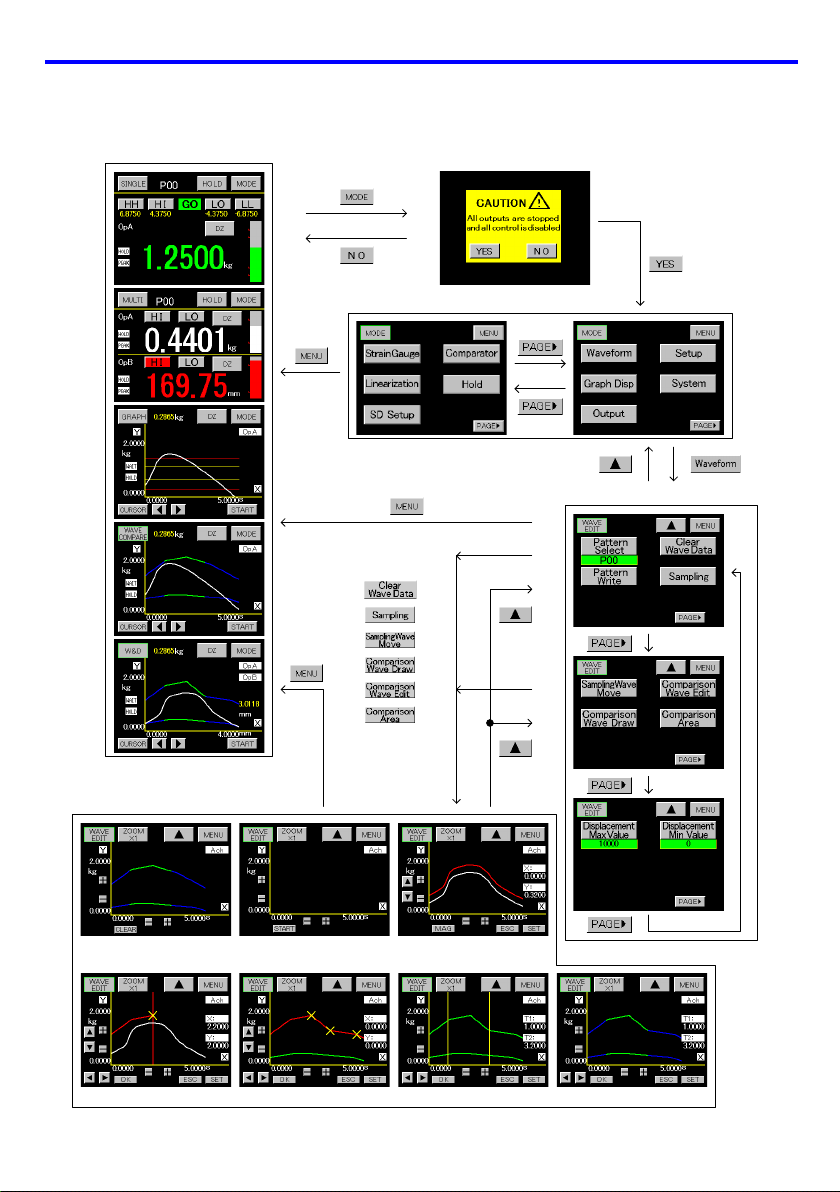

3-1. Waveform Comparison / Waveform & Displacement Comparison (Example)

Ordinary Display Screens Caution Screen for Starting Setting

Main Setting Screen

Note) When no memory-card function,

“SD setup” button is not displayed.

Itemized Setting Screen

Set-value Input Screen

"Each Set" key

HI/LO limit waveform set-value

Comparison range setting

Correction of waveform set valuePreparation of waveform set value

HI/LO limit waveform

set-value clearing Fundamental waveform sampling Waveform movement

Simplified instruction manual MODEL G1000

7/44

3-2. Set-Value Input Screen

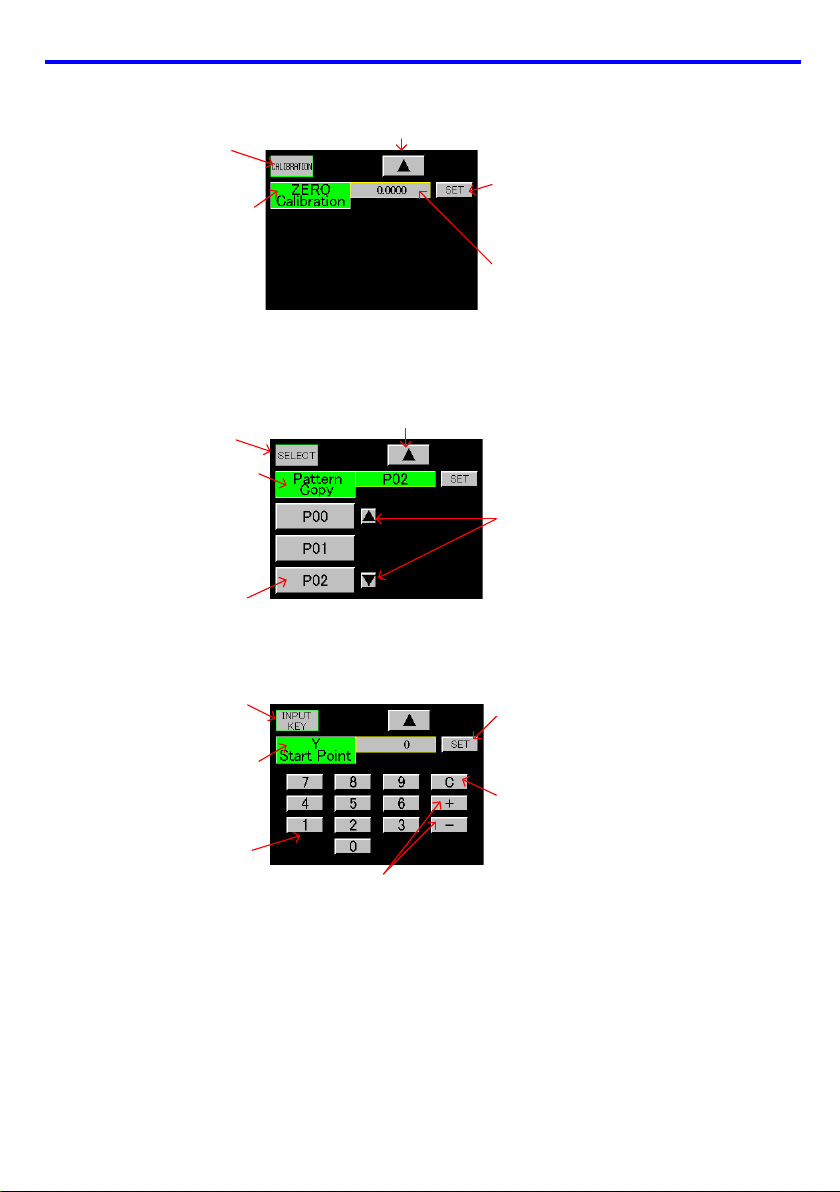

1) Measured-value acquisition screen

"CALIBRATION" : Displays

contents to be set with indicator.

Data name to be set

Returns to itemized setting screen.

"SET" key is used to acquire

and finalize measured value.

(Measured value becomes blue

simultaneously with finelizing.)

Display measured value.

*Caution

※When ”4. Basic Function Setting (Setup) 4) Motion Detect”is active, measured value becomes red while

analog output is not stable. Setting is possible even during unstable state.

2) Set-value select screen

Displays the selected value.

"SELECT" is used to select data

to be set with indicator.

Data name to be set

Press key to select set value.

Scrolls set value.

3) 10-key input screen

"INPUT KEY": Used to set

data to be set with indicator.

Data name to be set

Enter set value

with "10-key pad."

Acquire set value and

finalize with "SET" key.

(Set value becomes blue

simultaneously with finalizing.)

"C" is used to change set value to "0".

It can also be used when error occurs.

"+" and "-" are used to set polarity.

"-" may not be accepted according to data setting.

Simplified instruction manual MODEL G1000

8/44

3-3. Data Setting List

Basic Function Setting (Setup)

Setting item

Default value

Setting range

Meter Setup

A channel

Achannel, B channel, 2 channel, Wave Ach, Wave Bch, W&D

Display Cycle

2.5 CPS

12.5, 6.25, 2.5, 1.0, 0.5 CPS

Sampling Cycle

500 CPS

4000, 2000, 1000, 500, 200, 100, 50, 20, 10 CPS

MD Time

0.0

Time 0.0 to 9.9 (second.)

MD Width

Comparison width 01 to 99 (digit)

ZT Time

0.0

Correction time 0.0 to 9.9 (second)

ZT Width

Correction width 0 to 99 (digit)

Input ON Delay

0.000

0.000 to 4.999 (sec.)

Output Delay

0.000

0.000 to 4.999 (sec.)

Power ON Delay

0 to 30 (sec.)

Back Light Time

0 to 99 (min)

Contrast

－－－－

0 to 255

Cross Talk

0 to 63

Digital ZERO Backup

OFF

OFF, ON

Language

Japanese

Japanese, English

BPS

9600

38400, 19200, 9600, 4800, 2400 BPS

Data Length

7, 8

Parity

Even

Even, Odd, None

Stop Bit

2, 1

Delimiter

CR+LF

CR+LF, CR, LF

Address (RS-485 ID)

00 to 99

Strain Gauge Input Setting

(Ach) (P00 to P15)

Setting item

Default value

Setting range

Pattern Select

－－－－

P00 to 15

Pattern Copy

－－－－

P00 to 15

Sensor Power

2.5V

2.5V, 5V, 10V

ZERO Calibration

0.0000

Equivalent Calibration

2.0000

SPIN value (rated-output value) (0.1 to 3.000mV/V)

Actual Load

10000

Span set value (100 to 99999)

Decimal Point

0.0000, 0.000, 0.00, 0.0, 0

Digital Shift

±99999

Unit

None

Select from among 79 different units.

Moving Average

OFF

OFF, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024 (times)

Analog Filter

600

10, 30, 300, 600 (Hz)

Digital Limiter HI

99999

-99998 to 99999

Digital Limiter LO

-99999

-99999 to 99998

Step

1, 2, 5, 10

Simplified instruction manual MODEL G1000

9/44

Process Input Setting

(Bch) (P00 to P15)

Setting item

Default value

Setting range

Pattern Select

－－－－

P00 to 15

Pattern Copy

－－－－

P00 to 15

Input Range

±0 to 10V

0 to 10, ±0 to 20mA, 4 to 20mA

Full Scale

10000

0 to 99999

Off set Scale

0 to 99999

Full Scale Input

10.000

-10.000 to 10.000, -20.000 to 20.000

Offset Scale input

-10.000 to 10.000, -20.000 to 20.000

Decimal Point

0.0000, 00.000, 000.00, 0000.0, 0

Digital Shift

±99999

Unit

None

Select from among 79 different units.

Moving Average

OFF

OFF, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024 (times)

Analog filter

600

10, 30, 300, 600 (Hz)

Digital Limiter HI

99999

-99998 to 99999

Digital Limiter LO

-99999

-99999 to 99998

Step

1, 2, 5, 10

Comparison Set Value Setting (Comparator)

(Ach/Bch) (P00 to P15)/(P00 to P15)

Setting item

Default value

Setting range

Pattern Select

－－－

P00 to 15

Pattern Copy

－－－

P00 to 15

HH Limit

1000

-99999 to 99999

HI Limit

500

-99999 to 99999

LO Limit

100

-99999 to 99999

LL Limit

-99999 to 99999

HH Hysteresis

-9999 to 9999

HI Hysteresis

-9999 to 9999

LO Hysteresis

-1

-9999 to 9999

LL Hysteresis

-1

-9999 to 9999

Type

Normal

Normal, Area, Rank

Zero Band

0 to 99999

Start Condition

Always

Always, Zero Band, Motion, Z + M

Simplified instruction manual MODEL G1000

10/44

Hold Function (Hold)

(P00 to P15)

Setting item

Default value

Setting range

Pattern Select

－－－

P00 to 15

Pattern Copy

－－－

P00 to 15

Hold

Normal

(1)Normal (2)Sample (3)Peak (4)Valley (5)Peak valley

(6)Area Peak (7)Area Valley (8)Area Peak Valley (9)Time Peak

(10)Time Valley (11)Time Peak Valley (12)Level + Time P

(13)Level + Time V (14)Level +Time P-V

(15)Maximum Value + Level(16)Minimum Value + Level

(17)Inflection Point + Level

*Level = Start level

Start Level

100

±99999

Start Condition

Pass

Pass, Rising Edge, Trailing Edge, More, Less

Detection Time

1000

1 to 9999

Minimum Value

1 to 9999

Detection Level

×1/2

×1/4, ×1/2, ×3/4, ×1, ×1.25, ×1.5, ×2, ×3, ×4

Detection Count

1 to 9

Inflection Range

1 to 99999

Detection Before

1 to 999

Detection After

1 to 999

Waveform Comparison / Waveform & Displacement Comparison (Waveform)

(P00 to P07)

Setting item

Default value

Setting range

Pattern Select

－－－

P00 to 07

Pattern Write

－－－

P00 to 07

Clear Wave Data

－－－

Sampling

－－－

Sampling Wave Move

－－－

Comparison Wave Draw

－－－

Comparison Wave Edit

－－－

Comparison Area

－－－

Displacement Max Value

10000

0 to 99999

Displacement Min Value

0 to 99999

Altri manuali per G1000 Series

Indice

Altri manuali WATANABE Multimetro

WATANABE

WATANABE G1000 Series Manuale utente

Manuali Multimetro popolari di altre marche

Agilent Technologies

Agilent Technologies 34420A Manuale utente

Fluke

Fluke 83 Manuale utente

Hameg

Hameg HM 8012 Manuale utente

Mastech

Mastech MY70 Manuale utente

Steren

Steren MUL-300 Manuale utente

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manuale utente

PeakTech

PeakTech 4000 Manuale per l'uso e la cura

YOKOGAWA

YOKOGAWA 90050B Manuale utente

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manuale utente

Fluke

Fluke 8846A Manuale operativo e di manutenzione

Tempo Communications

Tempo Communications MM200 Manuale utente

Elenco Electronics

Elenco Electronics CM-1555 Manuale utente

Mastech

Mastech MS8238C Manuale utente

SDAR

SDAR 830A, 830B, 830D, 830C Manuale utente

RS PRO

RS PRO RS-9519BT Manuale utente

BGS technic

BGS technic 8890 Manuale utente

Amprobe

Amprobe Hexagon 60 Manuale utente
