WatchGuard® SOHO Remote Management User Guide 1

WatchGuard®SOHO

Remote Management

User Guide

The WatchGuard®SOHOTM and SOHO|tcTM both come equipped with

the SOHO Remote ManagementTM feature. This feature uses Internet

Protocol Security (IPSec) to establish a secure connection over the

Internet to a SOHO device.

This user guide applies to both the SOHO and the SOHO|tc–the

name SOHO is used to refer to both devices throughout.

Configure the SOHO for SOHO Remote Management

Flow these steps to configure your SOHO:

1 With your Web browser, go to the SOHO System Status page using

the Trusted IP address of the SOHO.

For example, if using the default IP address, go to: http://192.168.111.1

2 From the navigation bar on the right side, select Administration =>

System Security.

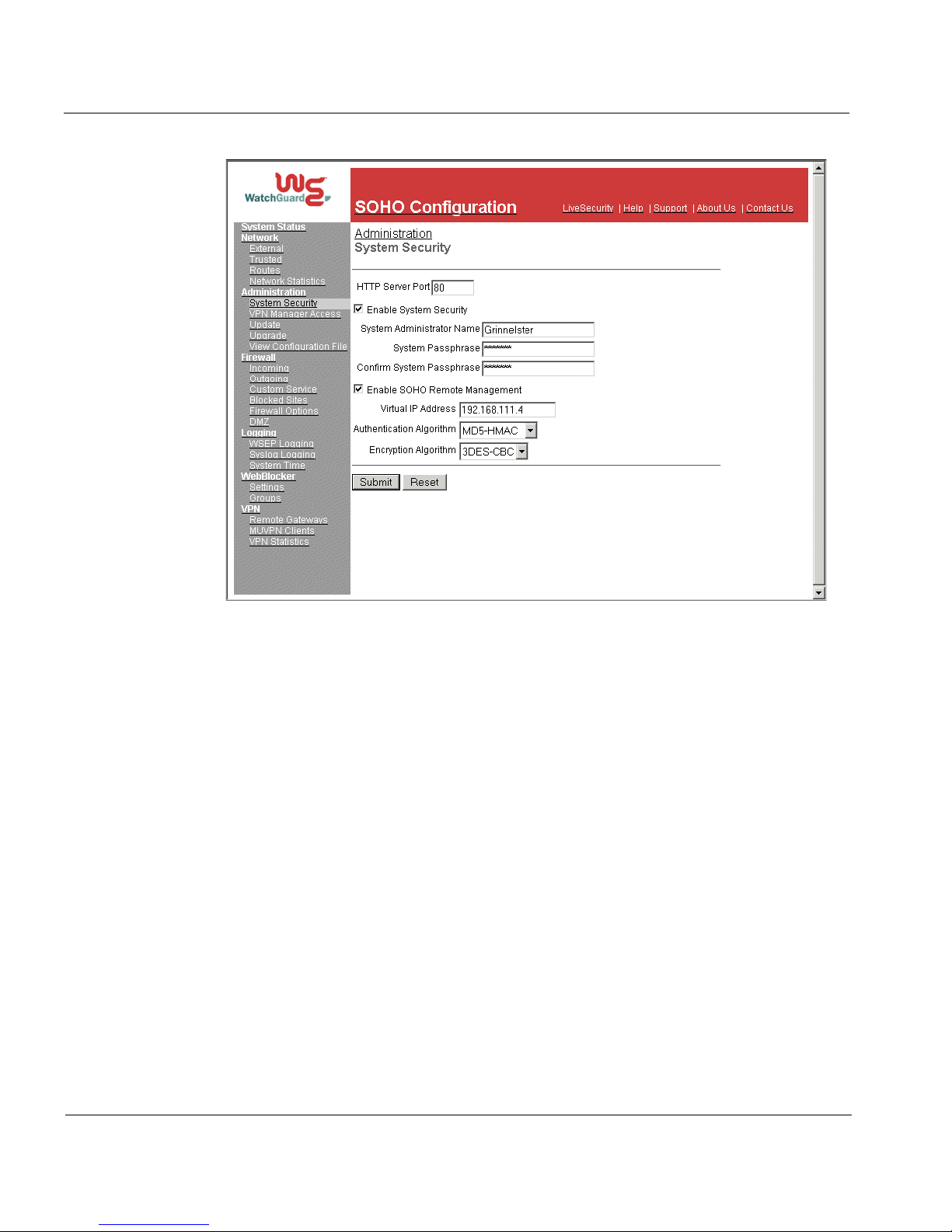

The System Security page appears.

2 WatchGuard® SOHO Remote Management User Guide

3 Enable the checkbox labeled System Security.

4 Enter the System Administrator Name in the appropriate field.

This name will be used as the E-mail Address when setting up the Remote

Management (MUVPN) client. In our example, Grinellster.

5 Enter the System Passphrase in the appropriate field.

This passphrase will be used as the Pre-Shared Key when setting up the

Remote Management (MUVPN) client.

6 Enter the System Passphrase again to confirm it in the appropriate

field.

7 Enable the checkbox labeled Enable SOHO Remote Management.

8 Enter the Virtual IP address which will be used by the remote

management computer when connecting to the SOHO in the

appropriate field.

In our example, 192.168.111.4.

9 Select the Authentication Algorithm.

In our example, SHA1-HMAC.

Prepare the Client Computers

WatchGuard® SOHO Remote Management User Guide 3

10 Select the Encryption Algorithm.

In our example, 3DECS-CBC.

11 Click the Submit button.

Prepare the Client Computers

A computer used as a SOHO Remote Management host must have the

following system requirements as well as each platform variation

setup properly.

System Requirements

• PC-compatible computer with Pentium processor or equivalent

• Compatible operating systems and minimum RAM:

- Microsoft Windows 98: 32 MB

- Microsoft Windows ME: 64 MB

- Microsoft Windows NT 4.0 Workstation: 32 MB

- Microsoft Windows 2000 Professional: 64 MB

• 10 MB hard disk space

• Native Microsoft TCP/IP communications protocol

• Microsoft Internet Explorer 5.0 or later

• Netscape Navigator 4.7 or later

• An Internet Service Provider account

• A Dial-Up or Broadband (DSL or Cable modem) Connection

The SOHO Remote Management MUVPN Adapter, which supports

L2TP, installs only if these network components are already installed

on your computer:

• Windows 98/ME: Dial-Up Networking

• Windows NT: Remote Access Server (RAS)

If these components are not installed, follow these instructions:

4 WatchGuard® SOHO Remote Management User Guide

Installing Remote Access Server on Windows NT

1 Select Start => Settings => Control Panel. Double-click the Network

icon.

2Select the Services tab.

3Click the Add button.

4Select Remote Access Services from the list, then click the OK button.

5Enter the path to the Windows NT install files or insert your system

installation CD, then click the OK button.

The Remote Access Setup dialog box appears.

6Click the Yes button to add a RAS capable device and enable you to

add a modem.

7Click the Add button and complete the Install New Modem wizard

NOTE

If there is no modem installed, you can enable the Don't detect my modem; I

will select it from a list checkbox then add a Standard 28800 modem.

8Select the modem added in the last step in the Add RAS Device dialog

box, then click the OK button.

9Click the Continue button, then click the Close button.

10 Reboot your computer.

Installing Dial-up Networking on Windows 98/ME

From the Windows desktop:

1 Select Start => Settings => Control Panel. Double-click the Add/

Remove Programs icon.

The Add/Remove Properties window appears.

2Click on the Windows Setup tab.

The Windows Setup dialog box appears and searches for installed components.

3Enable the Communications checkbox and click the OK button.

The Copying Files dialog box appears and copies the necessary files.

4The Dial-Up Networking Setup dialog appears and prompts you to

restart the computer. Click the OK button.

The computer reboots.

Prepare the Client Computers

WatchGuard® SOHO Remote Management User Guide 5

Windows 98/ME Platform Setup

From the Windows desktop:

1 Select Start => Settings => Control Panel. Double-click the Network

icon.

The Network window appears.

2Verify that Client for Microsoft Networks is installed.

If Client for Microsoft Networks is not installed, you must install it. For

instructions, please see the following section of this document titled,

“Installing the Client for Microsoft Networks”.

3Click the Identification tab.

4Enter a name for the remote client.

This must be a unique name on the remote network.

5Enter the domain name you are connecting to.

This should be the same as the Logon to Windows NT domain value.

6Enter a description for your computer (optional).

7Click OK. Click OK to close and save changes to the Network control

panel.

Click Cancel if you do not want to save any changes.

8Reboot the machine.

Installing the Client for Microsoft Networks

From the Networks window:

1ClicktheConfiguration tab. Click Add.

The Select Network Component Type window appears.

2Select Client. Click Add.

The Select Network Client window appears.

3Select Microsoft from the list on the left. Select Client for Microsoft

Networks from the list on the right. Click OK.

4Select Client for Microsoft Networks.

5Click Properties.

6Enable the Log on to Windows NT domain option.

7In the Windows NT Domain field, type the domain name.

For example, your domains might be sales, office, and warehouse.

8Enable the Logon and Restore Network Connections option.

6 WatchGuard® SOHO Remote Management User Guide

Windows NT Platform Setup

Adding a Domain Name to a Windows NT Workstation

Often remote clients need to connect to a domain behind the firewall.

To do this, the remote client must be able to recognize the domains to

which they belong. Adding a domain requires the installation of the

Computer Browser Network Service.

Installing the Computer Browser

From the Windows desktop:

1 Select Start => Settings => Control Panel. Double-click the Network

icon.

The Network dialog box appears.

2Click the Services tab.

3Click Add.

4Select Computer Browser.

5Browse to locate the installation directory. Click OK.

6Reboot the workstation.

Adding a New Domain

From the Windows desktop:

1 Select Start => Settings => Control Panel. Double-click the Network

icon.

The Network dialog box appears.

2Click the Protocols tab.

3Select Computer Browser. Click Properties.

4Add the remote network domain name.

You can add multiple domain names during the same configuration session.

5Click OK.

6Reboot the workstation.

Prepare the Client Computers

WatchGuard® SOHO Remote Management User Guide 7

Windows 2000 Platform Setup

From the Windows desktop:

1 Select Start => Settings => Network and Dial-up Connections, then

select the Dial-up connection you use to access the Internet.

The connection window appears.

2Click on the Properties button.

3Select the Networking tab.

4Verify that the following components are present and enabled:

- Internet Protocol (TCP/IP)

- File and Printer Sharing for Microsoft Networks

- Client for Microsoft Networks

If these components are not present they will need to be installed.

Installing the Internet Protocol (TCP/IP) Network Component

From the Windows desktop:

1 Select Start => Settings => Network and Dial-up Connections, then

select the Dial-up connection you use to access the Internet.

The connection window appears.

2Click on the Properties button.

3Select the Networking tab and then click the Install button.

The Select Network Component Type window appears.

4Double click the Protocol network component.

The Select Network Protocol window appears.

5Select the Internet Protocol (TCP/IP) Network Protocol and then click

the OK button.

Installing the File and Printer Sharing for Microsoft Networks

From the Windows desktop:

1 Select Start => Settings => Network and Dial-up Connections, then

select the Dial-up connection you use to access the Internet.

The connection window appears.

2Click on the Properties button.

3Select the Networking tab and then click the Install button.

The Select Network Component Type window appears.

8 WatchGuard® SOHO Remote Management User Guide

4Double click the Services network component.

The Select Network Service window appears.

5Select the File and Printer Sharing for Microsoft Networks Network

Service and then click the OK button.

Installing the Client for Microsoft Networks Network Client

From the Windows desktop:

1 Select Start => Settings => Network and Dial-up Connections, then

select the Dial-up connection you use to access the Internet.

The connection window appears.

2Click on the Properties button.

3Select the Networking tab and then click the Install button.

The Select Network Component Type window appears.

4Double click the Client network component.

The Select Network Protocol window appears.

5Select the Client for Microsoft Networks Network Client and then

click the OK button.

6Click the Cancel button to close the Select Network Component Type

window.

7Click the OK button to preserve the installed components.

8Click the Cancel button to close the Dial-up connection window.

Install the SOHO Remote Management Client

Install the SOHO Remote Management client (which is labeled as a

Mobile User VPN, or MUVPN client) software on each remote

management computer. The software installation packages are

available from the LiveSecurity Service Web site:

http://www.watchguard.com/support

The installation process consists of two steps: installing the software

and setting up the client.

Install the SOHO Remote Management Client

WatchGuard® SOHO Remote Management User Guide 9

CAUTION

In order to perform the installation process successfully, you must be logged

into the remote management computer with local administrator rights.

Installing the SOHO Remote Management (MUVPN)

Client Software

Follow these steps to install the client:

1 Copy the software installation package to the remote management

computer.

2 Locate and run the installation executable.

If at any time during the installation process you inadvertently skip a step,

simply cancel the process and begin again.

3 The installation package welcomes you to the InstallShield Wizard.

Click the Next button.

NOTE

During the Setup Status portion of the install procedure, the InstallShield

may detect ReadOnly Files. If this occurs, click the Ye s button for each event

in order to continue the install.

4 The installation package again welcomes you to the InstallShield

Wizard. Once more, click the Next button.

The Software Licence Agreement appears.

5ClicktheYes button, to accept the terms of the License Agreement

and to continue with the installation.

The Setup Type window appears.

6 Select the type of setup, by default Typical is enabled–this is the

setup recommended by WatchGuard. Click the Next button.

7 If you are installing the client on a Windows 2000 host, the

InstallShield will detect the native Windows 2000 L2TP

component. The client will use this component and not need to

install its own. Click the OK button to continue with the install.

The Select Components window appears.

10 WatchGuard® SOHO Remote Management User Guide

8 Keep the default components, click the Next button.

The Start Copying Files window appears.

9ClicktheNext button to begin copying files.

NOTE

A command prompt window will appear while the dni_vapmp file is

installed—this is normal. When it is complete, the installation will continue.

10 When the InstallShield Wizard is complete, click the Finish button.

11 The InstallShield Wizard then searches for a User Profile file, click

the Next button as this step is not necessary.

An Information dialog box appears.

12 Click the OK button to continue with the installation.

13 The InstallShield Wizard has completed the install of the SOHO

Remote Management (MUVPN) client, verify that the option Yes, I

want to restart my computer now is enabled and click the Finish

button.

The computer reboots.

Setting up the Client

Once you have restarted the machine, the WatchGuard Policy Import

dialog box appears. Click the Cancel button as this step is not

necessary.

From the Windows desktop system tray:

1Right-clickontheMobile User VPN client icon.

The Security Policy Editor window interface appears.

2 Select Edit => Add => Connection.

A New Connection will appear under the My Connections folder within the

Network Security Policy field on the left side of the Editor.

Altri manuali per SOHO

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Watchguard Firewall

Watchguard

Watchguard Firebox V10 Manuale utente

Watchguard

Watchguard Firebox T10-D Manuale utente

Watchguard

Watchguard Firebox SOHO 6 Wireless Guida di riferimento

Watchguard

Watchguard Firebox M4800 Istruzioni per l'installazione

Watchguard

Watchguard 970 Manuale utente

Watchguard

Watchguard Firebox M200 Manuale utente

Watchguard

Watchguard Firebox t10 Manuale di istruzioni

Watchguard

Watchguard Firebox V10 Manuale utente

Watchguard

Watchguard Firebox T45 Manuale utente

Watchguard

Watchguard Firebox T80 Manuale utente

Watchguard

Watchguard Firebox T25-W Manuale utente

Watchguard

Watchguard Firebox M400 Manuale utente

Watchguard

Watchguard XTM 33-W Istruzioni per l'installazione

Watchguard

Watchguard Firebox SOHO 6.1 Manuale utente

Watchguard

Watchguard SOHO SOHO and SOHO | tc Manuale utente

Watchguard

Watchguard XCS Series Istruzioni per l'installazione

Watchguard

Watchguard SSL 100 Manuale utente

Watchguard

Watchguard Firebox t10 Manuale utente

Watchguard

Watchguard Firebox T40 Istruzioni per l'installazione

Watchguard

Watchguard Firebox M5800 Manuale utente

Watchguard

Watchguard Firebox Vclass V200 Istruzioni per l'installazione

Watchguard

Watchguard Firebox t10 Manuale utente

Watchguard

Watchguard Firebox V10 Istruzioni per l'installazione

Watchguard

Watchguard XTM 2520 Manuale utente

Manuali Firewall popolari di altre marche

Cisco

Cisco S190 Manuale utente

Fortinet

Fortinet FortiGate Voice Series Manuale utente

ADTRAN

ADTRAN NetVanta 2300 Manuale utente

SecureLogix

SecureLogix ETM System Manuale utente

NETGEAR

NETGEAR ProSafe FVX538 Manuale utente

Lanner

Lanner FW-8877 Manuale utente

Huawei

Huawei USG6000 Series Manuale di installazione e funzionamento

H3C

H3C SecPath F5000-AI-15 Manuale utente

Nexcom

Nexcom DNA 1150 Manuale utente

Fortinet

Fortinet FortiGate-60 series Manuale utente

Cisco

Cisco 3110 Manuale

Draytek

Draytek Vigor2860 Series Manuale utente

Lanner electronics

Lanner electronics FW-7650 Series Manuale utente

Swisscom

Swisscom Internet Backup Manuale utente

SonicWALL

SonicWALL NSa 5700 Manuale utente

DPtech

DPtech FW1000 SERIES Manuale utente

FEITIAN

FEITIAN MultiPass FIDO Manuale utente

EBLOCKER

EBLOCKER PRO Manuale utente
