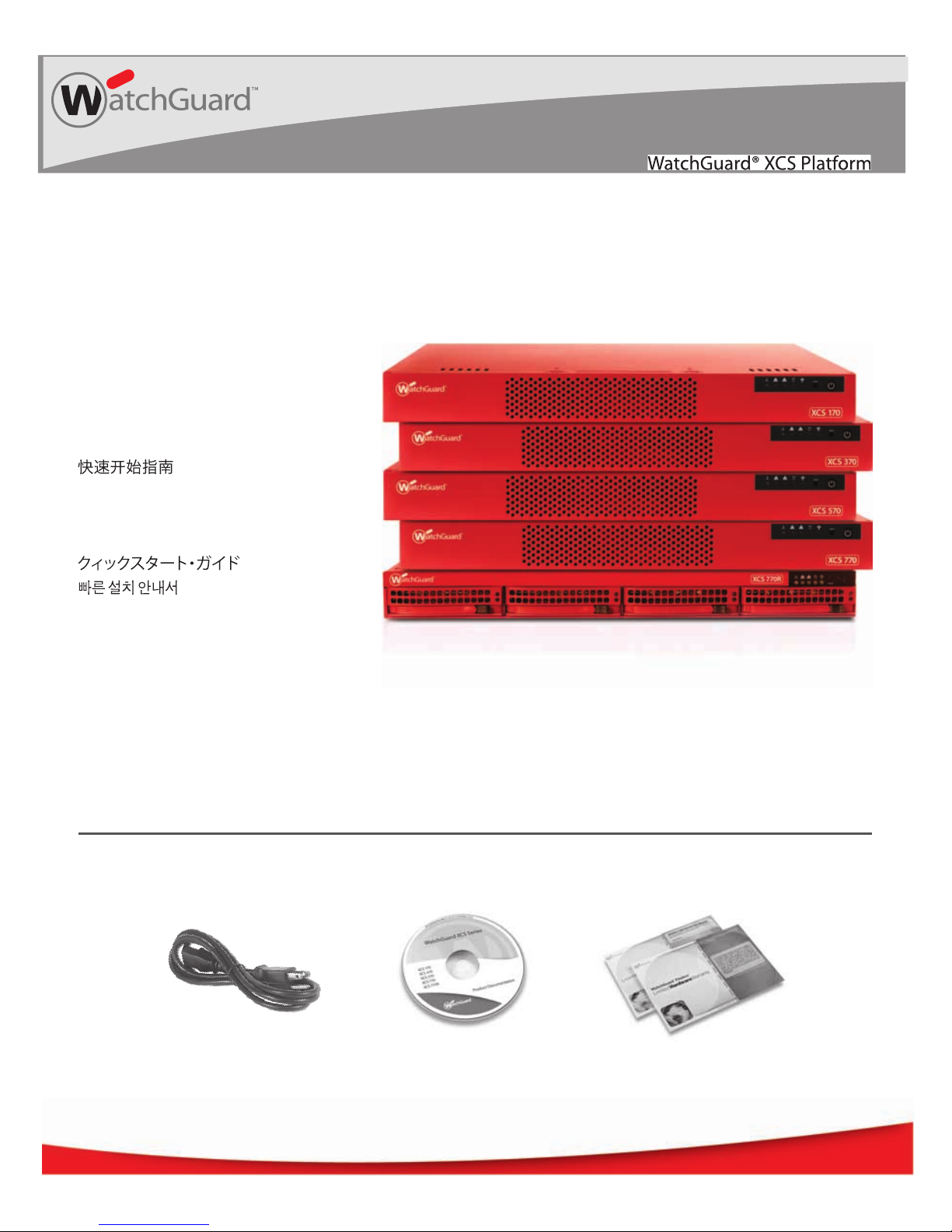

Watchguard WatchGuard XCS 170 Manuale utente

WatchGuard® Technologies, Inc.

WatchGuard® XCS Platform

Appliance Models: 170, 370, 570, 770, and 770R

Quick Start Guide

Guide de démarrage rapide

Kurzanleitung

Guida introduttiva

Guía Rápida

WatchGuard® XCS Platform

XCS_170_370_570_770_770R_QSG_FINAL_0110110.indd 1 11/1/10 3:02 PM

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

English

• Find the serial number on your device and record it.

• Go to http://www.watchguard.com/activate

• Log in.

NOTE: If you are new to WatchGuard®, follow the instructions provided at the URL above to create a prole.

• Follow the instructions on the screen to enter your serial number and receive a feature

key.

NOTE: If you will not have an Internet connection during the setup procedure, we recommend that you copy

your feature key to a text le during the activation process.

Conguration Checklist

• To congure your WatchGuard device, you must collect the following information

about your network:

Example Settings Your Settings

Hostname hostname

Domain Name example.com

IP Address 10.0.0.1

Subnet Mask 255.255.255.0

Gateway Address 10.0.0.2

Name Server Address 10.0.0.2

Default User ID admin

Default Password admin

Organization Name example.com

Server Admin Email [email protected]om

Serial Number B0E112345-1234

Registration and Conguration

XCS_170_370_570_770_770R_QSG_FINAL_0110110.indd 3 11/1/10 3:02 PM

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

• Install the device in a secure location, preferably in a locked equipment rack or secure

server room.

• Connect the power cord to the power socket on the back panel of the device.

• To access the Web UI Setup Wizard, connect to the WatchGuard XCS using one of these

methods:

Connect your computer to the same network as the WatchGuard XCS through a

network switch. Connect the WatchGuard XCS to the network switch using the

rst onboard Ethernet connector (NIC 1) at the left side of the back panel.

Connect your computer directly to the WatchGuard XCS using a cross-over

Ethernet cable connected to the rst onboard Ethernet connector (NIC 1) at the

left side of the back panel.

• The default IP address on the WatchGuard XCS is 10.0.0.1/24.

• Congure your computer to use the IP address 10.0.0.2 with a netmask of

255.255.255.0 to connect to the WatchGuard XCS.

• Power on your device. Wait at least ve minutes for the system to initialize before you

try to connect to the WatchGuard XCS with a web browser.

NOTE: Ping is enabled on the congured network interface. You can ping the default address 10.0.0.1 to

check connectivity before you connect with a web browser.

• Open a web browser and type https://10.0.0.1 to start the Web UI Setup Wizard.

NOTE: Because the XCS device uses a self-signed certicate, you may see a certicate warning in your

browser. It is safe to ignore the warning (Internet Explorer) or to add a certicate exception (Mozilla Firefox).

• On the Login page, type the default user ID (admin) and the default password (admin).

• Follow the instructions on the screen and complete the Wizard.

NOTE: Make sure you enter your feature key during the Wizard.

• Log in to the WatchGuard XCS Web UI with the user name admin and the new

password you set in the Wizard.

NIC 1

Connect your WatchGuard® XCS

Ethernet cable

[Optional monitor

and keyboard for

console access]

Switch

Ethernet

cable

Connection and Installation

XCS_170_370_570_770_770R_QSG_FINAL_0110110.indd 4 11/1/10 3:02 PM

4Gon www.4Gon.co.uk [email protected] Tel: +44 (0)1245 808295 Fax: +44 (0)1245 808299

Next Steps

Congratulations! You have nished the basic setup of your WatchGuard® XCS. You can

use the Web UI to continue all conguration and management tasks.

WatchGuard XCS Conguration

• The XCS is initially congured for a deployment using a single interface on an internal

network. To congure additional network interfaces, select Conguration > Network >

Interfaces.

• A weekly full email report is scheduled to be emailed to the administrator each

Saturday. To congure additional reports, select Activity > Reports > Schedule.

Software Updates

• The Security Connection feature contacts WatchGuard’s support servers daily to check

for new software updates.

• To install new software updates for your device, select Administration > Software

Updates > Updates.

XCS_170_370_570_770_770R_QSG_FINAL_0110110.indd 5 11/1/10 3:02 PM
