Wattbike AtomX Manuale utente
QUICK START GUIDE
WELCOME
TO YOUR
WATTBIKE
ATOMX
THE INDUSTRY’S MOST
ADVANCED SMART BIKE
This guide will show
you how to build and
set up your AtomX,
how to connect to
your preferred devices
and how to get the
most from your
AtomX’s features.
WELCOME TO
THE TRIBE
#WATTBIKERS
_P3
BIKE WEIGHT 48kg
BIKE FOOTPRINT Floor space = 100 x 68cm
Footprint inc Touchscreen = 144 x 68cm
MAX RIDER WEIGHT 150kg (23st, 8lb)
MIN - MAX RIDER HEIGHT 152cm - 198cm (5’ - 6’5”)
RESISTANCE TYPE Electromagnet
POWER RANGE 0 - 2500W
PEDALS Combination pedals fitted as standard
WIRELESS TECHNOLOGIES
Wi-Fi, Bluetooth, NFC, ANT (Heart Rate Only),
ANT+, Polar (Heart Rate Only) ANT+ FE-C,
Bluetooth FTMS
COMPATIBLE HR DEVICES BLE, ANT+, ANT (Suunto), Polar
SHIFTERS Each 3 buttons, hard-wired fully integrated
digital shifters with vibration motor
GEARS 22 virtual
GRADIENT 0 - 25%
POWER REQUIREMENTS Mains powered 12V 7A
01 IN THE BOX
02 SPECIFICATION
– Wattbike AtomX
– Wattbike Performance
Touchscreen
– Power Adaptor
– Combination Pedals
– Quick Start Guide
– Allen Keys
– Spanner
TRANSPORTATION
ROLLERS
COMBINATION
P E D A L S
POWER INLET
POWER
ACCURACY
+/-1%
PERFORMANCE TOUCHSCREEN
ANGLE ADJUSTMENT
DUAL THREE BUTTON
DIGITAL SHIFTERS, HARD-
WIRED AND INCORPORATING
VIBRATION MOTOR
WATTBIKE PERFORMANCE
T O U C H S C R E E N,
WI-FI, BLUETOOTH,
FTMS, ANT+, FE-C, NFC
AND ANT COMPATIBILITY
HORIZONTAL
H A N D L E B A R
ADJUSTMENT
A D J U S TA B L E
HANDLEBAR
HEIGHT
2X
B O T T L E C A G E
03 FEATURES
ELECTROMAGNETIC
RESISTANCE
HORIZONTAL
S A D D L E
A D J U S T M E N T
A D J U S TA B L E
SADDLE
HEIGHT
L E V E L L I N G
FEET
If you have ordered your bike as a boxed delivery, please follow
the below instructions carefully to ensure safe use following the build.
04 GET READY TO RIDE
2 7
8

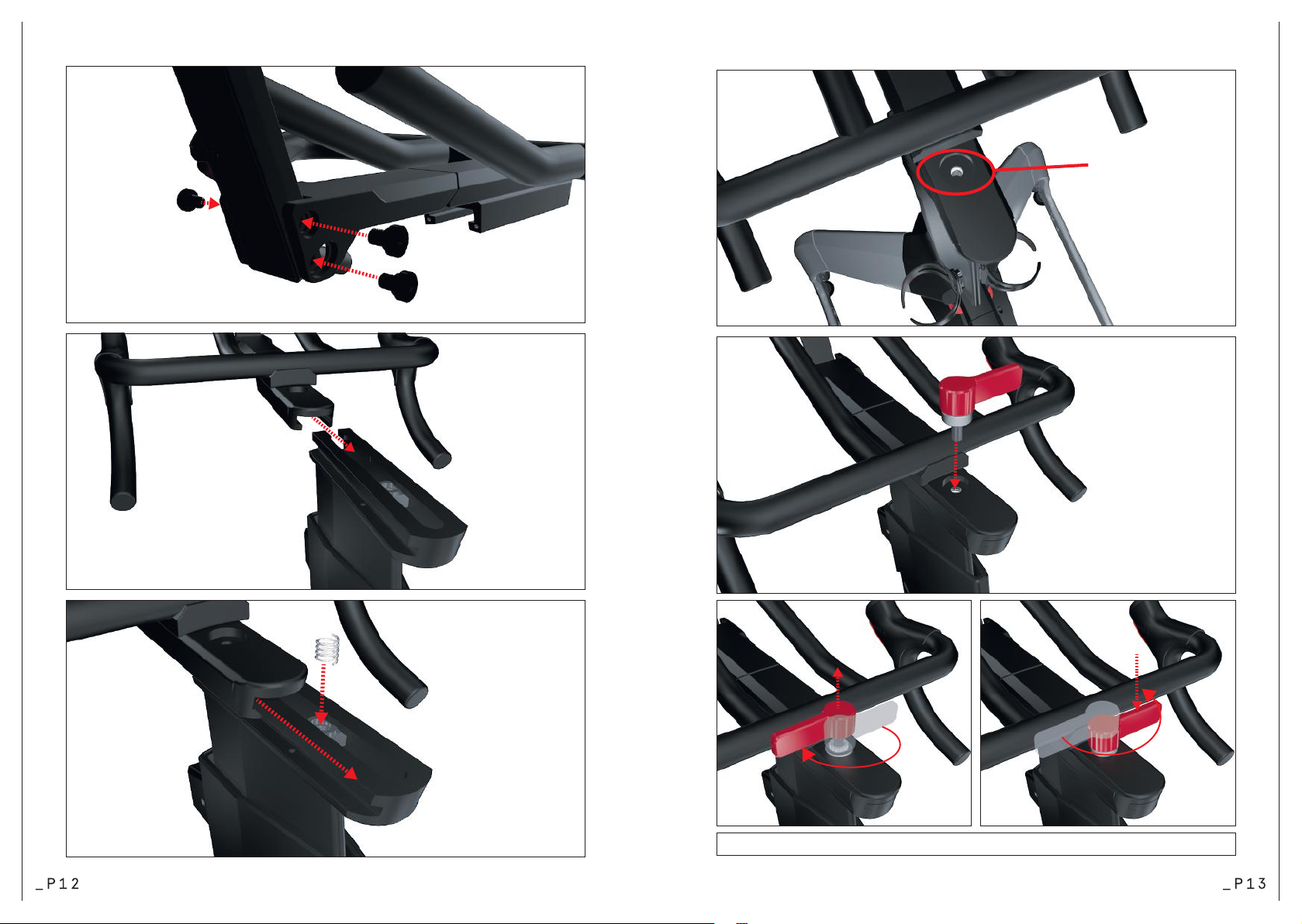

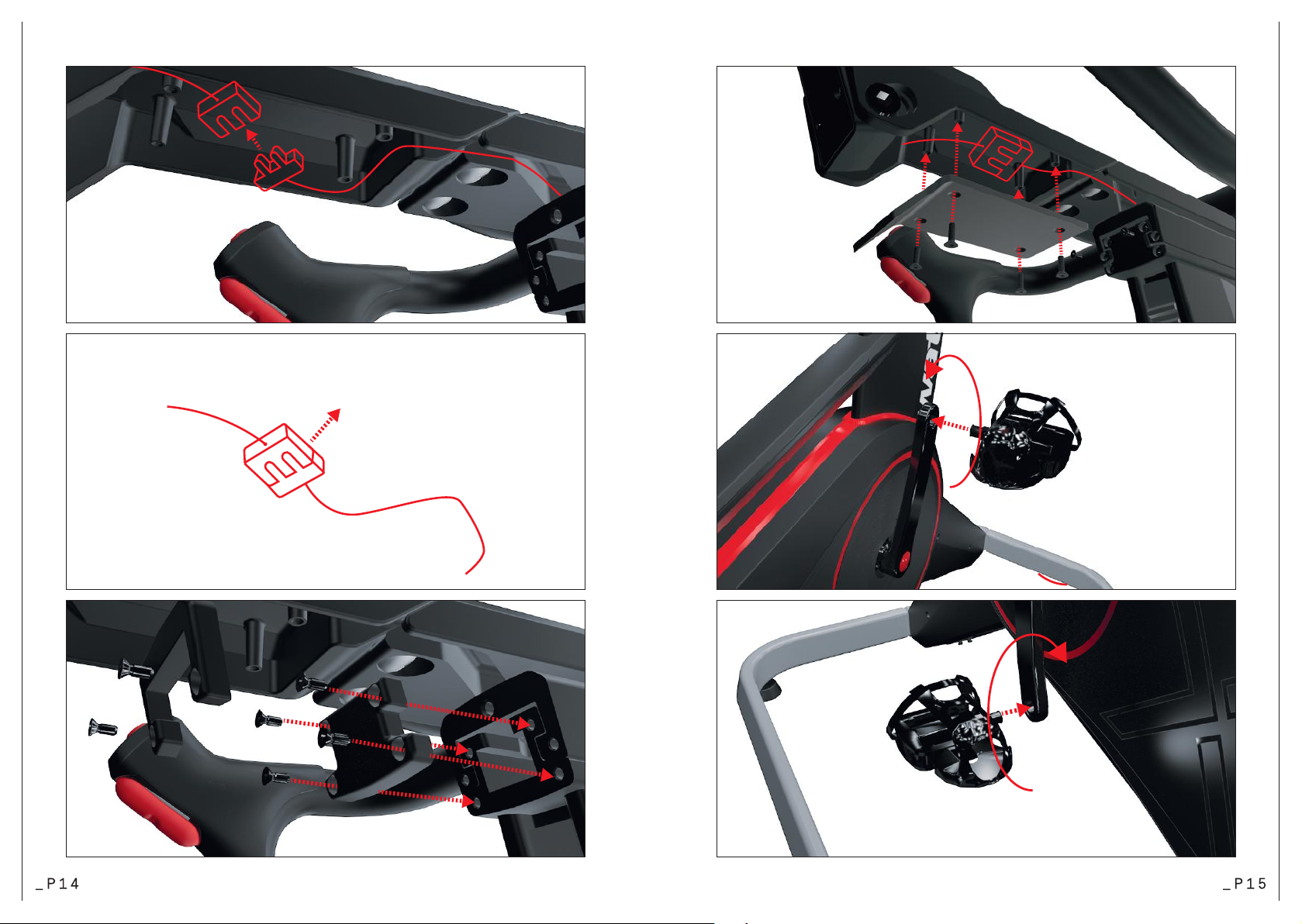

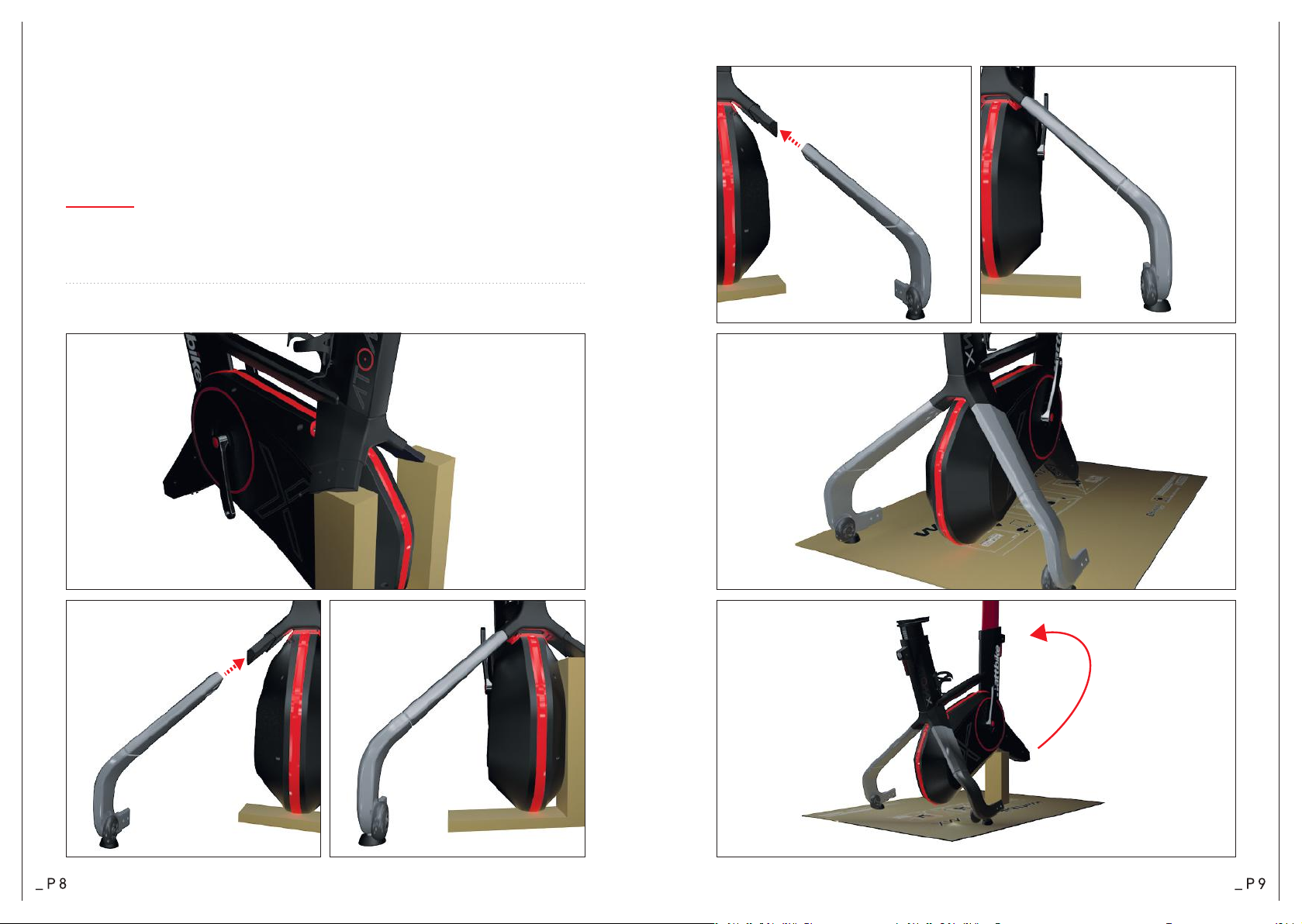

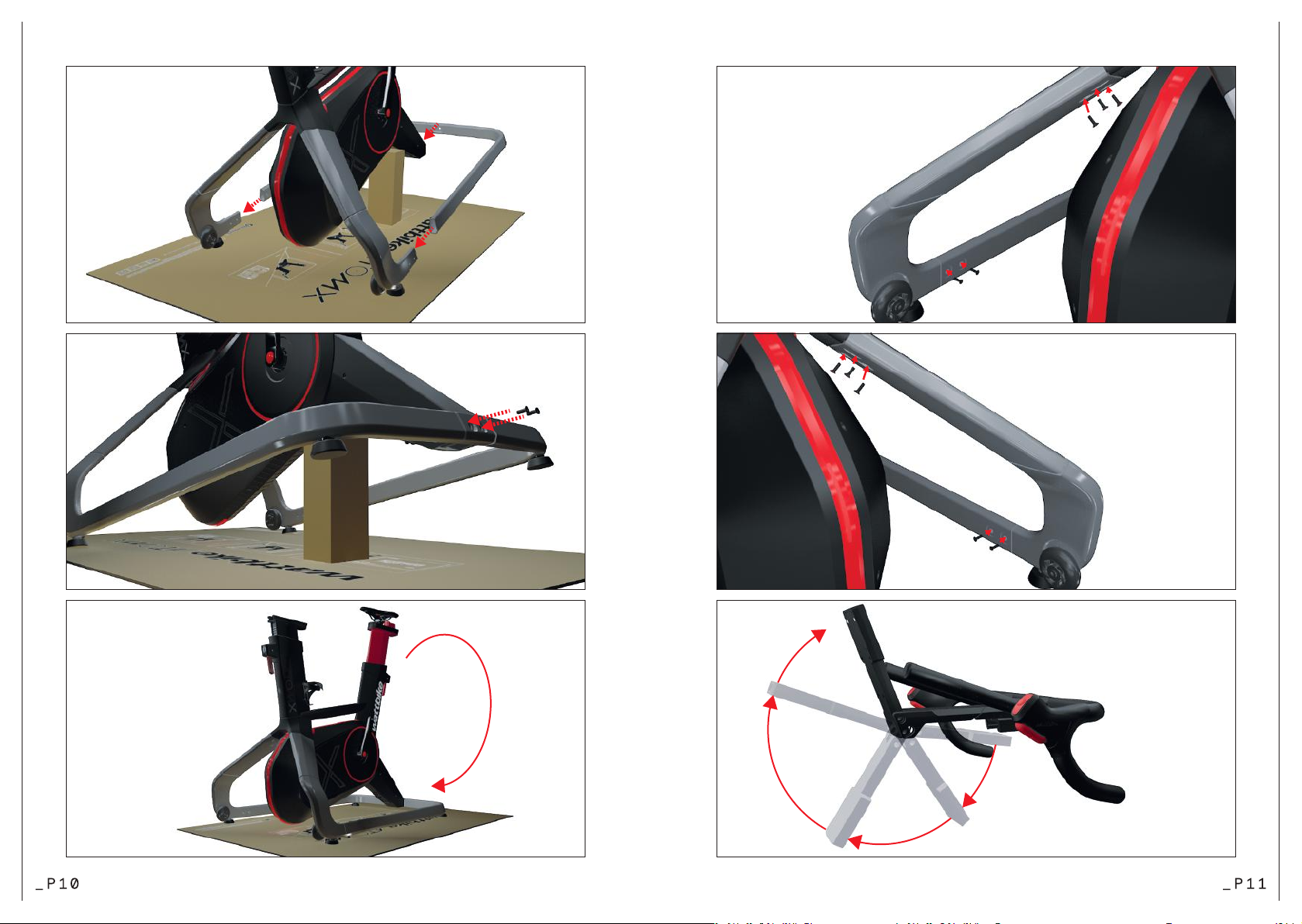

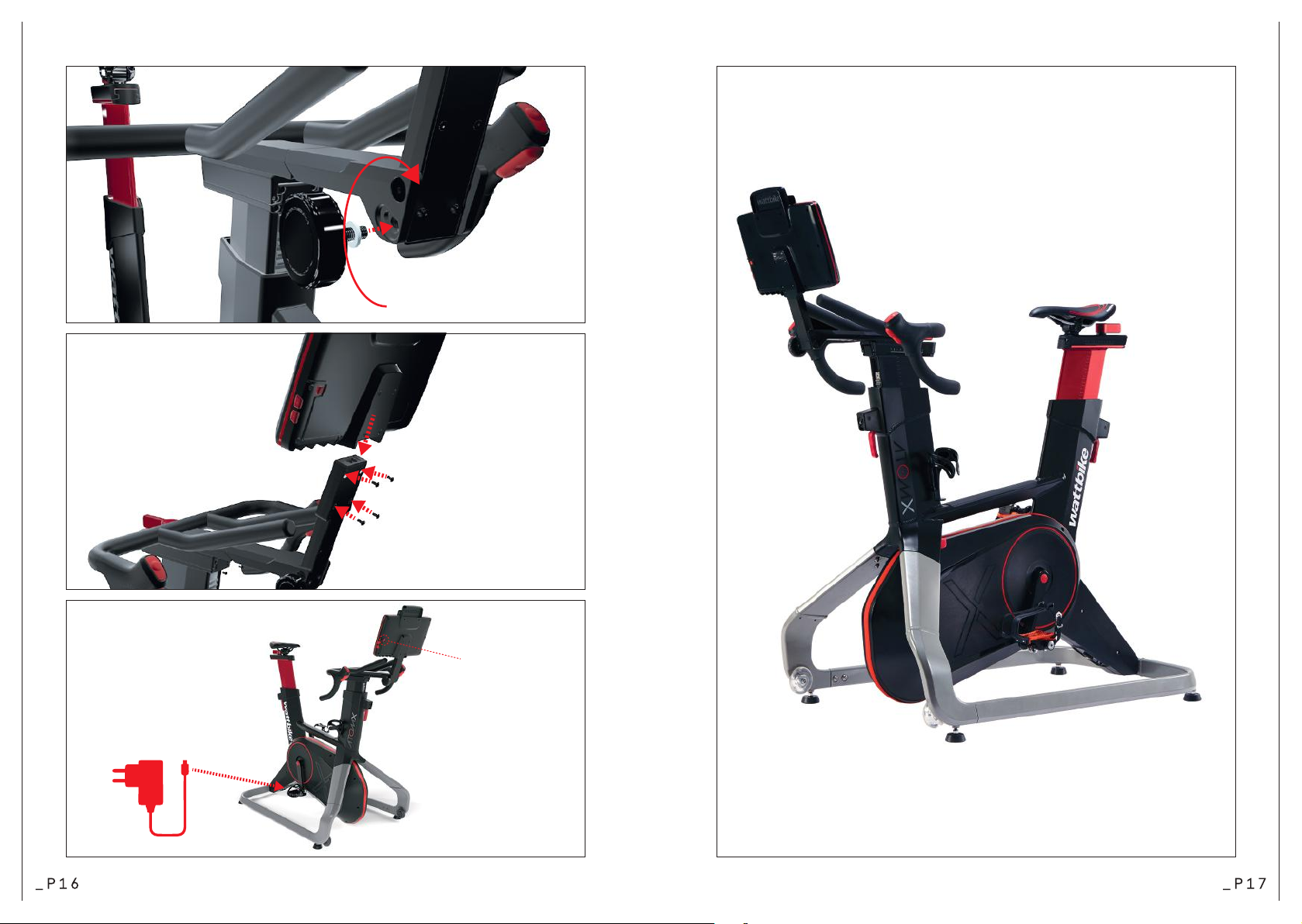

BUILD
1Open the box and remove all contents and parts, placing these to
one side. Use a knife to cut the side of the box open. Remove the
handlebar by cutting the tie wraps on the side.
3 4
5 6
11
10
912
13
14
1
2
3
4
holes
aligned
1
2
16
17
20
REPEAT STEPS 20-21 UNTIL TIGHT
21
18
19
15
1
2
1
2
x3
x3
A
BB
B
A
A
24
22
23 26
27
25
3
sec
30
1
2
1
2
28
29
1
2
2
1

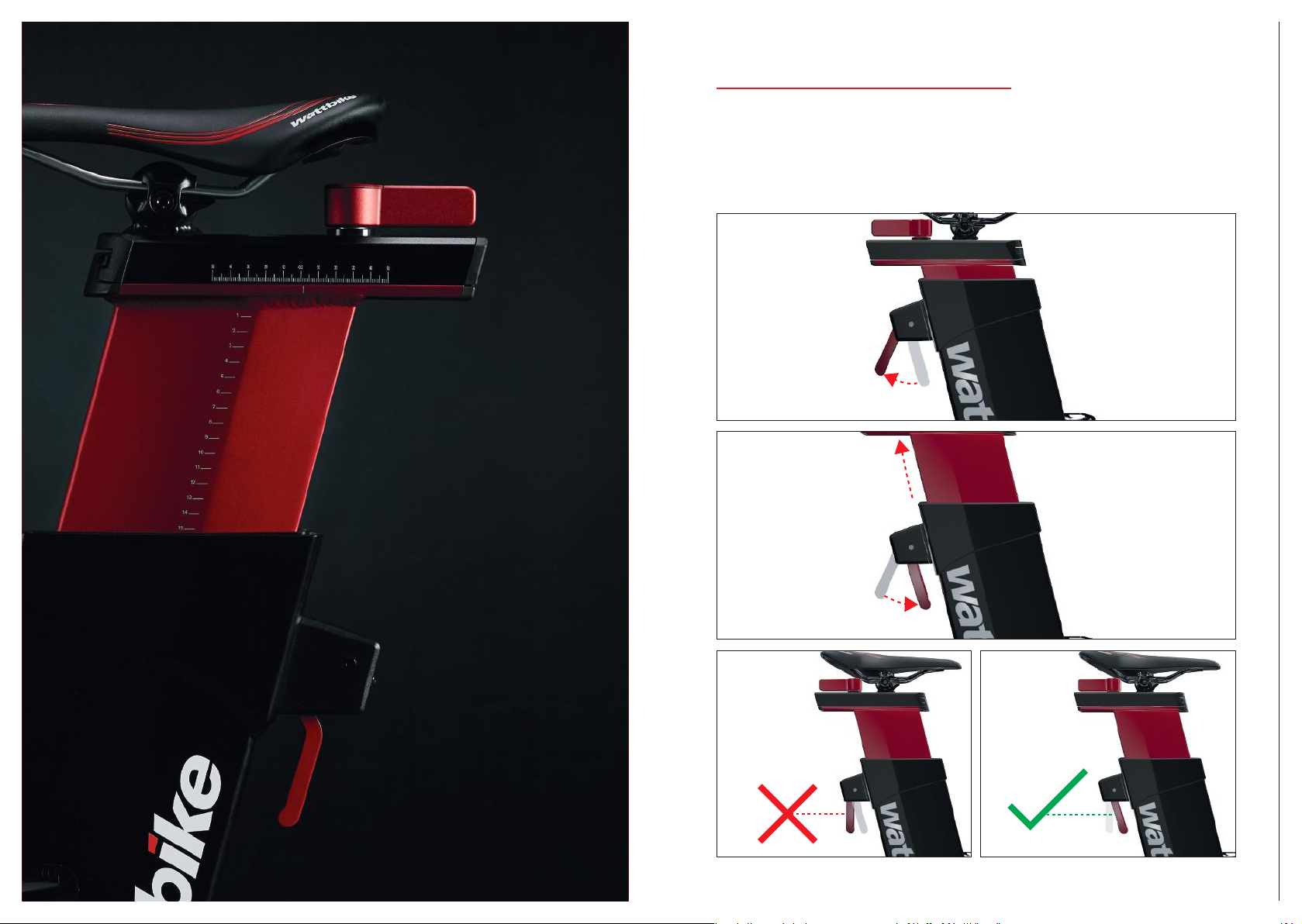

ADJUSTING LOCK LEVERS
When adjusting the lock levers for the saddle or the handlebars,
it is imperative that after adjustments have been made, the lock lever is
returned to the fully locked position (FIG 4). If the lever is left unlocked
(FIG 3), it is at risk of allowing the saddle or handlebar to slide down
during use.
3 4
