Waxess D Mode CT Manuale utente

D Mode CT

User Guide FCC Draft

Inside front cover fold-out

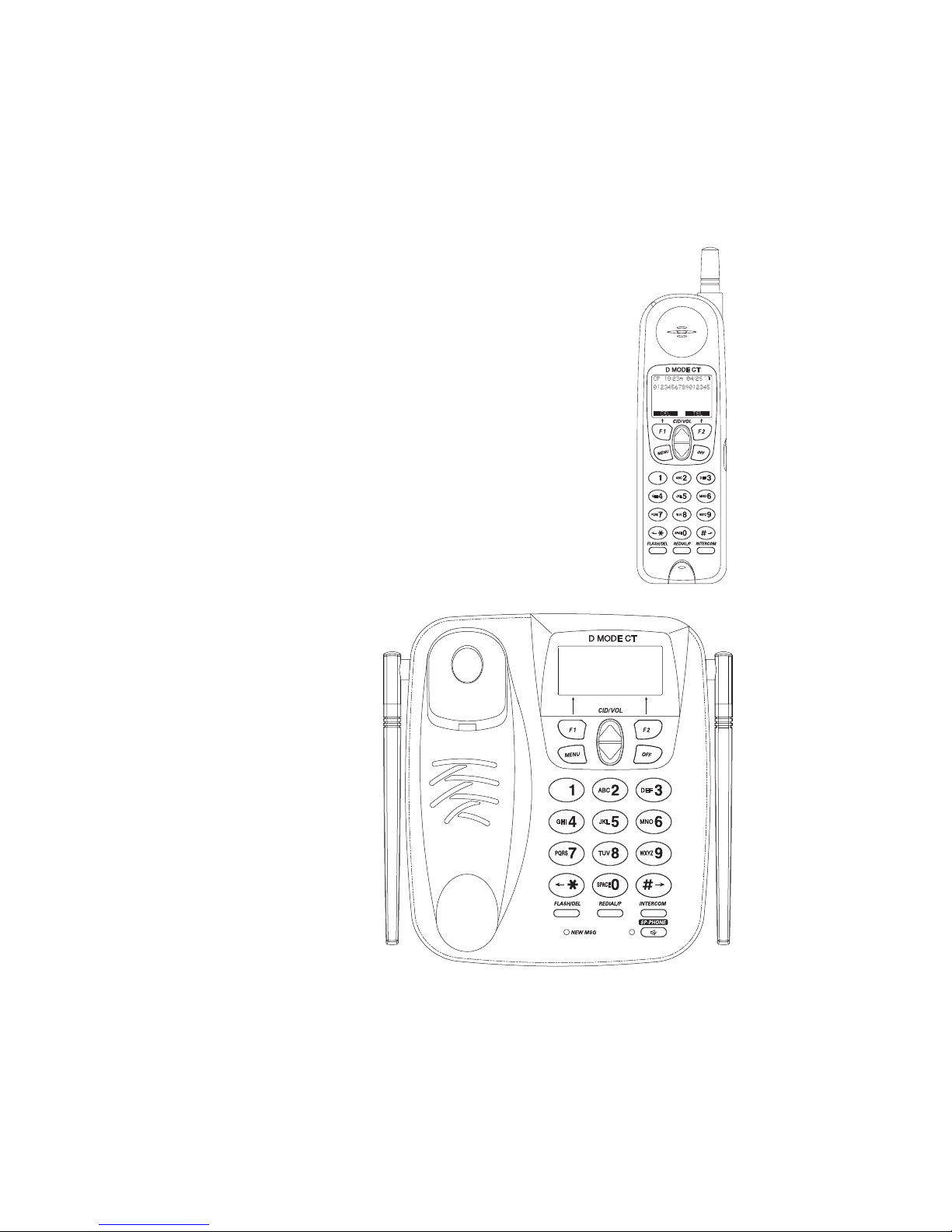

Handset illustration

Base unit

illustration

Front cover over-leaf

• INTRODUCTION

The D Mode CT is a very unique, all-in-one wireless (cellular) and

PSTN (landline) communications device. This new product

addresses the fast paced-convergence of wireless and cellular, as

well as transitioning from landline usage to wireless service usage

at home.

This innovative product combines landline (in the home) phone

service with cellular (mobile) phone service. With this one device,

you can now make and receive phones calls at home using your

traditional home phone service and/or your mobile wireless

service. The competitive landscape of the cellular industry and

driven down the cost of wireless service. Now, you can have that

affordable pricing in your home.

With its higher power, the new D Mode CT safely provides

uninterrupted phone service in your home. No more dead spots.

No more sporadic disconnects. You can roam freely around the

house using a standard 2.4GHz cordless handset while utilizing

your cellular service.

• FEATURES

• Interchangeable CDMA or GSM cellular modules

• 2.4GHz DSS Multiple Handset Cordless Telephone

• Caller ID from both Cellular and Land Line service

• E-mail and SMS 3-Way Conference with Cellular and PSTN Lines

• Conferencing with both Cellular and PSTN Lines

• 1W or 850mA high power output Multiple Cordless Handsets (4 Maximum)

• Corded Phone Handset on Base

•DualKeypad

• Speakerphone

•LargeLCDonBase

• Menu-Driven Operation

• Power Backup Battery (option)

• Voicemail Access (FSK/SDT VMWI for PSTN

• Digital audio processing

• 50 number caller ID memory

• 50 Number phone book memory

• Speed dial with keys 0 - 9

• 64-line, 16 digit backlit LCD on Handset and Base

• 5 number redial memory with up to 32 digits each

• Redial, flash

• 14 day standby and 7 - 8 hour talk time

• Tone/Pulse switchable

• WEB SITE URL AND OTHER CONTACT

INFORMATION

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii

Web site url and other contact information . . . . . . . . . . . . . . . . . . iii

Get ready . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Prepare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Choose Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Get set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set the dialing mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set the area code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set the language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set time and date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Set the ringer tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Name the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Set up CID/CIDW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Set up area code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

GO! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Make a CEL call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Make a TEL call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Answer a CEL call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Answer a TEL call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Phone book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 11

I.C. Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

General information . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1Getready

•OPEN

List of included items

Base unit

Handset

SIM card

Accessories

• PREPARE

About the SIM card

This phone connects to GSM networks through a Subscriber

Identity Module card. The SIM card carries information about

your wireless account.

Here are some important considerations:

• Keep all SIM cards out of the reach of small children.

• The SIM card and its contacts are easily damaged by scratches

or bending, so be careful when handling, inserting, or

removing the card.

• Always make sure to disconnect power from the phone before

removing or inserting the SIM card.

Install the SIM card

1 Verify that power is disconnected from the phone.

2 Open the SIM card cover (??)

3 Align the SIM card with the beveled corner facing (??), gold

contact area facing downward (??)

4 Carefully insert the SIM card.

• CHOOSE LOCATION

Before choosing a location for your new phone, read “Installation

Considerations” in the Precautions and Warranty section.

Some important considerations:

• Charge the handset for 12 - 15 hours before using.

• The location should be close to both a phone jack and a power

outlet which is not switchable.

• Keep the base and handset away from sources of electrical

noise such as motors and fluorescent lighting.

• Leave enough room to raise both base antennas fully vertical.

Desk or Tabletop

1 Connect the telephone line cord to the TEL LINE jack and to a

telephone outlet.

2 Set the base unit on a desk or table top and place the handset

on the base unit.

3 Connect the handset cord to the jacks on the handset and

base, then set the handset in the cradle.

4 Raise both antennas to a vertical position.

5 Connect the AC adaptor to the DC IN 9V jack.

Note:Go to “Power on” on page?? before connecting power.

Wall mount

WITH STANDARD WALL PLATE

1 Wall mount adaptor needed?

2 Plug the telephone line cord to the TEL LINE jack and the AC

adaptor to the DC IN 9V jack.

3 Wrap the AC adaptor inside the molded wiring channel(?), then

wrap the cord around the strain relief notch (?)

4 Raise the antennas to a vertical position.

5 Align the mounting slots on the base with the mounting posts

on the wall plate. Then push in and down until the phone is

firmly seated.

6 Connect the handset cord to the jacks on the handset and

base, then set the handset in the cradle.

7Handsetretainer??

Note: Go to “Power on” on page?? before connecting power.

WITHOUT WALL PLATE

If you do not have a standard wall plate you can mount the phone

directly to a wall.

Important considerations:

• Avoid electrical cables, pipes, or other items behind the

mounting location that could cause a hazard when inserting

screws into the wall.

• Mount your phone within 10 - 15 feet of a working phone jack

to avoid excessive cord lengths.

• Verify that the wall material can support the weight of the

handset and base unit.

• Use screws and anchoring devices suitable for the wall

material where you place the base unit.

1 Insert two mounting screws along with the correct anchoring

devices? 0?/? inches apart. Leave about ?/? of an inch between

the wall material and the screw heads for mounting the phone.

2 Plug the telephone line cord to the TEL LINE jack and the AC

adaptor to the DC IN 9V jack.

3 Wrap the AC adaptor inside the molded wiring channel(?), then

wrap the cord around the strain relief notch (?)

4 Raise the antennas to a vertical position.

5 Align the mounting slots on the base with the screws in the

wall. Then push in and down until the phone is firmly seated.

6 Connect the handset cord to the jacks on the handset and

base, then set the handset in the cradle.

7Handsetretainer??

Note: Go to “Power on” on page ?? before connecting power.

Ready the wireless handset

INSTALL THE BATTERY

1Openthecover.

2 Connect the battery.

3 Close the cover

CHARGE THE BATTERY

1 Connect the AC adaptor to the DC 9V IN jack on the charger

and to a standard 120V AC wall outlet.

2 Set the charger on a desk or tabletop, then set the handset in

the charger with the keypad facing forward.

3 Allow the battery to charge for 12–15 hours.

Base unit power on

When powered on for the first time, the

base unit goes through an initialization

sequence.

When the sequence is complete, this

screen appears.

If you have made a connection with

your cellular service provider, the date

and time may be set automatically. If

not, refer to the next section to set the

date and time manually.

00:00A 01/01 ?

Base

Initializing

12:34A 12

23 ?

NEW : 00

TAL

CEL

2Getset

• SET THE DIALING MODE

1 Locate the TONE/PULSE switch on the back of the base unit.

Select TONE or Pulse.

Note:The following steps apply to both the base unit and the

handset.

• SET THE AREA CODE

• SET THE LANGUAGE

• SET TIME AND DATE

1 Press Menu

2 Use the up/down keys and scroll to Time and Date.

3 Press Select.

A cursor blinks on top of the hour number.

4 Use the keypad to enter the correct hour.

The cursor moves to the right for the next number.

5 Enter the correct minute and press OK.

The AM/PM screen appears.

6 Use the up or down key to set AM or PM and press OK.

The time format setting appears.

7 Use the up or down key to set the time format and press OK.

The date screen appears with months showing.

8 Use the keypad to enter the correct month and press OK.

The year screen appears.

9 Enter the correct year and press OK

The date format appears.

10 Use the keypad to select a format and press OK.

You hear a confirmation tone and the main menu appears.

• SET THE RINGER TONE

You can set different ring tones for CEL calls and TEL calls.

1 Press Menu.

2 Use the up or down to select Ringer/Key Beep and press

Select.
