WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Projector
FLC301 Surface mounted
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Installation tools
Mounting hardware used on this product
includes fasteners with hexalobular socket
heads (ISO 10664). Installation requires the
use of matching tools.
1

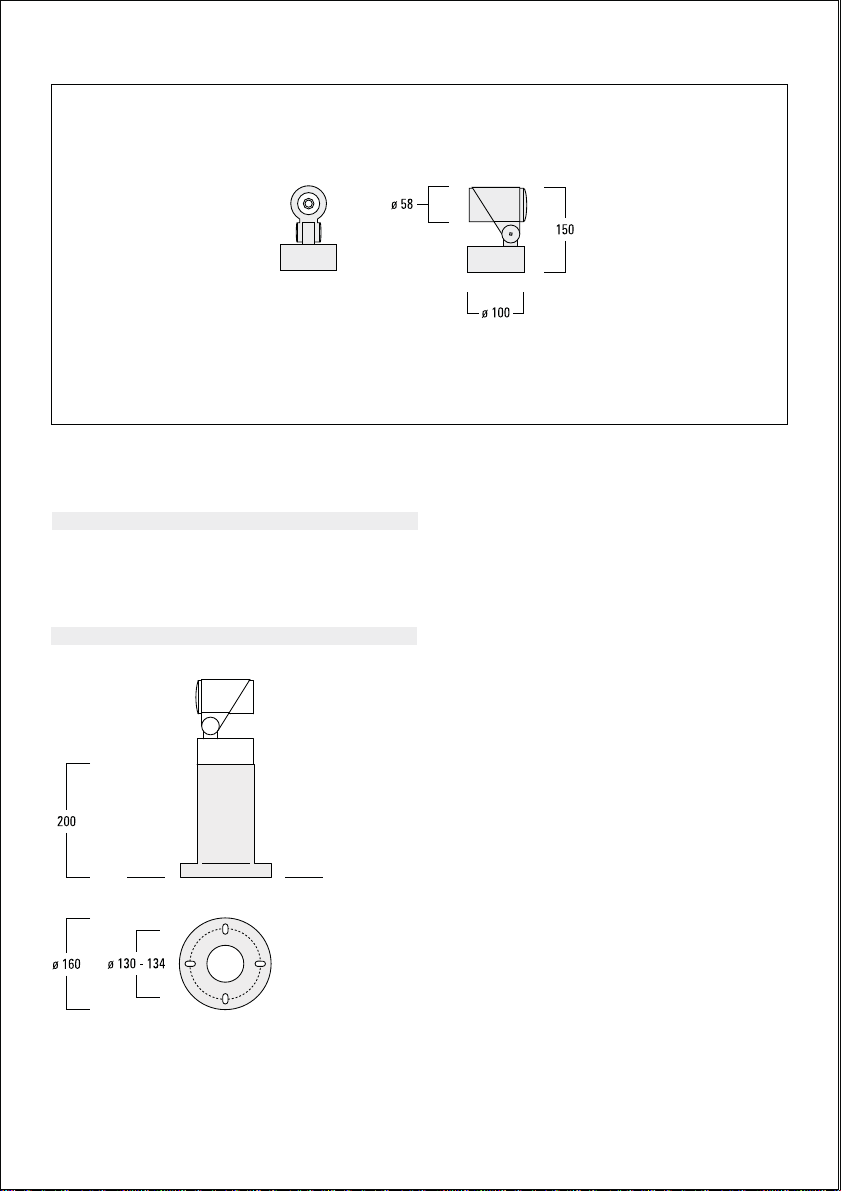

FLC301 Surface mounted
Projector
IP66, IK08. Class I. Ta= 40°C
Weight kg
for FLC301 Surface mounted 0.8
Mounting Accessories
Short post
EM1 for FLC301 Surface mounted 145-9200
Installation instruction is available in additional
document, TO9221W
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
3
Installation
The product must be installed and maintained by a
VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and
relevant legislation.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
The installation on site must comply with local and/or
national health and safety regulations.
Important: When mounting luminaires on concrete
or surfaces containing limestone content, WE-EF
recommends using mounting accessories – a short
post or a ground spike to prevent galvanic corrosion.
In areas where mounting accessories are not
applicable, ensure the luminaire’s aluminium base is
separated from concrete and limestone using a plastic
or rubber sheet. Allow concrete to cure before
installation – DO NOT INSTALL ON WET CONCRETE!
Handling: (QVXUHWKHPRXQWLQJƃDQJHSODWHVDUH
handled with care, scratches and damage to the
coated surface can result in galvanic corrosion.
A WE-EF warranty does not cover any adverse reaction
or damage, due to improper installation and requests
that our recommendations are followed.
4
Installation Procedure
5HPRYHPRXQWLQJƃDQJHAby loosening
screw B (Torx T-20, not supplied by WE-EF).
Detach terminal connector C.
1) Switch off mains electrical supply.
3) Check that rating shown on luminaire label
conforms with mains electrical supply.
(example)
'HWHUPLQHSRVLWLRQIRU67Ƃ[LQJVFUHZVD*.
Drill relevant holes Eand insert wall plugs F*.
Warning: Ensure not to damage any
electrical cable, water pipe or other devices
while drilling holes.
*not supplied by WE-EF
FLC301-LED 220-240V/50-60 Hz
145-XXXX SOE XXXXXXX
LED 3000K 12W item no. XXX
07/20 IP66
A
B
C
85
D
F
E
5
6) Connect mains supply cable Gleads to
respective terminals in terminal connector C:
a) ON-OFF (L = Phase, N = Neutral,
= Earthing)
b) ON/OFF 24VDC (+ = positive pole,
– = negative pole)
''Operation with 24VDC is only permitted with a
SELV power supply suited for Class III appliances.''
5) Feed mains supply cable Gthrough
the pressure screw I, while setting mounting
ƃDQJHALQSRVLWLRQ7RƂ[PRXQWLQJƃDQJHA,
insert and tighten screws D. The pre-installed
packing ring His suitable for cable diameters
7 to 9.5 mm. For larger cable diameters
(9 to 12 mm) use the auxiliary packing ring
supplied. Then tighten the pressure screw I.
7) Ensure that all surfaces are clean and dry.
Attach terminal connector Cand position
OXPLQDLUHRYHUPRXQWLQJƃDQJHA. Turn
luminaire towards object to be illuminated.
Tighten screw B.
8) Loosen screw M slightly by torx T-20 (not
supplied by WE-EF). Aim luminaire in
desired direction, retighten screw M.
A
D
I
H
G
B
C
A
10°
20° 30°
M
C
G
6
9) For accessory Linear Spread Lens IO-180: Turn frame Kto set desired orientation of light.
K
www.we-ef.com
WE-EF LEUCHTEN
Germany
Tel +49 5194 909 0
Fax +49 5194 909 299
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
Fax +33 4 74 99 14 40
info.france@we-ef.com
WE-EF HELVETICA
Switzerland
Tel +41 22 752 49 94
Fax +41 22 752 49 74
info.switzerland@we-ef.com
WE-EF LIGHTING
Thailand
Tel +66 2 738 9610
Fax +66 2 175 2174
LQIRDVLDSDFLƂF#ZHHIFRP
WE-EF LIGHTING
Australia
Tel +61 3 8587 0444
Fax +61 3 8587 0499
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
info.usa@we-ef.com
TO9270W0721 © WE-EF 2021
7HFKQLFDOVSHFLƂFDWLRQVDUH
subject to change.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Accessory

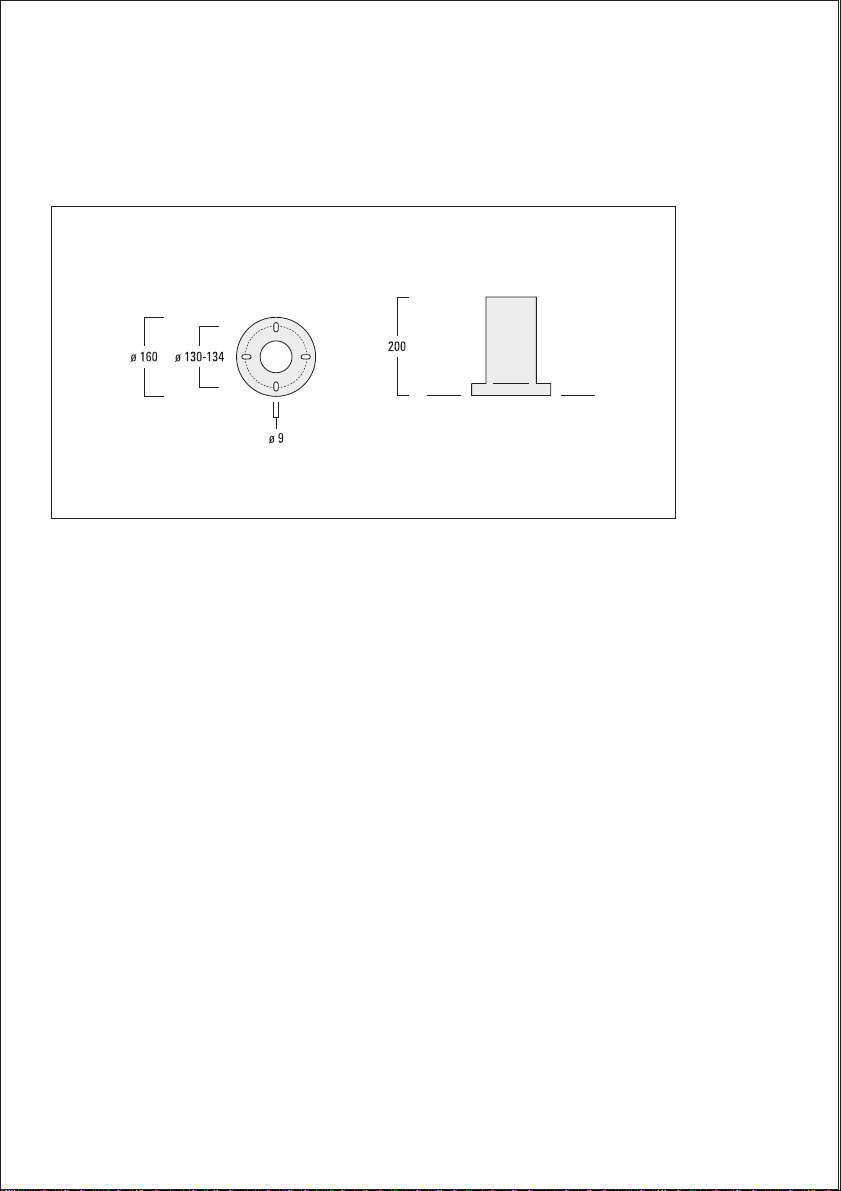

Short post
I
nstall
1
Accessories
Suitability
1. FLB100 Surface mounted
2. FLC300 Surface mounted
3. FLD100 Surface mounted
Short post
