Operating and
Maintenance Manual
VPR 450 DC
VPR 700 DC
0105003
0105004
2

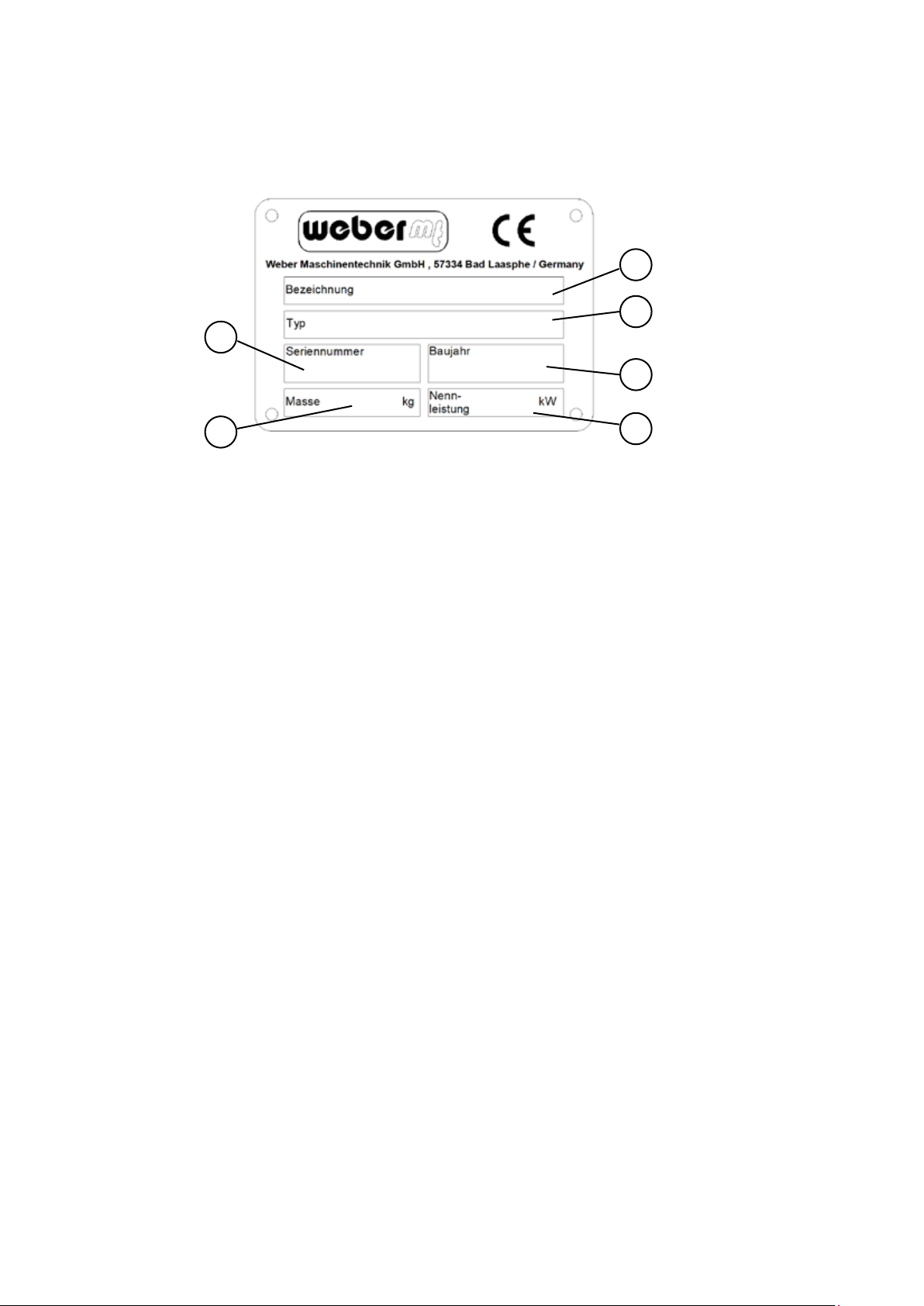

Attached to the machine is a rating plate. Note down the information given on this plate so that you
can recreate the rating plate should the plate be lost.
1 Description 2 Type
.................................................... ...................................................
3 Serial number 4 Year of construction
.................................................... ....................................................
5 Mass [kg] 6 Rated power [kW]
................................................... .....................................................
1
2
3
4
56
3
Contents
1. Introduction..................................................................................................................... 4
2. Description...................................................................................................................... 5
3. Technical data................................................................................................................. 6
4. Safety............................................................................................................................... 7
4.1. Information and safety stickers ........................................................................... 12
5. Operation....................................................................................................................... 13
6. Transport ....................................................................................................................... 19
7. Storage .......................................................................................................................... 20
8. Maintenance.................................................................................................................. 21
8.1. Maintenance overview .............................................................................................. 22
8.2. Description of the maintenance operations............................................................ 23
8.2.1. Change the oil in the exciter ............................................................................ 23
8.2.2. Check V-belt..................................................................................................... 23
4
1. Introduction
This operating and maintenance manual is designed to help
you become familiar with your soil compactor and enable you
to maintain it and use it for its intended purpose.
The safety and maintenance instructions provided in this
manual will help avoid hazards, reduce repair and downtime
costs and will increase the reliability and operational readiness
of your machine. Follow these instructions precisely.
This operating and maintenance manual must always be kept
at the implementation site of the machine and be available to
the machine operator.
Turn to your Weber MT dealer if you require any additional
information.
Found on the last page of this manual is a QR code. Scan
it to acquire the current contact addresses of all Weber MT
branches.
You can obtain information on the assembled Honda
battery-powered engine and the associated operating and
maintenance manual as well as the spare parts list by logging
on to www.honda-engines-eu.com.
For the latest spare parts list of the machine, open the
Weber MT service app or visit the following link:
https://www.webermt.com/DE/deu/downloads/
5
The machine is a hand-guided soil compactor that was
specically designed for terrace construction and road building
applications.
The machine is composed of a bottom and a top section. The
bottom section houses the exciter and rollers made of a plastic
that is gentle on the surface, while the top section contains the
engine and the required controls.
A battery-powered Honda engine makes the exciter vibrate
via a centrifugal clutch. The generated force is transmitted
between top and bottom section via a V-belt.
2. Description
The machine
6
3. Technical data
VPR 450 DC VPR 700 DC
Weight
Operating weight CECE [kg] 114 183
Dimensions
Overall length [mm] 1186 1245
Overall width/with attachment
plates [mm] 460 720
Height with folded guide bar [mm] 720 720
Drive
Engine manufacturer Honda Honda
Type GXE 2.0H GXE 2.0H
Performance at operating speed in
accordance with ISO 3046-1 [kW] 1.8 1.8
Operating speed [1/min] 3600 3600
Tilted position [maximum, %] 35 35
Vibration
System Single shaft vibrator Single shaft vibrator
Drive concept mechanical mechanical
Frequency [Hz] 100 100
Centrifugal force [kN] 8 14
Noise emissions in accordance
with 2000/14/EC
Sound pressure level LPA
ascertained in accordance with
EN 500, [dB (A)]
97 99
Sound power level LWA
ascertained in accordance with
EN ISO 3744 and EN 500, [dB (A)]
705 105
Vibration values
Root-mean-square acceleration
value for hand-arm vibration
ascertained in accordance with
EN 500, [m/s²]
11.6 14.5
In accordance with directive
2006/24/EC, complying with the
vibration values is the owner's
responsibility
7
4. Safety
General All safety instructions must be read and complied with, as
non-compliance will result in
- Danger to life and limb of the user,
- Impairments to the machine or other property.
In addition to the operating manual, the accident-prevention
regulations in the country where the appliance is used must be
complied with.
Intended use
Non-intended use
Residual risk There is always an increased risk of accidents in the
immediate danger area around the machine if the operator
fails to notice persons in the vicinity of the machine.
Make anyone close to the machine aware of this risk. The
operator must not put the machine into operation unless
everyone in the vicinity of the machine is aware of this risk.
The machine should only be used in technically faultless
condition, as intended, in a safety-conscious and hazard-
conscious manner, and in compliance with the instructions in
the operating manual.
Malfunctions that may impair safety require that you stop
working with the machine immediately. These types of damage
must be reported and corrected without delay.
The machine is designed exclusively for compacting:
- Paving slabs made of concrete.
The operator's work position is behind the machine.
The operator must guide the machine safely with both hands
on the handle.
Unless used as intended, the machine involves a risk of
personal injury and property damage. The machine is
expressly not suitable for:
- compacting frozen subsurfaces,
- compacting hard soils that cannot be compacted
further,
- compacting non-bearing material,
- compacting highly cohesive soils,
- Sand,
- Gravel,
- Asphalt.
The responsibility for any damage arising from non-intended
use falls on the owner / operator.
Non-intended use or misuse will void all liability and warranty
claims.
8
Requirements on the operator
Personal protective equipment Personal protective equipment consisting of
- Hard hat,
- hearing protection,
- Protective gloves,
- Work shoes or boots with toe guard
must be worn during operation and the execution of
maintenance on the machine.
Danger areas The immediate danger area is the direct perimeter around the
machine. This area is o-limits to third parties.
Spare parts, changes and
conversions
Changes and conversions are prohibited unless made with
original Weber MT spare parts. If the machine is modied
with other accessories without the approval of Weber MT, the
manufacturer will not assume liability for any resulting personal
injury or property damage.
All maintenance and repairs must be carried out with original
Weber MT spare parts. Untested spare parts may aect the
reliability and safety of the machine.
Before starting the machine There is danger of material damage if the machine is
started before necessary maintenance or repairs have been
completed. Make sure every time before starting the machine
that all work on the machine has been completed.
To avoid injuries, the machine must not be started unless the
operator wears the required personal protective equipment.
Objects placed on top of the machine may fall or be ung o
during operation or when the machine is started. Therefore,
remove all loose objects or tools before starting the machine.
During operation Monitor the surroundings to avoid injury to third parties or
material damage.
Suspend operation and shut down the machine if detecting
damage on the machine during operation.
This soil compactor may only be operated by suitable
operators who are 18 years or older. They must be instructed
on how to operate the machine by the owner or by the owner's
assigned personnel. The operator must comply with trac
regulations.
The machine must not be operated by children.
9
Parking the machine Always park the machine on a level subsurface with sucient
bearing capacity.
Parked machines presenting an obstacle must be secured in
accordance with statutory regulations, particularly in the area
of public trac surfaces.
Cleaning work Use clear water for cleaning. Do not use ammable solvents.
The vapors of the solvents may ignite upon contact with hot
components or other sparks.
Perform cleaning tasks only in rooms that are suitable and
have been approved for that purpose. Residual oil and
lubricants that may have been rinsed o have a negative
impact on the environment and must be collected by suitable
means (e.g. oil separator).
Remove the battery prior to cleaning.
The engine must not be cleaned with a high-pressure cleaner.
Inspection The machine must be inspected in accordance with the
corresponding implementation conditions and operating
conditions to ensure its operationally safe status. This
inspection should be performed as needed by an expert -
however, no less than once a year. The ndings of the
inspection must be stored in writing until the time of the next
inspection.
10
Safety instructions and
warnings
A variety of safety instructions and warnings are used
throughout this operating manual.
The following explains the meaning of signal words and
symbols.
ATTENTION warns of
the danger of material
damage.
CAUTION warns of the
danger of slight injury.
WARNING warns of a
danger that may lead to
death or serious injury.
DANGER warns of a
danger that will lead to
death or serious injury
unless avoided.
ATTENTION
CAUTION
WARNING
DANGER
The information symbol provides supplemental
information on the operation of the machine and
points to complementary technical information.
