1
OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER
ENGLISH
______
Package
Contents
Office 200
Booster
Power
Supply
(850026)
Lightning Surge
Protector
(859902)
Cable Mounting
Clips
22 m & 18 m
Wilson 400 Cables
(952360 & 952375)
.6 m Wilson
400 Cable
(952302)
Inside
Antenna
(311234)
Outside
Antenna
(314411)
(Directional/Panel)
2CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200
ENGLISH
______
Key Features
Extended Dynamic Range (XDR) for continuous
connectivity: XDR lets the Oce 200 system work with
any incoming signal and never shuts down due to a
strong outside signal.
Simple Wall-Mount Installation: An indoor and outdoor
port are located on top of the amplifier for easy antenna
connections, while an exposed mounting flange at each
corner of the amplifier provides for simple and clean wall-
mount installation.
Onboard Software for Better Control: The amplifier is
automatically controlled with automatic onboard software,
ensuring great connectivity throughout large spaces and
multi-story buildings. The amplifier will adjust its gain
level up or down as required by the conditions of the
immediate signal environment.
Color LCD Touch Screen: The Oce 200 utilizes a color
LCD touch screen for assessing amplifier performance,
making adjustments to the outside antenna, and turning
bands on and o.
3
OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER
ENGLISH
______
Preparation
You Will Need (tools not included)
Make sure the following materials are prepared and ready for your installation.
1 to 2 hours
o Ladder
o Drill
o 2.5 - 5 cm diameter existing pole for mounting
Outside Antenna (#901117 Pole Mount can be
purchased separately if needed)
o Recommended: Power Strip with surge protection
4CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200
ENGLISH
______

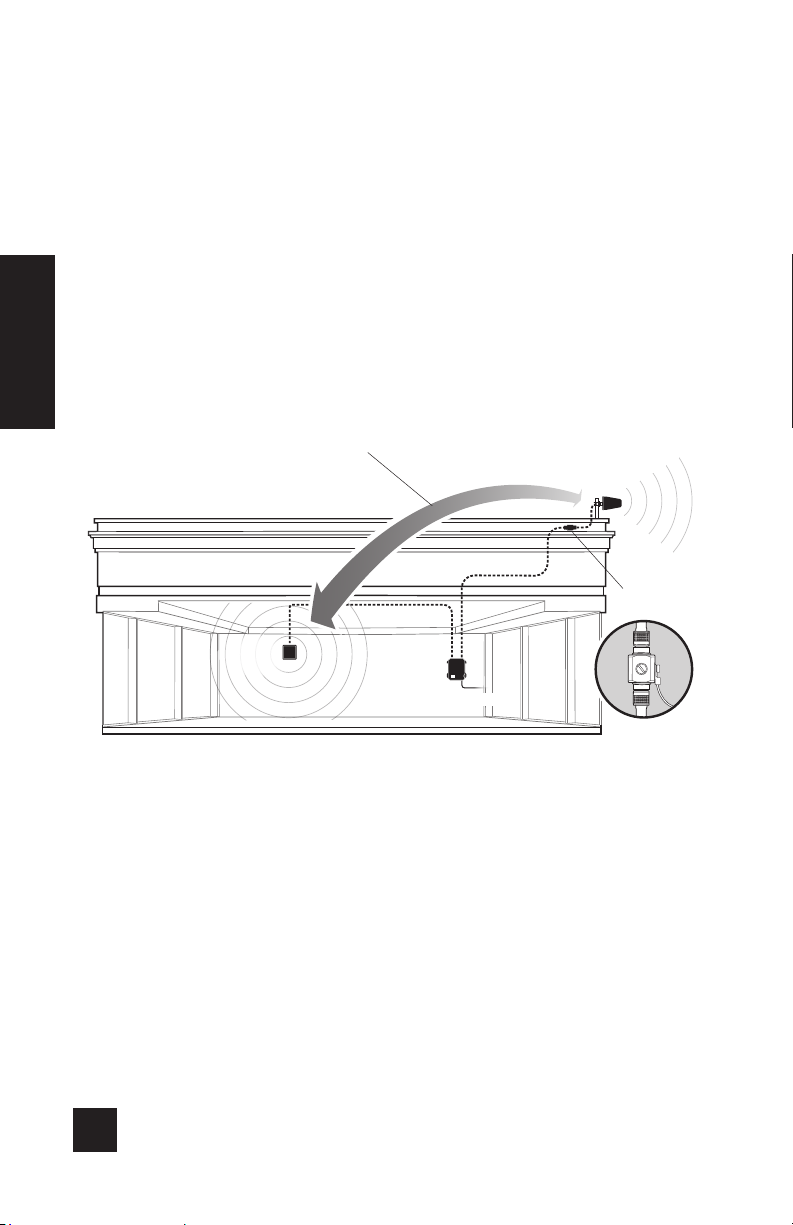

Installation Diagram
Outside
Antenna
Booster
to power
Lightning Surge
Protector
Inside
Antenna
G
r
o
u
n
d
22 m Coax Cable
18 m Coax Cable
Troubleshooting section recommends increasing distance
further if needed.
18 METER HORIZONTAL OR 7 METER VERTICAL DISTANCE
5
OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER
ENGLISH
AT LEAST 60 cm APART
Oce 200
NOTE: Do not connect booster to power until the system is fully installed.
______
Step 1: Inside Antenna &
Booster Placement
Place the inside antenna in the ceiling over where you need the greatest signal
boost and place booster in your desired location at least 60 cm away from
inside antenna.
6CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200
ENGLISH
______
Step 2: Mount Outside Antenna
NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch
out for power lines.
Pole mounting and wall mounting options are included.

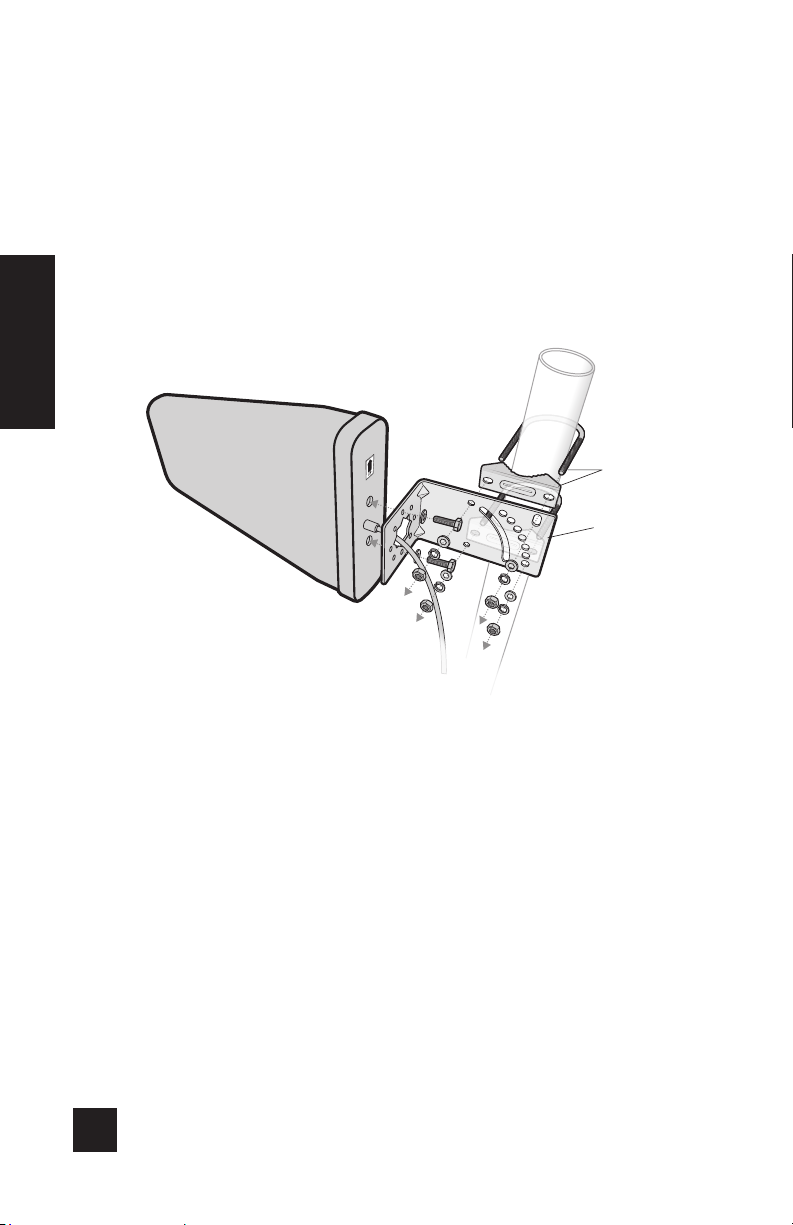

Attach the L-bracket to the outside antenna and use the U-bolt and pole
bracket to attach the antenna to a pole or exhaust pipe.
Outside
Antenna
U-Bolt &
Pole Bracket
L-Bracket
existing
pole
7
OFFICE 200 (DIRECTIONAL/PANEL) CELL SIGNAL BOOSTER
ENGLISH
______
Step 3: Route & Connect
Outside Antenna To Booster
Route cable to the Oce 200 booster and connect to the port labeled
‘OUTSIDE ANTENNA’.
Outside
Antenna
Outside
Antenna
Lightning Surge
Protector
Booster
Booster
Cable Mounting Clips
provided
Lightning Surge
Protector
G
r
o
u
n
d
22 m Coax Cable .6 m Coax Cable

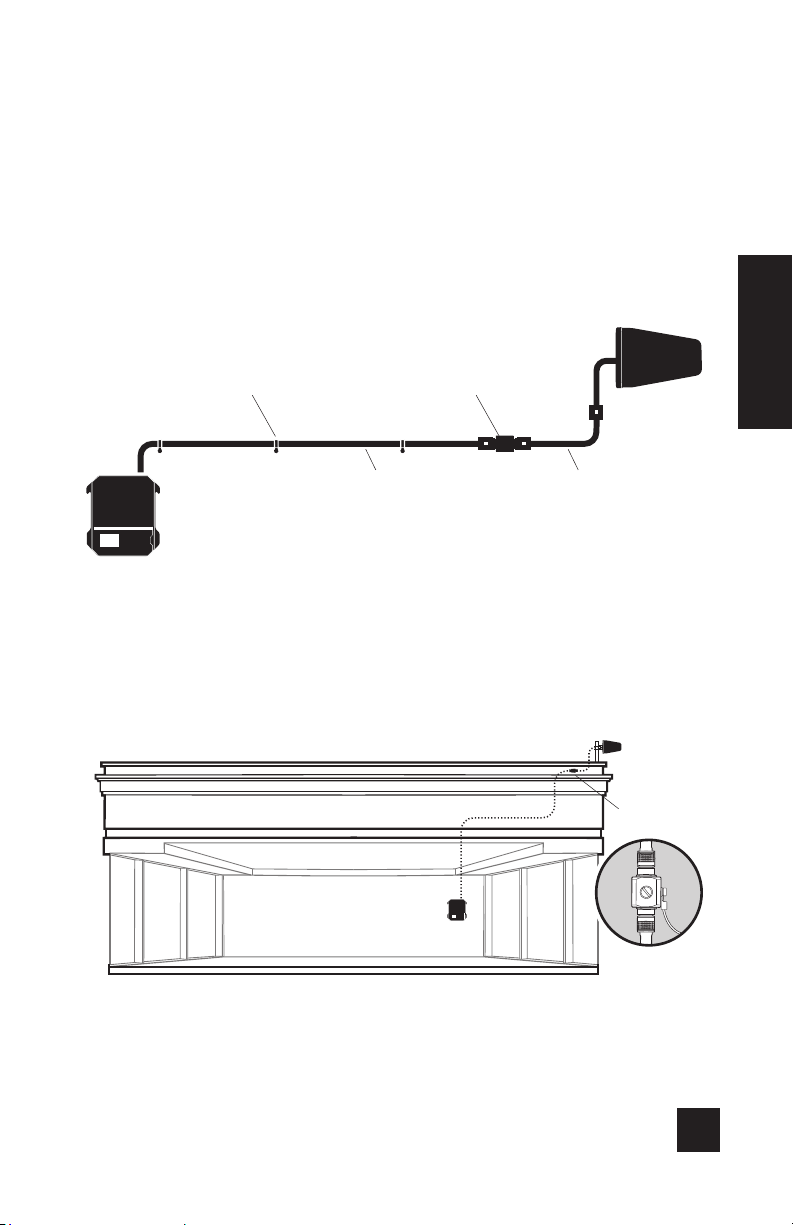

Connect .6 m. coax cable to outside antenna, attach the lightning surge
protector, then connect the black 22 m coax cable and route into building.
8CELL SIGNAL BOOSTER (DIRECTIONAL/PANEL) OFFICE 200
ENGLISH
______
Step 4: Route & Connect
Inside Antenna To Booster
Inside
Antenna
Booster
Outside
Antenna
Booster
Cable Mounting Clips
provided
Inside
Antenna
18 m Coax Cable
Connect the black 18 m coax cable to inside antenna and route to the Oce
200 booster and connect to the port labeled ‘INSIDE ANTENNA’.
