Welbilt Convotherm UleasyTouch Manuale utente

Combi Oven

Convotherm UI easyTouch

maxx pro / deluxe

Operating instructions UL, USA - Original, ENG

Advancing Your Ambitions

Table of Contents

1 General 5

1.1 About These Operating Instructions 5

1.2 Safety Information That Must Be Read without Exception 6

2 The User Interface at a Glance 7

2.1 How the User Interface Works 7

2.2 Software Layout 8

2.3 Main Menu 10

2.4 Energy Saver Mode 12

3 Individual Cooking Made Easy 13

3.1 Individual Cooking at a Glance 13

3.2 The 'Individual Cooking' menu 14

3.3 How to Set Up a Cooking Profile 18

3.4 Saving a Cooking profile in the Cookbook 19

3.5 The 'Individual Cooking' Process Menu 20

3.6 The 'Individual Cooking' Workflow 23

3.7 The 'Smoker' Cooking Workflow 24

4 Rethermalization Made Easy 25

4.1 Rethermalization at a Glance 25

4.2 The 'Rethermalization' Menu 26

5 Fast cooking with Press&Go 30

5.1 How Press&Go Works 30

5.2 The 'Press&Go' Menu 31

5.3 Selecting Shelf Levels in Press&Go 33

5.4 The 'Press&Go' Cooking Workflow 34

5.5 Canceling a Cooking Sequence 35

6 Automatic Cooking with ConvoSense 36

6.1 How ConvoSense Works 36

6.2 The 'ConvoSense' Menu 37

6.3 Selecting Shelf Levels in ConvoSense 39

6.4 The 'ConvoSense' Cooking Workflow 40

6.5 Canceling a Cooking Sequence 41

7 Using the Cookbook 42

7.1 How the Cookbook Works 42

7.2 The 'Cookbook' Menu 43

7.3 Creating New Product Groups 45

7.4 Deleting a Cooking Profile from the Cookbook 46

8 Cleaning 47

8.1 The Cleaning Sequences at a Glance 47

8.2 The 'Cleaning' Menu 48

8.3 How to Set Up a Cleaning Profile 52

8.4 The 'Cleaning' Process Menu 53

8.5 Fully Automatic Oven Cleaning Workflow 56

Table of Contents

Operating Instructions 3

8.6 Semi-Automatic Oven Cleaning Workflow 57

9 Configuring Settings in Settings 59

9.1 Settings at a Glance 59

9.2 The 'Settings' Menu 60

10 Operating the Combi Oven in the Event of a Malfunction 63

10.1 Working with the Combi Oven in the Event of a Malfunction 63

10.2 The 'Error Messages' Menu 64

Table of Contents

Operating Instructions 4

1 General

1.1 About These Operating Instructions

Purpose

The purpose of these operating instructions is to provide everyone working with/on the combi oven

with an overview of its easyTouch software and how to use it, as well as to enable them to carry out

basic tasks with the software.

Target groups

Name of target group Tasks

Cook Primarily takes care of organizational tasks, such as:

■Entering cooking profile data

■Editing existing cooking profiles in the cookbook

■Coming up with new cooking profiles

■Configuring the unit’s settings

and takes care of all operator tasks as well if necessary.

Operator Actually operates the combi oven, taking care of tasks such as:

■Selecting cooking profiles

■Starting cooking profiles

■Selecting cleaning profiles

Customer documentation parts

Document type Contents

Installation manual ■Describes how to transport, set up, install, and put the unit into opera‐

tion

■Goes over all the hazards involved in the various installation activities

and how to prevent and/or counter them

■Contains technical specifications

Operating manual ■Describes the work sequences and operating steps when cooking and

cleaning

■Includes the maintenance schedule and troubleshooting information

■Goes over all the hazards involved when operating the unit and how to

prevent and/or counter them

Operating instructions ■Describes the unit’s user interface

■Includes the instructions for using the software

Decimal mark used

In order to ensure that all numbers can be properly understood internationally, a decimal point is al‐

ways used.

1 General

Operating Instructions 5

1.2 Safety Information That Must Be Read without Exception

Safety information found in the documentation for the customer

Only the installation manual and operating manual provide safety information for the combi oven.

The installation manual provides safety information for the transportation, setup, installation, placing-

into-operation, and removal-from-service tasks it describes.

The operating manual provides safety information for the cooking, cleaning, and maintenance tasks it

describes.

When using the operating instructions, the operating manual or installation manual should always be

consulted in order to obtain the relevant safety information. When performing activities that go beyond

simply using the software, the safety information in the operating manual and installation manual must

always be observed.

Parts of the customer documentation that must be read without exception

These operating instructions are exclusively limited to describing how to use the unit's user interface.

The various sets of instructions all end when a process in which warnings need to be observed (cook‐

ing and cleaning, for example) starts. For instructions on how carry out the corresponding process,

please refer to the installation manual or to the operating manual.

In order to ensure their safety and the safety of others, everyone working with/on the combi oven must

read and understand the following customer documentation sections before starting any work:

■The 'For Your Safety' section in the installation manual or in the operating manual, depending on

the task being carried out

■The sections in the installation manual or operating manual describing the work that will be carried

out

Failure to take the safety information in the installation and operating manuals into account may result

in death, injury, or property damage.

1 General

Operating Instructions 6

2 The User Interface at a Glance

2.1 How the User Interface Works

How it works

easyTouch is the name of the control interface for your combi oven. You can use the touch screen to

easily operate the corresponding software with your finger.

All of the combi oven’s functions can be accessed using the easyTouch user interface’s various me‐

nus. These menus will provide the functions in the form of buttons.

After selecting functions, both user information and prompts are used to guide the operator in process

menus. If necessary, the operator can make changes to sequences in these process menus.

The process menus will show a sequence’s progress with a progress bar, as well as the relevant time

and temperature information. An acoustic signal, combined with the appropriate user information, will

be used by the unit to signal the end of the sequence.

Optional functions

The software functions described in these operating instructions are not available for all unit versions.

Starten der Software

After you turn on your combi oven using the easyTouch control panel, the unit will run a self-diagnostic

routine. If the software is ready for use, the main menu for selecting an operating mode will appear.

For more information, please refer to 'Main Menu.' on page 10

The following operating modes will be available here:

■Individual cooking

■Rethermalization

■Press&Go

■ConvoSense (optional)

■Cookbook

■Cleaning

If Press&Go mode is set in the software, the combi oven will start the pre-heat function immediately;

please refer to 'Fast Cooking with Press&Go' on page 30 as well.

What do I need for cooking?

To cook food with your combi oven, you will need a cooking profile that is appropriate for the food be‐

ing cooked. You can enter a new cooking profile with the 'Individual cooking' menu. You can also se‐

lect a suitable cooking profile from the ones available in the 'Cookbook' menu and start it.

If 'Press&Go' mode is set in the software, all you have to do is select the cooking profile you want and

start it. All the cooking profiles available in 'Press&Go' are defined in the 'Cookbook.'

Before starting a cooking sequence, read and understand the rules, risks, and hazards associated

with safely using the unit (as described in the operating manual) and follow all the corresponding in‐

structions.

2 The User Interface at a Glance

Operating Instructions 7

2.2 Software Layout

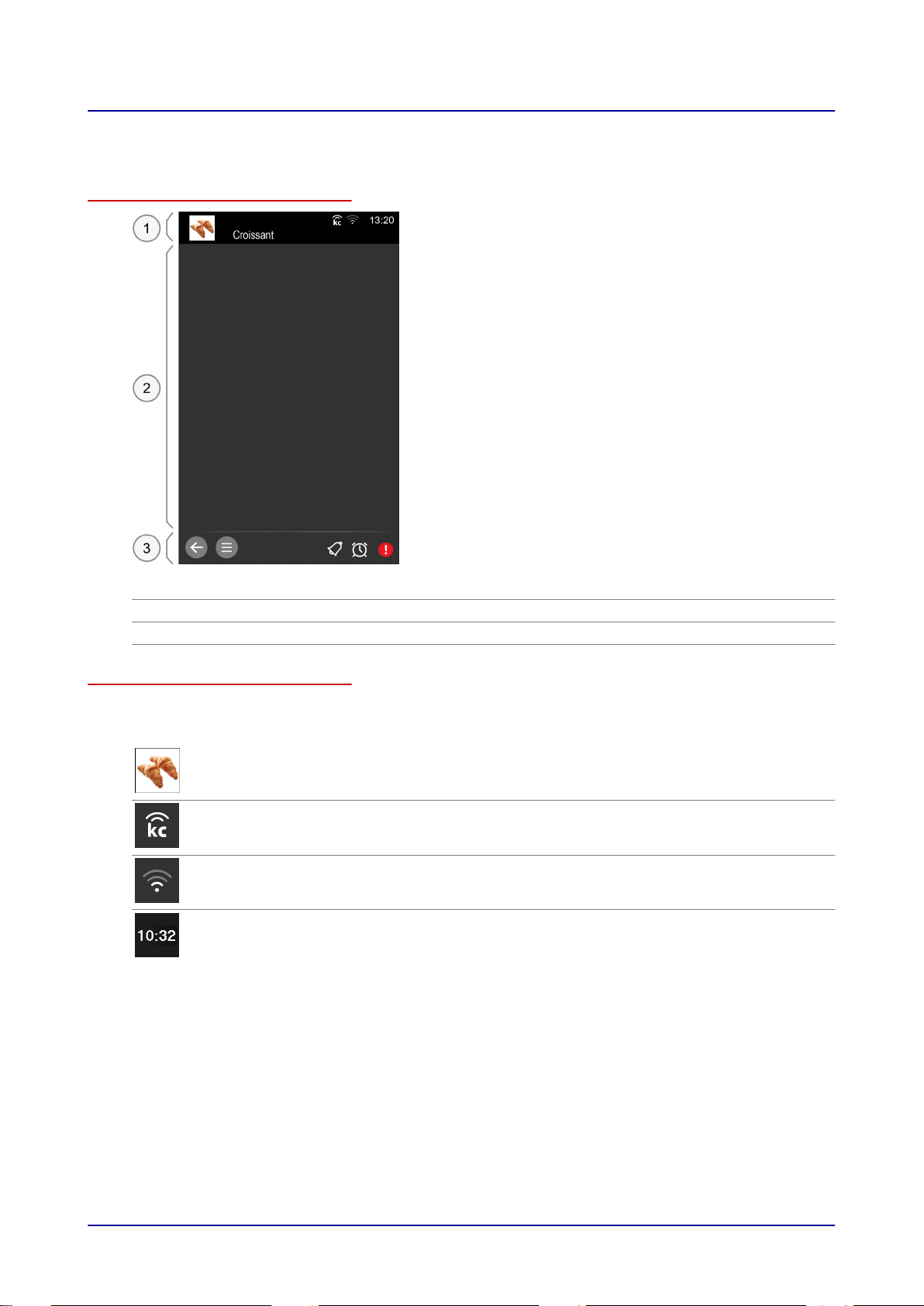

The software’s layout

1 Header

2 Main pane

3 Footer

Top bar

The software’s top bar will show various displays depending on the specific menu and function that

are selected:

Selected cooking profile Shows a selected cooking profile, e.g., croissant, with a pic‐

ture and text

kitchenconnect® Shows whether there is a connection to the cloud

WLAN Shows whether there is a connection to the Internet

Time Shows the current time

2 The User Interface at a Glance

Operating Instructions 8

Main pane

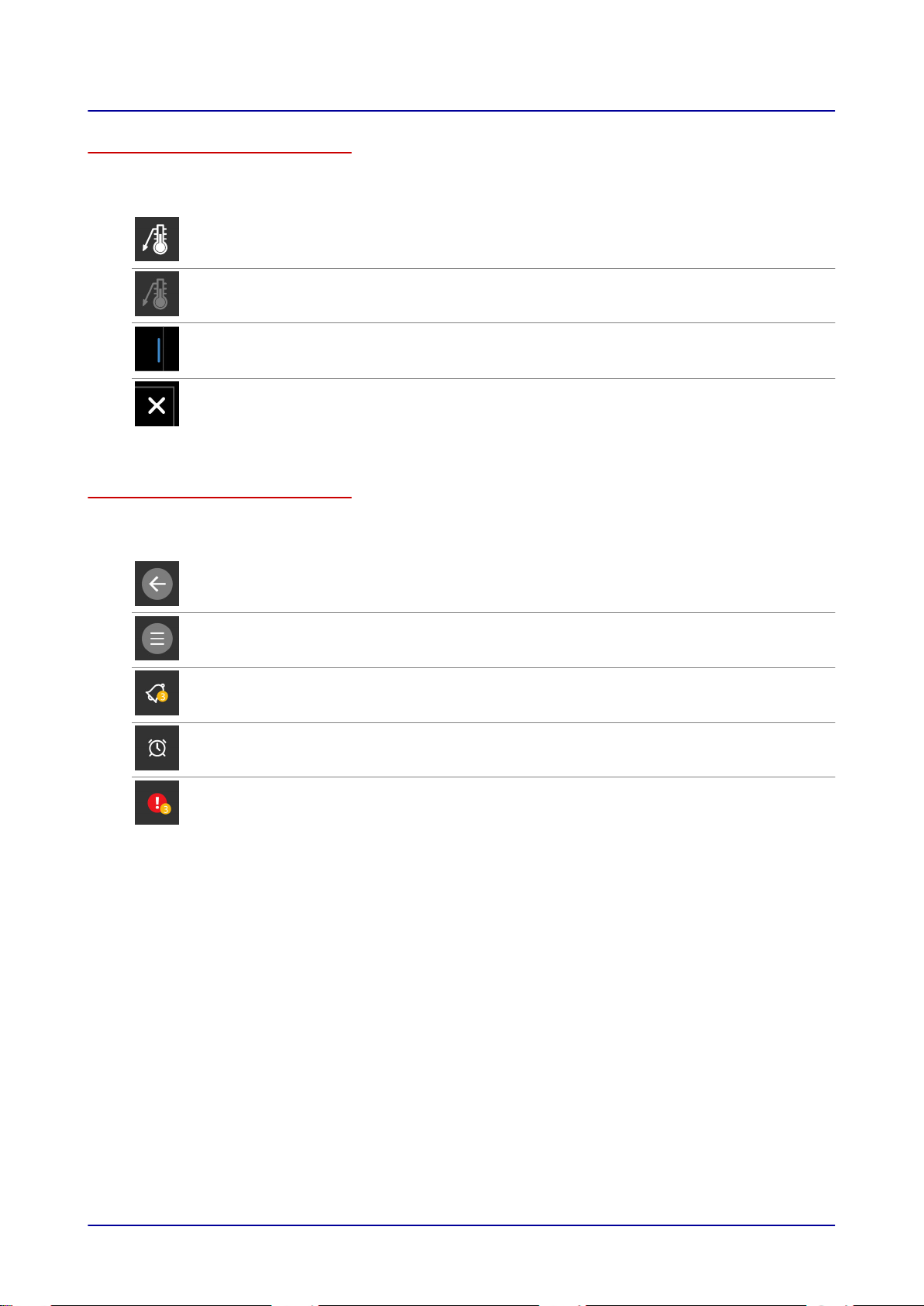

The software’s main pane will show various buttons and displays depending on the specific menu and

function that are selected:

Light gray button Function available / selected, e.g., core temperature

Dark gray button Function not available / not usable

Scrollbar Used for vertical scrolling in order to view additional menu

contents

Used to close the menu Closes the menu

Buttons and displays in the bottom bar

The software’s bottom bar will show various buttons and displays depending on the specific menu and

function that are selected:

Back Navigation buttons

Navigation menu Used to access the navigation menu with all available oper‐

ating modes

Notifications Indicates notifications, as well as how many of them there

are

Used to access the 'Notifications' menu

Clock timer Shown when a time-controlled cooking profile or cleaning

profile is active

Error list Indicates errors, as well as how many of them there are

Used to access the 'Error list' menu

2 The User Interface at a Glance

Operating Instructions 9

2.3 Main Menu

Accessing the main menu

This menu is password-protected and can only be accessed by specific users in order to make

changes to existing cooking profiles if necessary.

Main menu functions

■Provides access to all available operating modes

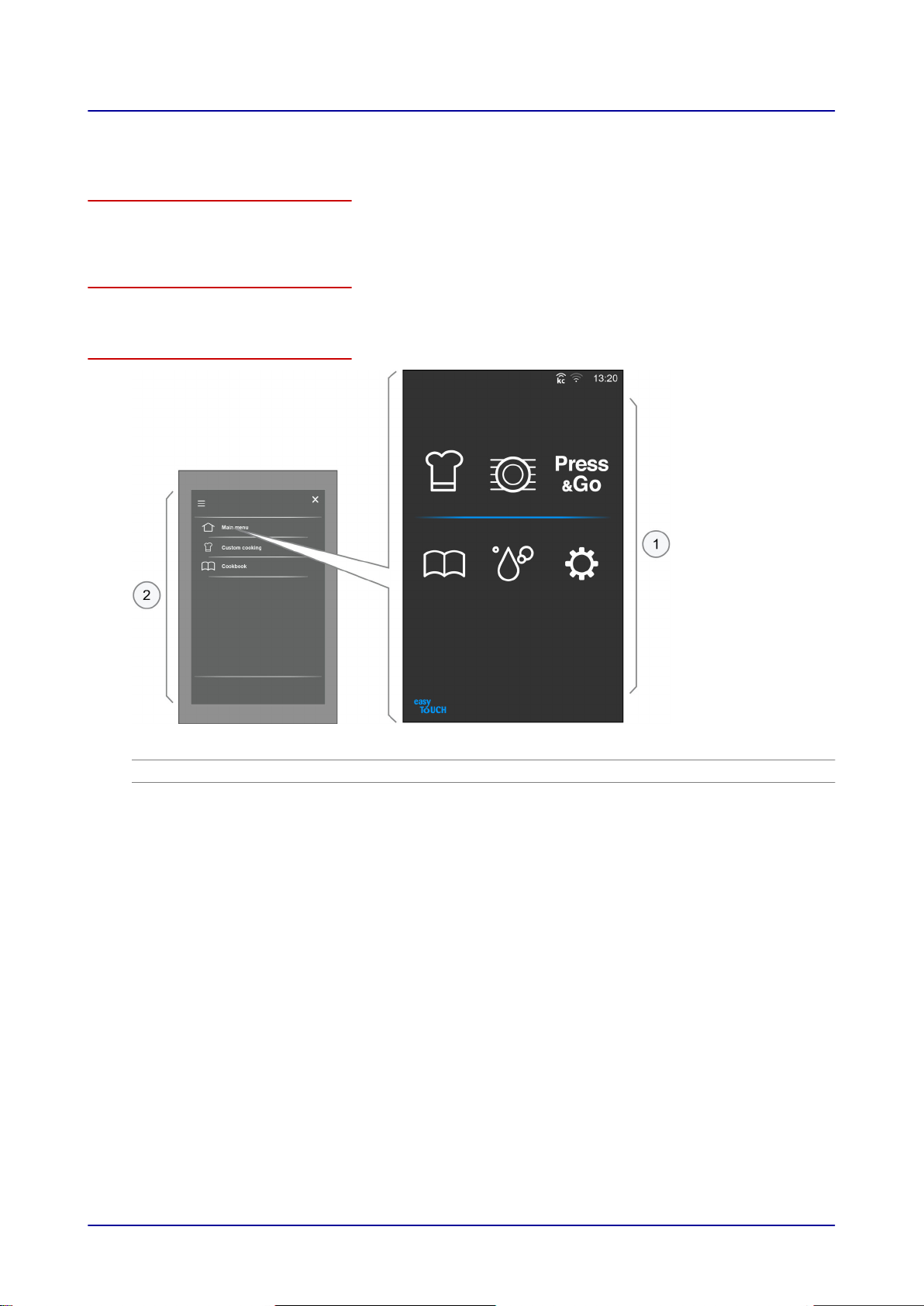

Main menu layout

1 Main menu

2 Navigation menu

2 The User Interface at a Glance

Operating Instructions 10
