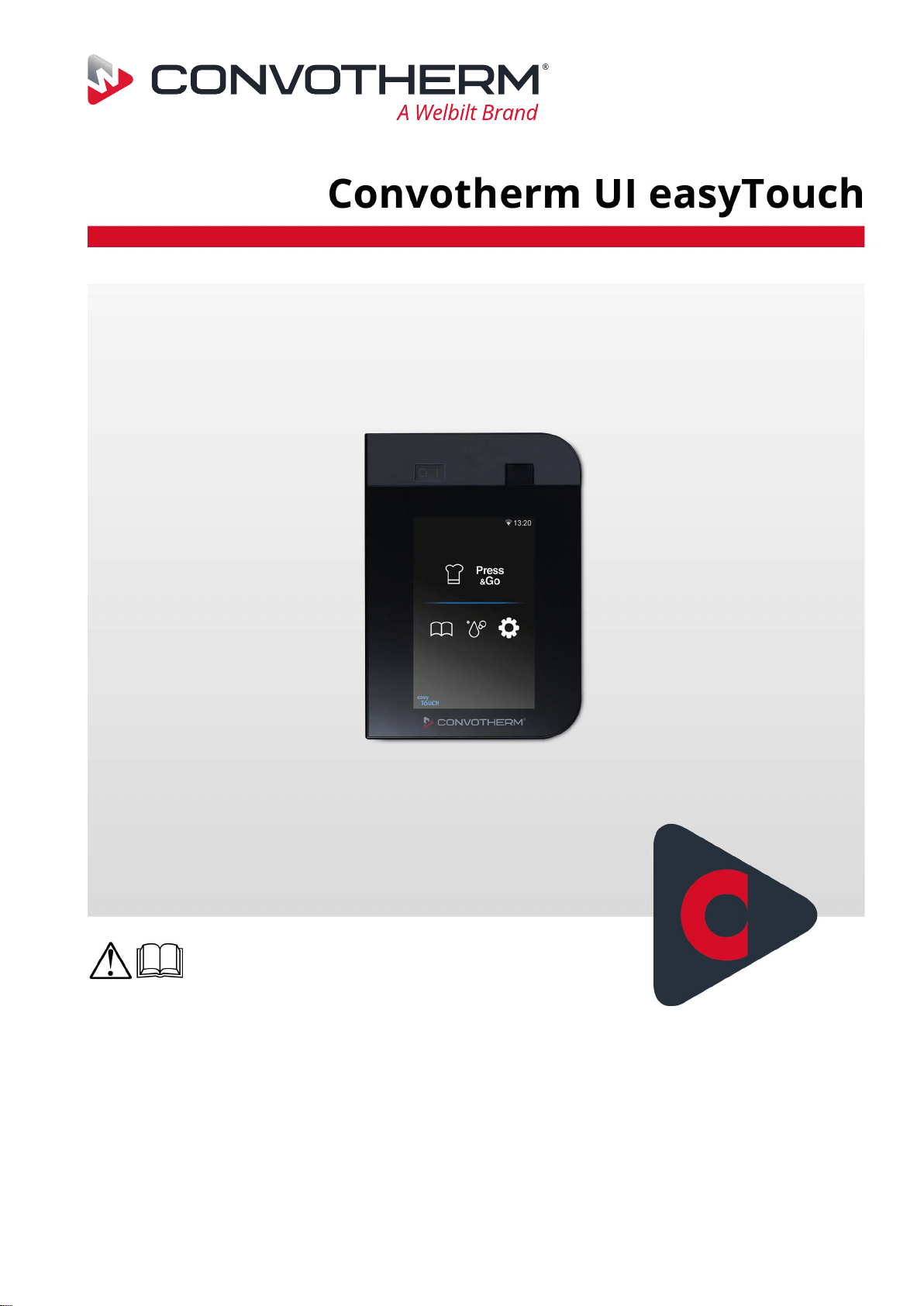

Combi oven

Convotherm UI easyTouch

maxx pro / deluxe

Operating instructions - Original, ENG

Advancing Your Ambitions

Table of Contents

1 General information 5

1.1 About these operating instructions 5

1.2 Essential reading relating to safety 6

2 The user interface at a glance 7

2.1 How the user interface works 7

2.2 The basic layout of the software 8

2.3 The Home Screen 10

2.4 Power-save mode 12

3 Custom cooking - nice and easy 13

3.1 Custom cooking at a glance 13

3.2 The 'Custom cooking' menu 14

3.3 Principles of entering a cooking profile 18

3.4 Saving cooking profile in the cookbook 19

3.5 The 'Custom cooking' process menu 20

3.6 The cooking workflow for 'Custom cooking' 23

3.7 The 'Smoker' cooking workflow 24

4 Regenerating - nice and easy 25

4.1 Overview of regenerating 25

4.2 The 'Regenerating' menu 26

5 Quick-select cooking with Press&Go 30

5.1 How Press&Go works 30

5.2 The 'Press&Go' menu 31

5.3 Selecting shelves in Press&Go 33

5.4 The 'Press&Go' cooking workflow 34

5.5 Cancelling a cooking operation 35

6 Automatic cooking with ConvoSense 36

6.1 How ConvoSense works 36

6.2 The 'ConvoSense' menu 37

6.3 Selecting shelf levels in ConvoSense 39

6.4 The 'ConvoSense' cooking workflow 40

6.5 Cancelling a cooking operation 41

7 Working with the cookbook 42

7.1 How the cookbook works 42

7.2 The 'Cookbook' menu 43

7.3 Creating a new product group 45

7.4 Deleting a cooking profile from the cookbook 46

8 Cleaning 47

8.1 Summary of the cleaning operations 47

8.2 The 'Cleaning' menu 48

8.3 Principles of entering a cleaning profile 52

8.4 The 'Cleaning' process menu 53

8.5 The workflow for fully automatic oven cleaning 56

Table of Contents

Operating instructions 3

8.6 The workflow for semi-automatic oven cleaning 57

9 Making settings in the Settings menu 59

9.1 The Settings at a glance 59

9.2 The 'Settings' menu 60

10 Operating the appliance in the event of a fault 63

10.1 Working in the event of a fault 63

10.2 The 'Error messages' menu 64

Table of Contents

Operating instructions 4

1 General information

1.1 About these operating instructions

Purpose

These operating instructions are intended to provide all those people who use the combi oven with an

overview of the easyTouch software and how to use it, and to enable them to perform essential tasks

using the software.

Who should read this manual

Name of target group Tasks

Chef Essentially performs organizational tasks such as

■Entering the cooking profile data

■Editing existing cooking profiles in the cookbook

■Developing new cooking profiles

■Adjusting appliance settings

May also perform all user tasks if applicable.

User Essentially performs specific operating tasks such as

■Selecting a cooking profile

■Starting a cooking profile

■Selecting a cleaning profile

Contents of customer documentation

Book type Contents

Installation manual ■Describes how to move, set up and install the appliance, and how to

put the appliance into service

■Describes the hazards and appropriate preventive measures relevant

to all installation tasks

■Contains the technical data

User manual ■Describes the working procedures and operating steps for cooking and

cleaning

■Contains the servicing schedule and information on troubleshooting

■Describes the hazards and appropriate preventive measures relevant

to operation

Operating instructions ■Describes the appliance user interface

■Contains instructions on how to use the software

Notation for decimal points

A decimal point is always used in order to achieve international standardization.

1 General information

Operating instructions 5

1.2 Essential reading relating to safety

Safety information in the customer documentation

Safety information relating to the combi oven appears only in the installation manual and the user

manual.

The installation manual contains the safety information for the tasks covered by the manual and which

are performed when moving, setting up and installing the appliance and when putting the appliance

into service and removing the appliance from service.

The user manual contains the safety information for the tasks covered by the manual and which are

performed during cooking, cleaning and servicing work.

The safety information contained in the user manual and installation manual must always be consid‐

ered to be part of the operating instructions. The safety information contained in the user manual and

installation manual must always be observed when performing tasks that go beyond merely operating

the software.

Parts of the customer documentation that must be read without fail

The contents of these operating instructions are confined to describing how to operate the user inter‐

face. Each set of instructions always ends with starting a process such as cooking or cleaning, for

which warning notices must be heeded. The instructions for performing the actual process are given in

the installation manual or the user manual.

To guarantee safety, all people who work with the combi oven must have read and understood the

following parts of the customer documentation before starting any work:

■depending on the activity to be performed, the chapter 'For your safety' in the installation manual or

in the user manual

■the sections in the installation manual or in the user manual that describe the activity to be carried

out

If you do not follow the safety information in the installation manual and the user manual, you risk po‐

tentially fatal injury and property damage.

1 General information

Operating instructions 6

2 The user interface at a glance

2.1 How the user interface works

Principle of operation

easyTouch is the name of the user interface for your combi oven. You can operate this software easily

with one finger via a touch screen.

All the combi-oven functions can be accessed from various menus of this easyTouch user interface.

These menus display a button for each available function.

After selecting a function, the user is guided by user information and action prompts presented in proc‐

ess menus. In these process menus, the user may still make changes to the workflow if required.

The process menus use progress indicators to show the progress of an operation and also display

time and temperature information. User information and a beep signal notify the user that an operation

has finished.

Optional functions

The software functions described in these operating instructions are not available for all appliance ver‐

sions.

Starten der Software

After you switch on your combi oven at the easyTouch operating panel, the appliance runs a self-test.

Once the software is up and running, the Home Screen appears for selecting the operating mode; see

also 'The Home Screen on page 10'.

The following operating modes are available here:

■Custom cooking

■Regenerating

■Press&Go

■ConvoSense (optional)

■Cookbook

■Cleaning

If the 'Press&Go' operating mode is set in the software, the combi oven starts preheating immediately;

see also 'Quick-select cooking with Press&Go' on page 30.

What do I need in order to cook?

In order to cook with your combi oven you need a suitable cooking profile for your product. You can

enter a new cooking profile via the 'Custom cooking' menu. Alternatively, you can select and run a

suitable cooking profile via the 'Cookbook' menu, which contains ready-to-use cooking profiles.

If the 'Press&Go' operating mode is selected in the software, you simply need to select and run the

relevant cooking profile. All cooking profiles available in 'Press&Go' are defined in the 'Cookbook'.

Before starting a cooking operation, you must always be familiar with the rules and hazard warnings in

the user manual that relate to working safely with the appliance, and you must follow the instructions

given there.

2 The user interface at a glance

Operating instructions 7

2.2 The basic layout of the software

The software layout

1 Header

2 Main area

3 Footer

The indicators in the header

The header displays various indicators depending on the menu and function selected:

Selected cooking profile Indicates a selected cooking profile e.g. Croissant, with a

picture and text

kitchenconnect® Indicates whether there is a connection to the Cloud

WLAN Indicates whether there is an Internet connection

Time Shows the current time

2 The user interface at a glance

Operating instructions 8

The main area

The main area displays various buttons and indicators depending on the menu and function selected.

Light grey button Function available or selected e.g. core temperature

Dark grey button Function unavailable or not selectable

Scroll bar Scroll vertically to display more menu content

Close the menu Closes the menu

The buttons and indicators in the footer

The footer displays various buttons and indicators depending on the menu and function selected.

Go back Navigation button

Navigation menu Opens the navigation menu containing all available operat‐

ing modes

Messages Indicates the number of messages, if any

Opens the 'Messages' menu

Timer Indicates if a timed cooking profile or cleaning profile is ac‐

tive

Error list Indicates the number of errors that have occurred, if any

Opens the 'Error list' menu

2 The user interface at a glance

Operating instructions 9

2.3 The Home Screen

Access to the Home Screen

Access to this menu is password-protected and available only to certain users, for instance in order to

edit existing cooking profiles.

The functions in the Home Screen

■Access to all the available operating modes

Layout of the Home Screen

1 Home Screen

2 Navigation menu

2 The user interface at a glance

Operating instructions 10
