WEMAX PRO 100 Manuale utente
User Manual
PRO 100
Smart Projector
User Notice
2
Thank you for choosing WEMAX PRO 100.
For your security and interests, please read this manual carefully
before using the product. If without properly operation shown in the
user manual, personal injuries and other damages are caused, we
will not take the corresponding responsibilities.
Illustrations of product, accessories, and user interface in the user
manual are for reference purposes only. Actual product and
functions may vary due to product enhancements.
Product Information
Product Name: WEMAX PRO 100
Model: M135FGE-Pro
Manufactured by:
Formovie (Chongqing) Innovative Technology Co., Ltd.
Address: 4-401, #2 Longgang Road, Guojiatuo Area, Jiangbei
District, Chongqing, China
WEMAX®, a brand of Ampula Inc., Bellevue, WA 98005
Product Overview
Exterior
Lens
TOF Module Camera
Speaker Mesh
Heat Dissipation Vents
Power Button
Ports
Rubber Feet
1/4'' Female Threaded
Tripod Mount (length 6mm)
Caution :
Right Air Inlet
3
Speaker
Speaker
- Do not place any flammable objects near the heat
dissipation vent.
- Do not place any objects near the vents, as this may
cause heat to build up inside the projector.
- Do not look directly into the lens so as to avoid eye
damage as this projector emits strong light during use.
Suspended Ceiling Installation
4
Rubber Feet
1/4'' Female Threaded
Tripod Mount (length 6mm)
Suspended ceiling installation is one of the installation methods that
you hang the projector in an overhead location, for example, on a
high ceiling, through a ceiling mount. A projector supporting
suspended ceiling installation has threaded holes on the bottom,
you can install the project on the mount by attaching the screws into
the holes.
The installation steps are as follows:
1. Install the mount.Make sure the mount used to install the
projector onto can support at least five times the weight of the
projector.
2. When installing the projector onto a ceiling mount, make sure to
use specified screws and suitable bracket. Screw specification: Non
self-tapping screw, diameter 1/4'' and length 6mm.
3. Adjust the mount depending on your needs and firmly fix the
screw to complete the installation.
Cautions:
- Keep the bottom of the projector 4 inches away from the ceiling
when suspending it.
- Damage caused by incorrect installation will void the warranty.
Connection Ports
Power Indicator
HDMI 2
HDMI 1(ARC)
USB 2.0
USB 2.0
- HDMI input port 2
- HDMI input port 1
- (ARC) Audio return channel port
- Supports USB 2.0
communication protocol
- Supports USB 2.0
communication protocol
Power Indicator
②
① ③
④
The power indicator (a white light) to the
corresponding projector's status is as
follows:
5
51
2
3
4
5
6
7
7
6
S/PDIF
- Optical digital audio signal
output port
LAN - Ethernet port
- Headphone port
- The indicator blinks when the projector
is turning on.
- The indicator turns off after the project
is turned on.
- The indicator remains on after turning
off the screen.
- The indicator blinks when the projector
is turning off.
- The indicator turns off after the projector
is turned off.
6
Xifo!uif!qspkfdups!jt!po-!tipsu!qsftt!
up!pqfo!uif!nfov-!mpoh!qsftt!up!uvso!
pgg!uif!qspkfdups/
Xifo!uif!qspkfdups!jt!pgg-!tipsu!qsftt!
up!uvso!po/
Mpoh!qsftt!uif!wpjdf!dpouspm!cvuupo!
boe!ubmljoh!dmptf!up!uif!sfnpuf!dpouspm/
Npwf!up!vq-!epxo-!mfgu-!ps!
sjhiu-!uifo!qsftt!uif!njeemf!
up!dpogjsn/
Sfuvso!up!ipnf!tdsffo/
Power:
Voice:
Launch Board:
Navigation Pad:
Home:
Sfuvso!up!uif!qsfwjpvt!nfov/Return:
Tipsu!qsftt!up!bddftt!uif!qspdftt!
nbobhfs-!mpoh!qsftt!up!bddftt!uif!
mbvodi!cpbse/
Menu:
Pairing the Remote Control:
Volume: Jodsfbtf!uif!wpmvnf<
Efdsfbtf!uif!wpmvnf/!
Bddftt!uif!mbvodi!cpbse!
joufsgbdf/
Ipme!uif!sfnpuf!dpouspm!dmptf!up!uif!
qspkfdups!xjuijo!b!ejtubodf!pg!31!dn-!uifo!
tjnvmubofpvtmz!qsftt!uif!Nfov!cvuupo!boe!
uif!Ipnf!cvuupo!up!qbjs/!
Caution:
- Pay attention to the positive and negative poles when installing
batteries in the remote control.
- Dispose of, or recycle the battery in accordance with local laws
and regulations of the country or region it is used in.
- It is recommended that the distance between the remote control
and the projector is no more than 5 meters.
- The illustration of the remote control is for reference purposes
only. Actual products and functions may vary due to the regions
they are used in.
Remote Control
Select【Focus】on homepage or select 【Settings】>
Image > Screen focus and then focus will be completed automatically.
You can use the left and right button to fine tune manually.
Point the remote at the bottom right
corner of the projector, then simultane-
ously press and hold and button.
Once you hear a beep, it indicates that
the pairing process has started. Release
the buttons and wait for the process to
complete.
Power on/off
Plug in the power adapter, then press the
power button to turn on.
Note: The user interface will be updated from time to
Quick Start Guide1
1
2
3
Pairing the Remote
Focus
When the projector is on, press the power
button on the top to open the power
options, then press the power button
again to shut down.
20cm
7
After installing the batteries in the remote
control, press the OK button to start pairing.
A message screen will appear When the
remote is paired successfully.
Auto Focus is enabled by default, moving the projector will
automatically trigger the screen to focus. To turn it off, go to
【Settings】> Image > Auto Focus.
8D66050000183 A
If the projector is moved, it will start automatic keystone correction
and the projected image will be adjusted automatically.
Note: Go to 【Settings】 > Image > Omnidirectional Automatic
Correction, to configure Auto Keystone. Auto Keystone is enabled
by default.
4Keystone Correction

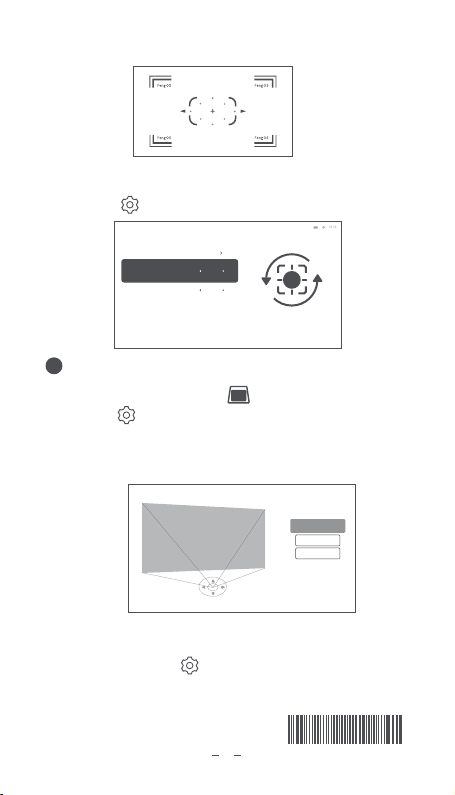

Select 【Keystone Correction】on homepage or select
【Settings】> Image > Four-point Keystone Correction.
Press the up and down button to select Quick adjustment, Fine
Tuning, and Reset, and then press the OK button to enter into
correction status.
ToF Ranging
On
lmage and Sound / lmage
Focus Method
Adjust the focus distance of the projector
Screen Focus
The lens focal length can be automatically adjusted when
the projection distance changes
Auto Focus
Focus Method
08:08
Quick Adjustment
Fine Tuning
Reset
9
5Auto Obstacle Avoidance & Auto Screen Alignment
6Network & Internet
Auto Obstacle Avoidance & Auto Screen Alignment are enabled by
default. If the projector is moved, it will automatically detect objects
in the projection area and scale the image to avoid it.
If screen is used, the projector will match the projected image with
your screen automatically during auto screen adjusting process.
Note: Go to 【Settings】> Image > Auto Obstacle Avoidance &
Auto Screen Alignment, to configure the functions.
To use wireless network, select 【Settings】on homepage >
【Network Settings】. Select a wireless network to connect to, enter
the password, and wait for the projector to connect.
To use wired network, insert the network cable to the Ethernet port
on the back of the projector.
On
On
lmage and Sound / lmage
Keystone Correction
Just one step to get the best parameters
Correct the projection display screen by four vertices
Vertical keystone correction by acceleration sensor
Avoid obstacles during calibration
Make sure projection area completely covers the screen
Just put the projector, the projection screen can be
squared!
Omnidirectional Automatic Correction
Auto Obstacle Avoidance
Calibration of Omnidirectional Auto-correction
Automatic Vertical Correction
Four-point Keystone Correction
Auto Screen Alignment
On
On
08:08
:;26
Detect the network connection or the reason of disconnection
Network Diagnosis
Detect the network speed, and recommend the video resolition that can be
watched
Network Speed Test
Xming - 5G
Wireless Network
General/Network Settings
7System
10
File Manager Cast Projection Bluetooth Speaker Inputs
08:08
Settings
Press 【Launch Board】button on the remote control or
select 【Launch Board】 in the shortcut menu bar at the top of
the homepage to access the launch board interface. All installed
Apps can be found on this page.
Select 【Settings】in the shortcut menu bar at the
bottom of the homepage to enter the 【Common Menu】page.
All frequently used functions and software upgrade notifications
will be displayed on this page.
General
Image and Sound
Interconnection
Common Peripherals
Bluetooth
Network Settings
System
Energy Saving
Security
About
Sound
08:08
