4Technical Data
4. Technical Data
Order number ZAC50PN01 ZAC50PN02 ZAC51PN01
Supply voltage 18...32 V DC 18...32 V DC 18...32 V DC
Max. Current Consumption Device * 0.3 A 0.25 A 0.3 A
Max. Current Consumption System ** 2.2 A 2 A 0.3 A
max. PoE Capacity 30 W 25 W –
Temperature range –25...60 °C –25...60 °C –25...60 °C
Voltage drop switching outputs < 2.5 V < 2.5 V < 2.5 V
Max. Switching current switching
outputs 0.6 A 0.6 A 0.6 A
Max. total current of the
digital I/O ports 1A 1A 1A
Digital I/O ports short-circuit pro-
tected Yes Yes Yes
Digital I/O ports overload protected Yes Yes Yes
Digital I/O ports reverse polarity
protected Yes Yes Yes
Number of digital I/O ports 2 2 2

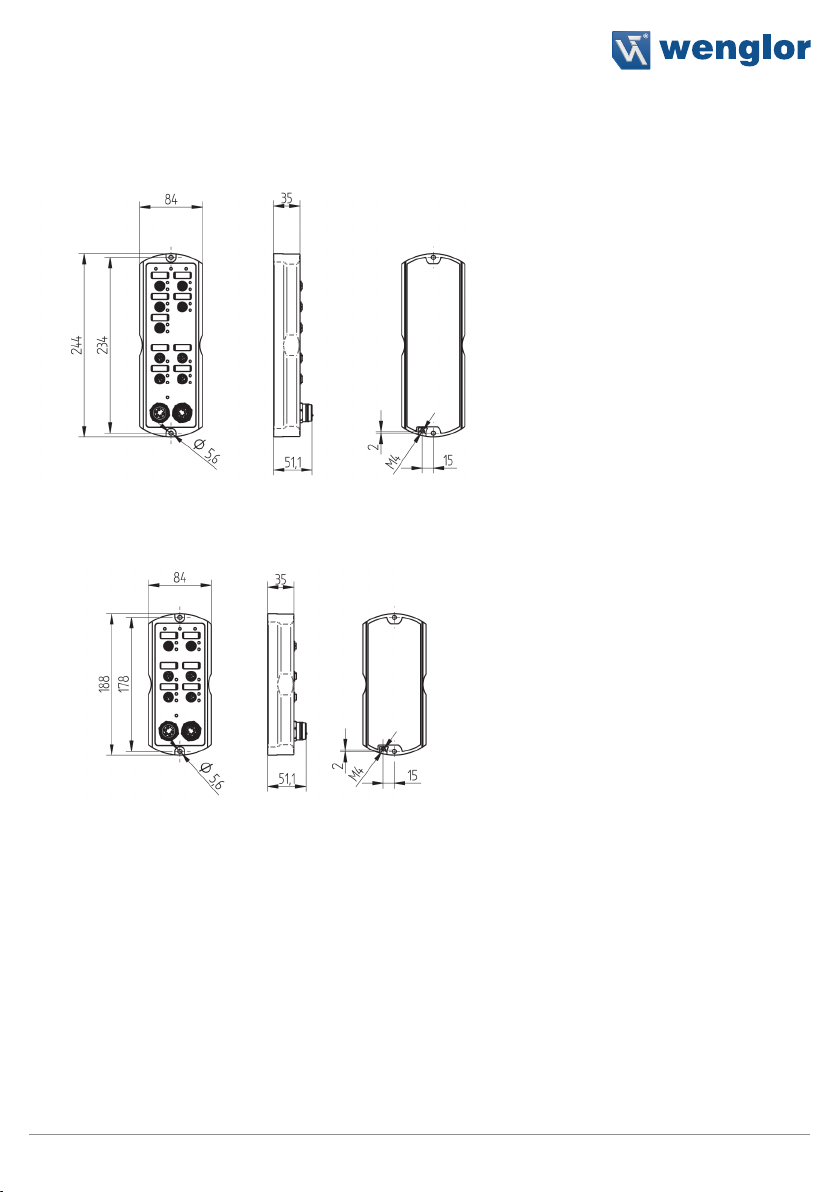

Housing material Aluminum Aluminum Aluminum
Protection class IP67 IP67 IP67

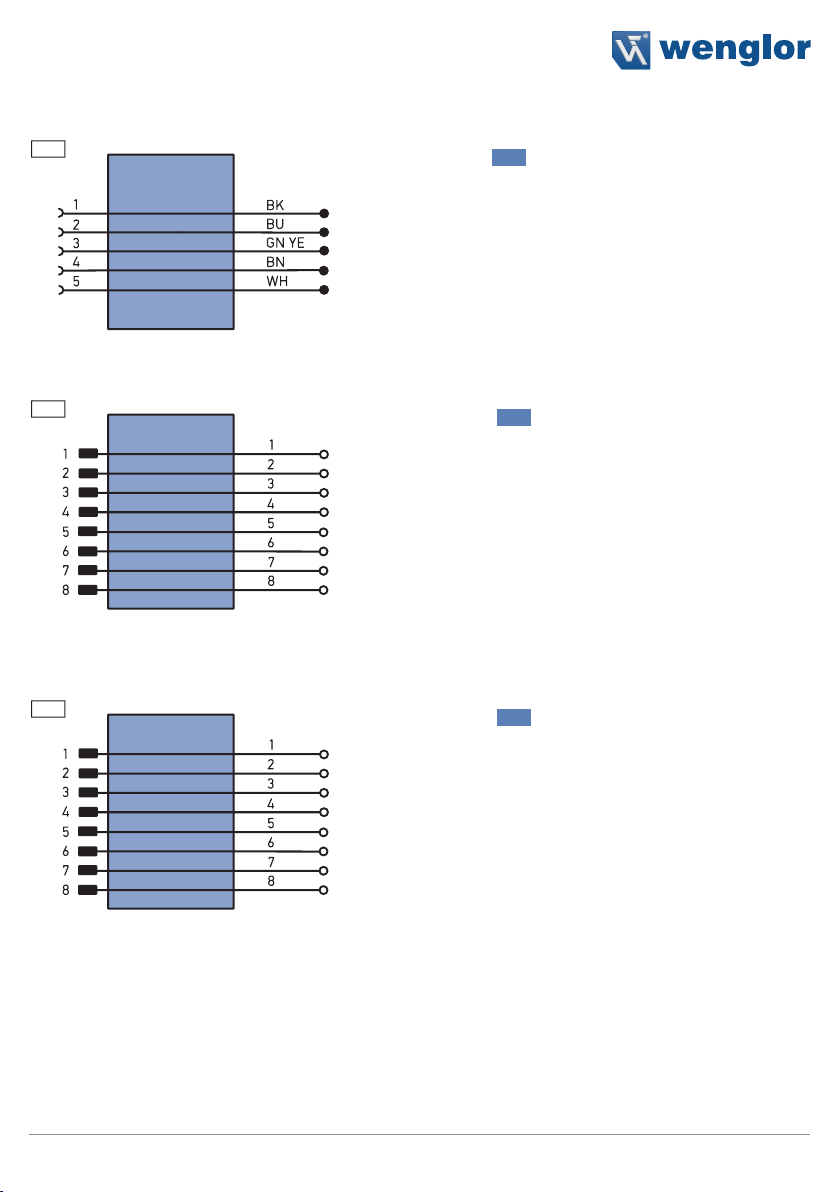

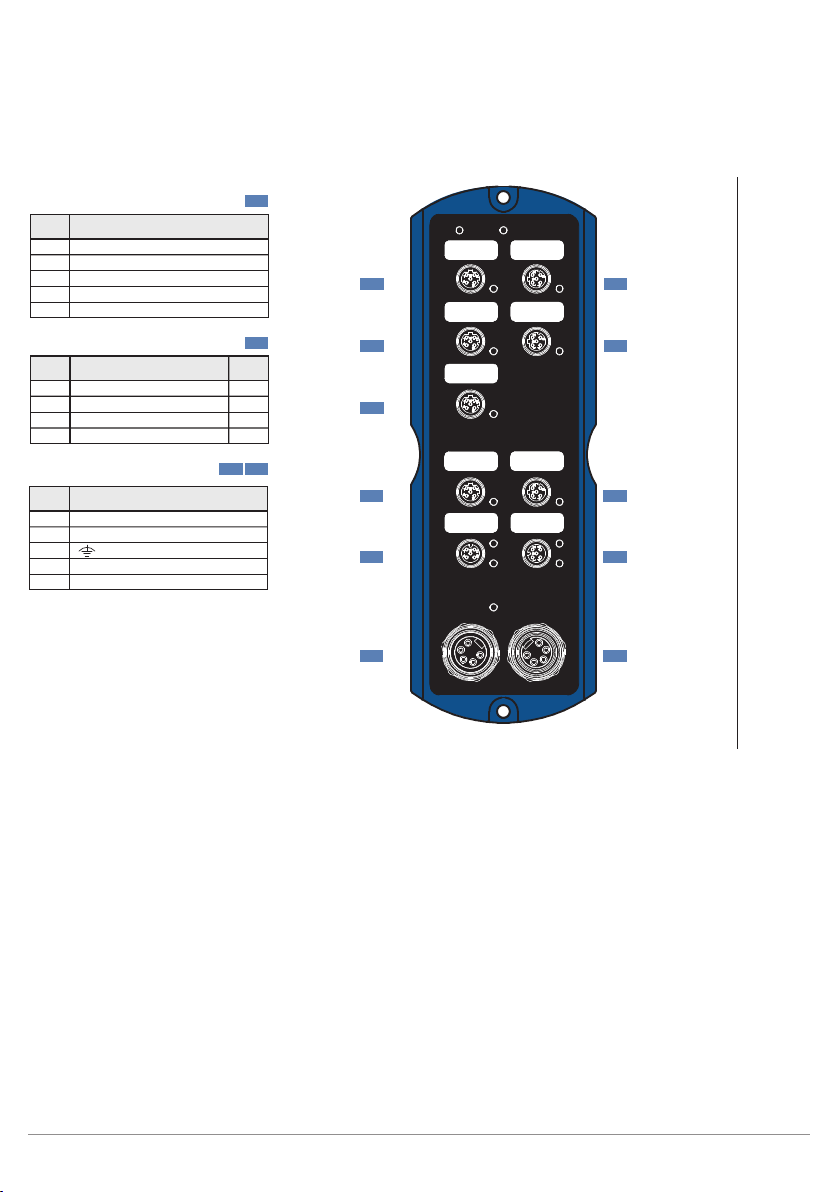

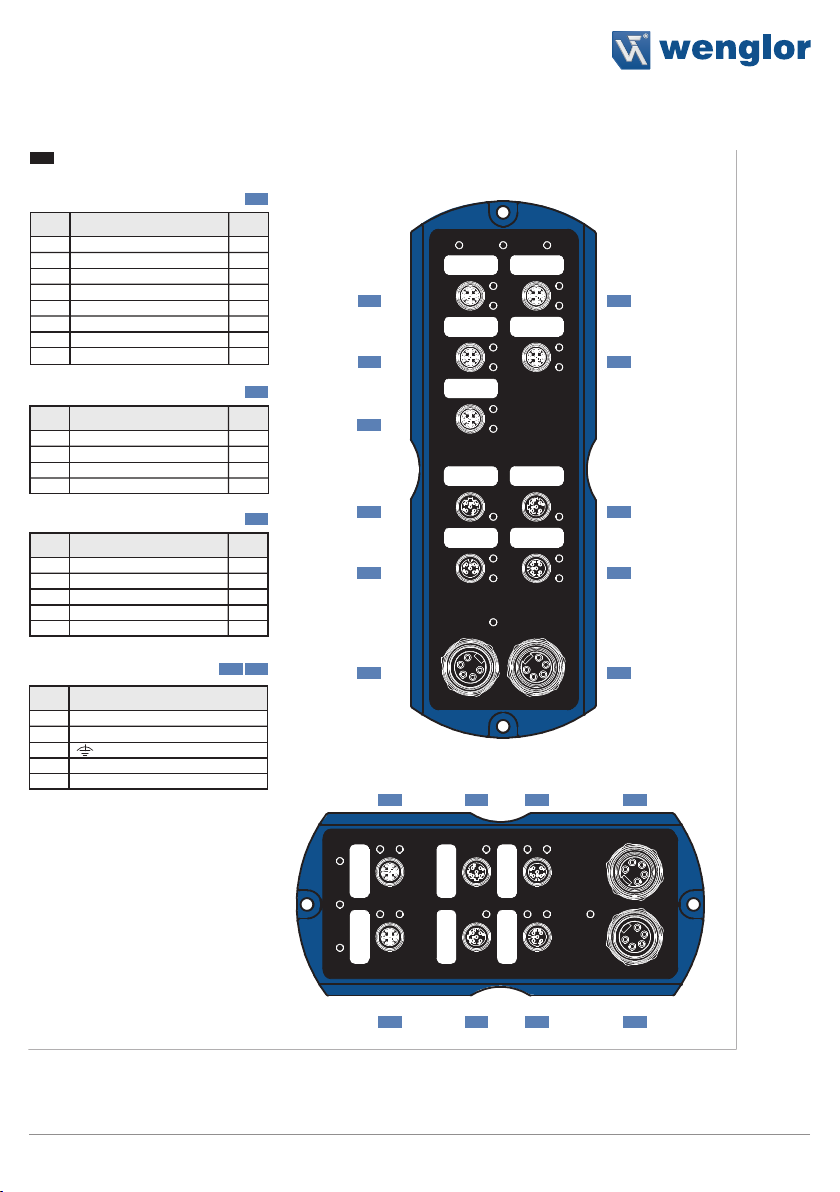

Type of connection power 7/8", 5-pin 7/8", 5-pin 7/8", 5-pin
Type of Connection Industrial
Ethernet Ports
M12×1, 4-pin,
D-coding
M12×1, 4-pin,
D-coding
M12×1, 4-pin,
D-coding

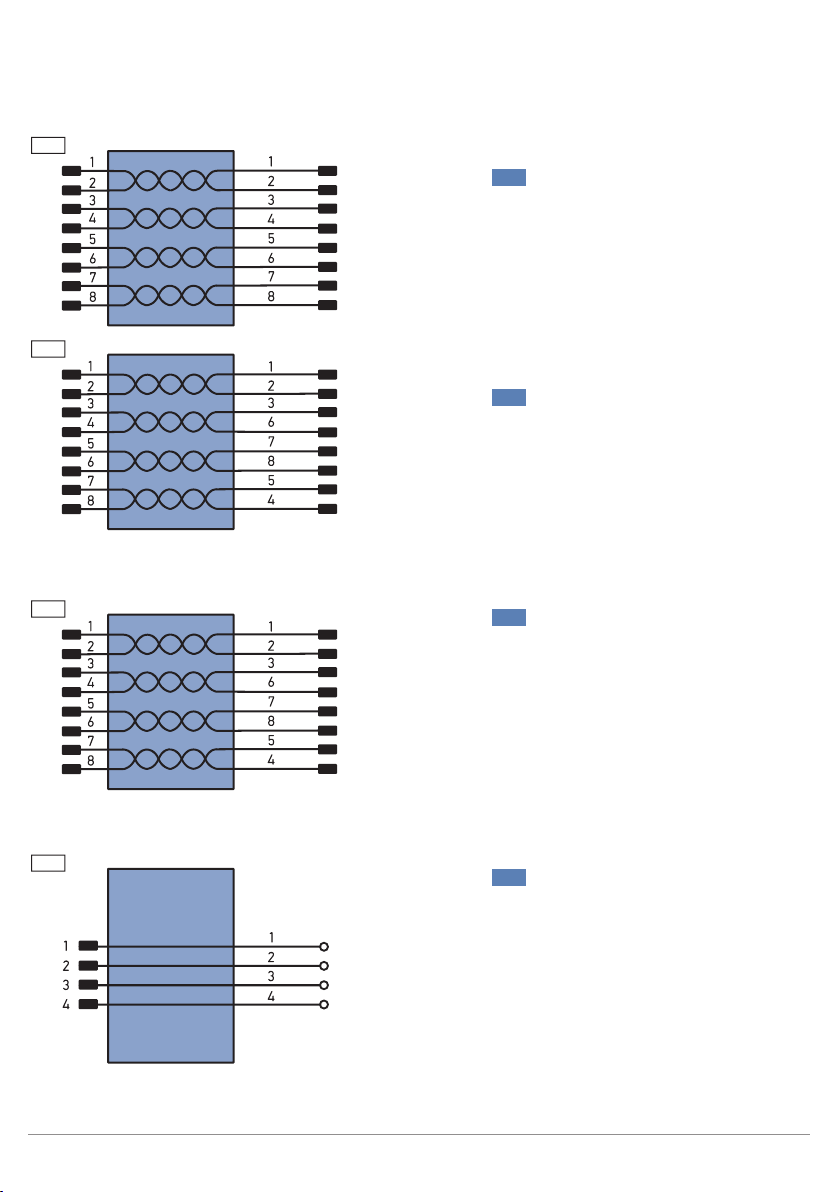

Type of Connection PoE Ports M12×1, 8-pin, type x M12×1, 8-pin, type x –

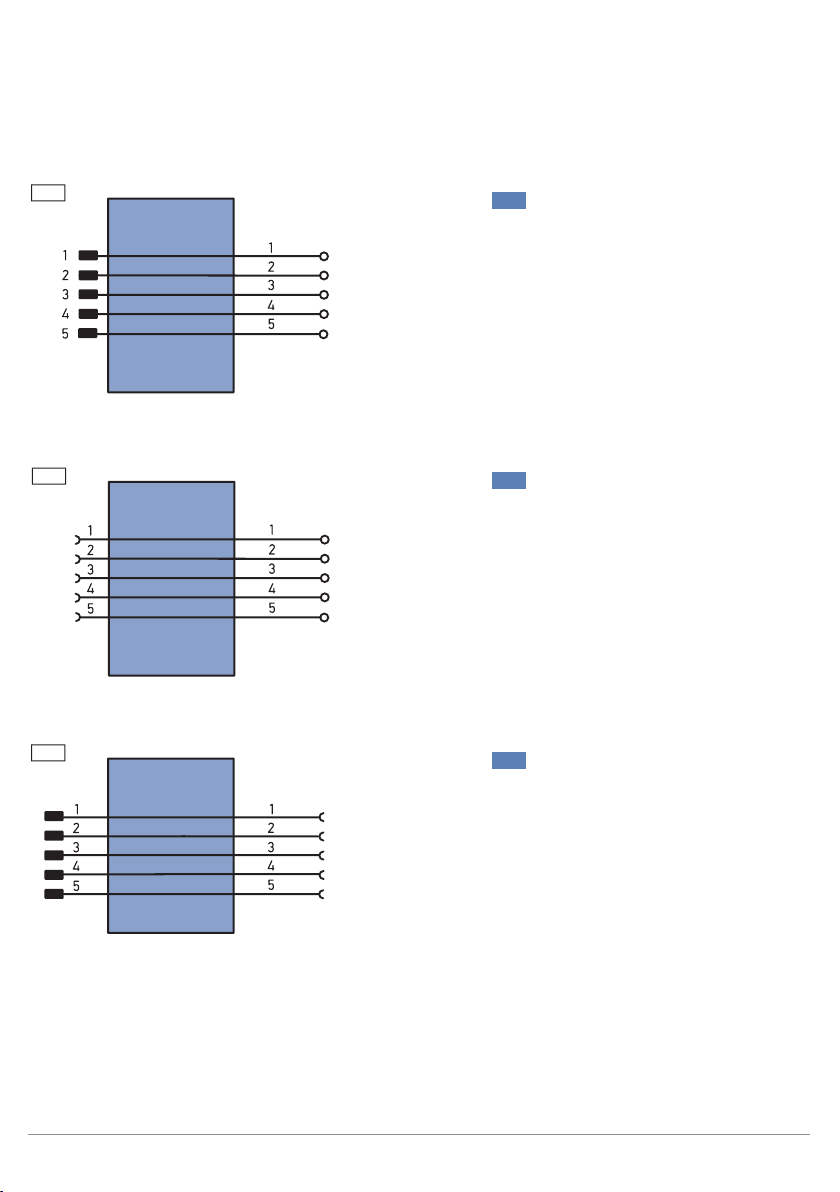

Type of Connection Digital I/O ports M12×1, 4-pin,
A-coding
M12×1, 4-pin,
A-coding
M12×1, 4-pin,
A-coding
Number of PoE ports 5 2 –
Number of Industrial Ethernet Ports 227
Number of Digital I/O ports 222
PoE Standard IEEE802.3af IEEE802.3af –
PoE Classes Class 0, 1, 2, 3 Class 0, 1, 2, 3 –
Baud Rate 10 Mbit/s / 100 Mbit/s 10 Mbit/s / 100 Mbit/s 10 Mbit/s / 100 Mbit/s
Transmission Mode Full / Half Duplex Full / Half Duplex Full / Half Duplex
Webserver Yes Yes Yes
Switch Mode Store & Forward Store & Forward Store & Forward
Managed Switch Yes Yes Yes
VLAN Prioritization Yes Yes Yes
Default IP 192.168.100.1 192.168.100.1 192.168.100.1
Auto-Crossover Yes Yes Yes
Auto-Negotiating Yes Yes Yes
Auto-Polarity Yes Yes Yes
* Maximum own power consumption of the product without additional loads
** Maximum own power consumption of the product with additional loads
Full assignment of all PoE ports (if available) without digital I/O ports
