Western Digital OpenFlex F3 Series Manuale utente

EcoDesign

Disclosures

OpenFlex™ F3x00 and E3000

Regulatory Model: F3000 and

E3000

1ET2156

Version 1.0

February 2020

EcoDesign Disclosures Table of Contents

Table of Contents

Notices........................................................................................................................................................................................ ii

Chapter 1. EU EcoDesign Compliance...........................................................................................................................................1

EcoDesign Overview................................................................................................................................................................. 2

OpenFlex F3x00 and E3000 EcoDesign Specifications..........................................................................................................2

Secure Erase and Sanitize.........................................................................................................................................................2

Completing Secure Erase on a Device Using the OCGUI.............................................................................................. 2

Completing Sanitize on a Device Using the OCGUI....................................................................................................... 7

/Storage/Devices/{id}/................................................................................................................................................... 12

OpenFlexF3x00 Disassembly.................................................................................................................................................. 20

BMC Module Disassembly.......................................................................................................................................................35

Chassis Disassembly.................................................................................................................................................................41

EcoDesign Disclosures Notices

Notices

Western Digital Technologies, Inc. or its affiliates' (collectively “Western Digital”) general policy does not

recommend the use of its products in life support applications where in a failure or malfunction of the

product may directly threaten life or injury. Per Western Digital Terms and Conditions of Sale, the user of

Western Digital products in life support applications assumes all risk of such use and indemnifies Western

Digital against all damages.

This document is for information use only and is subject to change without prior notice. Western Digital

assumes no responsibility for any errors that may appear in this document, nor for incidental or consequential

damages resulting from the furnishing, performance or use of this material.

Absent a written agreement signed by Western Digital or its authorized representative to the contrary,

Western Digital explicitly disclaims any express and implied warranties and indemnities of any kind that may,

or could, be associated with this document and related material, and any user of this document or related

material agrees to such disclaimer as a precondition to receipt and usage hereof.

Each user of this document or any product referred to herein expressly waives all guaranties and warranties

of any kind associated with this document any related materials or such product, whether expressed or

implied, including without limitation, any implied warranty of merchantability or fitness for a particular

purpose or non-infringement. Each user of this document or any product referred to herein also expressly

agrees Western Digital shall not be liable for any incidental, punitive, indirect, special, or consequential

damages, including without limitation physical injury or death, property damage, lost data, loss of profits or

costs of procurement of substitute goods, technology, or services, arising out of or related to this document,

any related materials or any product referred to herein, regardless of whether such damages are based on

tort, warranty, contract, or any other legal theory, even if advised of the possibility of such damages.

This document and its contents, including diagrams, schematics, methodology, work product, and

intellectual property rights described in, associated with, or implied by this document, are the sole and

exclusive property of Western Digital. No intellectual property license, express or implied, is granted by

Western Digital associated with the document recipient's receipt, access and/or use of this document or the

products referred to herein; Western Digital retains all rights hereto.

Western Digital, the Western Digital logo, and OpenFlex are registered trademarks or trademarks of Western

Digital Corporation or its affiliates in the US and/or other countries. All other marks are the property of their

respective owners. Product specifications subject to change without notice. Pictures shown may vary from

actual products. Not all products are available in all regions of the world.

Western Digital

5601 Great Oaks Parkway

San Jose, CA 95119

Western Digital

EU EcoDesign

Compliance

This document provides information and instructions related

to the OpenFlex F3x00 and E3000 's compliance to the EU's

ecodesign requirements.

In This Chapter:

- EcoDesign Overview......................................2

- OpenFlex F3x00 and E3000 EcoDesign

Specifications...................................................2

- Secure Erase and Sanitize............................. 2

- OpenFlex F3x00 Disassembly..................... 20

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.1 EcoDesign Overview

The intent of EU's ecodesign requirements is to ensure that energy-related products operate efficiently

and are able to be disassembled for repair, upgrade, or recycling, in order to limit their potential impact on

the general energy supply and the enviroment. Servers and data storage devices have been identified as

significant products in this regard.

In compliance with ecodesign requirements, this document provides information about the OpenFlex

F3x00 and E3000 related to its manufacturing and operation, and instructions for secure data deletion and

disassembly.

1.2 OpenFlex F3x00 and E3000 EcoDesign Specifications

Product Type Online Data Storage Product

Manufacturer's Name Western Digital

Manufacturer's Registered Trade Name Western Digital®

Manufacturer's Registered Trade Address 5601 Great Oaks Parkway

San Jose, CA 95119

USA

Product Model Number Chassis: OpenFlex™ E3000

Storage Device: OpenFlex™ F3x00

Starting Year of Manufacture 2019 *

PSU efficiency at 20%, 50%, 100%

of rated output power

20% load = 93%

50% load = 94%

100% load = 91%

Power Factor at 50% Rated Load Level Minimum Power Factor (at 50%) = 0.98

Declared Operating Condition Class A2

Neodymium Content in HDDs N/A

Cobalt Content in Batteries N/A

1.3 Secure Erase and Sanitize

For the OpenFlex F3x00 and E3000 , initializing and sanitizing a device can be accomplished from the same

page in the OCGUI. These features provide the option to securely erase the mapping table and erase all

of the blocks that have been written to the devices. The Secure Erase and Sanitize features may also be

executed from the API.

1.3.1 Completing Secure Erase on a Device Using the OCGUI

* This value is the original date of product manufacture. For the specific manufacture date of your platform, check the

agency label attached to the platform. There will be a 4 digit date code on that label.

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.3 Secure Erase and Sanitize

This task provides steps that should be followed to complete the Secure Erase procedure on a storage

device using the OCGUI. This feature provides the option to securely erase the mapping table and erase all

of the blocks that have been written to the device.

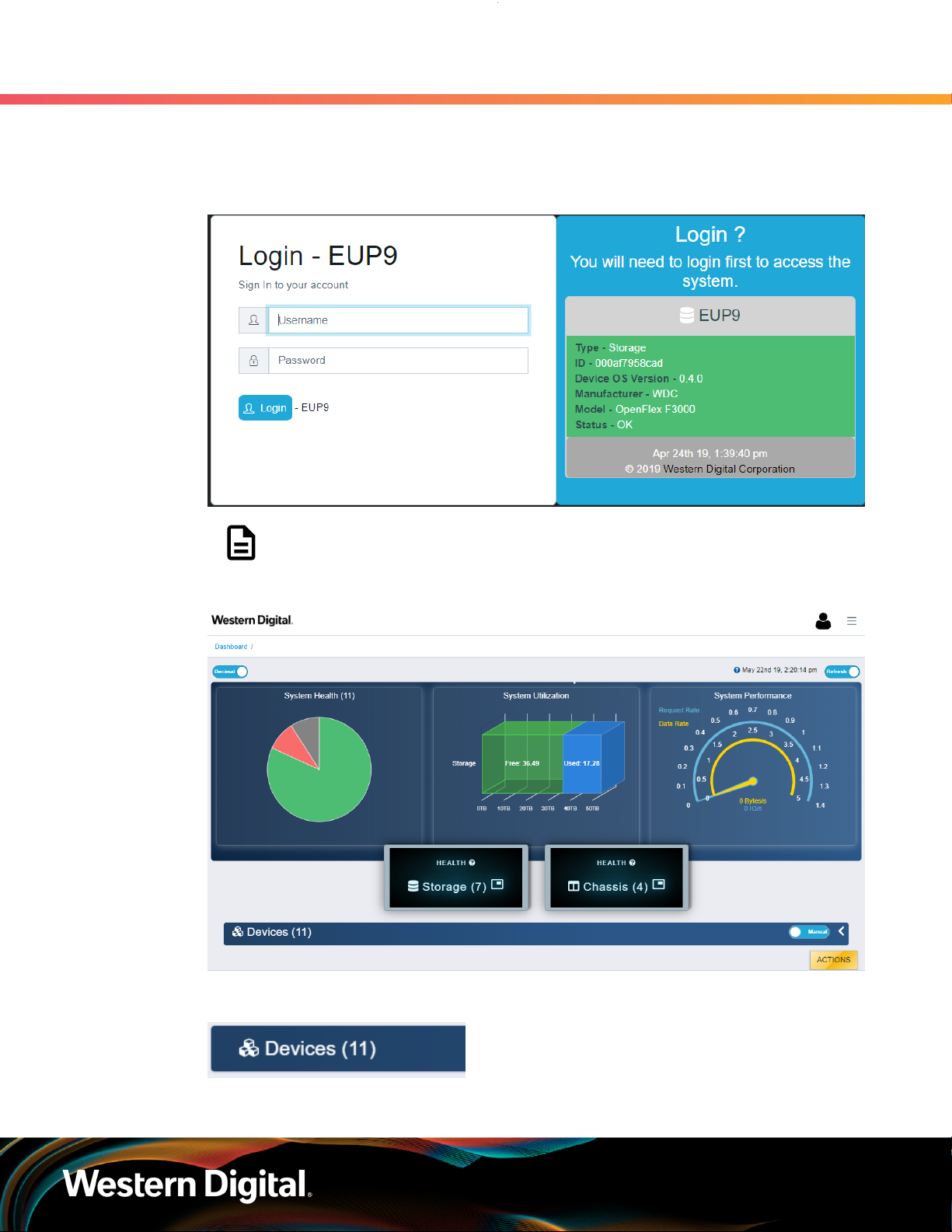

Step 1 : Enter a valid username and password, and click the Login button:

Note: The default username/password is admin/admin.

The system dashboard appears:

Step 2 : Click the Devices banner to view a list of all connected devices:

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.3 Secure Erase and Sanitize

Step 3 : Locate the device that will require volume extension from the list.

Step 4 : Click the Device Actions icon:

Step 5 : Click the Open in a new tab/window option to open the device page in a new window.

This will keep the existing dashboard live in the current window. You may choose between

remaining on the local device access or connecting to the device remotely.

The new device's dashboard appears.

Step 6 : Click the Paths icon:

The device's Paths page appears:

Step 7 : Click the delete icon next to the path.

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.3 Secure Erase and Sanitize

A "Are you sure you want to delete this path?" message will appear.

Step 8 : Click the OK button to delete the path.

Step 9 : If other Paths are present, repeat the last two steps to delete any remaining paths.

Step 10 : Verify that all paths have been deleted.

Step 11 : Click the Volumes icon:

The storage device's Volumes page appears:

Step 12 : Click the delete icon next to the volume.

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.3 Secure Erase and Sanitize

A "Are you sure you want to delete VolumeX?" message will appear.

Step 13 : Click the OK button to delete the volume.

Step 14 : If other volumes are present, repeat the last two steps to delete any remaining volumes.

Step 15 : Click the Administration icon:

Step 16 : Click the Initialize button:

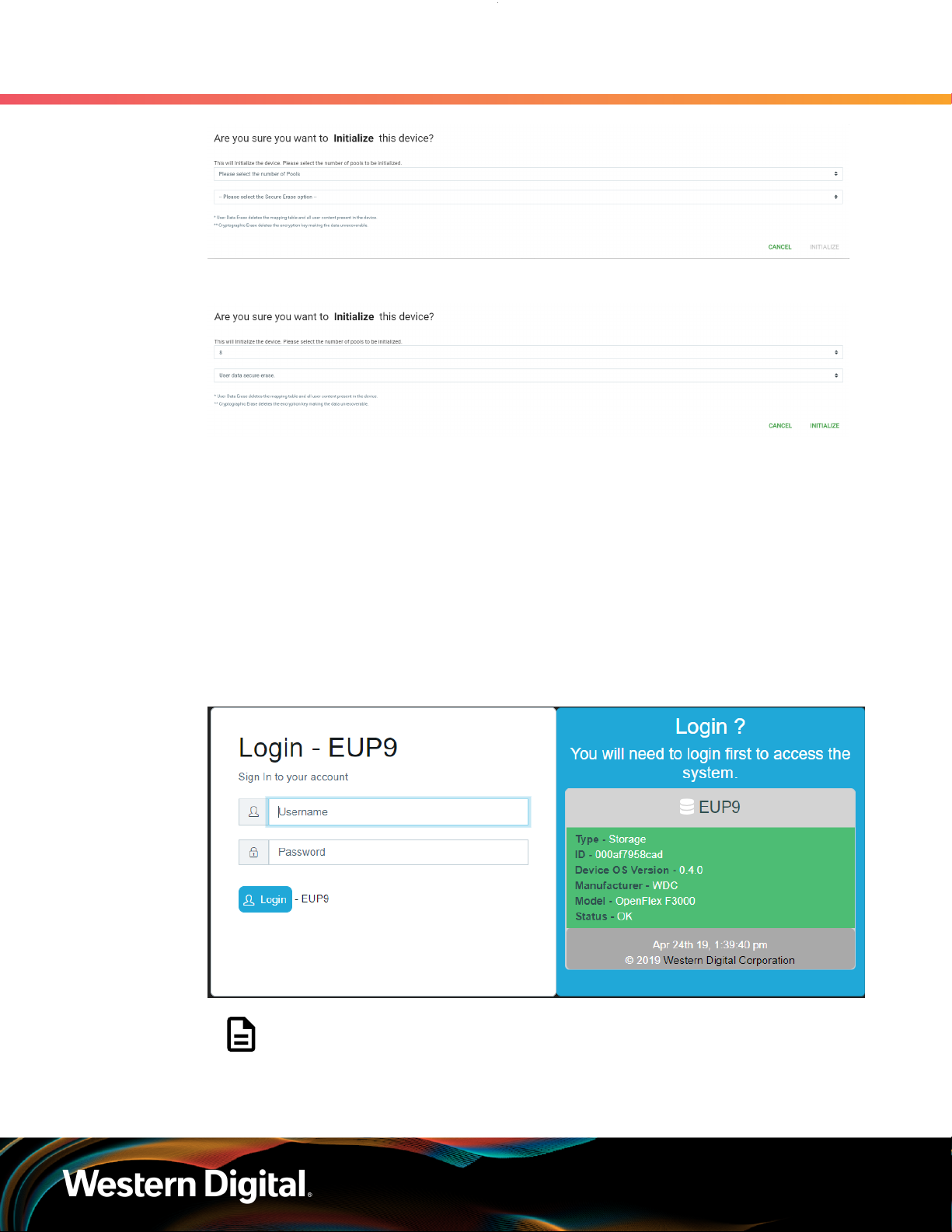

Step 17 : After clicking Initialize, the "Are You sure you want to Initialize this device?" window appears.

Options to select the number of pools and erase options from the droplists appear in this

window.

EcoDesign Disclosures 1. EU EcoDesign Compliance

1.3 Secure Erase and Sanitize

Step 18 : Select options for the number of pools and the secure erase option and click Initialize.

The device secure erase will be executed.

1.3.2 Completing Sanitize on a Device Using the OCGUI

This task provides steps that should be followed to complete the sanitizing procedure on a storage device

using the OCGUI. This feature provides two options for securely sanitizing the storage device:

•Block Erase will delete the mapping table and erase all of the blocks that have been written to the

device.

•Cryptographic Erase (fastest option) will delete the encryption key which will result in making the

data unrecoverable.

Step 1 : Enter a valid username and password, and click the Login button:

Note: The default username/password is admin/admin.

The system dashboard appears:
