Western Digital WDBVHT0040JCH Manuale utente

My Book®Live™Duo

Quick Install Guide

My Book Live Duo | 1

About Your WD Product

Kit Contents

Network hard drive

Installation CD

Ethernet cable

AC adapter

Quick Install Guide

Optional Accessories

For more information on optional accessories for this product, visit

www.shopwd.com (U.S. only). Outside the U.S., visit

http://support.wdc.com.

System Requirements

Ethernet connection (network adapter, router, or switch)

Windows®XP/Vista/7; Mac OS®X Lion, Snow Leopard®, or Leopard®

Web browser (Internet Explorer 7.0 and later on Windows platforms

supported by this product, Safari 4.0 and later on Mac platforms

supported by this product, Firefox 3.6 and later on supported

Windows and Mac platforms, Google Chrome 14.0 and later on

supported Windows and Mac platforms)

Broadband internet connection

Note: Compatibility may vary depending on your hardware configuration and

operating system.

Drive Format

My Book Live Duo is a dual-drive system that is pre-configured as a

spanned drive. Spanning combines all the drives in a system into one

big volume so they act like one giant drive. My Book Live Duo also

supports RAID 1 (Mirrored) mode for data protection. Half of the

capacity is used to store your data and half is used for a duplicate copy.

If one drive fails in RAID 1, the system will still run, and your data will be

preserved. You can replace the failed drive and restore the system. See

the full user manual on your My Book Live Duo for more information on

how to manage RAID.

Important: See the user manual located on the My Book Live Duo

under \\MyBookLiveDuo\Public\Software.

Important: For highest performance and reliability, it is

recommended that you install the latest updates and service pack

(SP). For Windows, go to the Start or menu and select Windows

Update. For Mac, go to the Apple menu and select Software

Update.

Kit Contents

AC Adapter*

*See the full user manual on

the My Book Live Duo for

more information about global

AC adapter configurations

2 | My Book Live Duo

System View

Step 1: Connect My Book Live Duo to the Network

1. Connect one end of the included Ethernet cable into the Ethernet port on the back of the

device. You must use the Ethernet cable included, and keep the drive upright.

2. Connect the other end of the Ethernet cable directly into a LAN port in a router or

network switch.

3. Connect the end of the adapter into the DC power supply socket located on the back of

the device.

4. Plug the AC adapter into a power outlet. The device powers up automatically.

Important: Wait for the device to finish powering up (approximately three minutes) before

configuration. The LED on the front of the device stops flashing and fully illuminates green.

USB port

(for expansion only)

Reset button

LED Ethernet port

Kensington®Security Slot

My Book Live Duo | 3

Step 2: Access My Book Live Duo on the Network

Follow the steps below to easily find your

My Book Live Duo on the local area network

(LAN) using the enclosed CD.

Note: The My Book Live Duo application on

the included CD should be installed on every

PC connected to the LAN from which you

intend to access your My Book Live Duo.

Turn on your computer and wait for the

operating system to load, then insert the

software CD into the CD-ROM drive.

Getting Started

Windows

If AutoRun (AutoPlay) is enabled, the

Welcome screen displays. If you are asked

whether you want to run the setup file,

double-click Setup.exe.

If AutoRun (AutoPlay) is disabled, click

Start or > (My) Computer and locate

the My Book Live Duo CD drive under

Devices with Removable Storage.

Double-click the CD, and then double-click

Setup.exe to display the Welcome screen.

Note: The CD enables UPnP Framework in the Windows XP

firewall if it has not been enabled previously. UPnP Framework

must be enabled for the discovery process to detect your

drive. For more information about enabling UPnP Framework,

see http://support.microsoft.com/kb/886257#8.

Mac

Double-click the My Book Live Duo CD, and

then double-click My Book Live Duo CD

Setup.app to display the Welcome screen.

Discover the Drive on Your Network

1. On the Welcome screen, click the Start

Discovery button.

2. A progress screen displays. If the

process finds your drive on the network,

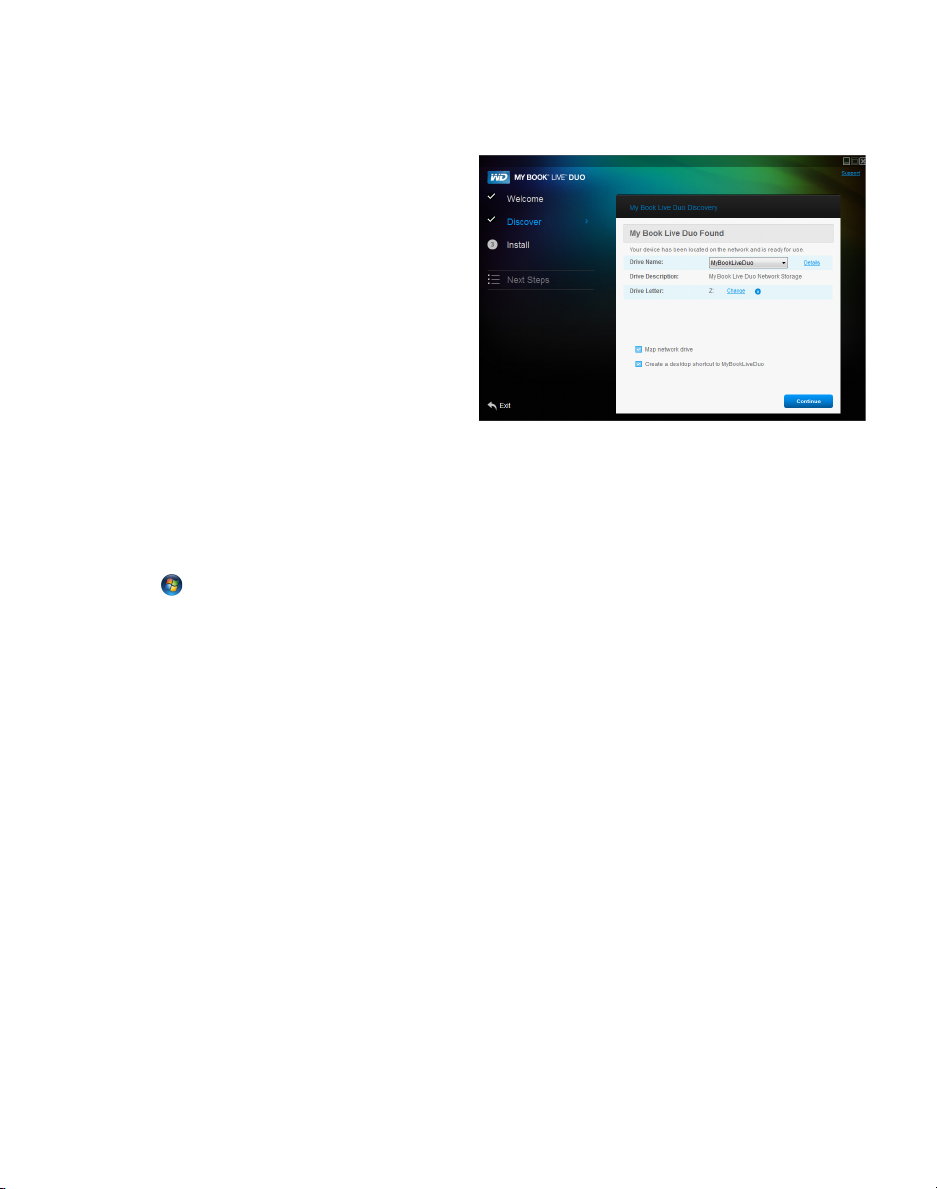

the My Book Live Duo Found screen

displays a default description and drive

letter assignment. A check mark appears

in the navigation panel beside Discover.

Note: If the My Book Live Duo software does not discover

your drive, the How to Connect screen appears. Follow

the on-screen instructions then click Find Drive.

Windows

– If more than one drive was discovered,

select your My Book Live Duo from the

Drive Name list. The screen displays a

default description in Drive Description.

– Click Map network drive to drag and

drop files into the network drive folders

using (My) Computer or Windows

Explorer. Click the Change link to

change the default drive letter.

3. Create a desktop shortcut. In Windows,

click Create a desktop shortcut to your

drive. In Mac, click Create an alias to

MyBookLive.

4. Click the Details link to view the drive's

model name, IP address, and MAC

address.

5. Click the Continue button. The Install

WD Quick View screen displays.

Note: To continue without installing WD Quick View, click

the Skip to Next Steps link and continue with “Perform

Next Steps” below. You may install WD Quick View later by

clicking Install in the navigation panel.

4 | My Book Live Duo

Install WD Quick View

WD Quick View installs the WD Quick View

icon in the system tray in Windows or in the

menu bar in Mac, so that you can perform

important functions such as launching WD

SmartWare or checking drive status quickly.

1. Click the License Agreement link, and

after reading the agreement, click I

Accept.

2. Click the Start Install button. A progress

bar displays until the Installation

Complete screen appears. In Windows,

the system tray now displays the

icon; in Mac, the menu bar now displays

the icon.

Perform Next Steps

Click the Next Steps button on the Install

Complete screen, or the Next Steps link in

the navigation panel at any time to display

the Next Steps screen.

Note: Discovery must take place before Next Steps is available.

Windows Next Steps Screen

See the complete user manual under

\\MyBookLiveDuo\Public\Software for further

instructions on the functions above, and all

other basic and advanced device

management functions.

Western Digital

3355 Michelson Drive, Suite 100

Irvine, California 92612

U.S.A.

Western Digital, WD, the WD logo, and My Book are registered trademarks;

and My Book Live is a trademark of Western Digital Technologies, Inc.

Other marks may be mentioned herein that belong to other companies.

Specifications subject to change without notice.

4079-705085-A01 Nov 2011

IF you want to .. . THEN . . .

Open your My Book Live

Duo drive and view the

contents of its Public

shares,

Click the Open button.

Back up the files, Click the Backup

Options button.

Set up (configure) your

Personal Cloud,

Click the Learn More

button.
