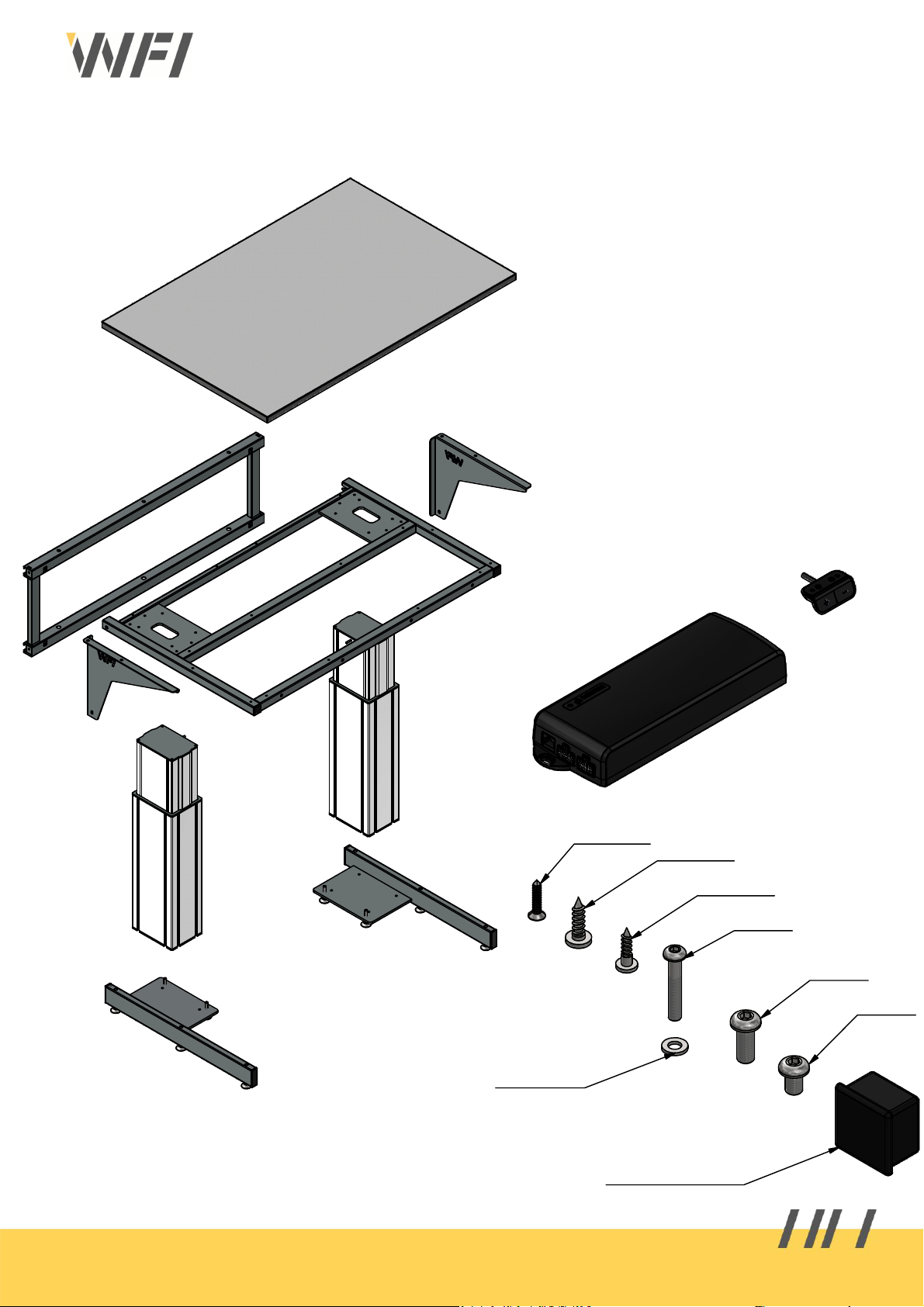

Mounting instructions
Workbench W 600
Mounting instructions
TRX 6x20
TRX 5x20
M6x35
M8x20
M8x12
Washer M6
Plastic plug 35x35
TFX 4x20
Mounting instructions
1
2
Right
Left
M6x35
4 on each side
Washer M6
4 on each side
Plastic plug 35x35
Small holes on frame up
M6x35
4 on each side
Washer M6
4 on each side
Mounting instructions
3
4
Slide the rear frame with screws
in to the slots of the top frame
M8x20
1 on each side
Small holes up
Right
Left
M8x20
1 on each side
M8x12
2 on each side
Mounting instructions
5
6
Center tabletop between legs
TRX 6x20 rear frame (3pcs)
TRX 5x20
Align table top
with top frame
Flanges of
consoles outside
Control unit
Plug in the motorcables and pushbutton
Finally insert the power cable
Push buttons
Make sure the table is in level
Adjust feets
if necessary
TFX 4x20 (2x)
