Whale UF1215 Manuale utente
Universal Freshwater Pressure Pump
The following guidelines should be followed to achieve
optimum pump performance.
1. Locate in a dry position with adequate ventilation
and no more than 3 metres from the tank. Ensure the
pump cannot be submerged in water in normal use
and not likely to be sprayed.
2. Pump can be mounted horizontally or vertically (we
recommend the pump head is below motor level).
3. Feet positions are adjustable to allow replacement
of other pump types. Use No. 8 stainless steel screws
to fasten pump to solid surface, which supports the
pump securely.
1. Use specified fuse, as indicated on motor label, in
the circuit.
2. Connect red wire to positive, black wire to
negative - recommended wire size is 2.5mm² (AWG
13).
3. Fit an isolating switch with adequate current
rating on the positive side of the supply.
4. To prevent the pump running continuously, turn off
at isolating switch when vehicle is left unattended or
water supply has been allowed to empty.

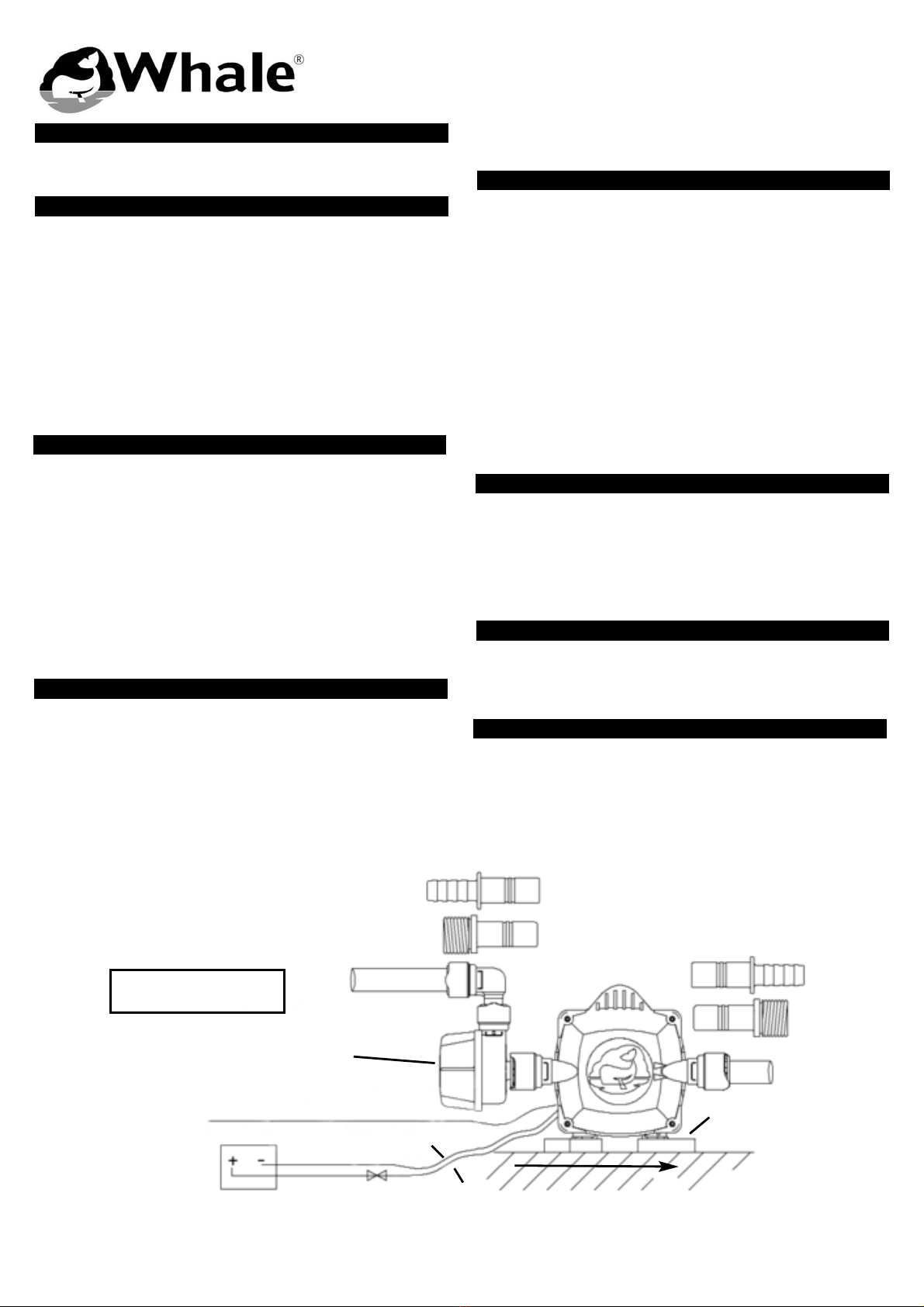

1. Ensure that the strainer provided is attached to the
pump head inlet (as shown below).
2. Check pump flow direction (as indicated on pump
body).
3. Never use pipe sealant or sealing tapes on
threaded adaptors, as these may enter the pump and
cause failure.
If water is allowed to freeze in the system, serious
damage to the pipework and pump may occur. To best
avoid this damage, completely drain the water system.
1. Drain the tank either using the pump or a drain
valve.
2. Open all the faucets (including drain valve) and
allow pump to purge the water from the system, then
turn the pump off.
3. Disconnect the pump and turn on to purge into an
adequate basin. Only reconnect the pump when the
water system it is to be used.
4. Remember to leave all faucets including showers
open to avoid any damage.
AK1316- Replacement Head Service Kit
AK1317- Microswitch Service Kit
AK1319- Replacement Strainer
We herewith declare that the Universal Pump range
conforms to the requirements of the EMC directive
89/336/EEC, and to the CE Marking Directive 93/68/EEC
Plumbing
Winterizing
Electrical
Mounting Location
Installation and Operation Manual
Service Kits
Declaration of Conformity
Red(+ve)
Black(-ve)
Fuse Flow Direction
Universal Filter / Strainer
(Included)
Battery
#8 Screw (Not Included)
For Flexible Hose Systems:
Use 1/2” Barbed Adaptor
(Retail Version Only: 2 fittings included)
(UF1215BL: ⅝” barbed adaptor included)
Fittings included in
retail models only
To Retro fit other Pumps:
Use 1/2” BSP Adaptor
(Retail Version Only: 2 fittings included)
White Signal Wire (Battery Voltage 12/24V +ve)
AK1318 - Replacement Head Service Kit
Fault Cause Solution
Pump does not run
No power to pump
Check power supply
Attach leads/clean connections
Check faucet microswitch if present
Fuse has blown Replace fuse
Blockage in pipework Check pipework for kinks
Pump runs but no water
appears
No water getting to pump
Check that water tank is not empty
Check strainer is not blocked
Check all connections from tank to inlet of pump
are secure - any air leaks will prevent prime
Water leaking at outlet side of
pump
Check pipework/fittings for leaks and repair
Check system drain plugs are closed
Pump runs but will not
switch off
Water leaking at outlet side of
pump
Check pipework/fittings for leaks and repair
Check system drain plugs are closed
No water Check water supply level
Pump cycles on and off
periodically when all the taps
are closed. (Normal with a
partially opened tap)
Water leaking at outlet side of
pump
Check pipework/fittings for leaks and repair
Check system drain plugs are closed
Pump cycles on and off
excessively when tap/s are
open
Excessive back pressure
Check pipework for kinks and filters etc. are clear
Check shower rose/taps for blockage and repair
Noisy operation
Pump drawing air see cause 'No water getting to pump' (see above)
Noise created by vibration
Check pump is secured to solid surface
Check pump body is not in contact with hard
surfaces
Locate away from interferring surfaces
Check pipework is securely supported
Low flow
Bore of pipework connection too
small
For 8 litre versions 8.5mm minimum bore
recommended
For 10 and 12 litre versions use 10mm minimum
bore recommended
Check for kinks in pipework
Check pipework is not blocked
Power supply to the pump
Check power supply to pump uses correct gauge
wire (2.5mm2/AWG 13) to give full voltage at
pump
Check battery is not discharged
Pipework / connections crushed
due to overtightened jubilee
clips
Replace damaged connections
Pump too far from water tank Pump should be situated beside water tank
Water leaking at outlet side of
pump
Check pipework/fittings for leaks and repair
Check system drain plugs are closed
Pump strainer clogged Remove clear lid, rinse and replace to main
strainer body (retain strainer mesh to lid)
Trouble Shooting
Discover other boat plumbing on our website.
