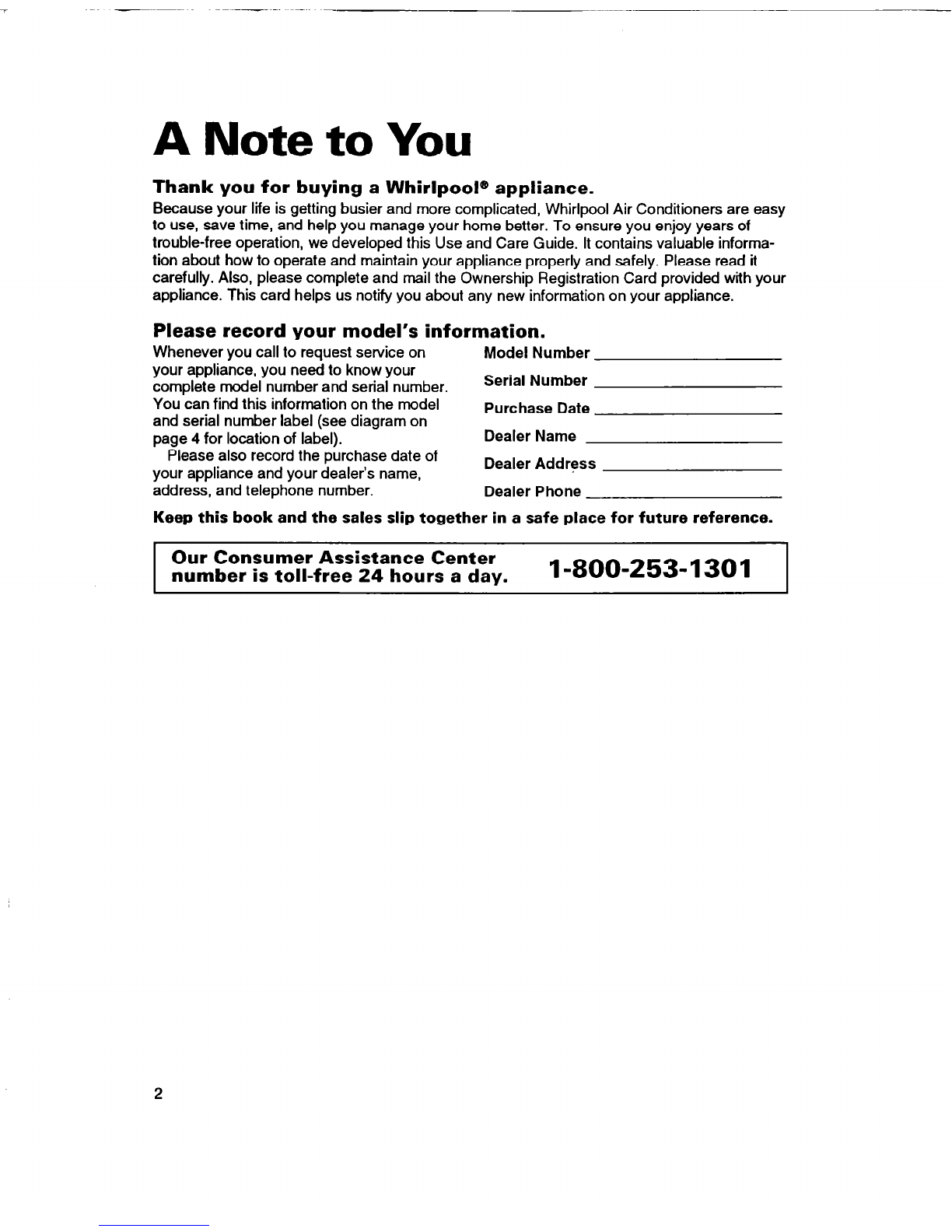

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool Air Conditioners are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read it

carefully. Also, please complete and mail the Ownership Registration Card provided with your

appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label (see diagram on

page 4 for location of label).

Dealer Name

Please also record the purchase date of

your appliance and your dealer’s name,

Dealer Address

address, and telephone number.

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

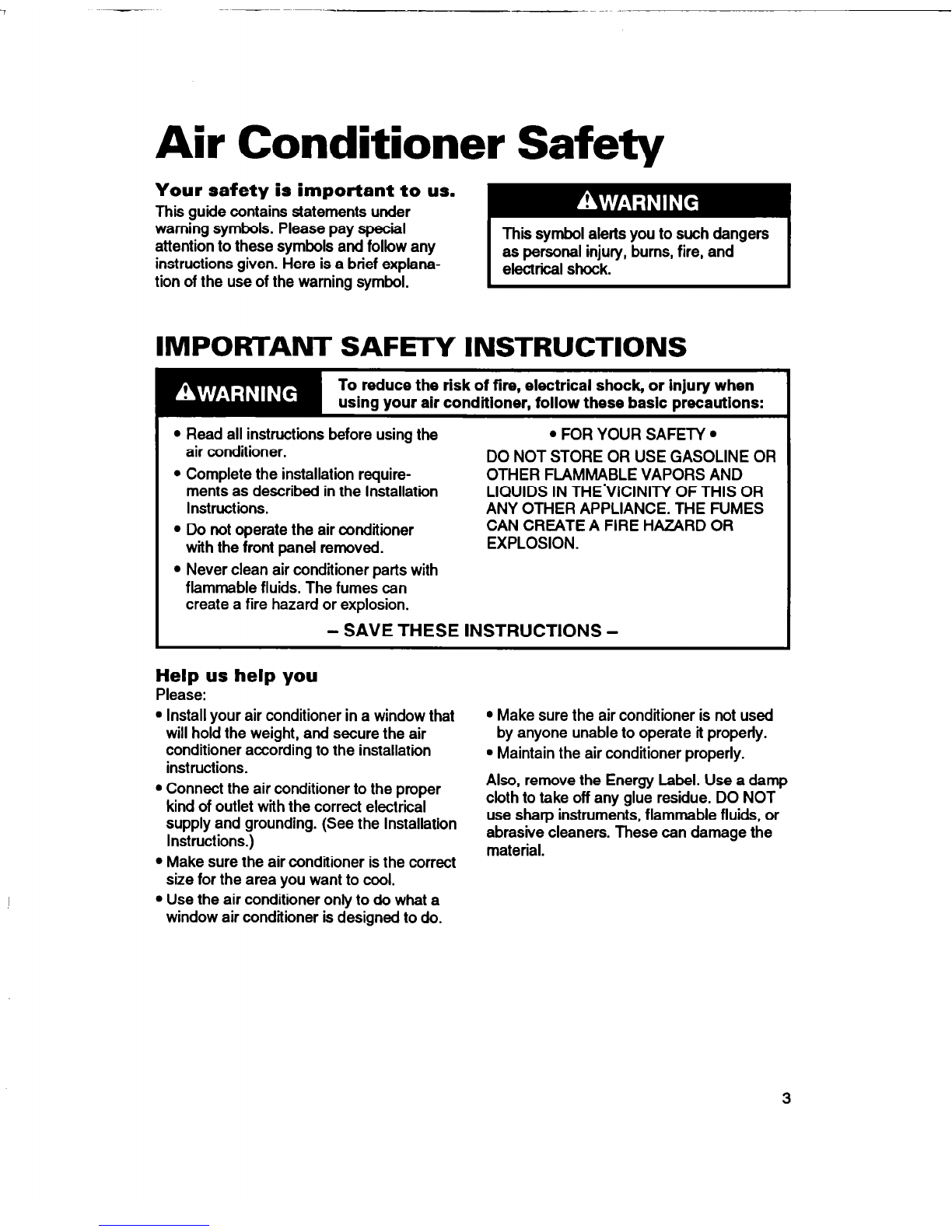

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

This symbol alerts you to such dangers

as personal injury, burns, fire, and

electrical shock.

tion of the use of the warning symbol.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using the

air conditioner.

Complete the installation require-

ments as described in the Installation

Instructions.

Do not operate the air conditioner

with the front panel removed.

Never clean air conditioner parts with

flammable fluids. The fumes can

create a fire hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE’VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install your air conditioner in a window that

Make sure the air conditioner is not used

will hold the weight, and secure the air by anyone unable to operate it properly.

conditioner according to the installation . Maintain the air conditioner properly.

instructions.

Connect the air conditioner to the proper

kind of outlet with the correct electrical

supply and grounding. (See the Installation

Instructions.)

Make sure the air conditioner is the correct

size for the area you want to cool.

Use the air conditioner only to do what a

window air conditioner is designed to do.

Also, remove the Energy Label. Use a damp

ie Energy Label. Use a damp

cloth to take off any glue residue. DO NOT

f any glue residue. DO NOT

use sharp instruments, flammable fluids, or

uments, flammable fluids, or

abrasive cleaners. These can damage the

ers. These can damage the

material.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar

with where all parts and features are located and what they look like. To help you find

information on specific parts or features quickly, page references are included.

Control panel

Slide-out

air filter

(P. 8) I

Adjustable air

direction cartridges

(P. 6)

Model and serial number label

(behind front panel)

Operating Your Air Conditioner

To obtain the best oossible results from vour air conditioner. it is imoortant that vou ooerate it

properly. This section tells you how to set the controls and how to direct the cooled air.

Electrical Shock Hazard

l Plug unit only into grounded electrical

outlet.

l Do not use an extension cord.

l Do not operate unit with the front panel

removed.

Failure to follow the above precautions

could result in electrical shock or

personal injury.

Starting your air conditioner

1. Set Exhaust Control

to CLOSED for

maximum cooling performance.

(See “Using the exhaust vent control”

on page 6.)

2. Set the Selector Control

to the desired

setting.

COOL-for cooling the room air

HEAT-for heating the room air

FAN ONLY-for circulating rmrn air

without cooling or heating it

3. Set the Fan Control

to the desired

setting. You can use either the ENERGY

SAVER or NORMAL FAN settings. (See

“Using the energy saver settings” below.)

LOW

- for sleeping comfort

MED - for normal cooling

QUICK COMFORT

- for fastest cooling

NOTE:

This product is not designed to be

used as a primary heat source. It is

intended for supplemental heating only.

HEAT mode operation is not recom-

mended when the outdoor temperature is

below 45°F.

IMPORTANT:

If you turn the air conditioner

off, or if the compressor turns off when you

lower the Thermostat Control, wait at least

3 minutes before turning the air conditioner

back on. If you don’t wait, you may blow a

fuse or trip a circuit breaker.

4. Turn the Thermostat Control

to a

mid-setting. You can adjust the air

conditioner’s cooling performance by

turning the Thermostat Control toward

COOLER for more cooling or toward

WARMER for less cooling. You will need

to experiment to find the setting which

suits you best.

Using the energy saver settings

Use the ENERGY SAVER settings when

you do not want the fan to run continuously.

Using these settings causes the fan to stop

when the compressor stops and saves

energy.

Set the Fan Control

to the desired setting.

LOW - for sleeping comfort

MED - for normal cooling

QUICK COMFORT

- for fastest cooling

Using the exhaust vent control

The Exhaust Vent Control draws stale or

smoky air from the mom or circulates

existing room air.

To exhaust room alr:

Set Exhaust Vent Control to OPEN.

2. Set Selector Control to desired setting

(COOL, HEAT, or FAN ONLY).

3. Set Fan Control to desired setting

(ENERGY SAVER or NORMAL FAN).

4. Set Thermostat Control to desired setting.

To circulate room air:

Set Exhaust Vent Control to CLOSED.

2. Set Selector Control to desired setting

(COOL, HEAT, or FAN ONLY).

3. Set Fan Control to desired setting

(ENERGY SAVER or NORMAL FAN).

4. Set Thermostat Control to desired setting.

NOTE:

For maximum performance, the

Exhaust Vent Control must be in the

CLOSED position when cooling or room air

circulation is desired.

Changing air directiol

The air direction cartridges on both sides of

the unit control the direction of the cooled

air. The air direction cartridge rotates to

direct the air straight ahead or to the sides of

the unit. The louvers in each air direction

cartridge are operated by a tab. Use the tab

to direct the air up, down, or straight ahead.

Caring for Your Air

Conditioner

Proper care of your air conditioner helps

ensure longer life of the unit and lower

operating c&ts. Follow these instructions

carefully .

hock Hazard

Electrical S

l Unplug the power cord from the recep-

tacle before cleaning the unit.

l Do not use cleaning fluids, solvents,

abrasive cleaners, or strong detergents

on the air conditioner.

Failure to follow the above precautions

could result in electrical shock, personal

injury, or product damage.

Cleaning the front panel

Disconnect power cord from receptacle.

2. Remove the front panel for cleaning.

Remove the two screws from the bottom

edge of the front panel.

3. Lii front panel up and toward you.

4. Remove the slide-out air filter and clean

separately. (See “Cleaning the slide-out

air filter” on page 8.)

NOTE:

The front panel does not have to

be removed to clean filter.

5. Clean front panel with warm water, mild

soap or detergent, and a soft cloth. Rinse

and dry thoroughly.

6. Wipe control panel clean with a soft, dry

cloth.

7. Replace the front panel.

8. Plug in the power cord.

Screws

Cleaning the slide-out air filter

The filter is cleanable. A clean filter helps

remove dust, lint, and other particles from

the air. Check every two weeks to see if filter

needs cleaning.

Remove filter by sliding it up and out the

top of the front panel.

2. Clean filter using a vacuum cleaner.

Filter

If very dirty, wash filter with warm water

and mild detergent. Air dry thoroughly

before replacing. I” ’ I

3. Replace filter by sliding it back down into

opening at top of front panel.

Performing annual maintenance

Your air conditioner needs annual mainte-

nance to ensure steady, top performance

throughout the year. Call the service com-

pany recommended by your dealer to:

l Inspect and clean the coils and condensate

water passages.

l Check fan and fan motor.

The compressor and fan motor are sealed

and need no oiling. The expense of an

annual inspection is the consumer’s respon-

sibility.

If you are familiar with electrical appliances,

you can do the inspection and maintenance

yourself. If you choose to do so, follow these

steps:

1. Disconnect power cord from receptacle.

2. Remove the front panel. (See “Cleaning the

front panel” on page 7.)

3. Slide unit out of cabinet using the handles

on the base flange

4. Be careful not to break off or remove

white or gray beaded foam parts. Some

are marked “Do not remove.”

Electrical Shock Hazard

l Unplug power cord from receptacle

before performing any maintenance.

Be sure no liquid gets into the motor,

electrical control box, or compressor

electrical terminals.

l Do not lift, push, or pull any white or

gray beaded foam (expanded polysty-

rene) parts.

Because your air conditioner weighs

from 80 to 200 pounds, it is recom-

mended that you have someone help

you when you remove or reinstall

your unit and that you both use proper

lifting techniques.

Handle the air conditioner with care.

Watch out for the sharp metal fins on

the front and rear coils.

l Do not use the collected water for

drinking purposes. It is not sanitary.

Failure to follow the above precautions

could result in electrical shock, personal

injury, or product damage.

4. Wrap the motor, electrical control box,

and the compressor terminal box in

plastic film to make sure no water or

other liquid gets inside. Water or other

liquids could damage the insulation and

cause serious mechanical problems.

5. Clean and hose out the base, coils, and

condensate pans. Clean at least once a

year, or more often if the condenser coils

and pans collect dirt, sand, leaves,

insects, or algae. Also, clean if you detect

an odor coming from the air conditioner.

6. Remove plastic film from motor and

electrical parts.

7. Replace unit in the cabinet.

8. Replace the front panel.

9. Plug in the power cord.

NOTE: It is a good idea to wait i4 hours

before starting the unit again. This allows

time for all areas to dry thoroughly. The

water from rainfall or from normal opera-

tion does not harm the components.

Han’dle

(some models

have

handles)

Saving energy

Improve your home’s insulation. Seal all

doors and windows. Close the fireplace

flue.

Close blinds or drapes on the sunny side

of the house. Add window awnings.

Keep the air filter clean.

Do not block the airflow from the air

conditioner with drapes or furniture.

Ventilate the attic. High temperatures in

the attic add to the cooling load.

Try not to use heat-producing appliances

during the hottest part of the day.

Turn lights and appliances off when not

needed.

Keep heat registers and cool-air returns

closed.

Use exhaust venting fans while cooking,

doing laundry, or bathing.

--.-

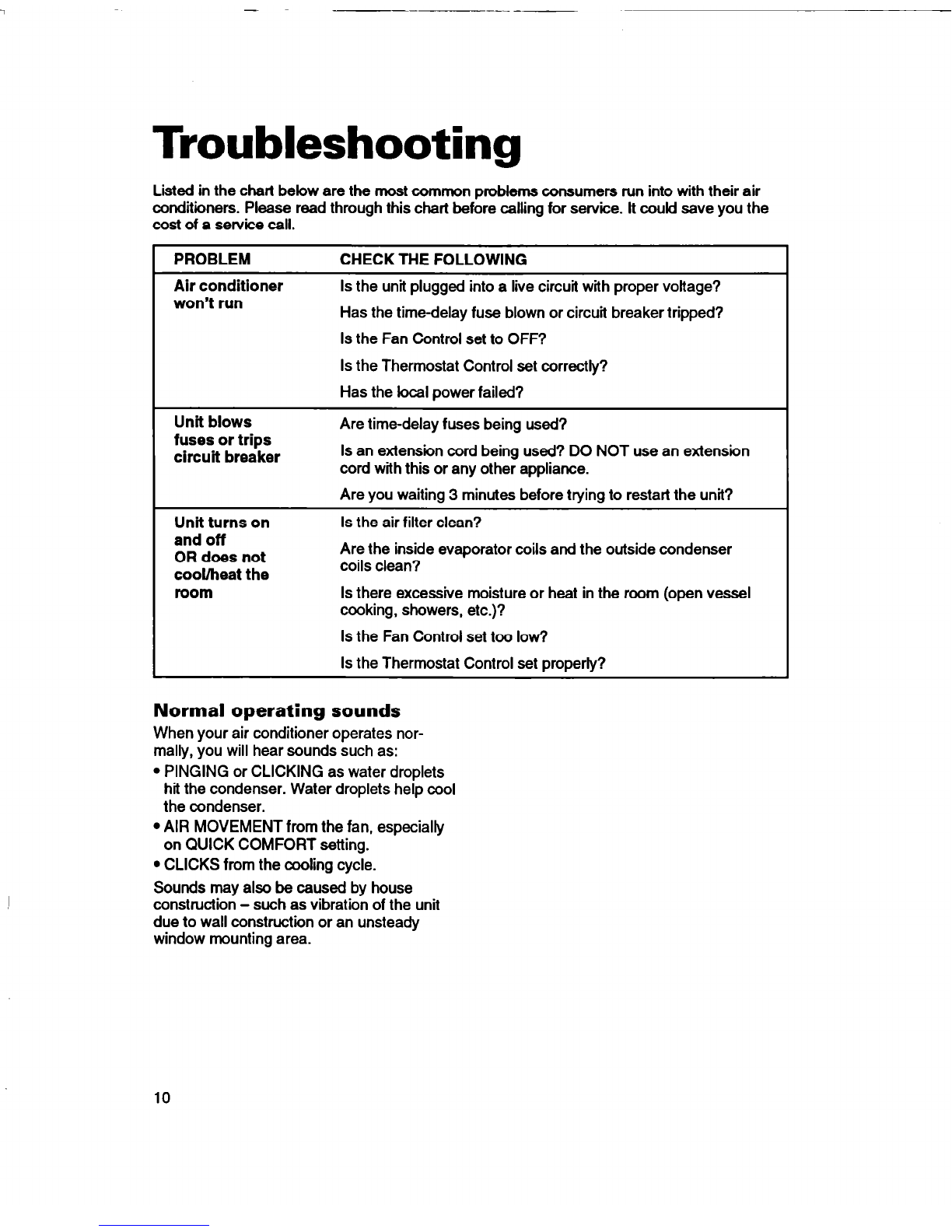

Troubleshooting

Listed in the chart below are the most common problems consumers run into with their air

conditioners. Please read through this chart before calling for service. It could save you the

cost of a service call.

PROBLEM CHECK THE FOLLOWING

Air conditioner

won’t run

Is the unit plugged into a live circuit with proper voltage?

Has the time-delay fuse blown or circuit breaker tripped?

Is the Fan Control set to OFF?

Is the Thermostat Control set correctly?

Has the local power failed?

Unit blows

fuses or trips

circuit breaker

Are time-delay fuses being used?

Is an extension cord being used? DO NOT use an extension

cord with this or any other appliance.

Are you waiting 3 minutes before trying to restart the unit?

Unit turns on

Is the air filter clean?

and off

OR does not

cool/heat the

Are the inside evaporator coils and the outside condenser

coils clean?

room

Is there excessive moisture or heat in the room (open vessel

cooking, showers, etc.)?

Is the Fan Control set too low?

Is the Thermostat Control set properly?

Normal operating sounds

When your air conditioner operates nor-

mally, you will hear sounds such as:

PINGING or CLICKING as water droplets

hit the condenser. Water droplets help cool

the condenser.

AIR MOVEMENT from the fan, especially

on QUICK COMFORT setting.

CLICKS from the cooling cycle.

Sounds may also be caused by house

construction - such

vibration of the unit

due to wall construction or an unsteady

window mounting area.

Indice

Altri manuali Whirlpool Condizionatore d'aria

Whirlpool

Whirlpool ACS102PP0 Manuale utente

Whirlpool

Whirlpool ACD052PK0 Manuale utente

Whirlpool

Whirlpool 881406658997 Istruzioni per il montaggio

Whirlpool

Whirlpool AMAP101AB Manuale utente

Whirlpool

Whirlpool ACC082XR0 Manuale utente

Whirlpool

Whirlpool 4380701 Manuale utente

Whirlpool

Whirlpool ATE0743SPP Guida rapida

Whirlpool

Whirlpool ACE184XR0 Manuale utente

Whirlpool

Whirlpool ACP102PS2 Manuale utente

Whirlpool

Whirlpool ACE244PT2 Manuale utente

Whirlpool

Whirlpool ACE184XD0 Istruzioni per l'installazione

Whirlpool

Whirlpool 1188908 Istruzioni per il montaggio

Whirlpool

Whirlpool ACP102PR Manuale utente

Whirlpool

Whirlpool 3PACH21DD0 Manuale utente

Whirlpool

Whirlpool WMB Manuale utente

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manuale utente

Whirlpool

Whirlpool 1188910 Istruzioni per il montaggio

Whirlpool

Whirlpool 8816058507119 Istruzioni per il montaggio

Whirlpool

Whirlpool SPIW409A2WF Manuale utente

Whirlpool

Whirlpool ACQL128XS0 Manuale utente

Whirlpool

Whirlpool 8816058507220 Istruzioni per il montaggio

Whirlpool

Whirlpool SLIM RANGE R22 Manuale utente

Whirlpool

Whirlpool ACXO82XZO Manuale utente

Whirlpool

Whirlpool 1187680 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
