UNIT PARTS

For Model: ACP102PS0

PORTABLE

AIR CONDITIONER

2−07 Litho In U.S.A. (dmm) Part No. 8167975 Rev. A

UNIT PARTS

For Model: ACP102PS0

8167975

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8215247 Guide, Use & Care

8215248 Diagram, Wiring

2 8215210 Condenser

3 8215225 Tube Restrictor

Assembly

10 8215197 Compressor,

Assembly

11 8215198 Overload

14 8215206 Motor, Fan

15 8215207 Base, Motor

16 8215208 Fan

17 8215209 Spring

22 8215204 Switch, Level

24 8215200 Roller

25 8215203 Base

27 Support, Back

8215205 Right

8215202 Left

28 Support, Front

8215201 Right

8215196 Left

29 8215218 Evaporator

30 8215195 Support (Right)

31 8215193 Support (Left)

32 8215194 Support (Front)

33 8215219 Thermistor

34 8215199 Grommet

REFRIGERANT CHARGE

21.6 oz.

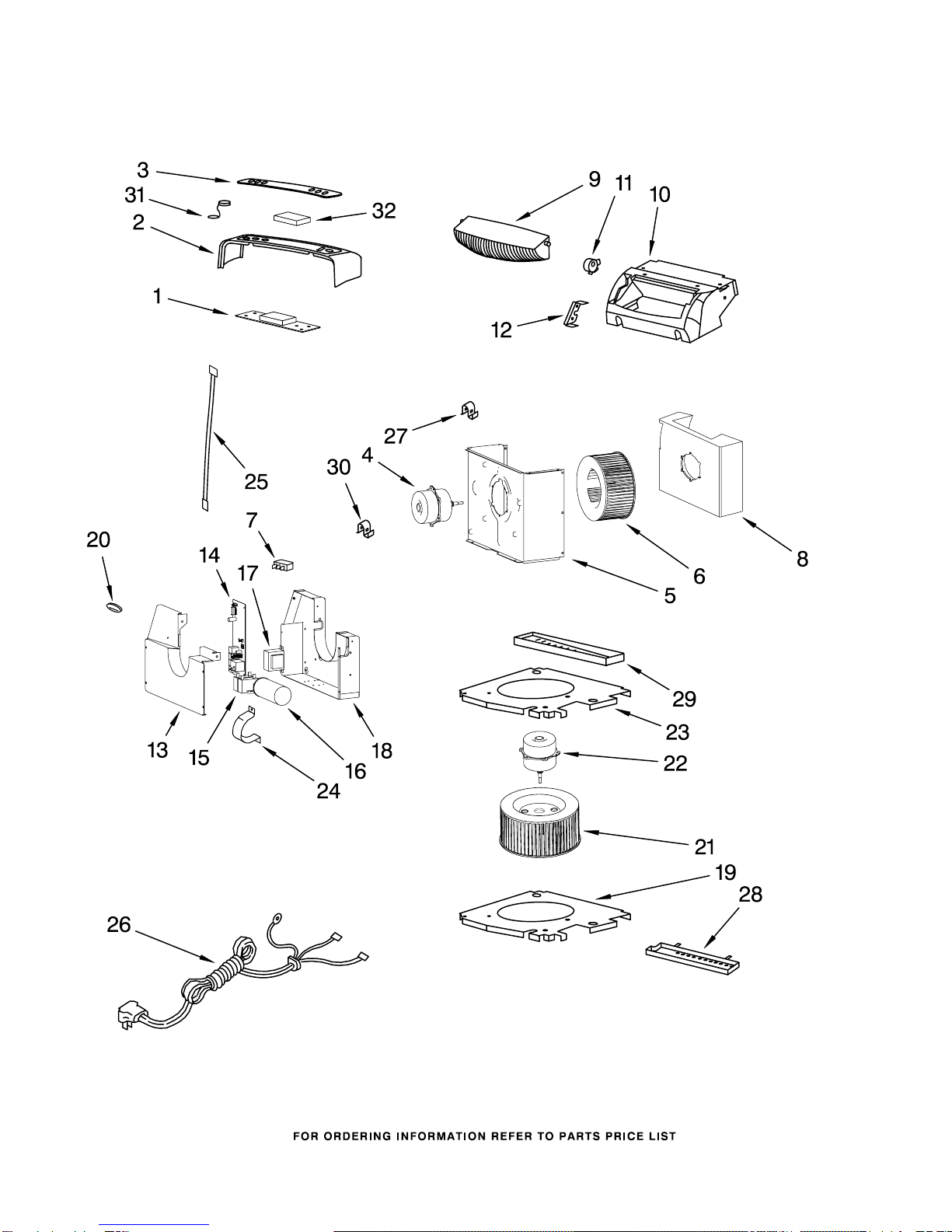

AIRFLOW AND CONTROL PARTS

For Model: ACP102PS0

8167975

AIR FLOW AND CONTROL PARTS

For Model: ACP102PS0

8167975

Illus. Part

No. No. DESCRIPTION

1 8215249 PC−Board, Control

2 8215087 LCD Cover

3 8215168 Overlay

4 8215177 Motor, Upper

5 8215176 Plate, Motor

6 8215173 Wheel Blower,

Upper

7 8215089 Board, Terminal

8 8215174 Housing, Air

9 8215179 Louver Assembly

10 8215170 Base, Louver

11 8215171 Motor, Louver

12 8215172 Bracket, Motor

13 8215188 Cover, Control Box

14 8215250 PC−Board, Power

15 Capacitor, Fan

8215183 Motor (Upper)

8215184 Motor (Lower)

16 8215182 Capacitor,

Compressor

17 8209806 Transformer

18 8215180 Box, Control

19 8215191 Insulation Plate

Lower

20 8215189 Receiver Board

21 8215215 Wheel Blower,

Lower

22 8215214 Motor, Lower

23 8215213 Insulation Plate

Middle

24 8215186 Bracket, Capacitor

25 8215220 Thermistor

26 8215226 Cord−Power

27 8215175 Clip

28 8215192 Pan, Drain

29 8215216 Pan, Drain

30 8215221 Clip

31 8215088 Cover, Screw

32 8215156 Display Window

CABINET PARTS

For Model: ACP102PS0

8167975

CABINET PARTS

For Model: ACP102PS0

8167975

Illus. Part

No. No. DESCRIPTION

1 8215231 Control, Remote

3 8215190 Panel, Front

4 8215212 Panel, Rear

5 8215229 Connector

6 8215223 Clip

7 8215224 Grille, Air

8 8215185 Connector, Square

9 8215228 Connector

10 8215227 Exhaust Tube

11 8215230 Connector Square

13 8215222 Filter

14 8215178 Left Panel

15 8215211 Right Panel

16 8215187 Window, Remote

Control

FOLLOWING PARTS

NOT ILLUSTRATED

8215258 Plug, Drain Hose

8215259 Clamp, Drain Hose

8215261 Drain Hose

8215251 Window Slider Kit

8215260 Clip, Drain Hose

8209726 Screw

8215231 Remote
