UNIT PARTS AIR CONDITIONER

For Model: ACS082PP0

2−06 Printed In U.S.A. (dmm) Part No. 8167721 Rev. A

UNIT PARTS

For Model: ACS082PP0

8167721

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8199568

Use and Care Guide

2 8199556 Base

4 789778 Pan, Drain

(Evaporator)

5 8199529 Evaporator

8 789755 Grommet, Tube

9 789729 Tube, Restrictor

.036 I.D. x 18"

10 789673 Strainer

12 8199527 Condenser

13 789831 Gasket, Terminal

Cover

14 8199575 Compressor

15 789829 Overload

16 789830 Spring, Overload

17 789833 Nut, Terminal

Cover

18 789832 Cover, Terminal

19 789661 Nut

20 789784 Washer

21 789827 Grommet

22 789783 Sleeve

25 8199539 Clip, Thermistor

REFRIGERANT CHARGE

15.00 oz.

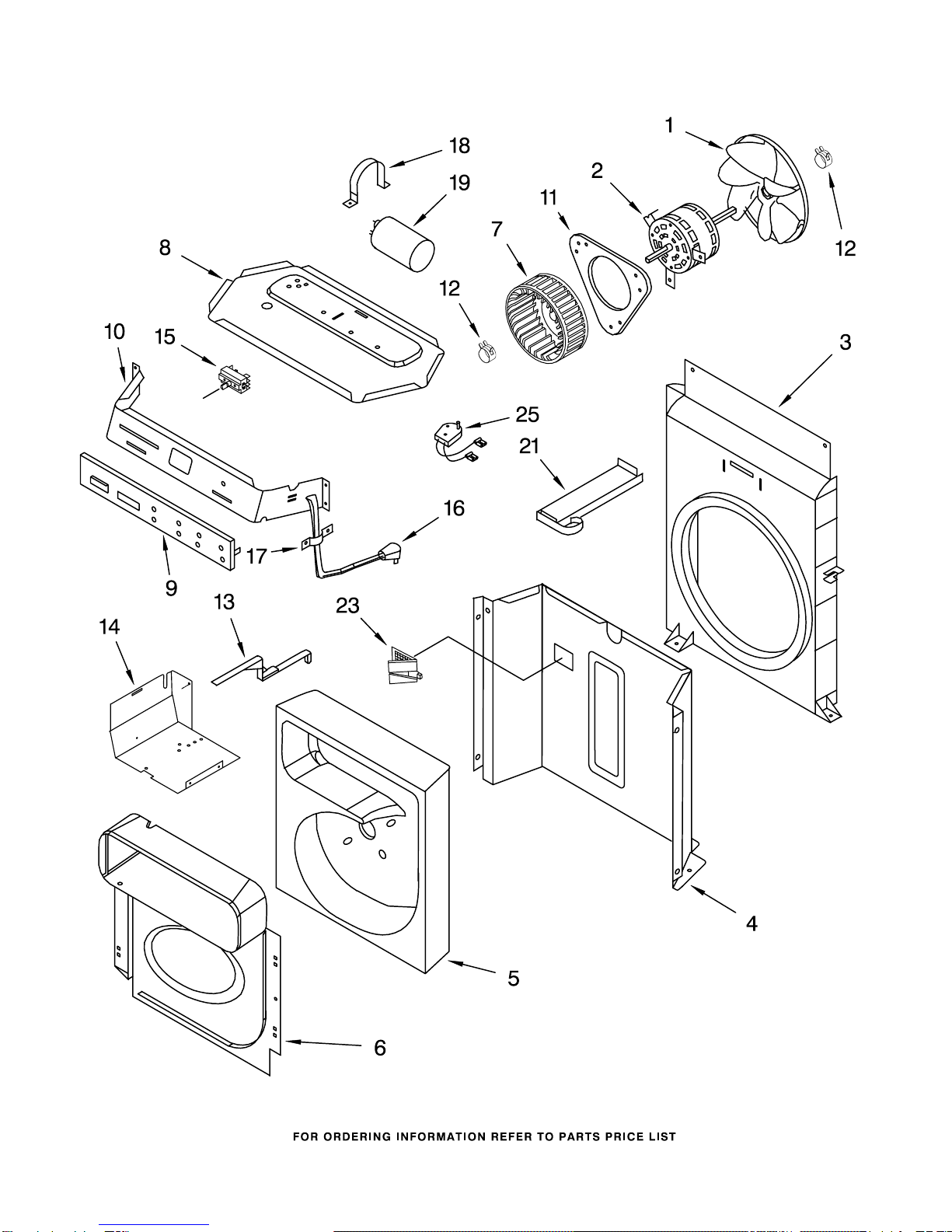

AIRFLOW AND CONTROL PARTS

For Model: ACS082PP0

8167721

AIR FLOW AND CONTROL PARTS

For Model: ACS082PP0

8167721

Illus. Part

No. No. DESCRIPTION

1 789834 Blade, Fan

2 789837 Motor, Fan

3 789836 Shroud, Condenser

4 789794 Wall, Dividing

5 8199633 Housing, Blower

6 789796 Shroud, Evaporator

(Includes Insul.)

7 789838 Wheel, Blower

8 Panel, Control

(Not Serviceable)

9 8199634 Touch Pad Assembly

10 8199572 Panel, Control

11 789772 Plate, Motor

Mounting

12 789835 Clamp

13 789917 Actuator, Exhaust

Door

14 8199591 Control, Remote

15 8199574 Transformer

16 8199638 Cord, Power

17 789806 Relief, Strain

18 789749 Strap, Capacitor

19 8199570 Capacitor

21 789807 Support, Unit

23 789907 Door, Exhaust

25 789801 Assist, Start

CABINET PARTS

For Model: ACS082PP0

8167721

CABINET PARTS

For Model: ACS082PP0

8167721

Illus. Part

No. No. DESCRIPTION

1 8199566 Cabinet Assembly

(Includes

Insulation and

Nos. 2 and 5)

2 8199567 Panel, Rear

4 789961 Retainer, Side

(Cabinet)(2)

5 789962 Retainer, Top

(Cabinet)

6 789963 Retainer, Panel

(Side)(2)

7 789817 Panel, Filler

8 8199564 Front Assembly

(Includes Item 18)

9 789925 Nameplate

10 789809 Filter, Air

12 3148443 Screw #8 x 1/4 Hex

13 4389654 Screw #8 x 3/8 Hex

14 Insulation, Cab.

789747 (Top)

789746 (Side)(2 Required)

17 789964 Retainer, Filler

Board (Top)

18 8199565 Insert, Front

INSTALLATION PARTS

For Model: ACS082PP0

8167721

Illus. Part

No. No. DESCRIPTION

1 789687 Kit, Installation

2 789692 Seal, Meeting Rail

3 789745 Seal, Strip

4 789688 Retainer, Filler

Panel (Top)

(Not Serviced

Separately)

5 789744 Seal, Strip

6 Plate, Sill (Not

Serviced Separate)

7 Hardware (Not

Serviced Separate)

8 Bolt, Leveling

3/8−16 x 2.5"

9 Angle, Support

(Not Serviced

Separately)

10 Platform, Support

(Not Serviced

Separately)
