UNIT PARTS

For Model: ACU109PR0

7−05 Printed In U.S.A. (mek) Part No. 8167903 Rev. A

AIR CONDITIONER

UNIT PARTS

For Model: ACU109PR0

8167903

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8199924 Use and Care Guide

8199930 Label, Energy

8199931 Diagram, Wiring

2 8199840 Evaporator

5 8199842 Support,

Evaporator

6 8199788 Nut

7 8199869 Tube, Suction

8 8199835 Tube, Discharge

9 8199820 Compressor

10 8199827 Condenser

11 8199818 Base

12 8199973 Grommet

13 8199976 Gasket

14 8199974 Protector,

Overload

15 8199975 Cover, Terminal

16 8199989 Tube, Restrictor

REFRIGERANT CHARGE

24.69 oz.

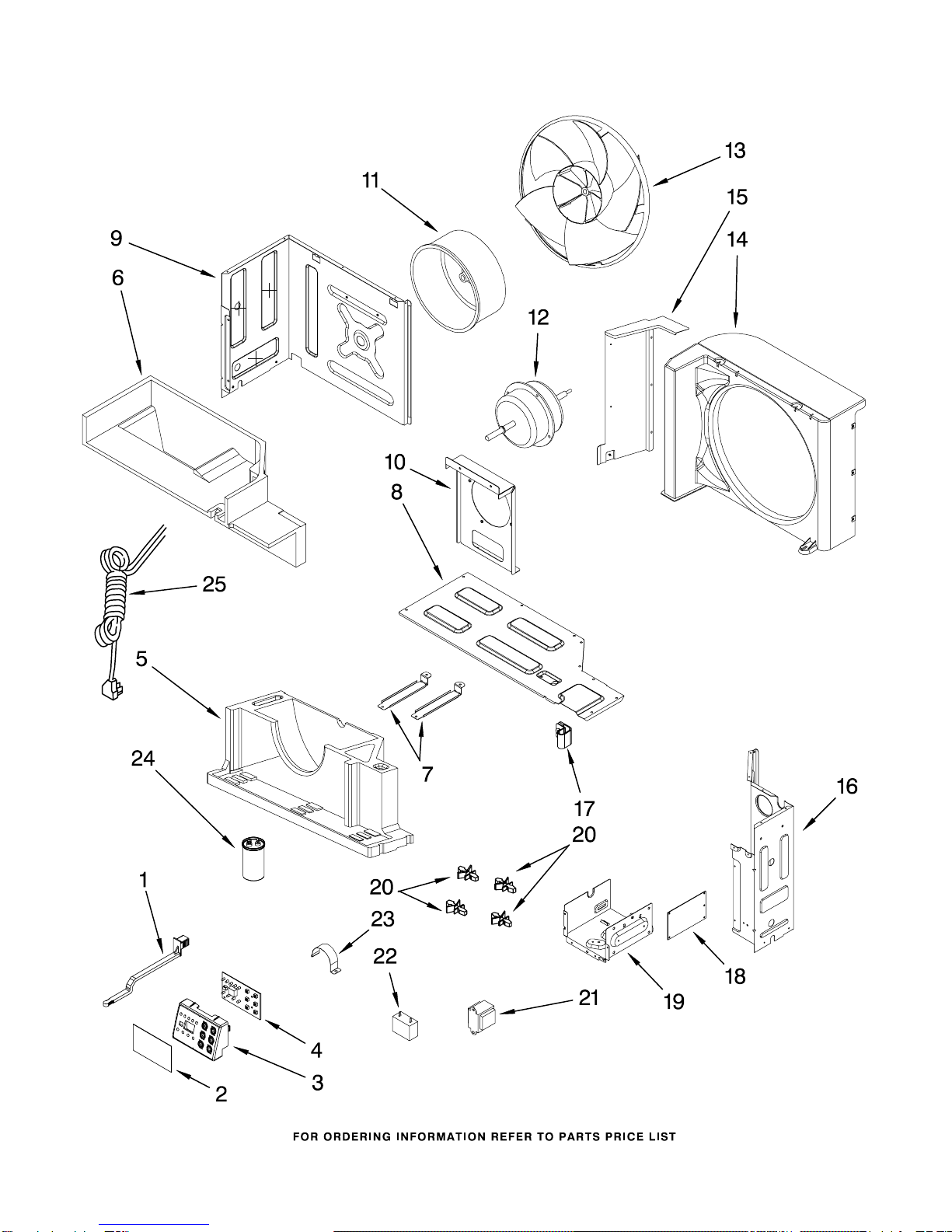

AIRFLOW AND CONTROL PARTS

For Model: ACU109PR0

8167903

AIR FLOW AND CONTROL PARTS

For Model: ACU109PR0

8167903

Illus. Part

No. No. DESCRIPTION

1 8199848 Door, Fresh Air

2 8199830 Overlay

3 8199831 Base, Control

Panel

4 8199833 PCB, Control

5 8199857 Housing, Air−

Bottom

6 8199881 Housing, Top

7 8199854 Support, Unit

8 8199834 Cover, Air Housing

9 8199853 Dividing Wall,

Left Side

10 8199860 Bracket, Fan Motor

11 8199816 Wheel, Blower

12 8199845 Motor, Fan

13 8199811 Blade, Fan

14 8199826 Shroud, Condenser

15 8199828 Side Panel,

Condenser

16 8199866 Dividing Wall,

Right Side

17 8199884 Clip, Wire

18 8199865 PCB, Power Board

19 8199838 Box, Control

20 8199862 Support, PCB

21 8199873 Transformer

22 8199859 Capacitor, Motor

23 8199815 Bracket, Capacitor

24 8199824 Capacitor,

Compressor

25 8199929 Cord, Power

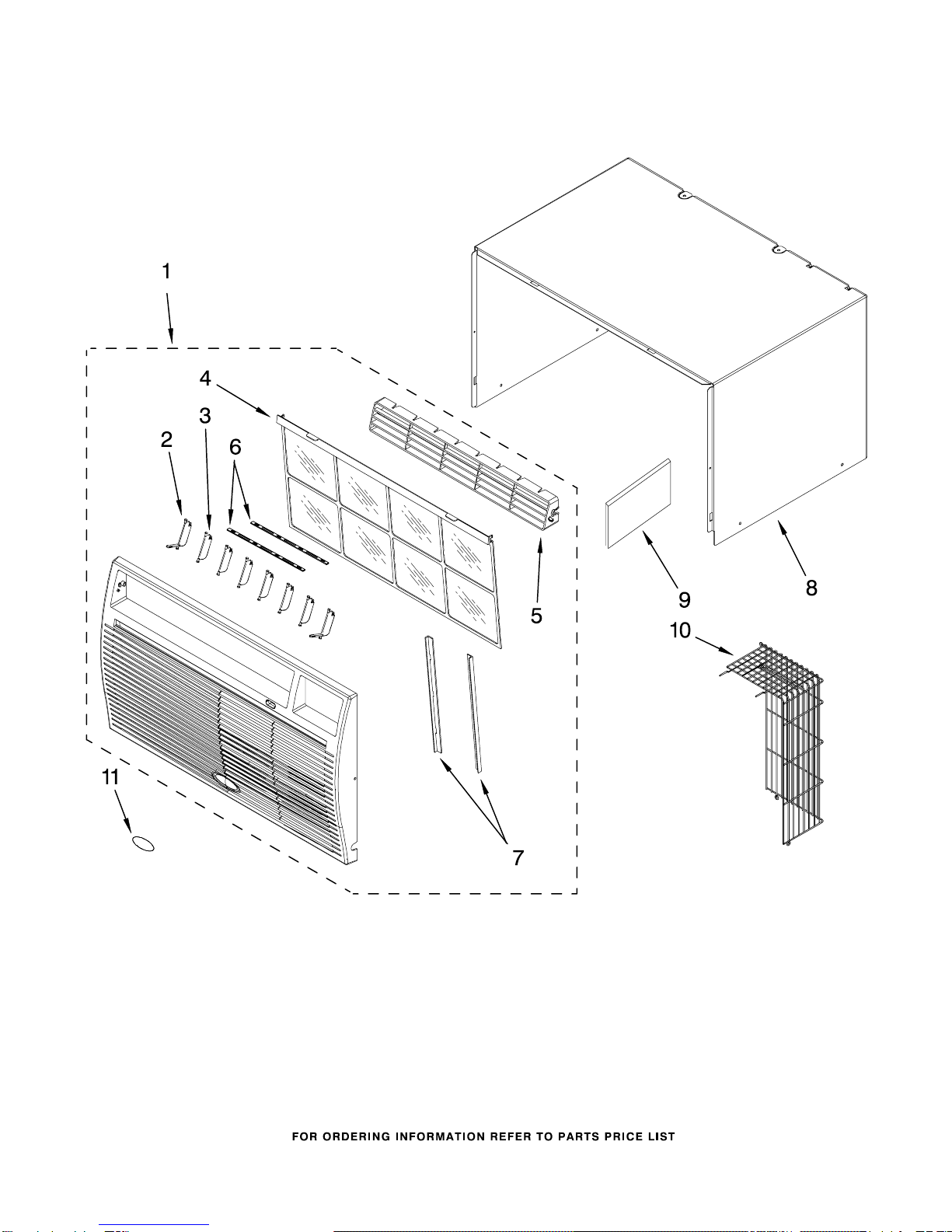

CABINET PARTS

For Model: ACU109PR0

8167903

CABINET PARTS

For Model: ACU109PR0

8167903

Illus. Part

No. No. DESCRIPTION

1 8199985 Front

2 8199809 Louver, W/Handle

3 8199883 Louver

4 8199846 Filter

5 8199851 Louver, Horizontal

6 8199855 Connector, Louver

7 8199847 Guide, Filter

8 8199813 Cabinet

9 8199814 Seal, Cabinet Side

10 8199825 Grille, Compressor

11 8199927 Nameplate

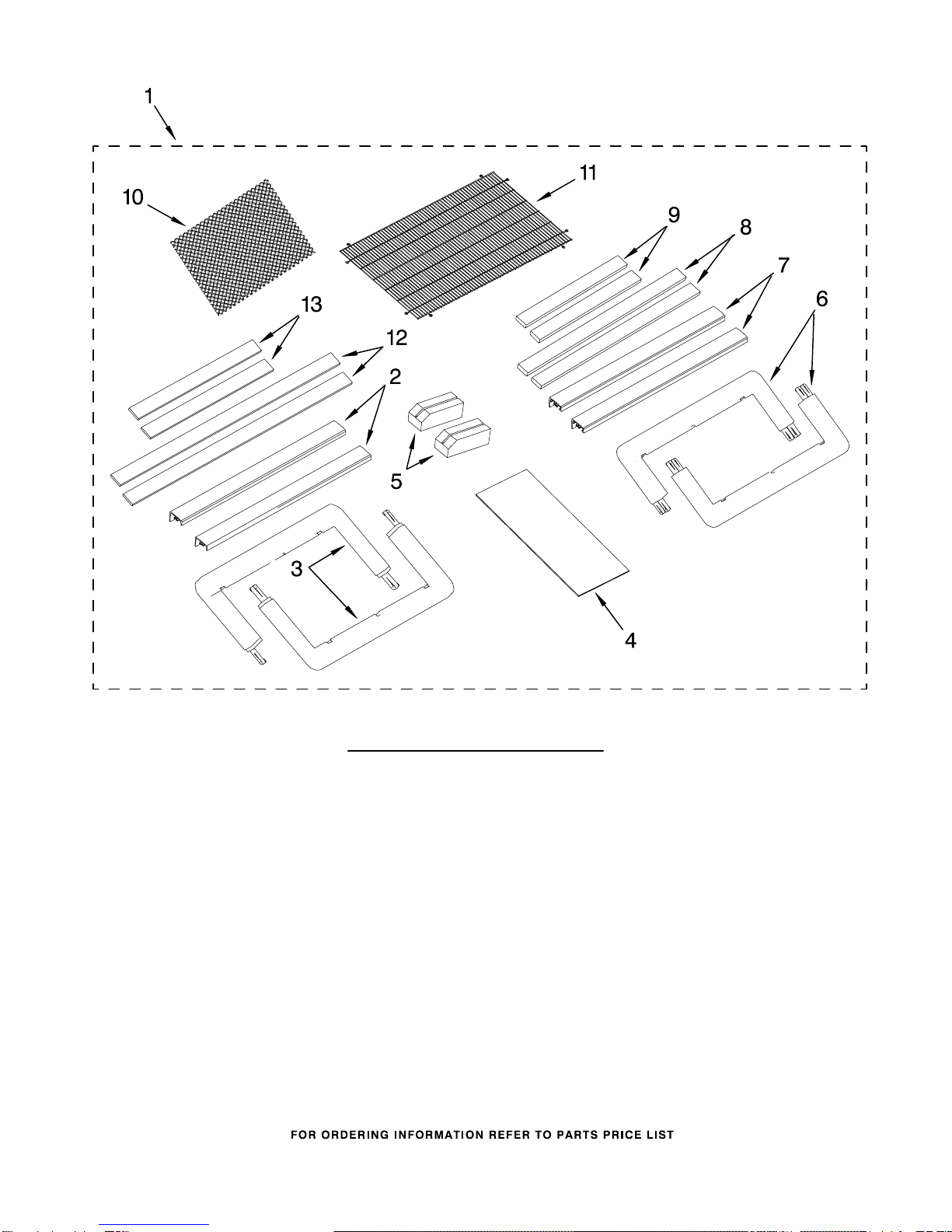

INSTALLATION PARTS

For Model: ACU109PR0

8167903

Illus. Part

No. No. DESCRIPTION

1 8199852 Kit, Installation

2 8199874 Retainer, Trim

Frame

3 8199875 Retainer, Trim

Frame

4 8199812 Filler Board

5 8199872 Block, Support

6 8199877 Retainer, Trim

Frame

7 8199876 Retainer, Trim

Frame

8 8199878 Seal, Trim Frame−

Long

9 8199879 Seal, Trim Frame−

Short

10 8199863 Grille, Rear

11 8199885 Grille

12 8199867 Seal, Long

13 8199868 Seal, Short
