BEFORE USING THE APPLIANCE

To make the most out of your new appliance,

please read the user instructions carefully and keep

them handy for future consultation.

Before using the appliance please follow and

set according to the below indications:

Remote Control (RC) presetting:

Each time the batteries are replaced in the remote

control, the RC is pre-set on Heat pump.

If the air conditioner that you purchased is a

cooling only, then the pre-set on Heat pump will

not bring any changes.

Auto-Restart presetting Function:

To set the auto-restart function, press the

Emergency button (ON/OFF) on the indoor unit

for at least 5 seconds

A buzz sound will signal that the auto-restart

function is set and the air conditioner is in standby.

To cancel the auto-restart function, repeat the

above steps.

SAFETY PRECAUTIONS

• Do not install the appliance if it is connected to

the power supply.

• The Installation and service/repair must be

performed by a qualified technician, in

compliance with the producer's instructions and

following local safety norms. Do not repair or

replace any parts of the appliance unless it is

specifically written in the user instructions.

• The grounding of this appliance is compulsory.

• Make sure that the power supply cord is long

enough to allow the right connection. Do not

use any extension cord for power supply.

• Do not pull the power supply cord to remove it

from the socket.

• Do not twist or press the power supply cord,

and make sure it is not broken.

• Once installation is completed, the electric

components must not be accessible to the users.

• Do not touch the operation buttons when your

hands are wet and don't use the appliance when

you are barefoot.

• Physically or mentally disabled people, children

and people without any experience with the

product are only allowed to use the appliance if

they have had specific training on how to

operate the appliance by a person responsible

for their security and well-being. The appliance

is not intended for use by disabled people and

very young children without supervision.

• This appliance has been made of recyclable or

re-usable material. Scrapping must be carried

out in compliance with local waste disposal

regulations. Before scrapping it, make sure to

cut off the mains cord so that the appliance

cannot be re-used.

• For more detailed information on handling and

recycling of this product, contact your local

authorities who deal with the separate collection

of rubbish or the shop where you bought the

appliance.

SCRAPPING OF PACKAGING

• The packaging can be 100% recycled as

confirmed by the recycling symbol . The

various parts of the packaging must not be

dispersed in the environment, but must be

scrapped in line with local authority regulations.

SCRAPPING OF APPLIANCE

• This appliance is marked according to the

European Directive 2002/96/EC, Waste

Electrical and Electronic Equipment (WEEE).

• By ensuring that this product is disposed of

correctly, you will help to prevent potentially

negative consequences for the environment and

for human health.

• The symbol on the product or on the

documents accompanying the product indicates

that this appliance should not be treated as

household waste, but must be given to the

appropriate local gathering place where electric

and electronic appliances are stored and

recycled.

SAFEGUARDING THE ENVIRONMENT

AIR CONDITIONER PRECAUTIONS

Please strictly follow the below instructions:

• Long and direct exposure to cool air might be

harmful to health. It is advisable to set the

louvers in order to avoid direct cool air and

deflect it within the room.

• Prevent the air flow from reaching the gas

burners and stoves.

• Upon malfunctioning first turn the appliance off

by pressing the ON/OFF button on the remote

control, then disconnect it from the mains.

• Do not place any objects on the outdoor unit.

• This product contains Fluorinated Greenhouse

Gases covered by the Kyoto Protocol, the

refrigerant gas being in a hermetically sealed

system. Refrigerant gas: R410a has a

GlobalWarming Potential (GWP) 1975.

PRODUCT DESCRIPTION

Indoor unit

1. Air Intake

2. Front Panel

3. Display panel

4. Electrical box

5. Air Outlet

6. Filter monitor reset button

7. Vertical Adjustment Louver

8. Horizontal Adjustment Louver

9. Air Filter

10. Remote Control

Outdoor unit

11. Air Intake

12. Pipes and Power Connection Cord

13. Drain Hose

Note: Condensate water drains at COOLING

or DRY operation.

14. Air Outlet

Images in the user instructions are based on external views of standard models, shape and design vary

according to the model.

CONTROL PANEL DISPLAY INDICATORS

DESCRIPTION

Temperature indicator (1)

Displays set temperature.

Running indicator (2)

It lights up during operation.

It flashes during outside unit defrosting.

Timer indicator (3)

It lights up during the set time.

It goes off when timer operation ends.

Sleep indicator (4)

It lights up during sleep mode.

Filter monitor indicator (5)

Filter monitor indicator flashes after 240 hours of usage as reminder to clean the filter.

After filter cleaning press the reset button located on the indoor unit behind the front panel in

order to interrupt the flashing of the filter monitor indicator.

Emergency ON/OFF button (6)

Used to control the unit by pressing the button, when the RC is out of work.

Used to set or cancel auto-restart function.

Signal Receptor (7)

12 3 4 5 6 7

REMOTE CONTROL FUNCTIONS

AND INDICATORS

1. ON/OFF BUTTON

Starts and/or Stops the appliance by pressing

this button.

2. TIMER BUTTON

Sets or cancels the timer operation.

3-4. ROOM TEMPERATURE SETTING

BUTTONS

Used to select the room temperature. Used

to set time in timer mode.

5. MODE BUTTON

Used to select the operation mode.

6. BUTTON

Used to set or cancel 6th sense operation,

also during stand-by.

7. SLEEP BUTTON

Used to set or cancel Sleep Mode operation.

8. FAN BUTTON

Used to select fan speed in sequence auto,

high, medium or low.

9. SWING BUTTON

Used to stop or start vertical adjustment

louver swinging and set the desired up/down

airflow direction.

10. JET BUTTON

Used to start or stop the fast cooling.

(Fast cooling operates at high fan speed with

18°C set temp. automatically).

10 6

INDICATOR SYMBOLS ON RC DISPLAY

Cooling indicator

Dry indicator

Fan only indicator

Heating indicator

Auto fan speed

High fan speed

Medium fan speed

Low fan speed

indicator

Sleep indicator

Jet indicator

Signal transmission

Display set temperature

Display set timer

Adjust Temperature (±2°C) indicator in 6th

sense mode

STORAGE AND TIPS FOR USING THE RC

How to insert the batteries

Remove the battery cover in the direction of the

arrow.

Insert new batteries making sure that the (+) and

(-) of battery are matched correctly.

Refit the cover by sliding it back into position.

Note:

• Use 2 LR03 AAA (1.5volt) batteries. Do not use

rechargeable batteries.

Replace batteries with new ones of the same

type when the display becomes dim.

• If the replacement is done within 1 minute, the

remote control will keep original presetting.

However, if you replace batteries taking more

than 3 minutes, all presetting will be cancelled

and timer will display Zero.

How to remove the batteries

Remove the battery cover in the direction of the

arrow.

Press the positive pole of the battery softly with

your fingers, then draw the batteries out of the

compartment.

All this should be done by adults, children are

forbidden to remove the batteries from the

remote control in order to avoid danger of

swallow.

Disposal of the batteries

Please discard the batteries as sorted municipal

waste at the accessible collection point.

To operate the air conditioner, point the remote

control at the signal receptor.

The remote control will operate the air

conditioner at a distance of up to 7m.

Signal receptor

OPERATING MODE DESCRIPTION

Operation Modes:

1. Selecting mode

Each time MODE button is pressed, the operation

mode is changed in sequence:

COOLING →DRY →FAN ONLY →HEATING

↑

Heating mode is not available for cooling only air

conditioners.

2. FAN mode

Each time the "FAN" button is pressed, the fan

speed is changed in sequence:

Auto →High →Medium →Low

↑

At "FAN ONLY" mode, only "High","Medium" and

"Low" are available.

At "DRY" mode, Fan speed is set at "Low"

automatically, "FAN" button is ineffective in this

case.

3. Setting temperature

Press once to raise temperature setting by

1 raise °C

Press once to lower temperature setting by

1 lower °C

*Note: Heating mode is NOT available for

cooling only models.

4. Turning on

Press button, when the appliance receives the

signal, the RUNNING indicator of the indoor unit

lights up.

During mode changes wait a few seconds and

repeat the operation if the unit does not respond

at once.

When selection the heating operation, air flow will

start after 2-5 minutes.

Range of available set temperature

*HEATING, COOLING 18°C~32°C

DRY unable to set

FAN ONLY unable to set

AIRFLOW DIRECTION CONTROL

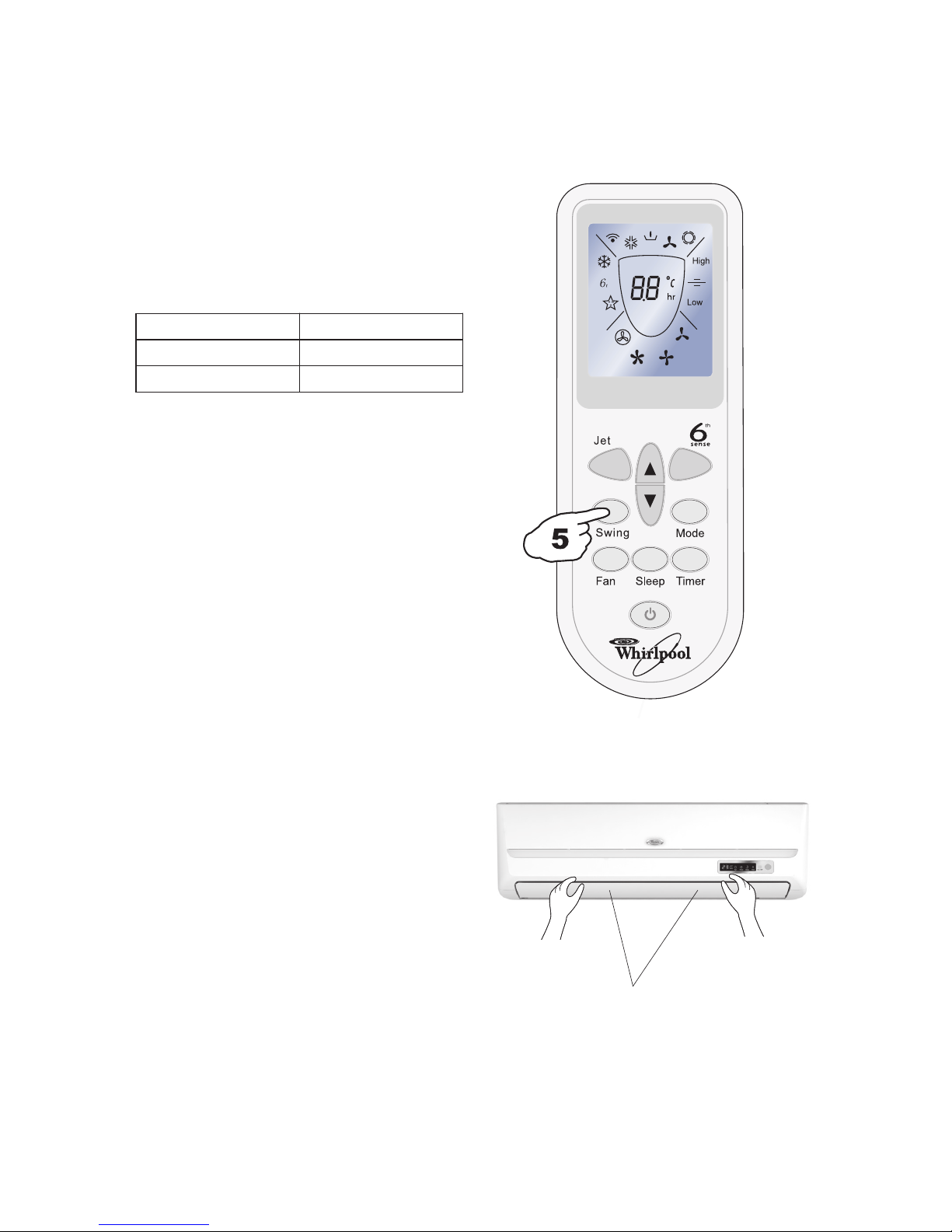

5. Airflow direction control

Vertical airflow is automatically adjusted to a

certain angle in accordance with the operation

mode after turning on the unit.

The direction of airflow can be also adjusted to

your own requirement by pressing the "SWING"

button of the remote control.

*Heating mode is only available for heat pump

models.

Vertical airflow control (using the remote

control)

Use the remote control to set the flow angles.

Swinging airflow

Pressing "SWING" button once, the vertical

adjustment louver will swing up and down

automatically.

Desired direction airflow

Pressing the "SWING" button again when the

louvers swing to a suitable angle as desired.

Horizontal airflow control (with hands)

Turn the control rods of the horizontal adjustment

louvers to change horizontal air flow as shown.

Note: The shape of the unit may look different

from that of the air conditioner you have selected.

A - Do not turn the vertical adjustment louvers

manually, otherwise malfunction may occur. If

that happens, turn off the unit first and cut off

the power supply, then restore power supply

again.

B - It is better not to let the vertical adjustment

louver tilt downward for a long time at

COOLING or DRY mode to prevent

condensed water from dripping.

Operation mode Direction of airflow

COOLING, DRY horizontal

*HEATING, FAN ONLY downward

control rod of horizontal

adjustment louvers

MODE AND FUNCTION DESCRIPTIONS

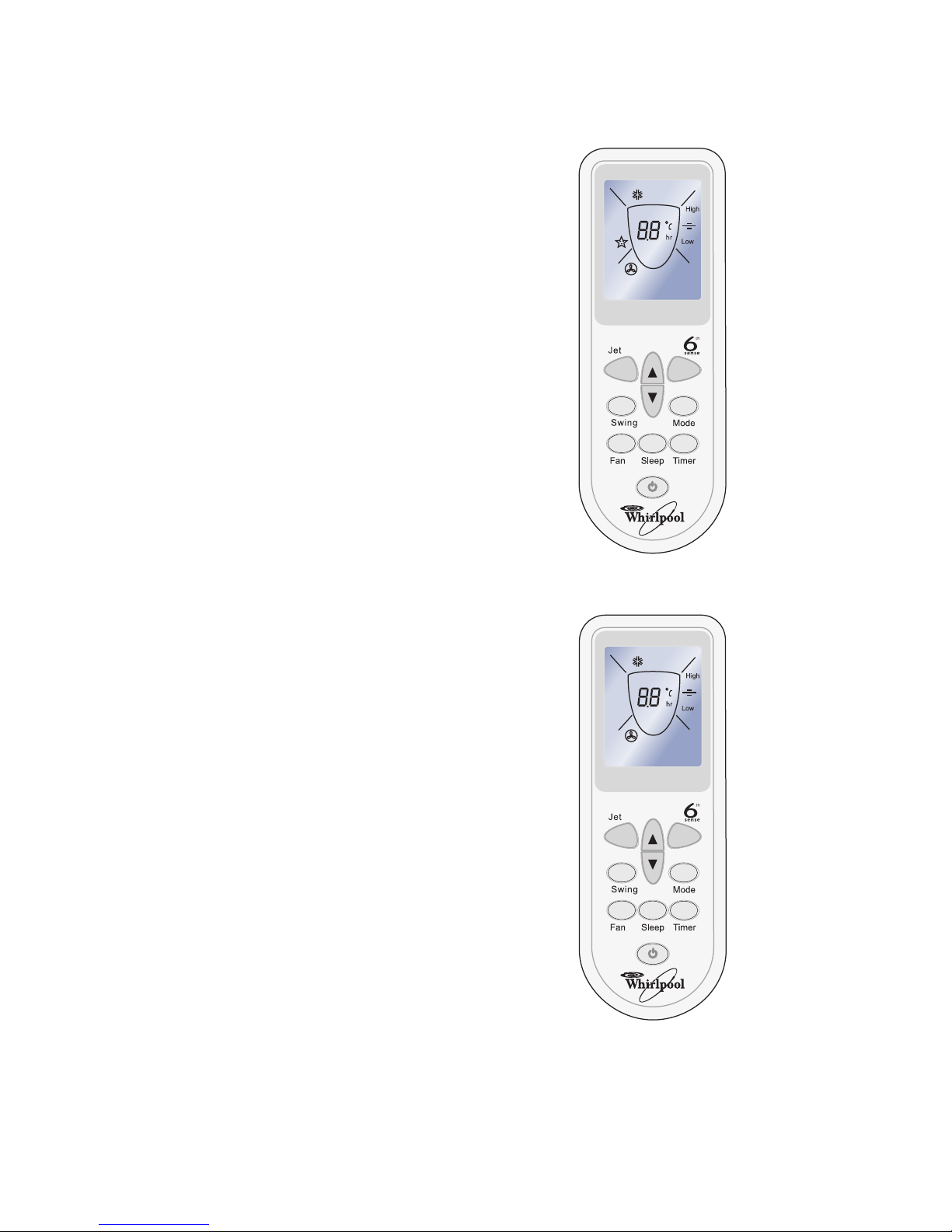

6th SENSE MODE

Press the button, the unit enters 6th sense

mode directly regardless of the unit is on or off.

In this mode, temperature and fan speed are

automatically set based on the actual room

temperature.

Operation mode and temperature are

determined by indoor temperature.

Heat pump models

Cooling only models

Button is ineffective in Jet mode.

Note: Temperature, airflow and direction are

controlled automatically in 6th sense mode.

However, a decrease or rise of up to 2°C can be

set with the remote control if you still feel

uncomfortable.

What you can do in 6th sense mode

Indoor

temperature

Operation

mode

Target

temperature

21°C or below HEATING 22°C

21°C-23°C FAN ONLY

23°C-26°C DRY

Room

temperature

decrease 1.5°C

after operating

for 3 minutes

Over 26°C COOLING 26°C

Indoor

temperature

Operation

mode

Target

temperature

26°C or below DRY

Room

temperature

decrease 1.5°C

after operating

for 3 minutes

Over 26°C COOLING 26°C

Your feeling button adjustment procedure

Uncomfortable because of unsuitable

air flow volume. Fan

Indoor fan speed alternates among High, Medium

and Low each time this button is pressed.

Uncomfortable because of unsuitable

flow direction. Swing

Press it once, the vertical adjustment louver swings

to change vertical airflow direction. Press it again,

swings stops. For horizontal airflow direction please

refer to the chapter "Airflow direction control".

SLEEP mode

SLEEP mode can be set in COOLING or

HEATING operation mode.

This function gives you a more comfortable

environment for sleep.

In SLEEP mode,

• The appliance will stop operation automatically

after operating for 8 hours.

• Fan speed is automatically set at low speed.

• Set temperature will rise by max 1°C if the

appliance operates in cooling mode for 2 hours.

• Set temperature will decrease by 3°C at most if

the appliance operates in heating mode for 3

hours.

*Note: In cooling mode, if room temperature is

26°C or above, set temperature will not change.

Note: Heating is NOT available for cooling only air

conditioner.

JET mode

• JET mode is used to start or stop fast cooling.

Fast cooling operates at high fan speed, changing

the set temperature automatically to 18°C.

•JET mode can be set when the appliance is in

operation.

•InJET mode, you can set airflow direction or

timer. If you want to quit from JET mode, press

any - JET , MODE, FAN, ON/OFF or

TEMPERATURE SETTING button, the display

will return to the original mode.

Note:

• SLEEP and 6th Sense buttons are not available in

JET mode.

• JET button is ineffective in HEATING mode.

• The appliance will continue working in JET mode

with set temperature of 18°C if you don't quit

from it by pressing any of the buttons mentioned

above.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Condizionatore d'aria

Whirlpool

Whirlpool ACU088PR0 Manuale utente

Whirlpool

Whirlpool ACC602 Manuale utente

Whirlpool

Whirlpool ACS088PR0 Manuale utente

Whirlpool

Whirlpool ACQ102PV Manuale utente

Whirlpool

Whirlpool 1187617-W Manuale elenco delle parti

Whirlpool

Whirlpool ACE082XH0 Manuale utente

Whirlpool

Whirlpool PORTABLE AIR CONDITIONER Manuale utente

Whirlpool

Whirlpool WHHW182AW Manuale utente

Whirlpool

Whirlpool 1163570 Manuale utente

Whirlpool

Whirlpool ACM062 Manuale utente

Whirlpool

Whirlpool ACP102PR Manuale utente

Whirlpool

Whirlpool AWV07000R Guida all'installazione

Whirlpool

Whirlpool AMD 018 Manuale utente

Whirlpool

Whirlpool ACE244PT2 Manuale utente

Whirlpool

Whirlpool PACHW2900CO Manuale utente

Whirlpool

Whirlpool TA07002F0 Manuale utente

Whirlpool

Whirlpool WMB Manuale utente

Whirlpool

Whirlpool 63851339 Istruzioni per il montaggio

Whirlpool

Whirlpool ACQ058MM0 Manuale utente

Whirlpool

Whirlpool AMAP151BW Manuale utente

Whirlpool

Whirlpool ACQ254XF0 Manuale utente

Whirlpool

Whirlpool YACQ088XP0 Manuale utente

Whirlpool

Whirlpool 3PACH21DD0 Manuale utente

Whirlpool

Whirlpool 1188177 Manuale utente

Manuali Condizionatore d'aria popolari di altre marche

Spheros

Spheros CC 355 Manuale utente

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuale utente

Panasonic

Panasonic CS-E12HKEW Manuale utente

nedis

nedis ACMB1WT7 Manuale utente

Samsung

Samsung AR KV Series Guida

Daikin

Daikin FCFV50A Manuale utente

Fujitsu

Fujitsu Inverter ASBA30JFC Manuale utente

Toshiba

Toshiba RAS-M10SMUV-E Manuale utente

Daikin

Daikin FXLQ20MAVE Manuale utente

Hitachi

Hitachi RAS-E24CAK Manuale utente

CIAT

CIAT Magister 2 Series Guida

Bestron

Bestron AAC6000 Manuale utente

Hisense

Hisense 7K Manuale tecnico

Frigidaire

Frigidaire FFRE0533S1E0 Manuale utente

Samsung

Samsung AS09HM3N Manuale utente

Frigidaire

Frigidaire CRA073PU11 Manuale del proprietario

Soleus Air

Soleus Air GB-PAC-08E4 Manuale utente

McQuay

McQuay MCK020A Manuale utente
