Whirlpool AD030 Manuale utente

A Note To You 2

Important Safety

Instructions 3

Parts And Features 4

Before Using Your

Dehumidifier 5

Using Your

Dehumidifier 7

Caring For Your

Dehumidifier

You Need

Assistance

Or Service 13

Warranty 16

1-800-253-1301

Call us with questions or comments.

DEHUMIDIFIERS 4sq

MODELS ADO25 AD030

AD040 AD050

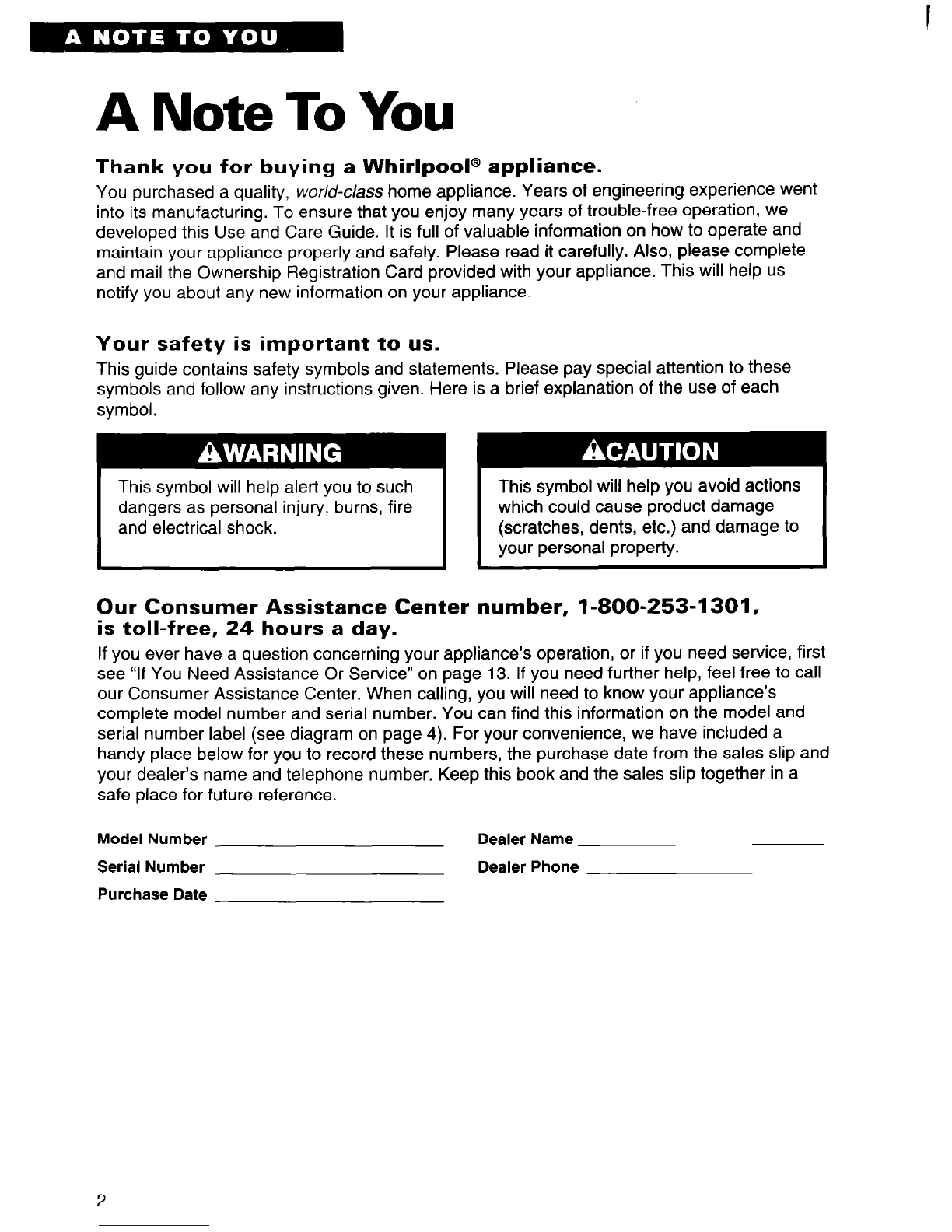

A Note To You

Thank you for buying a Whirlpool@ appliance.

You purchased a quality, world-class home appliance. Years of engineering experience went

into its manufacturing. To ensure that you enjoy many years of trouble-free operation, we

developed this Use and Care Guide. It is full of valuable information on how to operate and

maintain your appliance properly and safely. Please read it carefully. Also, please complete

and mail the Ownership Registration Card provided with your appliance. This will help us

notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, l-800-253-1 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 13. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip and

your dealer’s name and telephone number. Keep this book and the sales slip together in a

safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

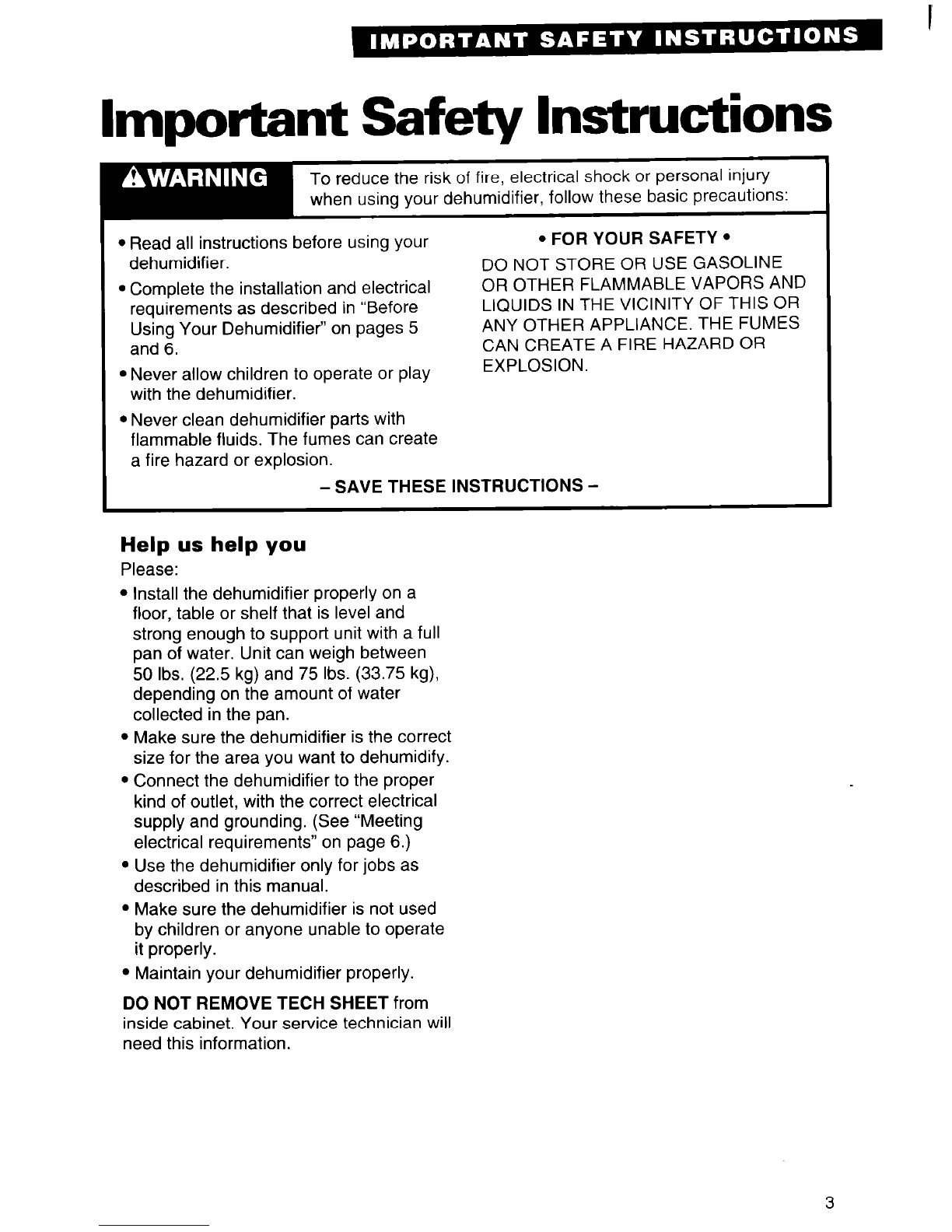

Important Safety Instructions

l Read all instructions before using your

dehumidifier.

l Complete the installation and electrical

requirements as described in “Before

Using Your Dehumidifier” on pages 5

and 6.

l Never allow children to operate or play

with the dehumidifier.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE

OR OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

l Never clean dehumidifier parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

-SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install the dehumidifier properly on a

floor, table or shelf that is level and

strong enough to support unit with a full

pan of water. Unit can weigh between

50 Ibs. (22.5 kg) and 75 Ibs. (33.75 kg),

depending on the amount of water

collected in the pan.

l Make sure the dehumidifier is the correct

size for the area you want to dehumidify.

l Connect the dehumidifier to the proper

kind of outlet, with the correct electrical

supply and grounding. (See “Meeting

electrical requirements” on page 6.)

l Use the dehumidifier only for jobs as

described in this manual.

l Make sure the dehumidifier is not used

by children or anyone unable to operate

it properly.

l Maintain your dehumidifier properly.

DO NOT REMOVE TECH SHEET from

inside cabinet. Your service technician will

need this information.

krts And Fkmtum

with where all Parts and featUreS are located and what

they

look like.

This section contains captioned illustrations of your appliance. Use them to become familiar

Front view

Pan full light.-

Cabinet .-.

Rear view

. Humidistat

Front grille

Rear gf

*ilk

Handle

~--- uondenser ca

(not shon lils

fn)

connectit

under water pan)

Before Using Your

Dehumidifier

In This Section

Page Page

Installing it properly ...........................5 Meeting electrical requirements .....E

Proper installation and electrical grounding is important for obtaining the best possible results

from your dehumidifier. This section tells you how to install your unit and how to connect it to

the proper electrical supply.

Installing it properly

Personal Injury Hazard

Because your dehumidifier weighs

between 50 Ibs. (22.5 kg) and 75 Ibs.

(33.75 kg), depending on the amount of

water collected in the pan, it is recom-

mended that you use proper lifting

techniques when lifting or moving your

I unit.

Failure to do so could result in personal I

1. Allow at least 12 inches (30.5 cm) of

space on all sides of the unit for good air

circulation.

2. Install the unit on a floor, table or shelf.

When installing the unit on a table or

shelf, be sure it is strong enough to

support the unit with a full pan of water.

A table or shelf may be a better position

from which to handle the water pan. Do

not sit or stand on this product. The height

of a table or shelf may help prevent icing

of coils due to colder air near the floor

(such as can be found in a basement).

3. Keep all outside doors, windows and other

openings closed when dehumidifier is

operating. Humid outdoor air will add to

the dehumidifier’s operating load.

inches

4. The water pan must be properly

positioned, on the hangers inside the

cabinet, when dehumidifier is operating in

order for the automatic shut-off to operate

correctly.

5. Two rollers let you move the dehumidifier

easily. Remove the water pan, tilt the unit

forward and roll it to another position.

Meeting electrical requirements

OBSERVE ALL GOVERNING CODES AND

ORDINANCES.

Electrical ground is required on this

appliance.

A 115 volt, 60 Hz., AC only, 15 ampere

fused electrical supply is recommended.

(Time delay fuse or circuit breaker is recom-

mended.) It is recommended that a separate

circuit serving only this appliance be pro-

vided. Do not use an extension cord.

DO NOT, UNDER ANY CIRCUMSTANCES,

REMOVE THE POWER SUPPLY CORD

GROUND PRONG.

Recommended grounding

method

For your personal safety, this appliance

must be grounded. This appliance has a

power supply cord with a 3-prong grounding

plug. To minimize possible shock hazard,

the cord must be plugged into a mating

grounding type wall receptacle, grounded in

accordance with the National Electrical

Code (ANSVNFPA 70, latest edition) and all

local codes and ordinances. If a mating wall

receptacle is not available, it is the responsi-

bility of the customer to have a properly

grounded, 3-prong wall receptacle installed

by a qualified electrician. Grounding

prong

3-prong

grounding

type wall

receptacle

Using Your Dehumidifier

In This Section

Page Page

Choosing the proper location for Adjusting the water level

your dehumidifier .............................. .7 control lever ...................................... 9

Operating your dehumidifier ............ .8 Disposing of collected water.. ....... 10

When operated properly, your dehumidifier will prevent excessive moisture and keep you

comfortable all year round. This section tells you how to obtain the best possible results from

your dehumidifier.

Choosing the proper location for your

dehumidifier

You can use your dehumidifier in any area

of your home. Below are a few suggestions

for placement and uses.

l Use in a basement to help prevent mois-

ture damage.

l Use in cooking, laundry, bathing and

dishwashing areas which have excess

moisture.

l Use to prevent moisture damage any-

where books or valuables are stored.

perating your dehumidifier

Control panel

These units have a control panel containing

two controls-the PAN FULL Light and the

Humidistat.

PAN FULL HUMIDISTAT

PAN FULL Light-This light glows when the

water pan is full and needs to be emptied.

Humidistat-This controls the amount of

moisture in the room. When the humidity in

the room rises above the setting, the unit

automatically starts. When the humidity

drops below the setting, the unit automati-

cally stops. The unit will run constantly when

the control is set to DRYEST.

OFF DRYEST

Unit operation

1. Turn the Humidistat to OFF. Plug the

power supply cord into an electrical

outlet. Be sure to use the proper ground-

ing method. (See page 6.)

2. Turn the Humidistat toward DRYEST for

normal operation.

The Humidistat can be set anywhere

between OFF and DRYEST. If you need

more dehumidification, turn the Humidis-

tat toward DRYEST. If you need less

dehumidification, turn the Humidistat

toward OFF.

3. Turn the Humidistat to OFF to stop the

unit manually.

I \

PAN FULL HUMIDISTAT

OFF DRYEST

HUMIDISTAT

De-icer control

Product Damage Hazard

Do not operate dehumidifier at tem-

peratures below 65°F (18.3%).

Failure to follow the above precaution

could result in the coils icing over and

the unit not operating properly.

Your Whirlpool dehumidifier is equipped with

a feature to help you get the most comfort

from your new appliance by permitting it to

operate down to 65°F (18.3%). If your

dehumidifier runs when room temperature

and humidity conditions are low, frost can

form on its evaporator coil. This interferes

with proper operation.

The De-icer Control senses frost build-up

on the evaporator coil and automatically

shuts off the compressor. The fan continues

to run, drawing air across the coil and

melting the frost. When the coil is defrosted,

the compressor is automatically restarted,

and dehumidifying is resumed.

Adjusting the water level control lever

The Water Level Adjustment can be set in

two positions to turn off the unit automati-

cally when the pan is full. This prevents the

danger of overflow.

Pan must be in proper position for Water

Level Control Switch to work. The Water

Level Control Switch will automatically turn

off the dehumidifier at the fill level you

selected when pan is properly placed.

Loosen the screw to move the Water Level

Control Lever. Retighten screw when

adjusted to desired setting.

NORMAL fill position

Set Water Level Control Lever to the inden-

tation on the left side. The water pan and

water will weigh approximately 16 Ibs.

(7.2 kg) and water pan will be l/2 full.

Water level

MAXIMUM fill position

Set Water Level Control Lever to the raised

area on the right side. The water pan and

water will weigh approximately 24 Ibs.

(10.8 kg) and water pan will be %Ifull.

Normal Sciew ~Maximum

fill position fill position

Disposing of collected water

Personal Injury Hazard

Do not use the water that collects in the

water pan for drinking purposes. It is

not sanitary.

Failure to follow the above precaution

could result in personal injury or illness.

There are three methods of disposing of water.

1. Empty pan manually.

When pan is full, remove it, empty it into a

large sink or tub and replace it properly.

NOTE: Water pan must be positioned

properly for the Water Level Control

Switch to operate properly and turn unit

off when pan is full.

2. Place unit directly over drain.

Pan has a threaded hose connection

which can be left open. Cut out opening

with a knife or 34 inch (19 mm) wood drill.

Once opened, hose connection will

continually drain water from the pan. Be

sure to keep unit directly over a drain.

3. Attach garden hose to the threaded hose

connection to carry water to drain.

l Pan has a threaded hose connection

which can be left open. Cut out opening

with a knife or %Iinch (19 mm) wood

drill.

l Attach garden hose. Be sure hose does

not kink or bend. It should lie flat from

unit to drain.

l Once hose connection is opened, pan

will continually drain through the hose.

Be sure to keep hose flat and in drain.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Deumidificatore

Whirlpool

Whirlpool WHAD703AW Manuale utente

Whirlpool

Whirlpool AD25BBK0 Manuale utente

Whirlpool

Whirlpool AD0402XS0 Manuale utente

Whirlpool

Whirlpool AD50GUSB Manuale utente

Whirlpool

Whirlpool DH25G0 Manuale utente

Whirlpool

Whirlpool BHDH2500FS0 Manuale utente

Whirlpool

Whirlpool Dehumidifier Manuale utente

Whirlpool

Whirlpool DS201HB Manuale utente

Whirlpool

Whirlpool AD0402XM0 Manuale utente

Whirlpool

Whirlpool WHAD703PAW Manuale utente

Whirlpool

Whirlpool ADO15 Manuale utente

Whirlpool

Whirlpool BHDH2500AS1 Manuale utente

Whirlpool

Whirlpool BFD500 Manuale utente

Whirlpool

Whirlpool DS202NF Manuale utente

Whirlpool

Whirlpool AD65USM2 Manuale utente

Whirlpool

Whirlpool DS242HE Guida all'installazione

Whirlpool

Whirlpool Coolerator Manuale utente

Whirlpool

Whirlpool DS242HEHK Manuale utente

Whirlpool

Whirlpool WDH70EAPW Manuale utente

Whirlpool

Whirlpool Dehumidifier Manuale utente

Whirlpool

Whirlpool 1188927 Manuale utente

Whirlpool

Whirlpool DS201NB Manuale utente

Whirlpool

Whirlpool AD35DSS0 Manuale utente

Whirlpool

Whirlpool 1184914-W Manuale elenco delle parti

Manuali Deumidificatore popolari di altre marche

Daitsu

Daitsu CD031IU-DFA Manuale utente

Fehom

Fehom PDGT701BE Manuale utente

Hitachi

Hitachi RD-190GX Manuale utente

Westpoint

Westpoint MDF1-30AE Manuale utente

SOLIS

SOLIS easy dry compact Manuale utente

ENVIROBOSS

ENVIROBOSS EB240 Manuale utente

Sinclair

Sinclair R-9112 Manuale utente

Kenmore

Kenmore 580.54701 Manuale utente

Demargo

Demargo DM828NF Manuale utente

Altrad Lescha

Altrad Lescha LDH 600 Manuale utente

BOMANN

BOMANN LE 1150 CB Manuale utente

SPT

SPT SD-46 Manuale utente

REMKO

REMKO SLN 40 Manuale utente

Haier

Haier HD458 Manuale utente

Logik

Logik L20DHW12 Manuale utente

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Guida rapida

Blitz

Blitz HHD Series Manuale utente

Prem-I-Air

Prem-I-Air PD14DEN Manuale utente
