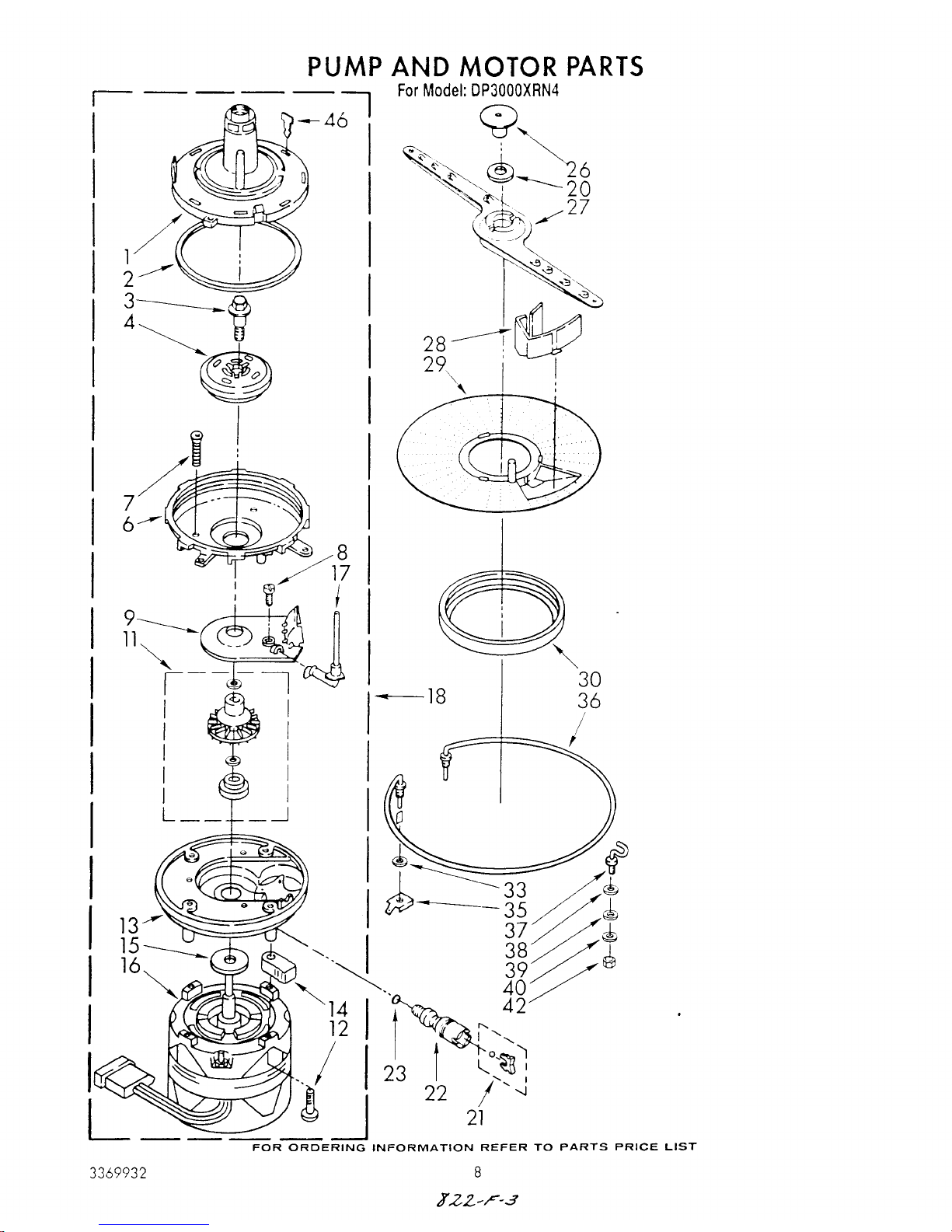

Whirlpool DP3000XRN4 Manuale utente

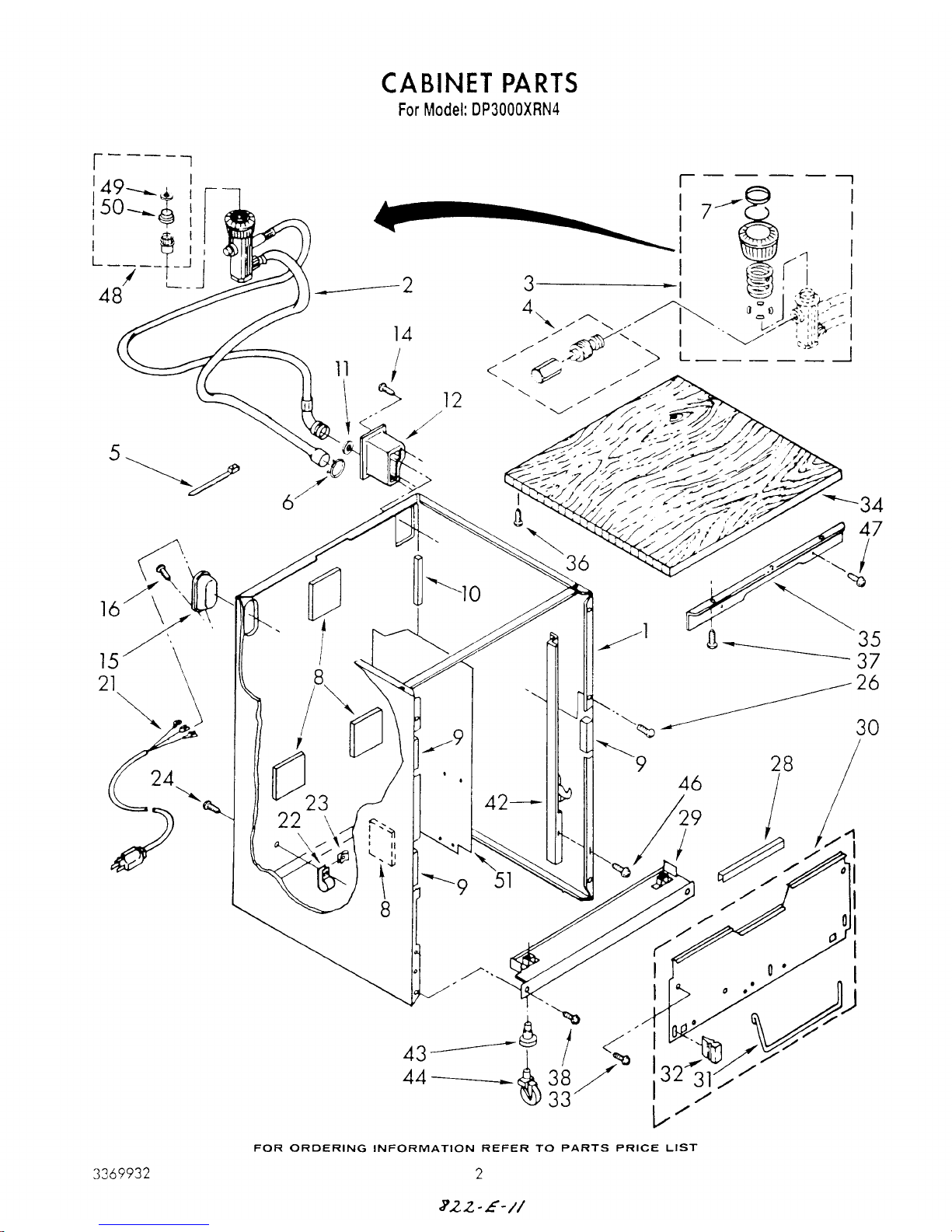

1 304231 Screw, 8-18 x 1/2 (3)

2 3370001 Timer

3 304232 Screw, 7-18 x 1-3/8

4 304409 Relay, Start

5 304606 Console (Includes Items 6 & 12)

6 3367622 Insert, Decorative

7 3367282 Knob, Timer

8 304234 Screw, 8-18 x 1/2 (2)

9 661520 Rocker Switch

10 3368537 Foam, Seal

12 304602 Grill, Vent

1 Shell Assembly

302898 Almond

2 302902 Coupler Assembly

3 285170 Collar Kit, Faucet Coupler

4 285171 Valve, Pressure Relief

5 596490 Clip, Strap

6 719953 Clamp, Hose

7 711696 Seal

8 3368108 Pad (4)

9 3368110 Pad (3)

10 3368109 Pad

11 16123 Washer

12 302891 Housing, Hose

14 3367670 Screw, 10-16 x 1/2 (2)

15 716234 Housing, Cord

16 339493 Screw (2)

21 303651 Cord, Power

22 596553 Clamp, Strain Relief

23 717337 Nut, J-Type

24 9418000 Screw, 8-18 x 1/2

26 339493 Screw, 8-18 x 1/2 (2)

28 3367669 Edge Protector

29 3368426 Toeplate Assembly (Includes Item 43)

30 719091 Plate, Cover

31 719093 Bar, Torsion R.H.

719094 Bar, Torsion L.H.

32 719235 Bumper, Rubber

33 302868 Screw, Tapping (4)

34 304598 Panel, Top

35 302250 Trim, Front

36 9418000 Screw (2)

37 3367953 Screw, 8-18 x 5/8 (3)

38 300890 Screw, Tapping (4)

42 3367438 Leg Assembly, L.H.

3367436 Leg Assembly, R.H.

43 Socket, Caster

300450 Alternate

717588 Alternate

44 Caster

718534 Alternate

300424 Alternate

46 90767 Screw, 8 x 3/8

47 304428 Screw (2)

48 713750 Adapter, Faucet

49 713747 Washer

50 713748 Bushing

51 3368640 Barrier, Hose

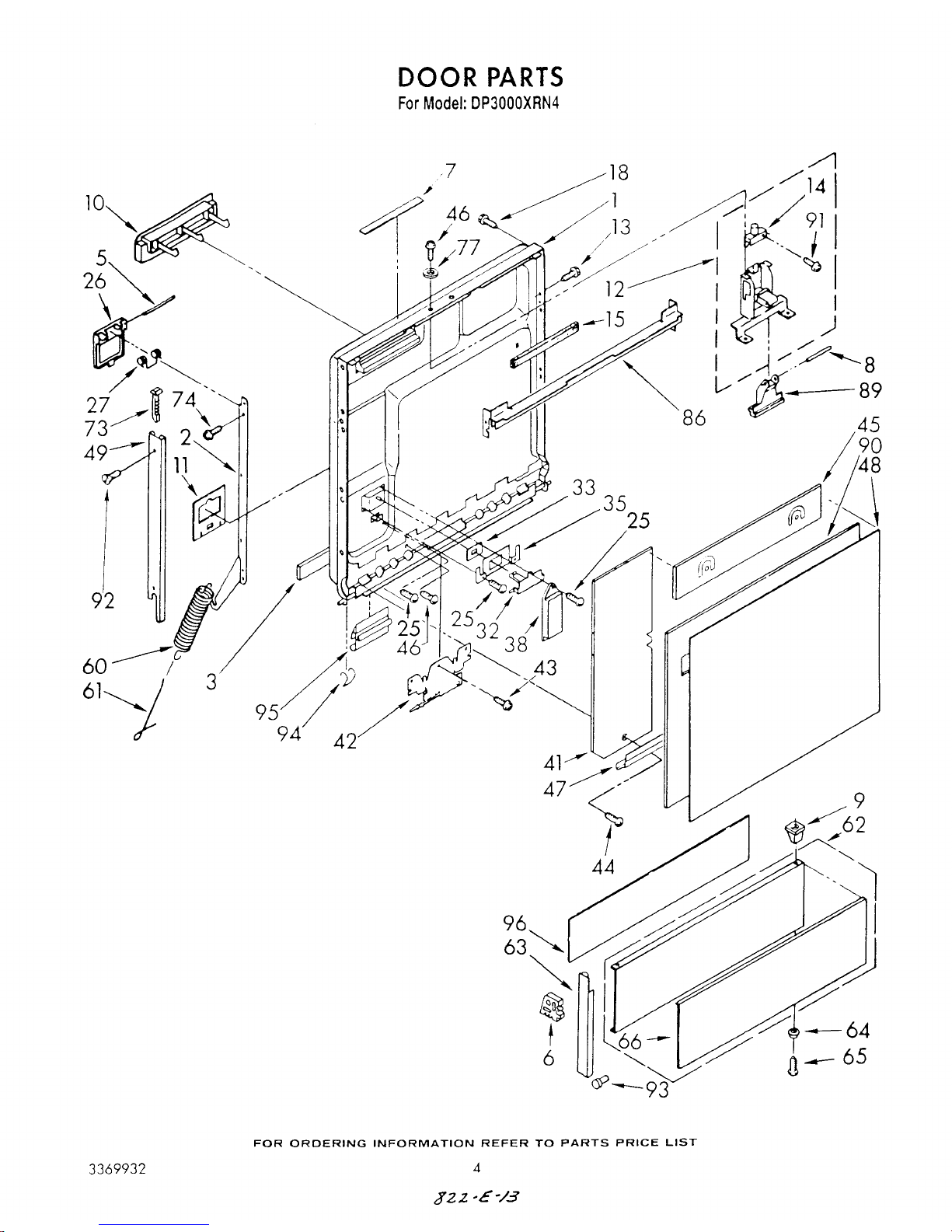

1 3367387 Door, Inner

2 Support, Door

3367201 (R.H.)

3367202 (L.H.)

3 717921 Gasket, Door

5 300115 Pin, Lid Hinge

6 3367736 Retainer (2)

7 302081 Label, User Guide

8 300234 Pin, Pivot

9 356592 Grommet

10 300246 Screen, Vent

11 303978 Barrier

12 3367058 Latch Assembly

13 304392 Screw, 8-18 x 1/2 (2)

14 660951 Switch, Interlock

15 719860 Baffle

18 304233 Screw, 8 x 1-7/8 (2)

25 304231 Screw, 8 x 1/2

26 300155 Lid, Detergent Dispenser Assembly

27 300106 Spring, Lid

32 300119 Lever, Catch

33 300105 Seal, Lever

35 300104 Retainer

38 300109 Actuator

41 303906 Barrier, Door

42 303362 Shield, Harness

43 3367953 Screw, 8-18 x 5/8

44 688983 Screw, 8-18 x 5/8 (2)

45 303908 Barrier, Console

46 90767 Screw, 8 x 3/8 Ground (1)

47 304047 Edging, Panel

48 | Panel, Front

49 3367488 Trim, Door (L.H.)

3367487 Trim, Door (R.H.)

60 3367658 Spring, Door

61 716401 Retainer, Spring

62 | Panel, Access

63 3367527 Cap, End R.H.

3367531 Cap, End L.H.

64 719581 Foot (2)

65 719266 Screw, 8-18 x 5/8

66 303445 Overlay, Access Panel

73 3367172 Clip, Trim Guard (2)

74 300128 Screw, 8-18 x 1/2 (4)

77 300237 Washer (2)

86 304391 Rail, Support

89 304408 Lever, Release

90 3368569 Spacer, Panel

91 301582 Screw, 6-32 x 1

92 3367288 Screw, 8 x 1/2 (4)

93 715779 Bumper

94 301857 Clip, Wire

95 3367720 Retainer, Clip

96 301774 Pad, Sound

|Refer To Diswasher Replacement

Panel Parts List No. 675345

1 90767 Screw, 8 x 3/8 (2)

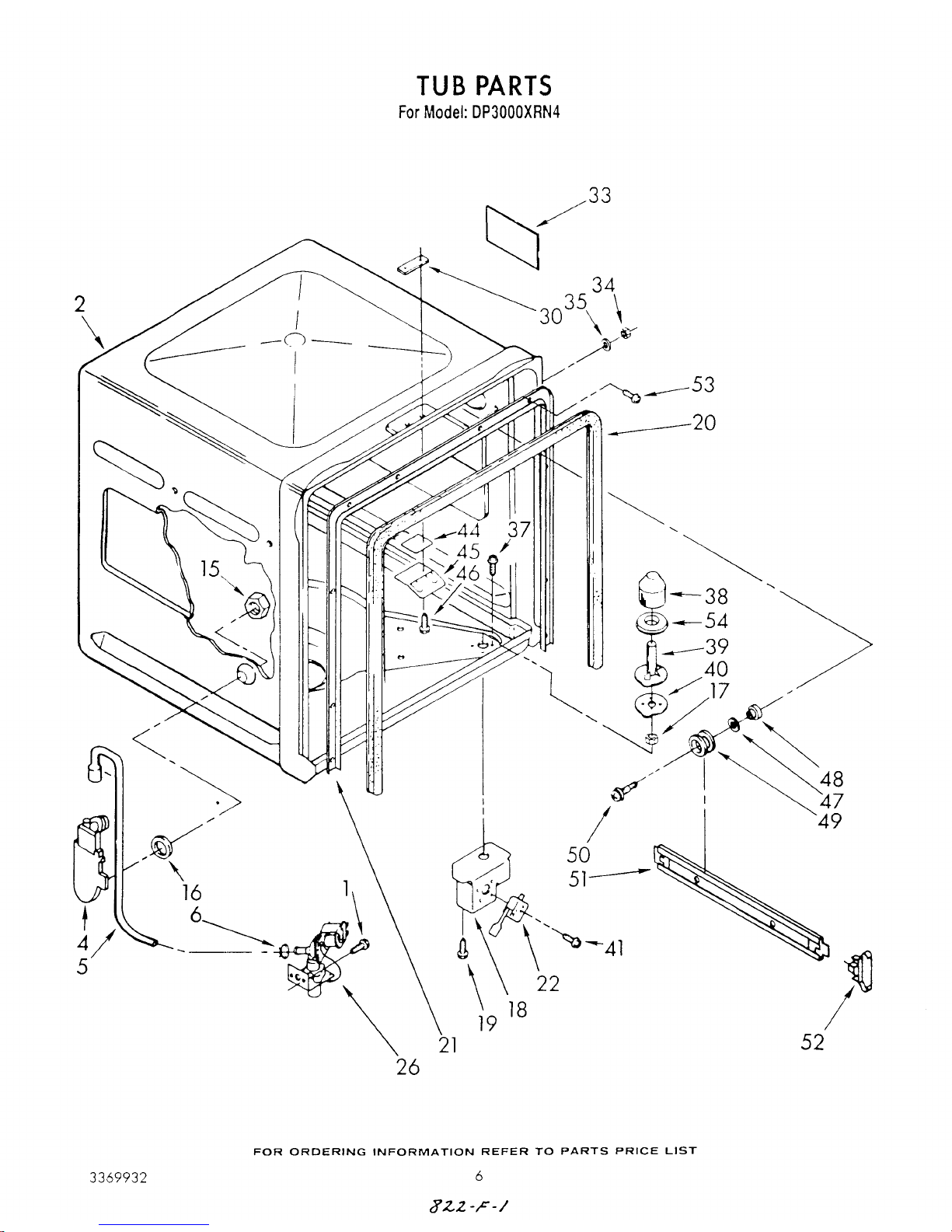

2 3367464 Tub Assembly

4 300974 Inlet, Water

5 304669 Hose, Inlet

6 301958 Clamp

15 713799 Nut, 7/18-16

16 713878 Gasket

17 717488 Nut, .125

18 719342 Bracket, Overflow Switch

19 718250 Screw, 8 x 1/2 (3)

20 3368007 Gasket

21 3368002 Retainer, Gasket

22 660741 Switch, Pressure

26 661511 Valve, Water Inlet

30 303080 Nut, Twin Spring

33 302340 Pad, Sound (2)

34 718829 Locknut (8)

35 717624 Washer (8)

37 717236 Screw, 8-18 x 1/2

38 718035 Float

39 719967 Standpipe, Overflow

40 719966 Gasket, Overflow

41 302203 Screw, 4-40 x 9/16

44 712302 Shim

45 300233 Strike

46 3367670 Screw, 10-16 x 1/2 (2)

47 718750 Washer (8)

48 718817 Washer, Cup (8)

49 300844 Wheel Tub (8)

50 712499 Screw, Shoulder (8)

51 300846 Track (2)

52 300845 End Cap, Track (4)

53 3368008 Screw, 8-18 x 5/8 (10)

54 301662 Gasket, Standpipe (2)

LITERATURE PARTS

LIT3367225 Instructions, Installation

LIT304272 Guide, Use & Care

LIT3368593 Energy Guide

LIT3368870 Label, Wiring Diagram

LIT3369932 Parts List

OPTIONAL PARTS NOT INCLUDED

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

285006 Superior Black

206922 Primer (White)

206925 Leveler (Thinner) (2 Oz.)

PAINT, TOUCH UP (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

TUB LINER REPAIR

799640 Kit, Epoxy Patch (White)

DISHRACK REPAIR

675476 Vinyl Touch-Up (Blue)

675506 Tine Tip Repair Kit (Blue_Enough For Two Complete Dishracks)
