8051556 MODEL SERIES 586, 588

A Note to You ..........................3

Dishwasher Safety ..................4

Parts and Features..................5

Starting Your Dishwasher ......7

Loading Your Dishwasher......9

Using the Dispensers ..........13

Setting the Controls..............15

Selecting a wash cycle ......15

Using Cancel/Drain............17

Selecting cycle options......17

Changing a cycle

or option ............................17

Adding items

during a cycle ....................18

Using Delay Hours ............18

Understanding the

status indicators ................19

Washing Special Items ........20

Caring for Your

Dishwasher............................21

Saving Energy ......................23

Solving Common

Dishwashing Problems ........24

Troubleshooting....................27

Requesting Assistance

or Service ..............................28

Warranty ................................30

8051556 v11 EN (c32) 1/19/99 3:02 PM Page 1

Congratulations!

Congratulations on the purchase of your new INGLIS

dishwasher. I am confident that our product will provide you

with the same quality, performance, and reliability on which

our reputation has been built.

Please take the time to read this guide. It’s full of valuable

ideas and information that will help you enjoy this product

for many years to come.

Thank you for choosing one of our quality products. You

have made an excellent choice.

Sincerely,

Daniel Clifford

General Manager

Sales and Marketing

Inglis Limited

8051556 v11 EN (c32) 1/19/99 3:02 PM Page 2

A Note to You

Thank you for buying an INGLIS*appliance.

To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide.

It contains valuable information about how to operate and maintain your appliance properly

and safely. Please read it carefully.

Also, please complete and mail the Product Registration Card provided with your appliance.

This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

the “Parts and Features” section for location

of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Help us help you

Please:

•Have your dishwasher installed by a

qualified installer.

•Install where dishwasher is protected from

the elements.

•Install and level dishwasher on a floor that

will hold the weight, and in an area suit-

able for its size and use.

•Properly connect dishwasher to electricity,

water, and drain.†

†See Installation Instructions for complete

information.

Model Number __________________________

Serial Number __________________________

Purchase Date __________________________

Dealer Name ____________________________

Dealer Address__________________________

Dealer Telephone ________________________

•Remove all shipping plugs from hoses

and connectors (such as the cap on the

drain outlet) before installing.†

•Remove all hang tags and temporary

labels.

•Make sure dishwasher is not used by

anyone unable to operate it properly.

•Properly maintain dishwasher. See the

“Caring for Your Dishwasher” section.

8051556 v11 EN (c32) 1/19/99 3:02 PM Page 3

You will be killed or seriously injured

if you don’t follow instructions.

You can be killed or seriously injured

if you don’t follow instructions.

IMPORTANT SAFETY INSTRUCTIONS

•Do not operate the dishwasher unless

all enclosure panels are properly in

place.

•Do not tamper with controls.

•Do not abuse, sit on, or stand on the

door or dish racks of the dishwasher.

•To reduce the risk of injury, do not

allow children to play in or on the

dishwasher.

•Under certain conditions, hydrogen gas

may be produced in a hot water system

that has not been used for two weeks

or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not

been used for such a period, before

using the dishwasher turn on all hot

water faucets and let the water flow

from each for several minutes. This will

release any accumulated hydrogen gas.

As the gas is flammable, do not smoke

or use an open flame during this time.

•Remove the door to the washing

compartment when removing an old

dishwasher from service or discarding it.

WARNING:When using the

dishwasher, follow basic precautions,

including the following:

•Read all instructions before using the

dishwasher.

•Use the dishwasher only for its

intended function.

•Use only detergents or rinse agents

recommended for use in a dishwasher

and keep them out of the reach of

children.

•When loading items to be washed:

1) Locate sharp items so that they

are not likely to damage the door

seal; and

2) Load sharp knives with the handles

up to reduce the risk of cut-type

injuries.

•Do not wash plastic items unless they

are marked “dishwasher safe” or the

equivalent. For plastic items not so

marked, check the manufacturer’s

recommendations.

•Do not touch the heating element

during or immediately after use.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your

appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the

word “DANGER” or “WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

SAVE THESE INSTRUCTIONS

Dishwasher Safety

8051556 v11 EN (c32) 1/19/99 3:02 PM Page 4

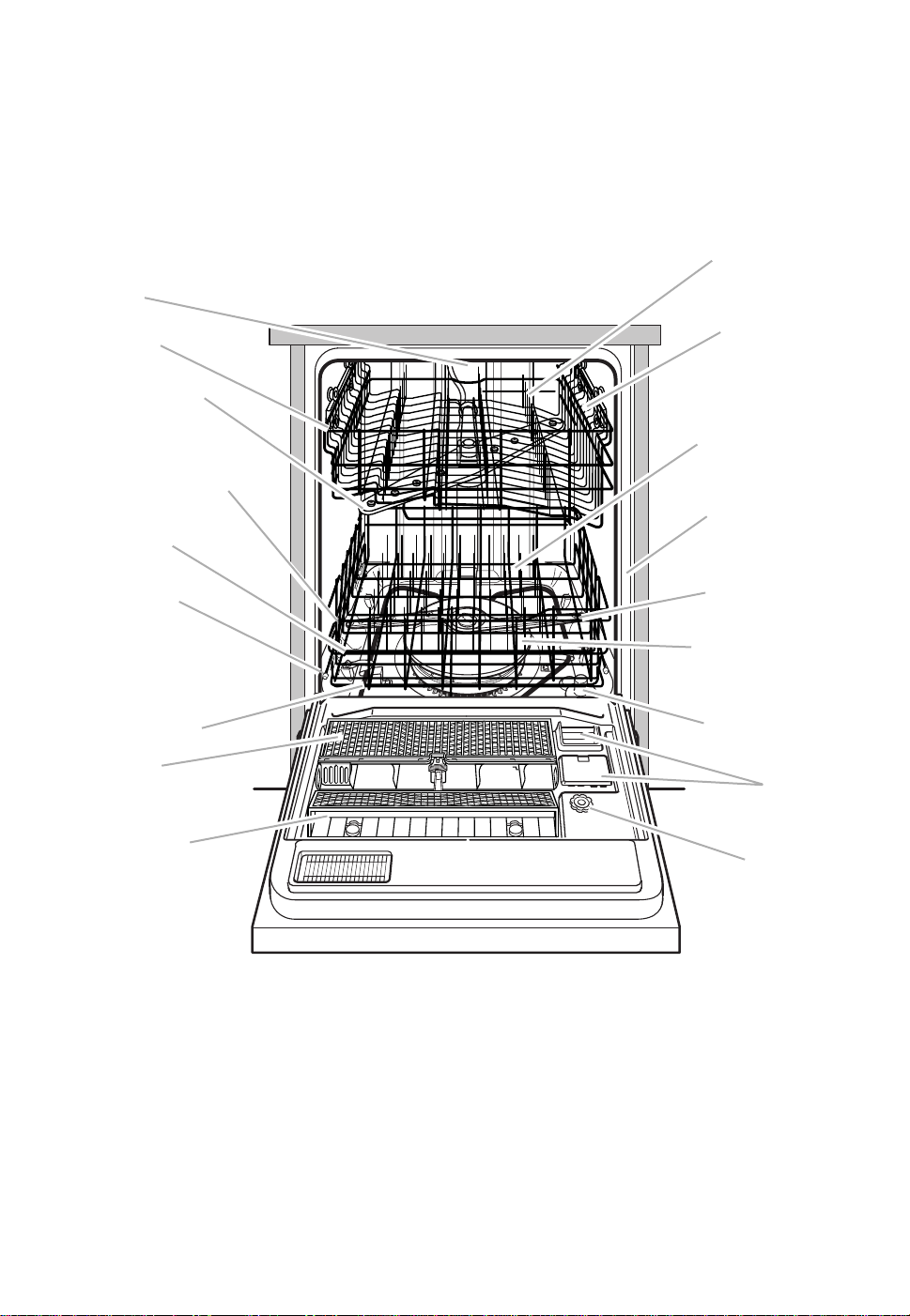

Fold-down tines

(on some models)

(p. 12)

Extra-capacity

fold-down shelf

(on some models,

not shown)

(p. 12)

Fold-down divider

(on some models)

(p. 11)

Model and serial

number label

(on right side)

Lower spray arm

(p. 11)

SCOUR MASTER*

filter module

(p. 29)

Overfill protector

(p. 21)

Detergent

dispensers

(p. 13)

Rinse agent

dispenser

(p. 14)

Parts and Features

Top spray

(p. 29)

Upper rack

(p. 12)

Upper spray arm

(p. 12)

Water inlet opening

(p. 11)

Bottom rack

(p. 11)

Rack bumper

(p. 11)

Heating element

Silverware

basket

(p. 10)

Cutlery basket

(on some models)

(p. 9)

This manual covers several different models. The dishwasher you have purchased may

have some or all of the parts and features listed below.

8051556 v11 EN (c32) 1/19/99 3:02 PM Page 5

Series 586 model

Series 588 model

LOCK OUT

WASHING WATER

HEATING RINSING DRYING CLEAN

OPTIONS

LOW

ENERGY/

CHINA

WASH

LATER

NORMAL POTS

-N-

PANS

DELAY

HOURS

246CANCEL

DRAIN

AIR DRY

POWER

SCOUR

HIGH

TEMP

WASH

RINSE HEAVY

PARTS AND FEATURES

LOCK OUT

WASHING WATER

HEATING RINSING DRYING CLEAN

OPTIONS

CHINA

WASH

LATER

NORMAL

DELAY

HOURS

246CANCEL

DRAIN

AIR DRY AIR DRY

POWER

SCOUR

PLUS

RINSE HEAVY POWER

SCOUR

POTS

-N-

PANS

LOW

ENERGY

Cycle status indicators

Cycle selectors Option selectors

8051556 v11 EN (c32) 1/19/99 3:03 PM Page 6

Starting Your Dishwasher

wWARNING

Electrical Shock Hazard

Electrically ground dishwasher.

Connect ground wire to green ground

connector in terminal box.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

wWARNING

Tip Over Hazard

Do not use dishwasher until

completely installed.

Do not push down on open door.

Doing so can result in serious injury

or cuts.

GROUNDING INSTRUCTIONS

• For a grounded, cord connected

dishwasher:

The dishwasher must be grounded. In

the event of a malfunction or breakdown,

grounding

will reduce the risk of

electric

shock by providing a path of least

resistance for electric current. The

dishwasher is equipped with a cord

having an equipment-grounding conduc-

tor and a grounding plug. The plug must

be plugged into an appropriate outlet that

is installed and grounded in accordance

with all local codes and ordinances.

WARNING: Improper connection of

the equipment-grounding conductor can

result in a risk of electric shock.

Check with a qualified electrician or

service representative if you are in

doubt whether the dishwasher is

properly grounded. Do not modify the

plug provided with the dishwasher; if it

will not fit the outlet, have a proper

outlet installed by a qualified electrician.

• For a permanently connected

dishwasher:

The dishwasher must be connected to

a grounded metal, permanent wiring

system, or an equipment-grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the dishwasher.

SAVE THESE INSTRUCTIONS

8051556 v11 EN (c32) 1/19/99 3:03 PM Page 7

STARTING YOUR DISHWASHER

1. Load the dishwasher. See the “Loading

Your Dishwasher” section.

2. Spin the spray arms. They should turn

freely.

3. Add detergent. See the “Using the

Dispensers” section.

4. Add rinse agent, if needed.

5. Close door firmly until it latches.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

•Open the door slightly. Wait for any filling

or spraying action to stop before opening

the door all the way. Close the door to

continue the cycle.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn off water.

7. Press a Cycle. If desired, press one or

more Options. The dish-

washer starts filling once you

press a Cycle unless you

select the delay wash cycle.

You may press Options as the

machine is filling.

The indicator glows when a

cycle or an option is selected.

Starting a wash cycle

•Press Cancel/Drain. Once pressed, a

2-minute drain starts.

8051556 v11 EN (c32) 1/19/99 3:03 PM Page 8

Preparing to load the dishwasher

•To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

•Remove large pieces of food, bones, and

other hard items. The SCOUR MASTER*

filter module removes food particles from

the water. The module contains a chopping

device which reduces the size of food

items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the

SCOUR MASTER filter module, you might

hear chopping, grinding, crunching, or

buzzing sounds. Those sounds are normal

when hard items enter the module. Do not

let metallic items (such as pot handle

screws) get into the SCOUR MASTER

filter module. Damage can occur.

•Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to

dry over a period of time. Run a Rinse/

Wash Later cycle to keep dishes moist if

you do not plan to wash them soon.

Loading the cutlery basket

(on some models)

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the holding buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

•Load dishes so soiled surfaces face the

rotating spray arm.

•Load dishes so they are not stacked or

overlapping. It is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

•Secure lightweight load items in the racks.

•Pot lids and handles, pizza pans, cookie

sheets, etc. should not touch interior walls

or interfere with the spray arm’s rotation.

•Load dishes so they do not touch one

another.

NOTE: Keep sink drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading Your Dishwasher

8051556 v11 EN (c32) 1/19/99 3:03 PM Page 9

LOADING YOUR DISHWASHER

Loading the silverware basket

•Load the silverware basket while it is in

the door or take the basket out for loading

on a counter or table.

•Mix items in each section of the basket

with some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. Load spoons with baked on food

pointing up.

IMPORTANT: Always load sharp items

(knives, skewers, forks, etc.) pointing

down.

•Put small items (baby bottle caps, jar lids,

etc.) in the section with the lid.

•You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide

it toward the top of the door.

2. Lift the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

•Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

8051556 v11 EN (c32) 1/19/99 3:03 PM Page 10

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Whirlpool Lavastoviglie

Whirlpool

Whirlpool WDI NC334C PES Manuale di installazione e funzionamento

Whirlpool

Whirlpool 3369671 Guida rapida

Whirlpool

Whirlpool ADG 7560 Istruzioni operative

Whirlpool

Whirlpool 8500 SERIES Manuale utente

Whirlpool

Whirlpool W10142816B Manuale utente

Whirlpool

Whirlpool ADP 536 WT Manuale utente

Whirlpool

Whirlpool DU1300XTV Guida utente

Whirlpool

Whirlpool WSFC 3M17 X Manuale utente

Whirlpool

Whirlpool WDF518SAAS0 Manuale utente

Whirlpool

Whirlpool DU920QWDQ4 Manuale utente

Whirlpool

Whirlpool OWFC 3C26 Manuale di installazione e funzionamento

Whirlpool

Whirlpool Series 960 Manuale utente

Whirlpool

Whirlpool GU2275XTVY - 24" Wide Energy ST Istruzioni per il montaggio

Whirlpool

Whirlpool Series 1000 Manuale utente

Whirlpool

Whirlpool UDT555SAFP0 Manuale utente

Whirlpool

Whirlpool ADG 9960 Manuale utente

Whirlpool

Whirlpool W10435040A Manuale utente

Whirlpool

Whirlpool DISHWASHER Manuale utente

Whirlpool

Whirlpool W10130986A Manuale utente

Whirlpool

Whirlpool ADP 8540 Manuale utente

Whirlpool

Whirlpool W7I HP42 L Manuale di installazione e funzionamento

Whirlpool

Whirlpool GU1500XTLT0 Manuale utente

Whirlpool

Whirlpool ADG 9527 Manuale utente

Whirlpool

Whirlpool ADP 201 Manuale utente

Manuali Lavastoviglie popolari di altre marche

Electrolux

Electrolux ESI5211LOX Manuale utente

KitchenAid

KitchenAid KUDB230B Manuale utente

Brandt

Brandt BDJ424DB Manuale utente

Asko

Asko DSD767UXXL.AU Manuale utente

Beko

Beko DFN26210W Manuale utente

NEFF

NEFF S153ITX00E Scheda tecnica

Midea

Midea SV 4.45 wi Manuale utente

LG LDF7932 Manuale utente

Gorenje

Gorenje GV63214 Manuale utente

Hotpoint

Hotpoint HDA1100ZWH Manuale di servizio

Blomberg

Blomberg LDFN2240W Manuale utente

AEG

AEG FFB83836PM Manuale utente

Cylinda

Cylinda DM3220RFD Manuale utente

Atag

Atag DW8214MB Manuale utente

GE GLD8000 Series Manuale utente

Siemens

Siemens SN23HI02KE Scheda tecnica

Omega

Omega ODW717X Manuale utente

BORETTI

BORETTI BVW-683 Manuale utente
