AUTOMATIC

DRYERS

Electric Model

LE5650XM

and

Gas Model

LG5651XM

MIcrowave Ovens. Trash Compactors. Room AN Condllloners. Oehumldlflers. Automatic Washers. Clothes Dryers, Freezers, Aefrlgerator-F

Parts and features

CYCLE CONTROL KNOB

I TEMPERATURE SELECTOR

LINT SCREEN

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

(from the plate located as shown).

2. Purchase date from sales slip.

Copy this information in these spaces.

Keep this book in the Laundry Information

Center with your “Dryer Guide:’ sales slip

and warranty

Please complete and mail the Owner

Registration Card furnished with this

product.

Model Number

Serial Number

Purchase Date

Service Company

Telephone Number

~Contents

Paae

-2PARTS AND FEATURES

IMPORTANT SAFETY

INSTRUCTIONS . . .

OPERATING INSTRUCTIONS..

Selecting a Cycle and

Starting Your Dryer .

Dryer Cycles and Settings

Cool Down Times

DRYING TIPS . .

FLUFFAIR Setting

TUMBLE PRESS@Setting

Mixed Loads..

Drying Times

LINT SCREEN

LINT REMOVAL.

CARING FOR YOUR DRYER.

Cleaning Dryer Interior..

Vacation Care . .

IF YOU NEED SERVICE OR

ASSISTANCE

WHIRLPOOL DRYER

WARRANTY

Page

. 9

;

2 01987 Whirlpool Corporation

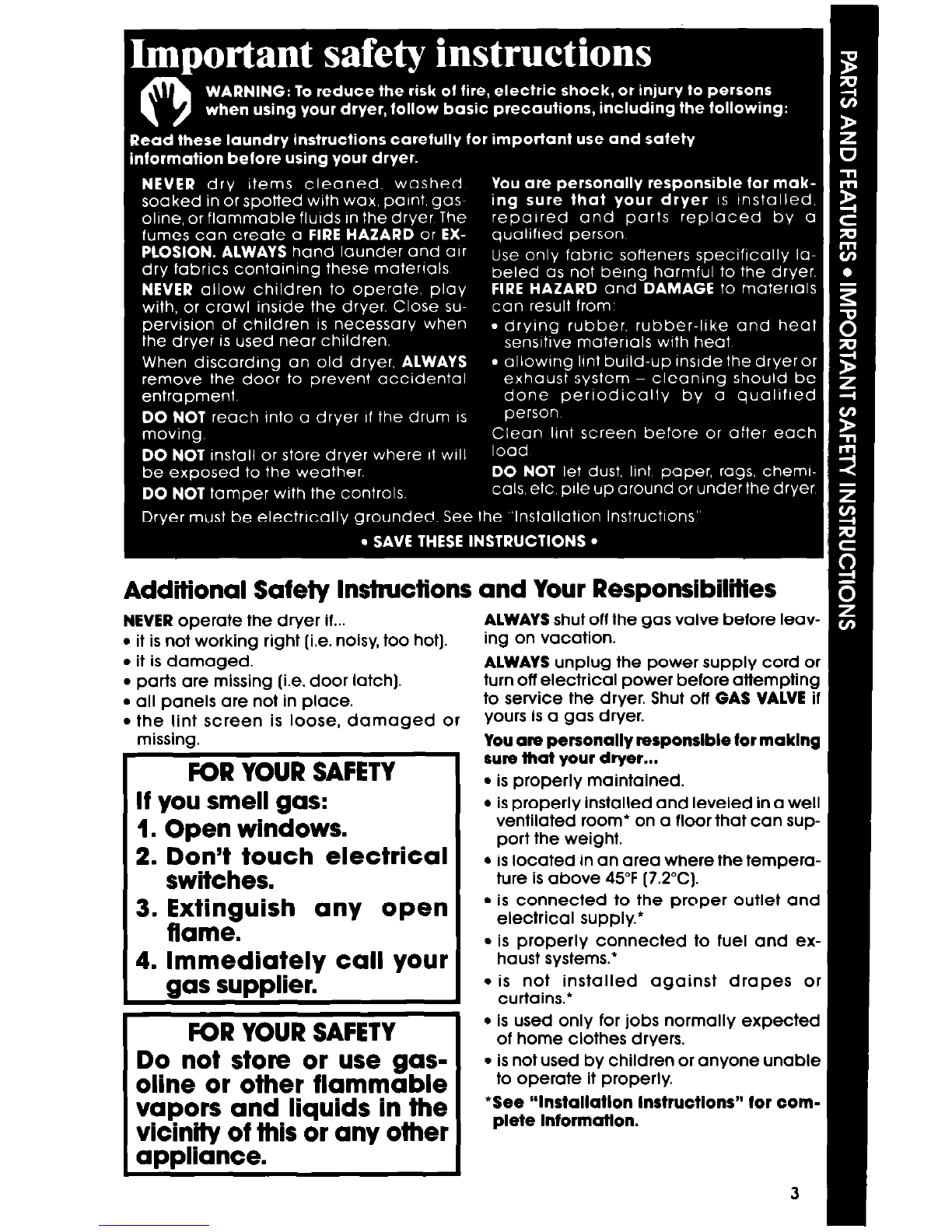

Additional Safety Instructions and Your Responslbilltles

NEVER operate the dryer if... ALWAYS shut off the gas valve before leav-

it is not working right (Le. noisy, too hot]. ing on vacation.

it is domaged. ALWAYS unplug the power supply cord or

parts are missing (i.e. door latch]. turn off electrical power before attempting

all panels are not in place. to service the dryer. Shut off GAS VALVE if

the lint screen is loose, damaged or yours is a gas dryer.

[

missing.

FORYOUR SAFETY

If you smell gas:

1. Open windows.

2. ~;VtV&uch electrical

. .

3. ratEeguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any other

appliance.

You are personally responsible for maklng

sure that your dryer...

is properly maintained.

is properly installed and leveled in a well

ventilated room’ on a floor that con sup-

port the weight.

is located in an area where the tempera-

ture is above 45°F (7.2%).

is connected to the proper outlet and

electrical supply.’

is properly connected to fuel and ex-

haust systems.*

is not installed against drapes or

curtains.’

is used only for jobs normally expected

of home clothes dryers.

is not used by children or anyone unable

to operate it properly.

*See “lnstallatlon Instructions” tor com-

plete Informatlon.

Operating instructions

Selecting a Cycle

and Starting

Your Dryer

Before starting your dryer, be

sure laundry is sorted and loaded

properly (see your “Dryer Guide”).

Be sure the door is tightly closed.

SUGGESTED SUGGESTED

TYPE OF LOAD CYCLE TEMPERATURE

COllONS - LINENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts. EX HEAVY

HEAVYWEIGHT FABRICS - Towels, PERM’T

jeans, corduroys, work clothes HEAVY PRESS

MEDIUMWEIGHT COTTONS - HEAVY

Sheets, pillowcases, cotton HIGH

underwear, diapers MED

LIGHTWEIGHT COTTONS - Batistes.

organdies, lingerie LIGHT

PERMANENT PRESS, SYNTHETICS PERMIT PRESS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes, PERM’T

jackets, raincoats 40-50 MINS. PRESS

MEDtUMWEtGHT FABRICS - Shirts, play HEAVY

clothes, sheets, slacks 30-40 MINS. HIGH

LIGHTWEIGHT FABRICS - Lingerie,

blouses,dresses 20-30 MINS.

KNITS PERMIT PRESS

HEAVYWEIGHT - Cottons, rayons, PERM’T PRESS

blends.T-shirts, slacks, shirts 40-50 MINS. HEAVY HIGH

LtGHTWEtGHT - Synthetics (polyester, KNITS GENTLE

acrylic. etc.) and blends, lingerie, LOW

blouses, dresses 30-40 MINS.

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels) PERM’T PRESS KNtTS GENTLE

20-30 MINS.

Gauze, lace, etc. 15-20 MINS. LOW

RUBBER, PLASTIC, HEAT-SENSITIVE PERMIT PRESS

FABRICS

FOAM RUBBER - Pillows, bras,

stuffed toys 20-30 MINS. FLUFF

PLASTtC - Shower curtains, AIR

tablecloths 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MtNS.

OLEFtN, POLYPROPYLENE, SHEER NYLON 15-20 MINS.

. Select a CYCLE

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

. Push the STARTButton

The dryer will starttumbling when

you push the START Button.

Changing a setting

The setting can be changed at any

time by turning the Control Knob to a

new setting.

I /

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

To stop the dryer, open the door (or

turn the Control Knob to OFF).

To restart the dryer, close the door,

select cycle. if necessary, and push

START.

The Cycle Control Knob should point to OFF when the dryer is not in use.

If the dryer is stopped before the cycle is finished, turn the Cycle Control

.I--L *- -cc

I I’

Dryer cycles and settings

The PERMANENT PRESS Cycle helps

provide the special care that perma-

nent press and synthetrc fabrics

need...a period of heated drying

followed by a 10 minute cool down.

The chart on page 4 suggests time

and temperature settings for different

kinds of loads.

- HEAVY MED I

The EX HEAVY, HEAVY, MEDIUM and

LIGHT cycles describe the loads

they are designed to dry. The chart

on page 4 tells what is meant by

EX HEAVY, HEAVY, MEDIUM and LIGHT

loads.

At each setting, the dryer will run

about long enough to dry the load

described by the setting. Example:

The HEAVY Cycle is designed to be

long enough to dry a load of heavy

fabrics [towels, jeans, corduroys, etc.)

when the Temperature Selector is set

on PERM’T PRESS/HEAVY HIGH.

c MORE TIME LESS TIME +

HEAVY MED

If the load is not as dry as you want,

set the dial more to the iett the next

time you dry that kind of load.

If the load is dryerthon you want,

set the dial more to the right the next

time you dry that kind of load.

Cool down times

In all cyclesthe heat shuts off

before the dryer stops tumbling.This

cool down time helps:

keep wrinkles from setting in.

make handling the hot load items

easier.

10MINUTES

5 MlNUiES

COOL DOWN COOL DOWN

The PERMANENT PRESS Cycle has

10 minutes of cool down trme at the

end of the cycle. .

All other cycles have 5 minutes of

cool down time.

Drying tips

FLUFF AIR

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, snea kers,

etc.

1. Set Temperature Selector on FLUFF

AIR.

2. Turn Control Knob to the number of

minutes you want in the PERMANENT

PRESSCycle.

3. Push STARTButton.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control.

TUMBLE PRESS” Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

1. Set Temperature Selector on PERM’T

PRESS/HEAVY HIGH.

2. Set Control Knob on TUMBLE PRESS.

3. Push STARTButton.

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

For best result&TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

Drying times

Drying times will vary depending on:

amount of moisture in the clothes.

type and weight of the fa brie.

size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryertemperature selection.

See your “Dryer Guide”

for more information.

II’

Lint screen

Open the lid and pull the lint screen

straight out.

Clean the lint screen before each load. A screen blocked by lint can

increase drying time and may be a FIRE HAZARD.

ROLL the lint off the &.zreen

with your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into

place.

Lint removal

Lint can gather inside the dryer and create a FIRE HAZARD. This lint

should be removed at least every 2 to 3 years, or more otten, depending

on dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning

should be done only by a qualified person.

Remove back panel (electric) or

front panel (gas).

Avoid damaging wires, ther-

mostats, funnel or igniter.

Remove lint from shaded area -

see art - with a soft brush or

vacuum cleaner.

Replace panel; reconnect and re-

level dryer.

Caring for your dr

Remove loose and sharp objects

from pockets and cuffs before drying

pins, buckles, etc. Close metal

zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Never leave wet or damp laundry

in your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Some pretreatment products can

damage dials, consoles and finish.

Do not use these products on or

Cleaning dryer interior

Garments which contain unstable dyes,

such as denim blue jeans or bright-

ly colored cotton items, may discolor

the dryer interior. If the interior

is discolored, clean with one of the

following methods to avoid staining

later load items.

Powdered laundry detergent and

very warm water

Make a paste with detergent and

very warm water. Apply paste to a

soft cloth and scrub area until all

excess

dye

is removed. Wipe thor-

oughly with a damp cloth. Tumble

a load of rags. -OR-

liquid spray household cleaner

Spray on stained area. Rub with a

cloth until all excess dye is re-

moved. Tumble a load of rags.

Vacation care

Unplug power cord or turn off elec-

trical power.

For gas dryers, close gas valve.

Clean lint screen.

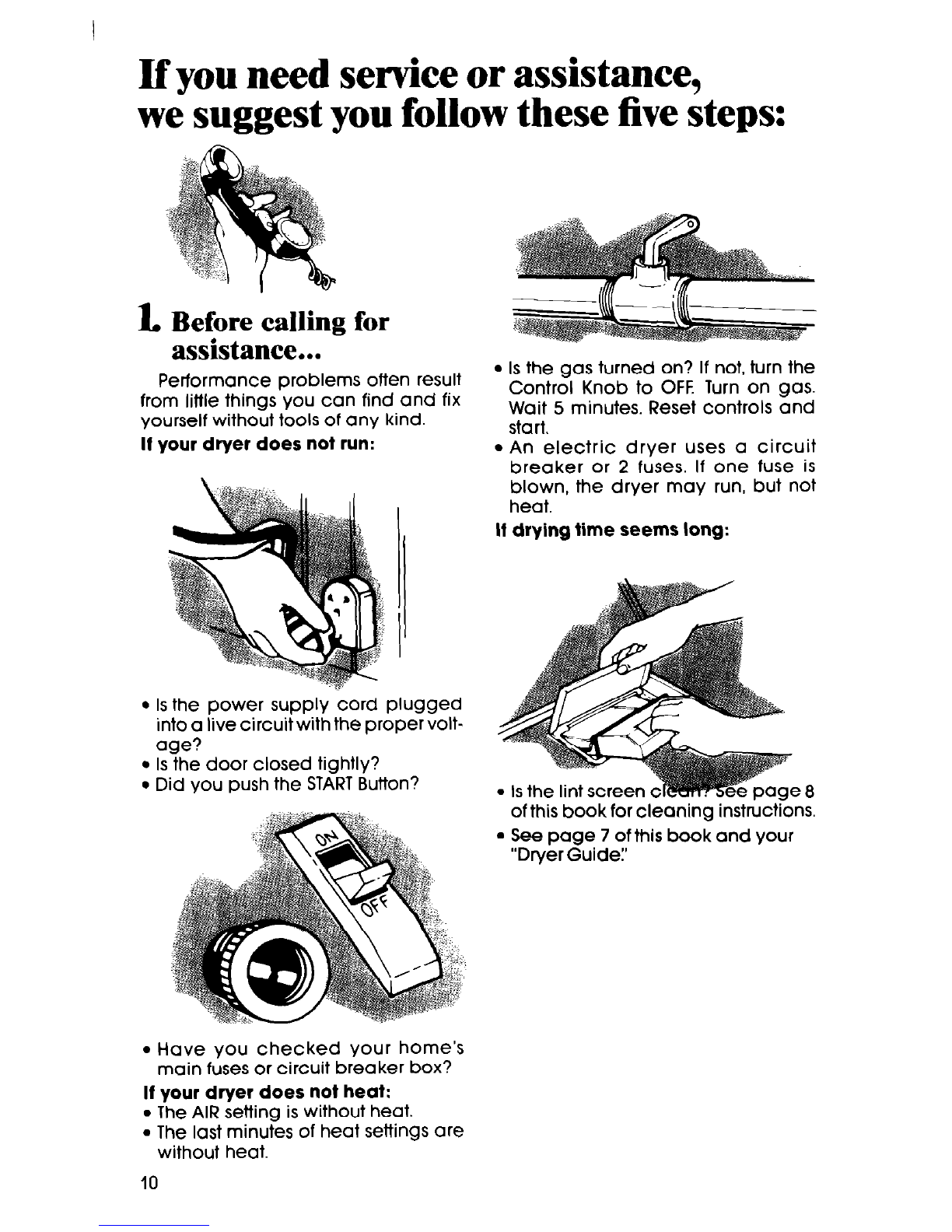

If you need semice or assistance,

we suggest you follow these five steps:

l. Before calling for

assistance...

Performance problems often result

from little things you can find and fix

yourself without tools of any kind.

If your dryer does not run:

Is the power supply cord plugged

into a live circuit with the proper volt-

age?

Is the door closed tightly?

Did you push the STARTButton?

Is the gas turned on? If not, turn the

Control Knob to OFF. Turn on gas.

Wait 5 minutes. Reset controls and

start.

An electric dryer uses a circuit

breaker or 2 fuses. If one fuse is

blown, the dryer may run, but not

heat.

If drying time seems long:

of this book for cleaning instr&tions.

See page 7 of this book and your

“Dryer Guide:’

Have you checked your home’s

main fuses or circuit breaker box?

If your dryer does not heat:

The AIR setting is without heat.

The last minutes of heat settings are

without heat.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool LGR4634PQ Manuale utente

Whirlpool

Whirlpool HybridCare WHD862CHC Manuale utente

Whirlpool

Whirlpool Cabrio W10164752A Manuale utente

Whirlpool

Whirlpool WED7300XW Manuale utente

Whirlpool

Whirlpool WGD97HEDC0 Manuale utente

Whirlpool

Whirlpool Cabrio W10743379A Manuale utente

Whirlpool

Whirlpool Gold GEX9868JQ1 Manuale utente

Whirlpool

Whirlpool W10309054B Manuale utente

Whirlpool

Whirlpool Maytag NED7500VM0 Manuale utente

Whirlpool

Whirlpool 4.3 CU FT Manuale utente

Whirlpool

Whirlpool Roper REX3514RQ1 Manuale utente

Whirlpool

Whirlpool YWED9050XW Manuale utente

Whirlpool

Whirlpool 4GWED4750 Manuale utente

Whirlpool

Whirlpool WGD72HED Manuale utente

Whirlpool

Whirlpool Cabrio,- WGD5500X Manuale elenco delle parti

Whirlpool

Whirlpool 3RAWZ480E Manuale utente

Whirlpool

Whirlpool WGD8300SE Guida utente

Whirlpool

Whirlpool WCD3090JW Guida

Whirlpool

Whirlpool 8529302 Manuale utente

Whirlpool

Whirlpool 8280525 Manuale utente

Whirlpool

Whirlpool W10259190B - SP Manuale utente

Whirlpool

Whirlpool LE5320XT Manuale utente

Whirlpool

Whirlpool LEB6400KQ1 Manuale utente

Whirlpool

Whirlpool W10151595A Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
