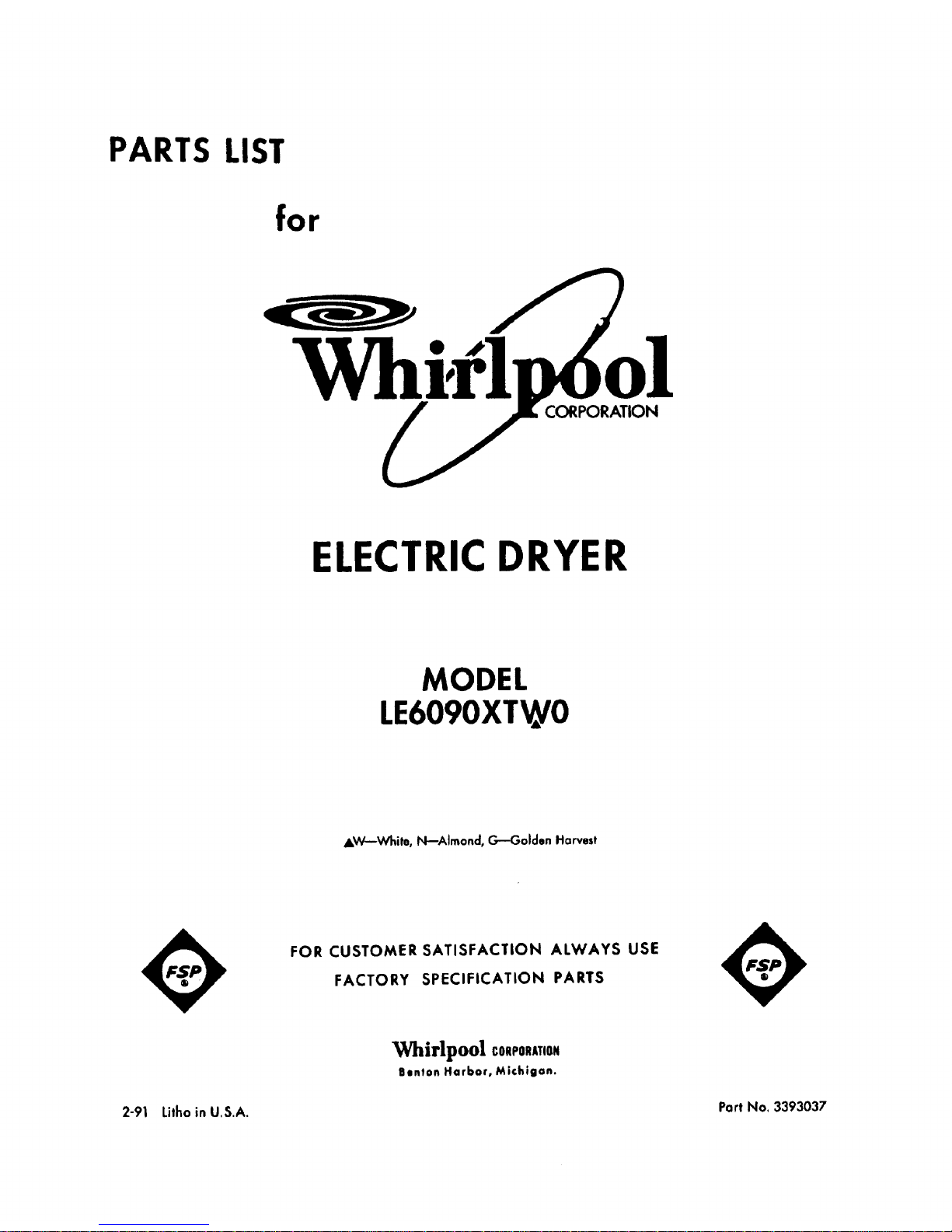

Whirlpool LE6090XTW0 Manuale utente

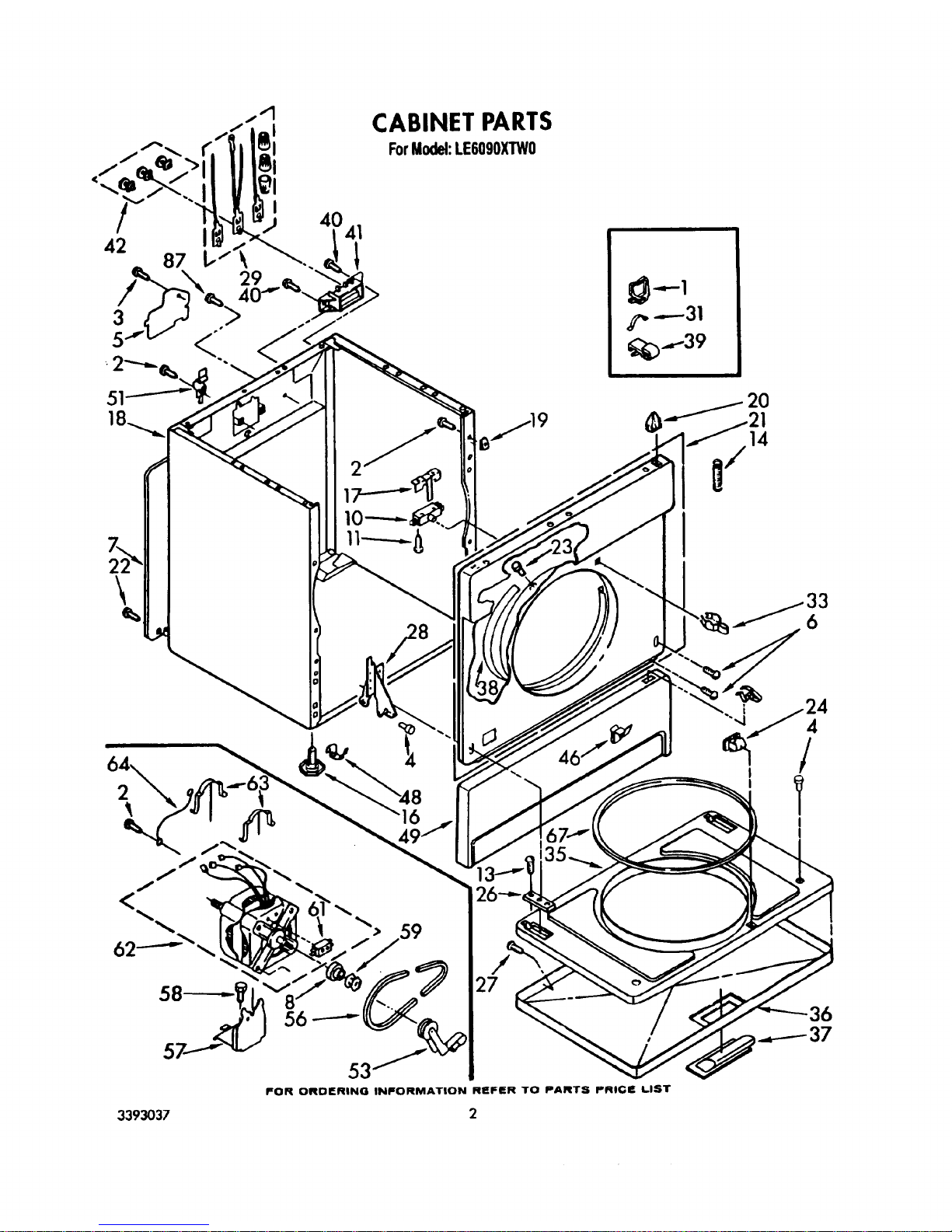

1 688412 Clip, Harness
2 343641 Screw, 10-16 x 1/2
3 693995 Screw, Hex Washer Head
4 238614 Bumper
5 690893 Cover, Terminal Block
6 342043 Screw, 10-32 x 1/2
7 346368 Panel, Rear
8 3393657 Restrainer, Belt
10 3391839 Switch, Door
11 98129 Screw, 6-20 x 7/8 (2)
13 98518 Screw, 10-12 x 1/2
14 237979 Spring, Door (2)
16 688222 Foot (4)
17 295998 Lever, Door Switch
18 Cabinet
690847 White
690848 Almond
690851 Golden Harvest
19 98234 Clip, Ground (2)
20 690363 Lock, Front Top (2)
21 Panel Assembly, Upper Front
338012 White
689533 Almond
689535 Golden Harvest
22 693994 Screw, Hex Washer Head (7)
23 685203 Clip, Felt Pad (2)
24 690081 Catch, Door
26 337189 Clip, Hinge (2)
27 694091 Screw (6)
28 687905 Hinge, R.H.
687906 Hinge, L.H.
29 279318 Terminal, Tinned & Brass (3) (Includes Illus. 42)
31 98997 Clip, Harness
33 696144 Strike, Door
35 695954 Door, Rear
36 Door, Front
348728 White
689330 Almond
689333 Golden Harvest
37 Handle, Door
690270 White
690271 Almond
690274 Golden Harvest
38 349464 Seal & Bearing Assembly
39 689180 Clip, Harness (Door Switch Leads)
40 3393008 Screw
41 690261 Block, Terminal
42 279393 Terminal Block Kit For Terminal Block
46 3388229 Clip, Toe Panel Lock
48 297092 Clip, Hinge (2)
49 Panel, Toe
692427 White
692428 Almond
692431 Golden Harvest
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt, 5/16-18 x 3/4
59 3389627 Pulley, 60 Hz.
61 3388235 Switch (Use W/3391888 Motor)
62 3391888 Motor Assembly, 60 Hz.
63 660658 Clip, Motor (2)
343481 (Alt.)
685441 (Alt.)
64 690236 Wire, Ground
67 685762 Seal, Door
87 697776 Screw, 10-32 x 1/2 (Grounding)

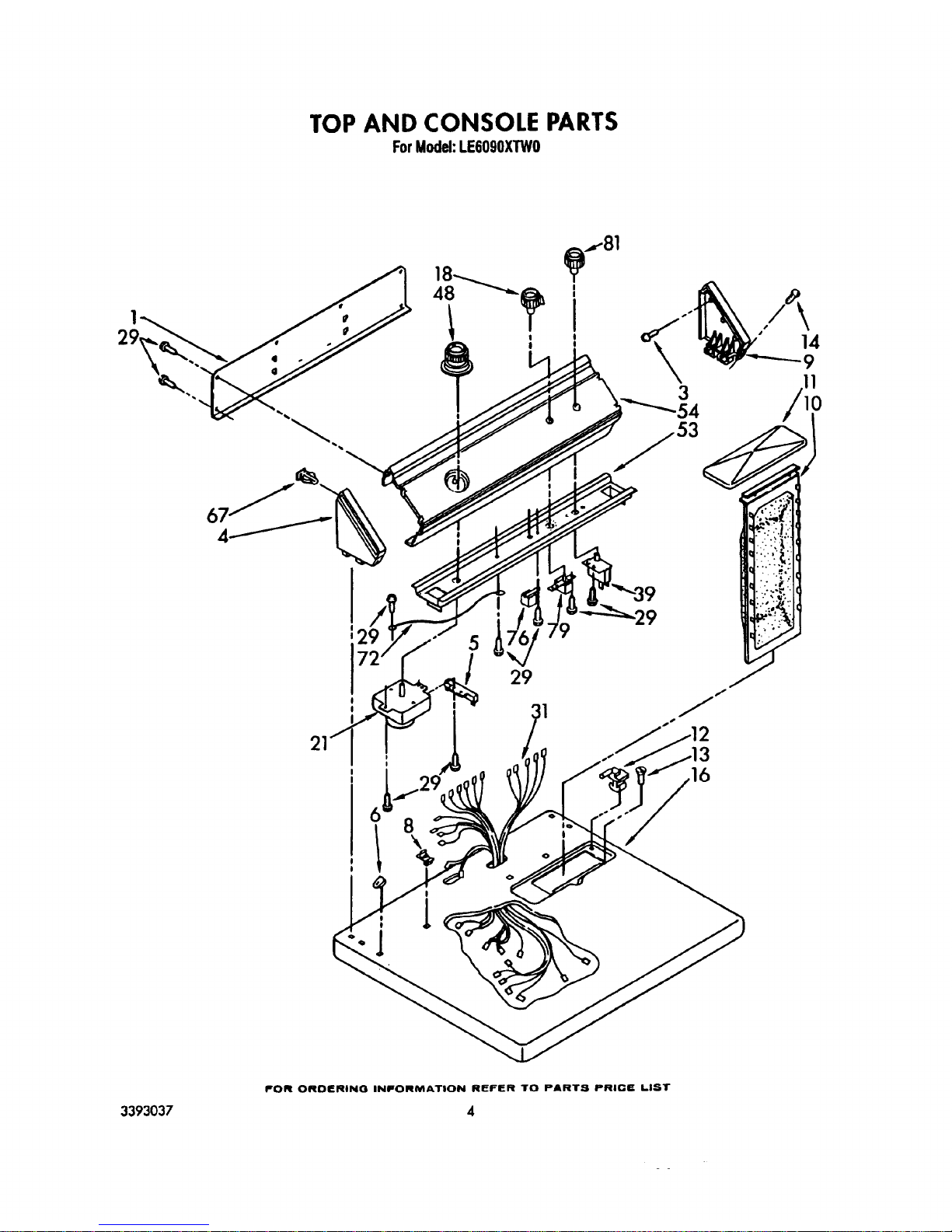

1 386367 Panel, Rear Console
3 355326 Screw, 13-16 x 5/8
4 63789 Cap, End (L.H.)
5 3388706 Resistor, Timer
6 358473 Stop, Push-In
8 358472 Nut, Push-In (2)
9 63795 Cap, End (R.H.)
10 339392 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
689313 Golden Harvest
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8-18 x 5/8
14 64211 Screw, End Cap
16 Top
3393385 White
3393386 Almond
3393387 Golden Harvest
18 386638 Knob, Temperature Selector
21 3391661 Timer, 60 Hz.
29 343641 Screw, 10-16 x 1/2
31 3391666 Harness, Wiring
39 348314 Relay, Push-To-Start
48 3387901 Timer Knob & Dial Assembly
53 386627 Bracket, Control
54 3388008 Panel, Control
67 689559 Nut, Push-In (4)
72 690853 Wire, Ground
76 694419 Buzzer
79 696321 Switch, Rotary (Temperature Selector)
81 3387976 Knob, Push To Start
LITERATURE AND OPTIONAL PARTS
LITERATURE PARTS
LIT3391427 Guide, Dryer
LIT3391366 Use & Care Guide
LIT696234 Instructions, Installation
LIT3393037 List, Service Parts
OPTIONAL PARTS NOT INCLUDED
PAINTS
PAINT,TOUCH UP (1/2 oz.)
72017 White
72107 Almond
72110 Golden Harvest
PAINT PRESSURIZED SPRAY (13 oz.)
350930 White
350956 Almond
261890 Golden Harvest
350938 Primer, Gray
350941 Leveler (Thinner)
PAINT,BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
261891 Golden Harvest (Uncut)
Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS
LITERATURE PARTS
LIT677813 Automatic Washer (Belt Drive)
LIT677818 Dryer
LIT677821 Compactor
LIT677967 Dishwasher
LIT677971 Ice Maker (In Refrigerator)

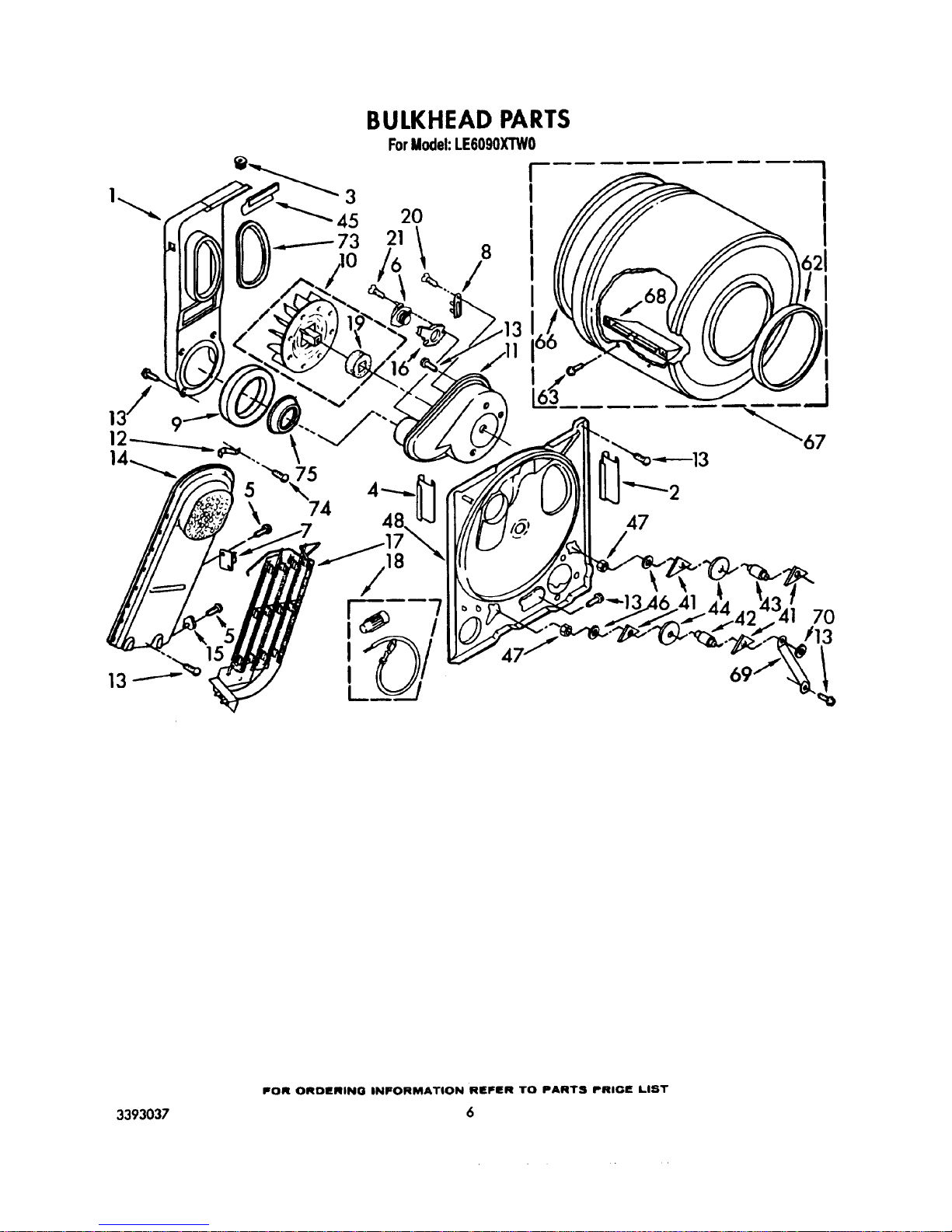

1 694283 Lint Chute Assembly
2 686889 Pad, Cabinet
3 98460 Nut, Push-In (2)
4 3392247 Pad, Blower Housing
5 90767 Screw, 8 x 3/8
6 660039 Operating Thermostat, 150~F (66~C) (341146) (Alt.)
7 3389946 Thermal Cut-Off (Hi-Limit Thermostat Illus. No. 15 Included)
8 3392519 Thermal Fuse
9 347139 Seal, Lint Chute
10 694089 Wheel, Blower
11 695081 Housing, Blower
12 337272 Clip
13 343641 Screw, 10-16 x 1/2
14 695547 Box, Heater
15 3390291 Thermostat, (High Limit) 250~F (121.1~C)
16 61894 Heater, Thermostat
17 660982 Element, Heater (For 240 Volt Installation)
693300 (Alt.)
693062 (Alt.)
18 279457 Wire Kit (For Heater Element Wiring Harness Repair)
19 3392123 Seal, Blower
20 695239 Screw, 8-18 x 3/8
21 695240 Screw, 8-18 x 1/2
41 690997 Ring, Tri
42 347364 Shaft, L.H.
43 339489 Shaft, R.H.
44 349241 Roller, Support
45 686770 Sup\port Pr\otector
46 348197 Washer Support
47 120377 Nut, 3/8-16
48 685775 Bulkhead
62 337651 Ring, Bearing
63 690372 Screw, 11-16 x 7/8
66 337449 Seal, Rear Drum
67 697093 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 339956 Seal
74 687128 Screw, 10-16 x 1/2
75 696302 Shield, Exhaust
