Whirlpool LGR4624BW0 Manuale utente

TOP AND CONSOLE PARTS

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

GAS DRYER

3−94 Litho in U.S.A. (tpm) Part No. 4377133

TOP AND CONSOLE PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

24377133

1 3397545 Panel, Rear

Console

2 693994 Screw, Hex

Washer Head

3 693995 Screw, Hex Head

4 Cap, End (L.H.)

3358531 White

3358532 Almond

5 689180 Clip, Retainer

6 688805 Clip

7 Cap, End (R.H.)

3358516 White

3358517 Almond

8 357213 Nut, Push−In (2)

9 3397269 Connector, Timer

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3353145 Screw, Console

16 Top

3396022 White

3396023 Almond

18 94614 Terminal

21 3392250 Timer Assembly,

60 Hz.

23 3396647 Harness, Wiring

29 3390646 Screw, 8−18 x 5/16

39 660936 Switch,

Push−To−Start

692021 (Alt.)

48 3396145 Timer Knob

& Dial

53 3396293 Bracket, Control

54 Panel, Control

3397192 White

3397193 Almond

72 690853 Wire, Ground

75 691707 Receptacle,

Latching (3−Way)

(Uses Terminal

94614)

81 3396160 Knob,

Push−To−Start

LITERATURE PARTS

LIT3396303 Guide, Use & Care

LIT3395332 Instructions,

Installation

LIT3399125 Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818 Dryer

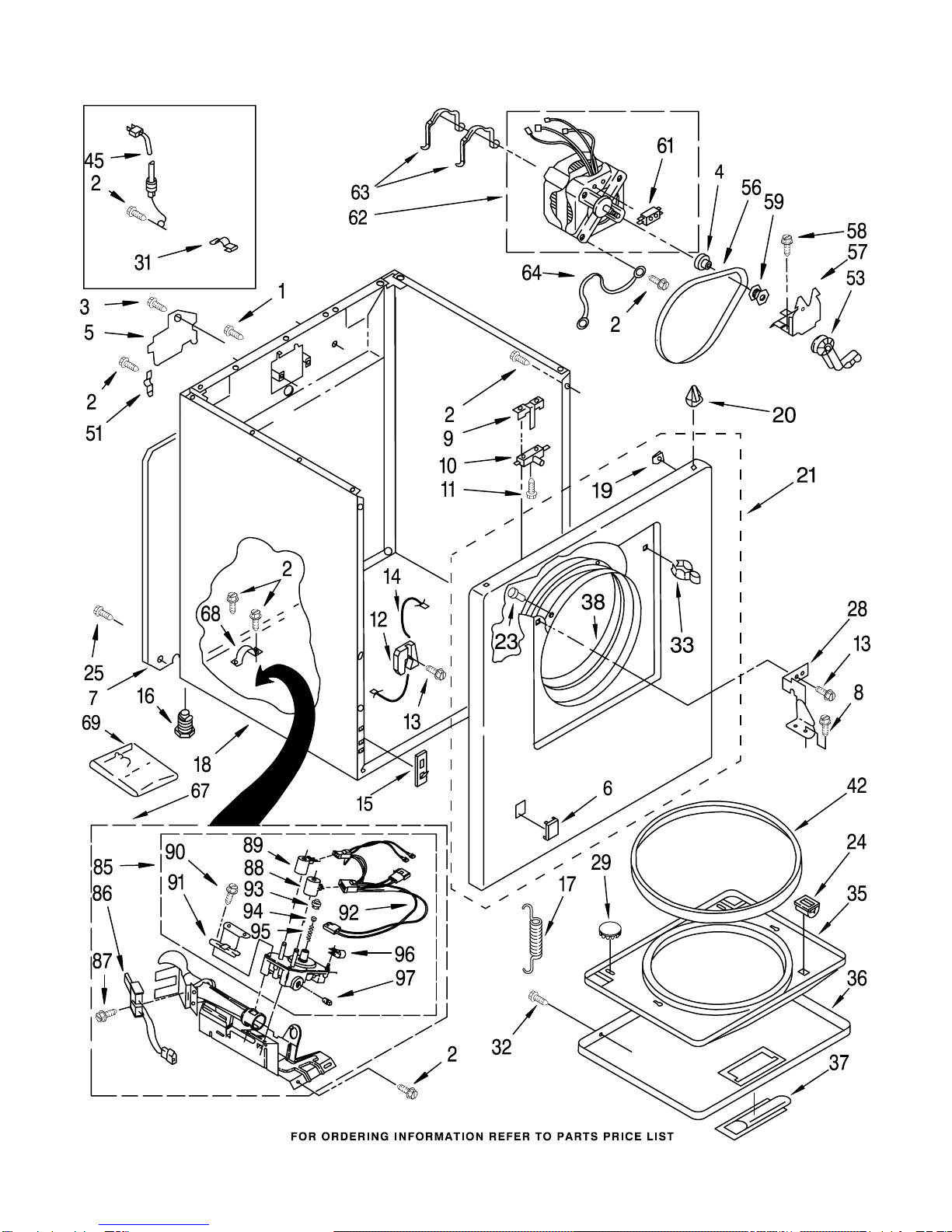

CABINET PARTS

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

4377133

CABINET PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

44377133

1 697776 Screw, 10−16 x 1/2

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex Head

4 3393657 Restrainer, Belt

5 690893 Cover, Block

6 Plug, Front Panel

3394975 White

3394976 Almond

7 347736 Panel, Rear

8 688160 Screw, 8−15 x 1/2

9 691581 Clip, Door Switch

10 347207 Switch, Door

11 98129 Screw,

6−20 x 7/8 (2)

12 337182 Guide, Cable(L.H.)

337183 Guide, Cable(R.H.)

13 339493 Screw

14 230131 Cable, Door (2)

15 3394083 Clip, Front Panel

16 3392100 Foot, Dryer (4)

17 337186 Spring, Door

18 Cabinet

3394109 White

3394110 Almond

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 Front Panel

Assembly

3394890 White

3394891 Almond

23 685203 Clip, Felt Pad

24 690081 Catch, Door

25 693994 Screw, Hex Head

28 238456 Hinge, Door(R.H.)

238460 Hinge, Door(L.H.)

29 660975 Plug

31 98997 Clip, Harness

32 694091 Screw

33 696144 Strike, Door

35 695953 Door, Rear

36 Door, Front

348737 White

689485 Almond

37 Handle, Door

690270 White

690271 Almond

38 349462 Seal & Bearing

Assembly

42 3390734 Seal, Door

45 344020 Cord, Power

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3389627 Pulley, 60 Hz.

61 3388235 Switch, Motor

62 3391886 Motor, 60 Hz.

(Pulley Not

Included With

Motor)

63 660658 Clamp, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 690236 Wire, Ground

(Motor)

67 694670 Burner Assembly,

60 Hz.

(Refer To Pages

5 & 6 For Further

Breakdown)

68 341029 Clamp, Pipe

69 694572 Kit, Conversion

(Type 1, 2 & 3

To Type 4)

85 694054 Valve, Gas

60 Hz.

(Complete)

86 686590 Ignitor

87 3393909 Screw & Washer

88 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

89 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

90 694421 Screw, Bracket

Mounting

(8−32 x 1/2)

91 694538 Bracket, Coil

92 694426 Harness, Wiring

93 694424 Leak Limiter

94 694423 Screw, Regulator

Adjustment

95 694422 Spring, Regulator

96 694510 Clip, Harness

97 239822 Plug, Pipe

BA−110−D

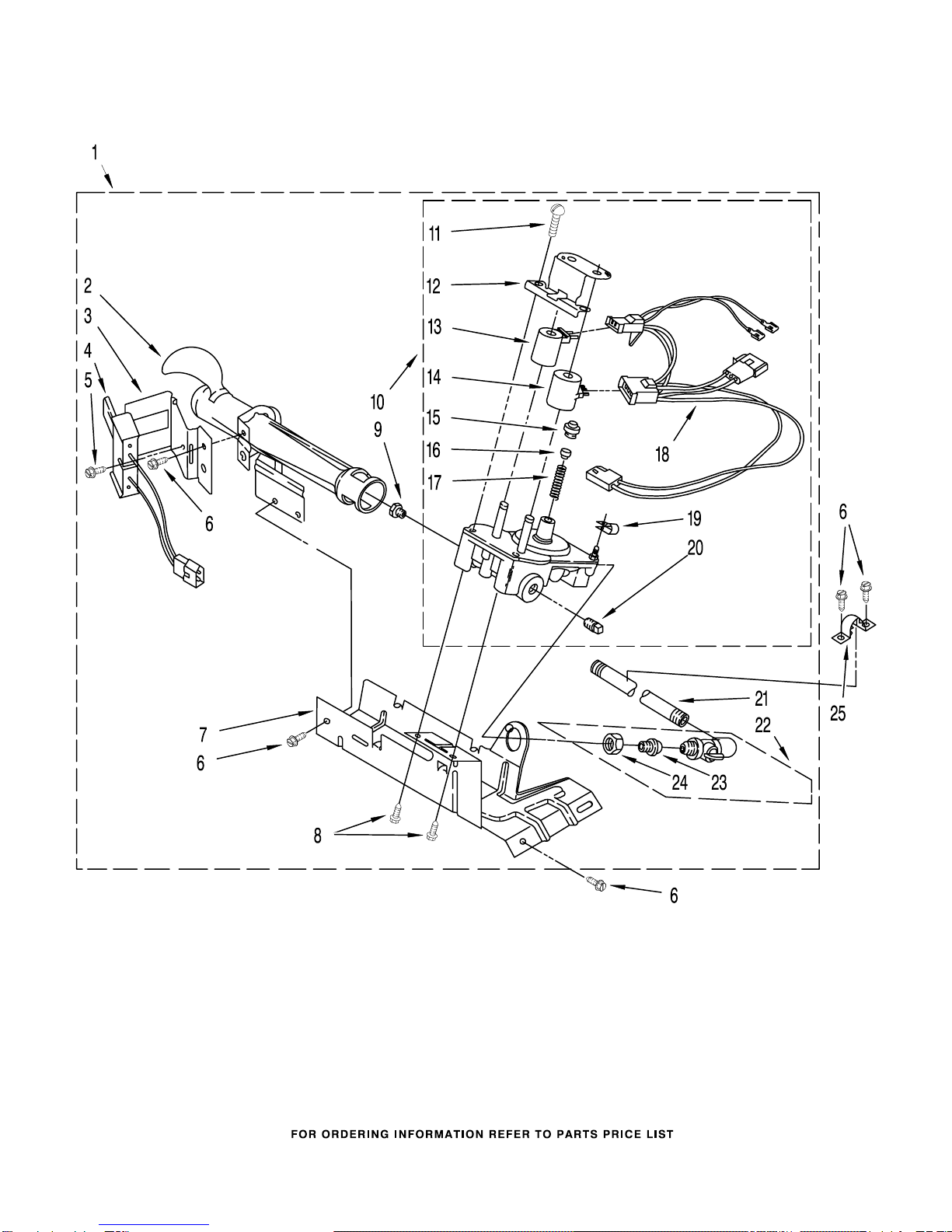

694670 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

4377133

Illus. Part

No. No. DESCRIPTION

694670 BURNER ASSEMBLY

1 694670 Burner Assembly

60 Hz.

(Type 1, 2 & 3)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 660991 Ignitor

686590 (Alt.)

5 686953 Screw & Washer

(8−32 x 5/8)

6 343641 Screw, 10−16 x 1/2

7 693986 Base, Burner

8 339527 Screw,

8−32 x 3/8 (2)

9 Orifice, Burner

3394361 Type 1

15775 Type 2

15419 Type 3

229742 Type 4 (Butane)

234868 Type 4 (Propane)

10 694054 Valve, 60 Hz.

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 694426 Harness, Wiring

(Complete)

19 694510 Clip, Harness

20 239822 Plug, Pipe

21 233273 Pipe, Gas Supply

22 345062 Valve & Union,

Shut−Off

23 3393767 Pipe, Tail

24 233076 Nut, Compression

25 341029 Clamp, Pipe

694572 Conversion Kit

(Type 1, 2 & 3)

to Type (4) L.P.G.

Following Parts Not Illustrated

BA−110−D

USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED

AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

64377133

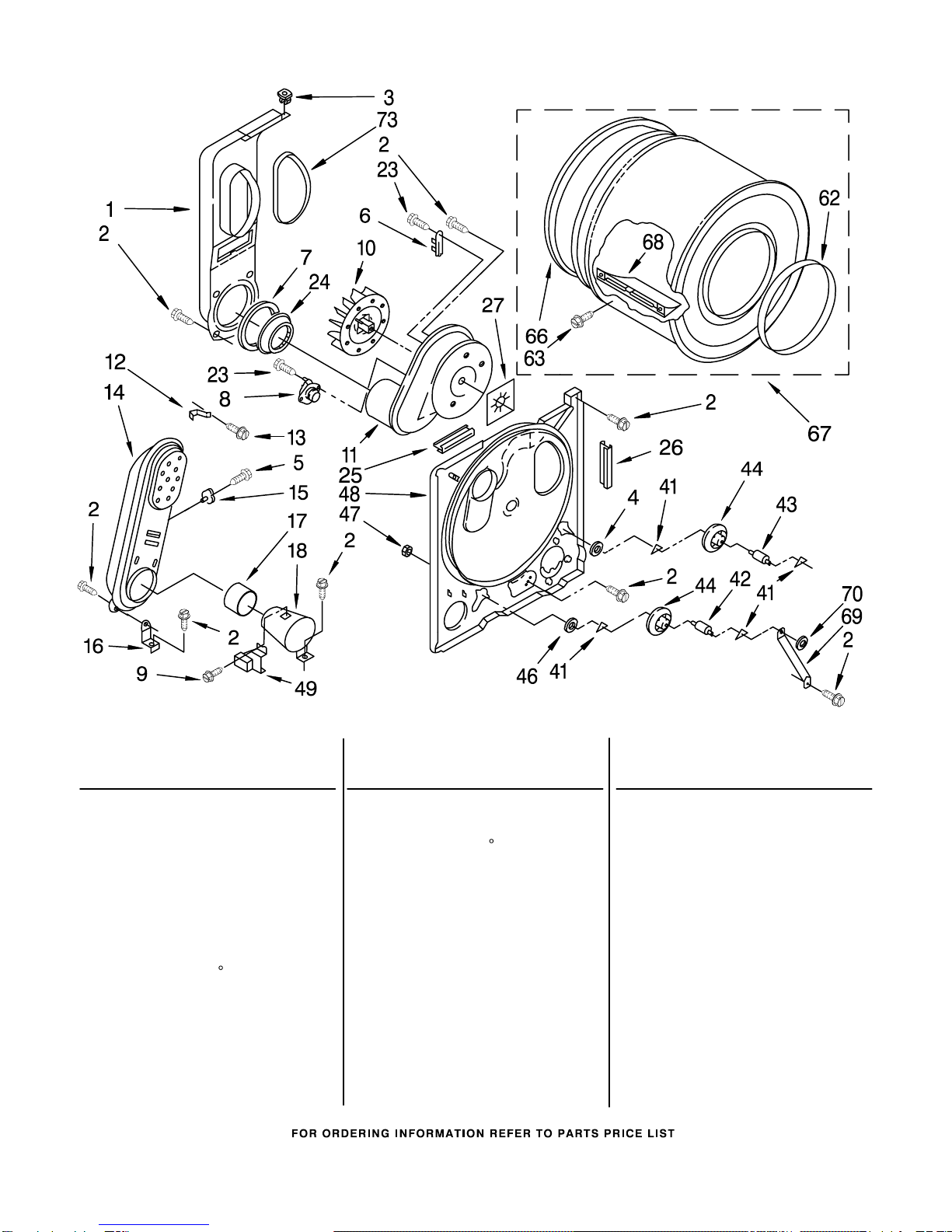

BULKHEAD PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: LGR4624BW0, LGR4624BN0

(White) (Almond)

4377133

1 694283 Lint Chute

Assembly

2 343641 Screw, 10−16 x 1/2

3 98460 Nut, Push−In

4 3388703 Washer, Support

5 90767 Screw, 8A x 3/8

6 3392519 Fuse, Thermal

7 347139 Seal, Lint

Chute

8 660039 Thermostat,

150 F / 66C

9 339554 Screw

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 687128 Screw, 10−16 x 1/2

14 685458 Box, Heater

15 3388697 Thermostat,

205 F (96C)

16 337445 Support, Heater

Box (2)

17 337450 Collar, Funnel

18 347389 Funnel, Burner

23 695239 Screw, 8−18 x 3/8

24 696302 Shield, Exhaust

25 686889 Pad, Cabinet

26 3392247 Pad, Blower

Housing

27 3392123 Seal, Blower

Shaft

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 685775 Bulkhead

49 338906 Sensor, Radiant

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal
