Whirlpool LE6090XSW1 Manuale utente

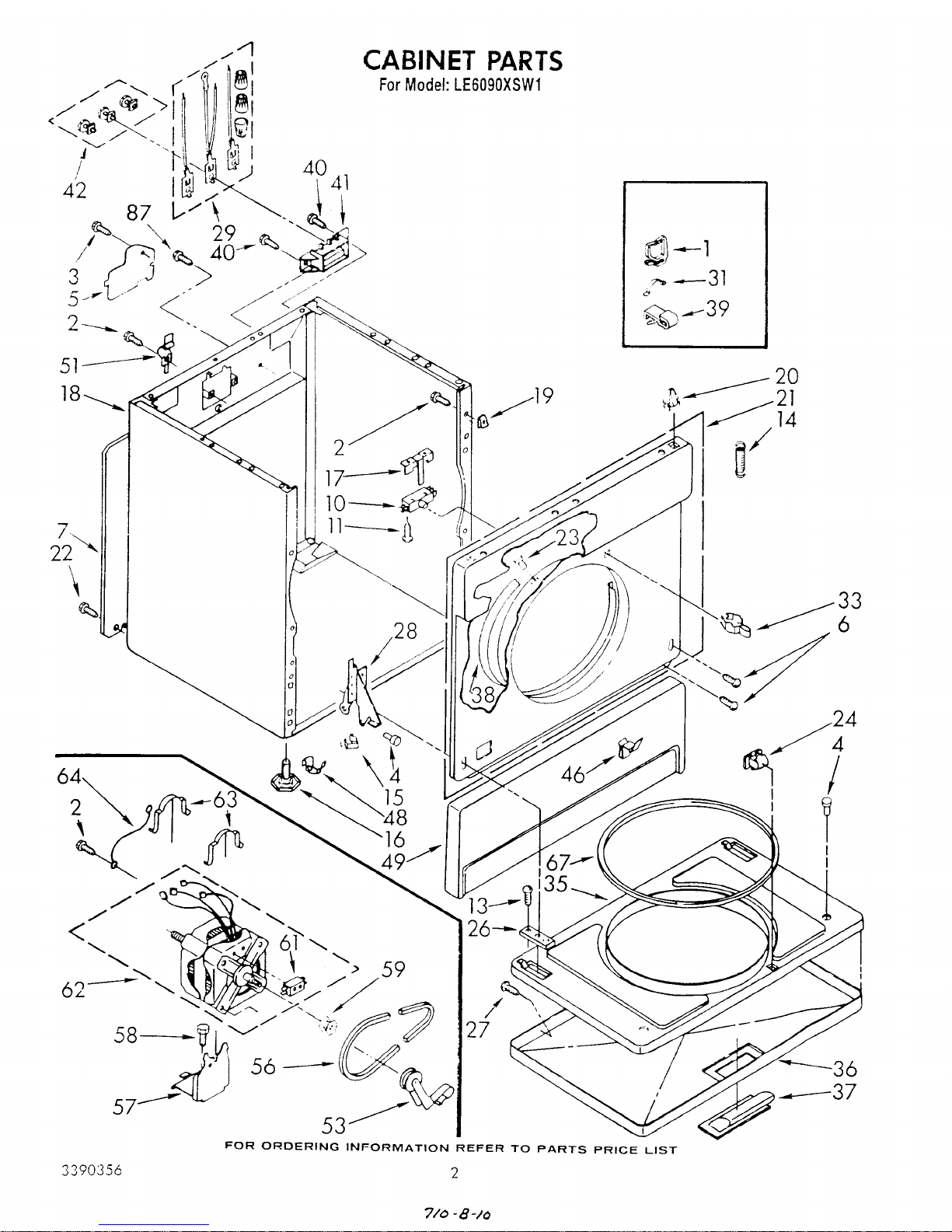

1 688412 Clip, Harness

2 343641 Screw, 10-16 x 1/2

3 693995 Screw, Hex Washer Head

4 238614 Bumper

5 690893 Cover, Terminal Block

6 342043 Screw, 10-32 x 1/2

7 346368 Panel, Rear

10 687428 Switch, Door

11 98129 Screw, 6-20 x 7/8 (2)

13 98518 Screw, 10-12 x 1/2

14 237979 Spring, Door (2)

15 342601 Clip, Toe Panel (2)

16 688222 Foot (4)

17 295998 Lever, Door Switch

18 Cabinet

690847 White

690848 Almond

690851 Golden Harvest

694874 Toast

694875 Platinum

19 98234 Clip, Ground (2)

20 688904 Lock, Front Top (2)

21 Panel Assembly, Upper Front

338012 White

689533 Almond

689535 Golden Harvest

695026 Toast

695027 Platinum

22 693994 Screw, Hex Washer Head (7)

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

26 337189 Clip, Hinge (2)

27 694091 Screw (6)

28 687905 Hinge, R.H.

687906 Hinge, L.H.

29 279318 Terminal, Tinned & Brass (3) (Includes Illus. 42)

31 98997 Clip, Harness

33 696144 Strike, Door

35 695954 Door, Rear

36 Door, Front

348728 White

689330 Almond

689333 Golden Harvest

695034 Toast

695035 Platinum

37 Handle, Door

690270 White

690271 Almond

690274 Golden Harvest

695014 Toast

695015 Platinum

38 349464 Seal & Bearing Assembly

39 689180 Clip, Harness (Door Switch Leads)

40 9416643 Screw

41 690261 Block, Terminal

42 279393 Terminal Block Kit For Terminal Block

46 341776 Clip, Toe Panel Lock

48 297092 Clip, Hinge (2)

49 Panel, Toe

692427 White

692428 Almond

692431 Golden Harvest

695142 Toast

695143 Platinum

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt, 5/16-18 x 3/4

59 694871 Pulley, 60 Hz.

61 337351 Switch (Use W/695075 Motor)

62 695075 Motor Assembly, 60 Hz.

63 660658 Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

64 690236 Wire, Ground

67 685762 Seal, Door

87 690989 Screw, 10-32 x 1/2 (Grounding)

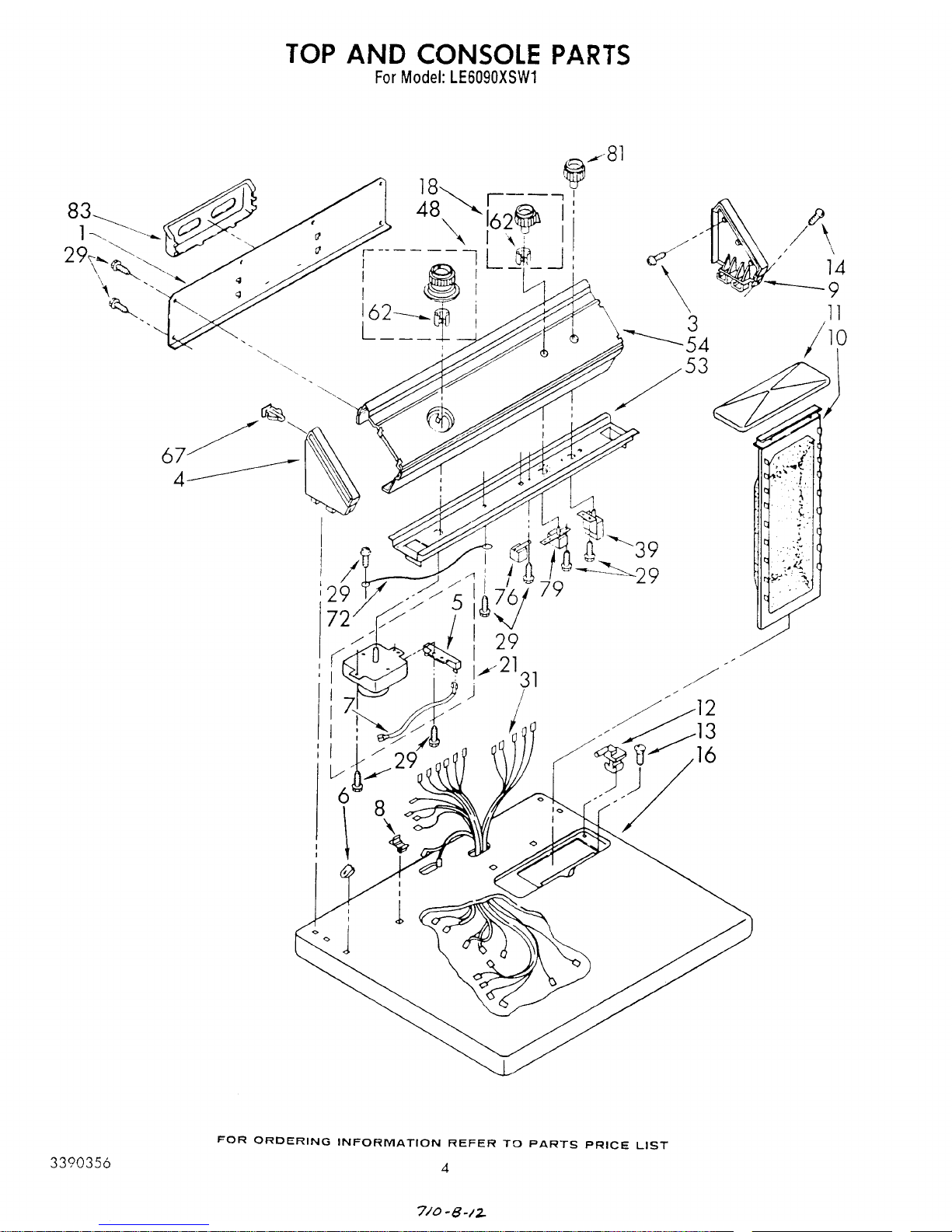

1 386367 Panel, Rear Console

3 355326 Screw, 13-16 x 5/8

4 63789 Cap, End (L.H.)

5 61806 Resistor, Timer

6 358473 Stop, Push-In

7 696098 Wire, Jumper

8 358472 Nut, Push-In (2)

9 63795 Cap, End (R.H.)

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

689313 Golden Harvest

695022 Toast

695023 Platinum

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8-18 x 5/8

14 64211 Screw, End Cap

16 Top

695507 White

695508 Almond

695509 Golden Harvest

695510 Toast

695511 Platinum

18 386638 Knob, Temperature Selector

21 696434 Timer & Resistor Assembly, 60 Hz.

29 343641 Screw, 10-16 x 1/2

31 697652 Harness, Wiring

39 660936 Switch, Push-To-Start

346364 (Alt.)

692021 (Alt.)

48 3387901 Timer Knob & Dial Assembly

53 386627 Bracket, Control

54 3388006 Panel, Control

62 688805 Clip

67 689559 Nut, Push-In (4)

72 690853 Wire, Ground

76 694419 Buzzer

79 696321 Switch, Rotary (Temperature Selector)

81 3387976 Knob, Push To Start

83 63020 Rack, Literature

LITERATURE PARTS

LIT693849 Guide, Dryer

LIT3390212 Use & Care Guide

LIT3389444 Instructions, Installation

LIT3390356 List, Service Parts

OPTIONAL PARTS NOT INCLUDED

PAINTS

PAINT,TOUCH UP (1/2 oz.)

72017 White

72107 Almond

72110 Golden Harvest

72112 Toast

72113 Platinum

PAINT PRESSURIZED SPRAY (13 oz.)

350930 White

350956 Almond

261890 Golden Harvest

285365 Toast

285366 Platinum

350938 Primer, Gray

350941 Leveler (Thinner)

PAINT,BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest (Uncut)

285367 Toast (Uncut)

285368 Platinum (Uncut)

Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS

LITERATURE PARTS

LIT677813 Automatic Washer (Belt Drive)

LIT677818 Dryer

LIT677821 Compactor

LIT677967 Dishwasher

LIT677971 Ice Maker (In Refrigerator)

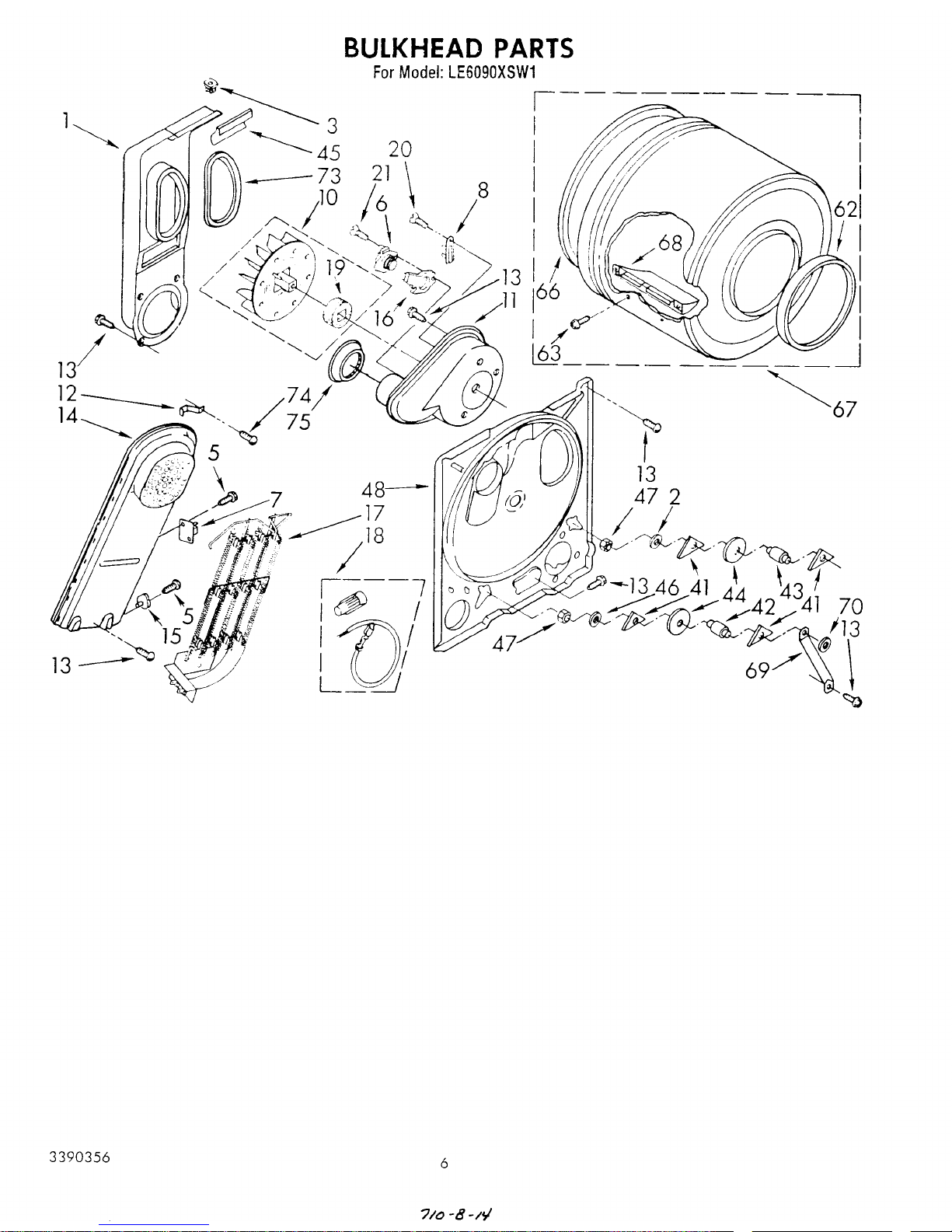

1 694283 Lint Chute Assembly

2 3388703 Washer, Support

3 98460 Nut, Push-In (2)

5 90767 Screw,8x3/8

6 660039 Operating Thermostat, 150~F (66~C) (341146) (Alt.)

7 3389946 Thermal Cut-Off (Hi-Limit Thermostat Illus. No. 15 Included)

8 694511 Thermal Fuse

10 695499 Wheel, Blower

11 695081 Housing, Blower

12 337272 Clip

13 343641 Screw, 10-16 x 1/2

14 695547 Box, Heater

15 696397 Thermostat, (High Limit) 250~F (121.1~C)

16 61894 Heater, Thermostat

17 660982 Element, Heater (For 240 Volt Installation)

693300 (Alt.)

693062 (Alt.)

696326 Element, Heater (For 208 Volt Installation)

18 279457 Wire Kit (For Heater Element Wiring Harness Repair)

19 694630 Seal, Blower

20 695239 Screw, 8-18 x 3/8

21 695240 Screw, 8-18 x 1/2

41 690997 Ring, Tri

42 347364 Shaft, L.H.

43 339489 Shaft, R.H.

44 349241 Roller, Support

45 686770 Sup\port Pr\otector

46 348197 Washer Support

47 120377 Nut, 3/8-16

48 685775 Bulkhead

62 337651 Ring, Bearing

63 690372 Screw, 11-16 x 7/8

66 337449 Seal, Rear Drum

67 697093 Drum Assembly

68 342847 Baffle, Drum

69 348945 Bracket, Support

70 90296 Clip

73 339956 Seal

74 687128 Screw, 10-16 x 1/2

75 696302 Shield, Exhaust
