TOP AND CONSOLE PARTS

For Models: LEV5634AW1, LEV5634AW1, LEV5634AG1

(White) (Almond) (New Gold)

1−95 Litho in U.S.A. (tpm) Part No. 4377363

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LEV5634AW1, LEV5634AW1, LEV5634AG1

(White) (Almond) (New Gold)

4377363

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

3397545

Panel, Rear

Console

3396028

Wire−Jumper

Assembly

3390647

Screw, 8−18 x 1/2

Cap, End (L.H.)

3358531

White

3358532

Almond

3358533

New Gold

357213

Stop, Push−In

3388706

Resistor

689180

Clip, Retainer

Cap, End (R.H.)

3358516

White

3358517

Almond

3358518

New Gold

339392

Screen, Lint

Cover, Lint Screen

688150

White

689310

Almond

689313

New Gold

339229

Hinge, R.H.

339230

Hinge, L.H.

688983

Screw, 8−18 x 5/8

3353145

Screw, Console

3354281

Switch,

Temperature

Top

3396022

White

3396023

Almond

3396024

New Gold

693995

Screw, Hex

Washer Head

3358434

Knob, Temperature

Control

3395683

Connector

(Motor)

3394427

Clip, Harness

3392250

Timer 60 Hz.

3390646

Screw, 8−18 x 5/16

3399659

Harness, Wiring

3395382

Switch,

Push−To−Start

3396148

Timer Knob

& Dial Assembly

3396293

Bracket, Control

Panel, Control

3399002

White

3399003

Almond

3399004

New Gold

688805

Clip

690853

Wire, Ground

3396163

Knob, Push

To Start

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LITERATURE AND OPTIONAL PARTS

LIT3401083

Use & Care Guide

LIT3397597

Instructions,

Installation

LIT3399125

Label, Wiring

Diagram

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

72110

New Gold

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930

White

350956

Almond

261890

New Gold

350938

Primer, Gray

PAINT, BULK (1 qt.)

799344

White (Uncut)

978883

Almond (Uncut)

261891

New Gold (Uncut)

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

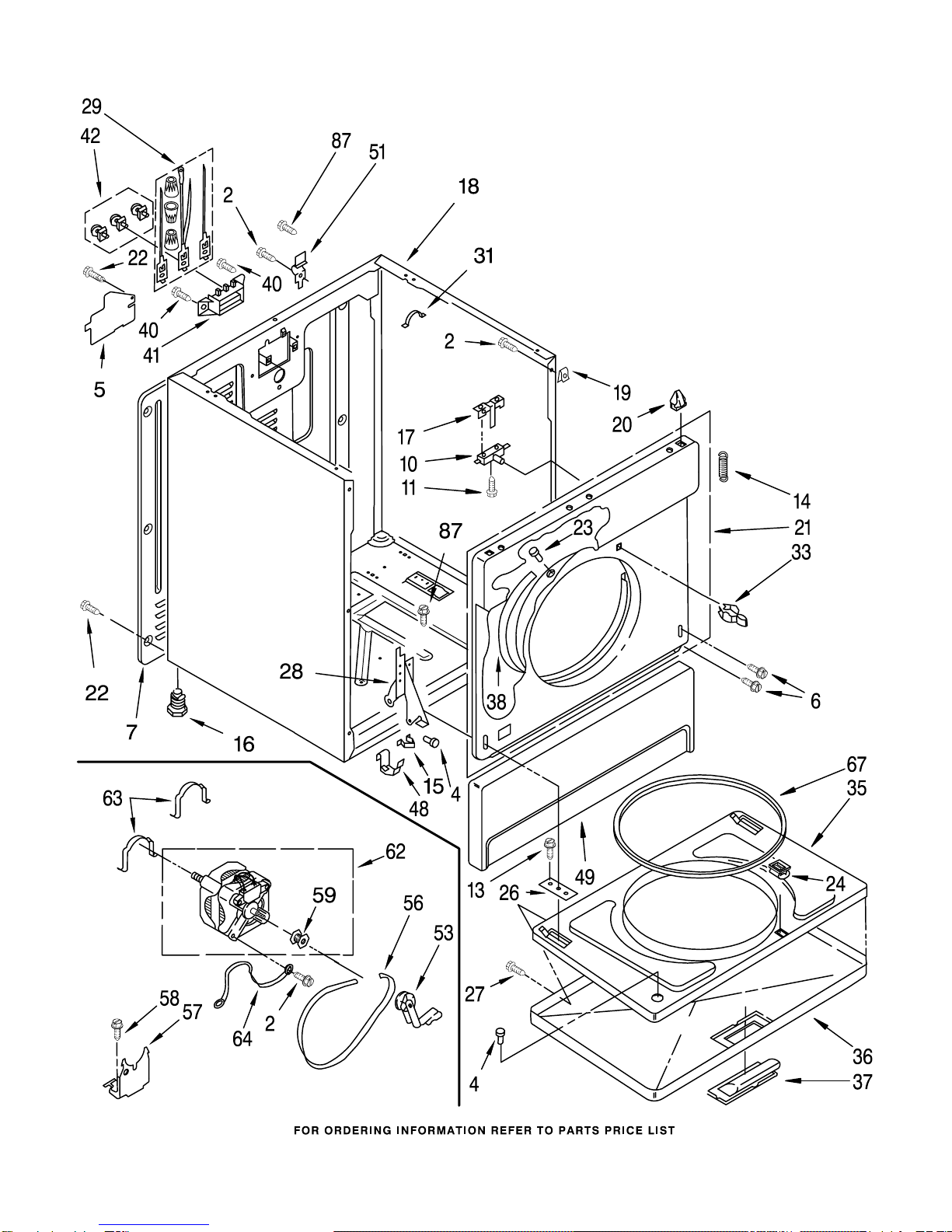

CABINET PARTS

For Models: LEV5634AW1, LEV5634AW1, LEV5634AG1

(White) (Almond) (New Gold)

4377363

CABINET PARTS

For Models: LEV5634AW1, LEV5634AW1, LEV5634AG1

(White) (Almond) (New Gold)

4377363

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

343641

Screw, 10−16 x 1/2

238614

Bumper

3396795

Cover, Terminal

Block

342043

Screw, 10−32 x 1/2

3396807

Panel, Rear

347207

Switch, Door

98129

Screw,

6−20 x 7/8 (2)

3357011

Screw, 10−16 x 1/2

237979

Spring, Door (2)

3388229

Clip, Toe Panel (2)

3392100

Foot

279810

Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

691581

Lever, Door

Switch

Cabinet

3399580

White

3399581

Almond

3399584

New Gold

98234

Clip, Ground (2)

690363

Lock, Front Top (2)

Panel Assembly,

Upper Front

338012

White

689533

Almond

689535

New Gold

693994

Screw, Hex

Washer Head (7)

685203

Clip, Felt Pad (2)

690081

Catch, Door

337189

Clip, Hinge (2)

694091

Screw (6)

687905

Hinge, R.H.

687906

Hinge, L.H.

279318

Terminal, Tinned

& Brass (3)

(Includes Illus. 42)

98997

Clip, Harness

696144

Strike, Door

695954

Door, Rear

Door, Front

348728

White

689330

Almond

689333

New Gold

Handle, Door

690270

White

690271

Almond

690274

New Gold

349464

Seal & Bearing

Assembly

3393008

Screw

690261

Block, Terminal

279393

Terminal Block

Kit For

Terminal Block

297092

Clip, Hinge (2)

Panel, Toe

692427

White

692428

Almond

692431

New Gold

238088

Hinge, Top (2)

691366

Idler & Pulley

Assembly

660996

Belt, Drive

348780

Base, Motor

172455

Bolt,

5/16−18 x 3/4

3401143

Pulley, 60 Hz.

3395652

Motor Assembly,

60 Hz.

660658

Clip, Motor (2)

343481 (Alt.)

685441 (Alt.)

690236

Wire, Ground

3390733

Seal, Door

697776

Screw, 10−32 x 1/2

(Grounding)

BULKHEAD PARTS

For Models: LEV5634AW1, LEV5634AW1, LEV5634AG1

(White) (Almond) (New Gold)

4377363

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

694283

Lint Chute

Assembly

3400800

Screw, 8−18 x 3/4

3392247

Pad, Cabinet

(Blower Housing)

90767

Screw, 8 x 3/8

3387134

Thermostat,

Internal−Bias

3398671

Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No. 15 Included)

3392519

Thermal Fuse

3388703

Washer, Support

694089

Wheel, Blower

(Includes Illus.

No. 19)

695081

Housing, Blower

3398161

Clip

343641

Screw, 10−16 x 1/2

695547

Box, Heater

3390291

Thermostat,

(High Limit)

250 F

(121.1 C)

660982

Element, Heater

(For 240 Volt

Installation)

693300 (Alt.)

693062 (Alt.)

279457

Wire Kit (For

Heater Element

Wiring Harness

Repair)

3392123

Seal, Blower

347139

Seal, Lint

Chute

690997

Ring, Tri

3399506

Shaft, L.H.

3399507

Shaft, R.H.

3397588

Roller, Support

348197

Washer

Support

3359452

Nut, 3/8−16

3397264

Bulkhead

3394509

Ring, Bearing

97787

Screw, 11−16 x 7/8

337449

Seal, Rear Drum

3396777

Drum Assembly

342847

Baffle, Drum

3394133

Bracket, Support

90296

Clip

339956

Seal

3390663

Screw, 10−16 x 1/2

696302

Shield, Exhaust
