Whirlpool LE9805XPW0 Manuale utente

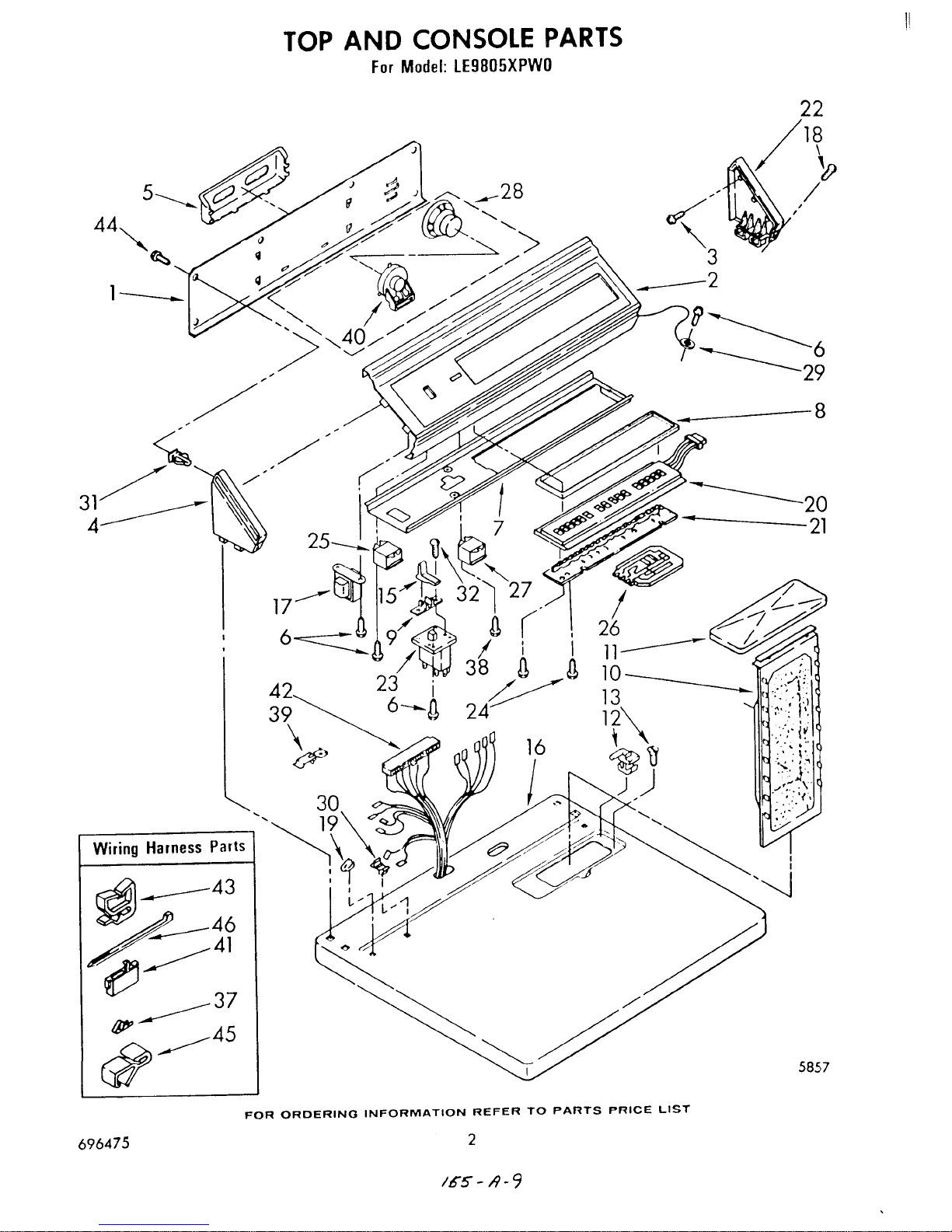

1 696198 Panel, Rear Console
2 386795 Panel, Control
3 355326 Screw, 13-16 x 5/8 (4)
4 63789 End Cap (L.H.)
5 63020 Rack, Literature
6 343641 Screw, 10-16 x 1/2
7 696004 Bracket, Control
8 359787 Trim, Frame
9 358563 Pivot, Lever
10 349639 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
689313 Golden Harvest
695022 Toast
695023 Platinum
12 Hinge, Cover
339229 R.H.
339230 L.H.
13 688983 Screw, 8-18 x 5/8
15 358564 Lever
16 Top
695507 White
695508 Almond
695509 Golden Harvest
695510 Toast
695511 Platinum
17 60996 Transformer
18 64211 Screw, 8-18 (2)
19 358473 Stop, Push-In (2)
20 693263 Module, Touch
21 61292 Display Assembly
22 63795 Cap End (R.H.)
23 691359 Relay, Start-To-Stop
24 690756 Screw, No. 8 Hi-Lo
25 691360 Relay, Power
26 61203 Microcomputer Assembly
27 693891 Relay, Motor
28 359201 Speaker & Housing
29 690853 Wire, Ground
30 358472 Nut, Push-In (2)
31 689559 Clip, Push-On (4)
32 358644 Screw
37 60279 Terminal
38 339583 Screw, 6-20 x 1/2
39 357144 Clip, Wire (Tech Sheet/Top)
40 359188 Housing, Speaker
41 60278 Connector
42 694295 Harness, Electric
43 688412 Clip, Harness (Rear Bulkhead Area)
44 693994 Screw, Hex Washer Head
45 689180 Clip, Harness Retainer (Door Switch Wires)
46 685963 Tie, Wire (Console Harness Area)
LIT696234 Instructions, Installation
LIT694124 Tech Sheet (Service Information)
LIT693849 Guide, Dryer
LIT696211 Use & Care Guide
LIT691455 Label, Operating Instruction
LIT696475 List, Service Parts
OPTIONAL PARTS NOT INCLUDED
FOLLOWING PARTS NOT ILLUSTRATED
PAINTS
PAINT,TOUCH UP (1/2 oz.)
72017 White
72107 Almond
72110 Golden Harvest
72112 Toast
72113 Platinum
PAINT PRESSURIZED SPRAY (13 oz.)
350930 White
350956 Almond
261890 Golden Harvest
285365 Toast
285366 Platinum
350938 Primer, Gray
350941 Leveler (Thinner)
PAINT,BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
261891 Golden Harvest (Uncut)
285367 Toast (Uncut)
285368 Platinum (Uncut)
Following May Be Purchased: DO-IT-YOURSELF-REPAIR-MANUALS
LITERATURE PARTS
LIT677813 Automatic Washer (Belt Drive)
LIT677818 Dryer
LIT677821 Compactor
LIT677967 Dishwasher
LIT677971 Ice Maker (In Refrigerator)

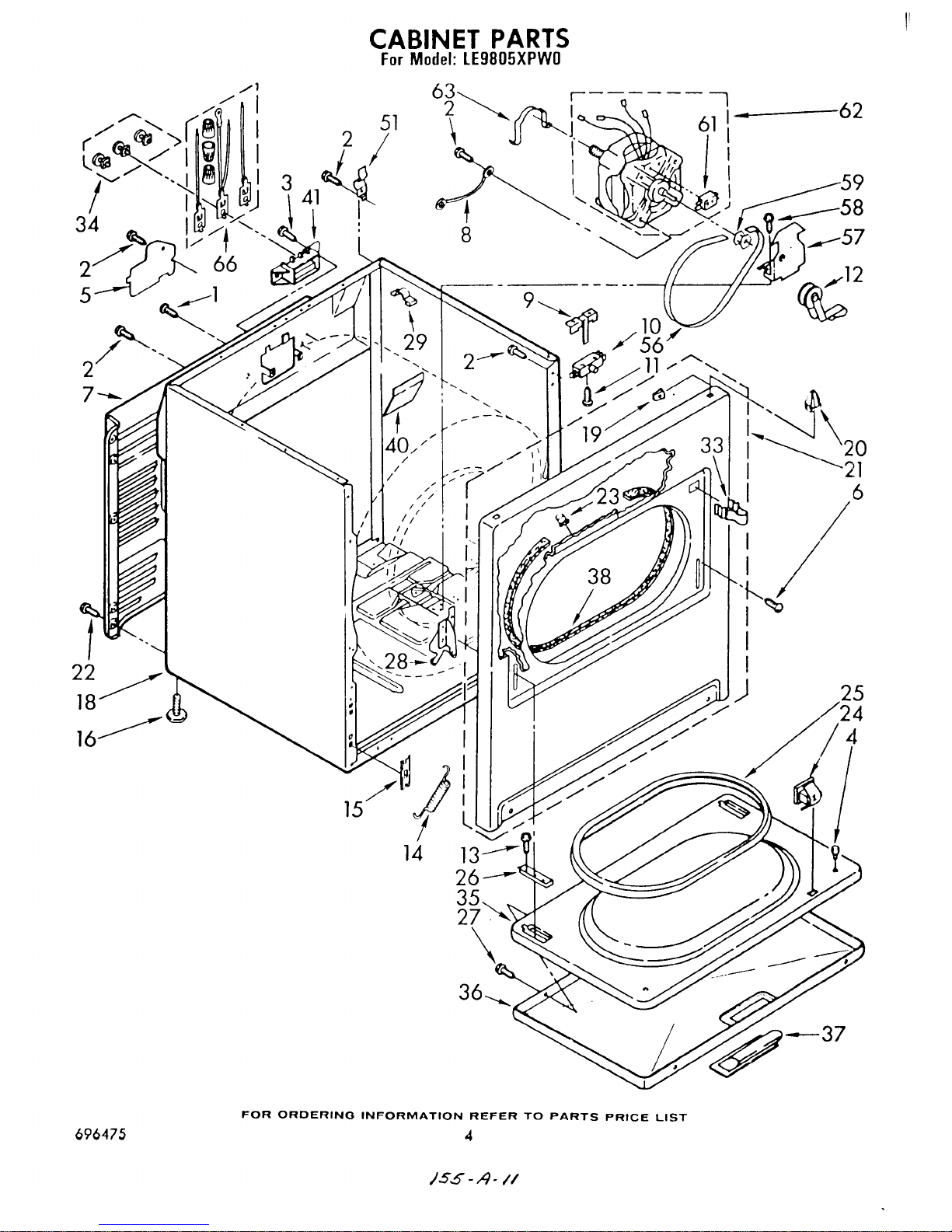

1 690989 Screw, 10-32 x 1/2
2 693995 Screw, Hex Washer Head
3 9416643 Screw, 10-16 x 1/2
4 238614 Bumper (2)
5 690893 Cover, Block Terminal
6 342043 Screw, 10-32 x 1/2
7 348365 Panel, Rear
8 690236 Wire, Ground
9 295998 Clip, Door Switch
10 691361 Switch, Door
11 98129 Screw, 6-20 x 1-3/8
12 691366 Idler & Pulley Assembly
13 98518 Screw, 10-12 x 1/2
14 692495 Spring, Door (2)
15 237823 Clip, Front Panel (2)
16 688222 Foot, Plastic Dryer (4)
18 Cabinet
690841 White
690842 Almond
690845 Golden Harvest
694876 Toast
694877 Platinum
19 98234 Clip, Ground (2)
20 688904 Lock, Front Top (2)
21 Panel, Front
695620 White
695621 Almond
695622 Golden Harvest
695623 Toast
695624 Platinum
22 693994 Screw, Hex Washer Head
23 685203 Clip, Felt Pad (2)
24 690081 Catch, Door
25 692494 Seal, Door
26 337189 Clip, Hinge (2)
27 694091 Screw
28 692498 Hinge, R.H.
692501 Hinge, L.H.
29 98997 Clip
33 696144 Strike, Door
34 279393 Terminal Block Kit (For Terminal Block)
35 695737 Door, Rear
36 Door, Front
692318 White
692319 Almond
692322 Golden Harvest
695130 Toast
695131 Platinum
37 Handle, Door
690265 White
690266 Almond
690269 Golden Harvest
695016 Toast
695017 Platinum
38 692493 Seal & Bearing Assembly
40 690262 Light Shield
41 690261 Block, Terminal
51 238088 Hinge, Top (2)
56 694416 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt, 5/16-18 x 3/4
59 694872 Pulley, Motor
61 337351 Switch, Motor Start (Use W/695075 Motor)
62 695075 Motor, Drive 60 Hz.
63 660658 Clamp, Motor (2)
343481 (Alt.)
685441 (Alt.)
66 279318 Terminal, Tinned & Brass (3) (Includes Illus. 34)
1 686214 Lint Chute Assembly
2 687128 Screw, 10-16 x 1/2
3 696302 Shield, Exhaust
4 347139 Seal
5 90767 Screw, 8A x 3/8
6 660877 Thermal Fuse
688841 (Alt.) 195~F (90.5~C)
690198 (Alt.) 183~F (84~C)
7 660073 Thermostat, 155~F (68~C)
341199 (Alt.)
299620 (Alt.)
8 690032 Thermostat, 150~F (66~C)
9 690031 Thermostat, 140~F (60~C)
10 695499 Wheel, Blower
11 348493 Housing, Blower
12 337272 Clip
13 343641 Screw, 10-16 x 1/2
14 685457 Box, Heater
15 341195 Thermostat, 250~F (121.1~C)
17 660982 Heater Element (For 240 Volt Installation)
693300 (Alt.)
693298 (Alt.)
693062 (Alt.)
696326 Element, Heater (For 208 Volt Installation)
18 279457 Terminal Wire Kit (For Heater Element Wiring Harness Repair)
19 686770 Support Protector
20 694630 Seal, Blower
21 690981 Alert, Lint
22 686577 Hose, Differential
41 690997 Tri Ring (4)
42 347364 Shaft, L.H.
43 339489 Shaft, R.H.
44 349241 Roller, Support
46 348197 Washer, Support
47 120377 Nut, 3/8-16
48 685821 Bulkhead
55 311255 Bulb
56 98460 Nut, Push-In(2)
59 691034 Socket Assembly
60 341165 Lens, Drum Light
62 279441 Ring, Bearing
63 690372 Screw, 11-16 x 7/8
64 348944 Bracket, Shaft
65 90296 Clip
66 347885 Seal, Rear
67 695587 Drum Assembly
68 692490 Baffle, Drum (Long) (2)
69 692491 Baffle, Drum (Short) (1)
73 339956 Seal
79 692990 Dry Rack Assembly
81 348861 Pad, Sensor
83 342267 Clip, Sensor (2)
90 348859 Electrode (Inside)
91 348860 Electrode (Outside)
92 298877 Washer, Insulating
