TOP AND CONSOLE PARTS

For Models: LER4624DQ0, LER4624DZ0

(Designer White) (Designer Almond)

5−95 Litho in U.S.A. (tpm) Part No. 4377501

ELECTRIC DRYER

TOP AND CONSOLE PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LER4624DQ0, LER4624DZ0

(Designer White) (Designer Almond)

4377501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3397545 Panel, Rear

Console

3 3390646 Screw,

8−18 x 5/16

4 Cap, End (L.H.)

3358528 White

3358529 Almond

5 689180 Clip, Retainer

6 3353145 Screw, Console

7 693995 Screw, Hex Head

8 Cap, End (R.H.)

3358513 White

3358514 Almond

9 688805 Clip

10 339392 Screen, Lint

11 Cover, Lint Screen

688150 White

689310 Almond

12 339229 Hinge, R.H.

339230 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 3388706 Resistor

15 3390647 Screw, 8−18 x 1/2

16 Top

3396022 White

3396023 Almond

17 3394427 Clip−Harness

18 3395683 Connector

(Motor)

19 3397269 Connector, Timer

21 3392250 Timer, 60 Hz.

30 357213 Nut, Push−In (2)

31 3399653 Harness, Wiring

39 3395382 Switch,

Push−To−Start

48 Timer Knob

Assembly

3396146 White

3396149 Almond

53 3396293 Bracket, Control

54 Panel, Control

3403652 White

3403653 Almond

72 690853 Wire, Ground

81 Knob, Push

To Start

3396161 White

3396164 Almond

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3401092

Guide, Use & Care

LIT3397597

Instructions,

Installation

LIT3401728

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

PAINT, PRESSURIZED SPRAY

(13 oz.)

350930 White

350956 Almond

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

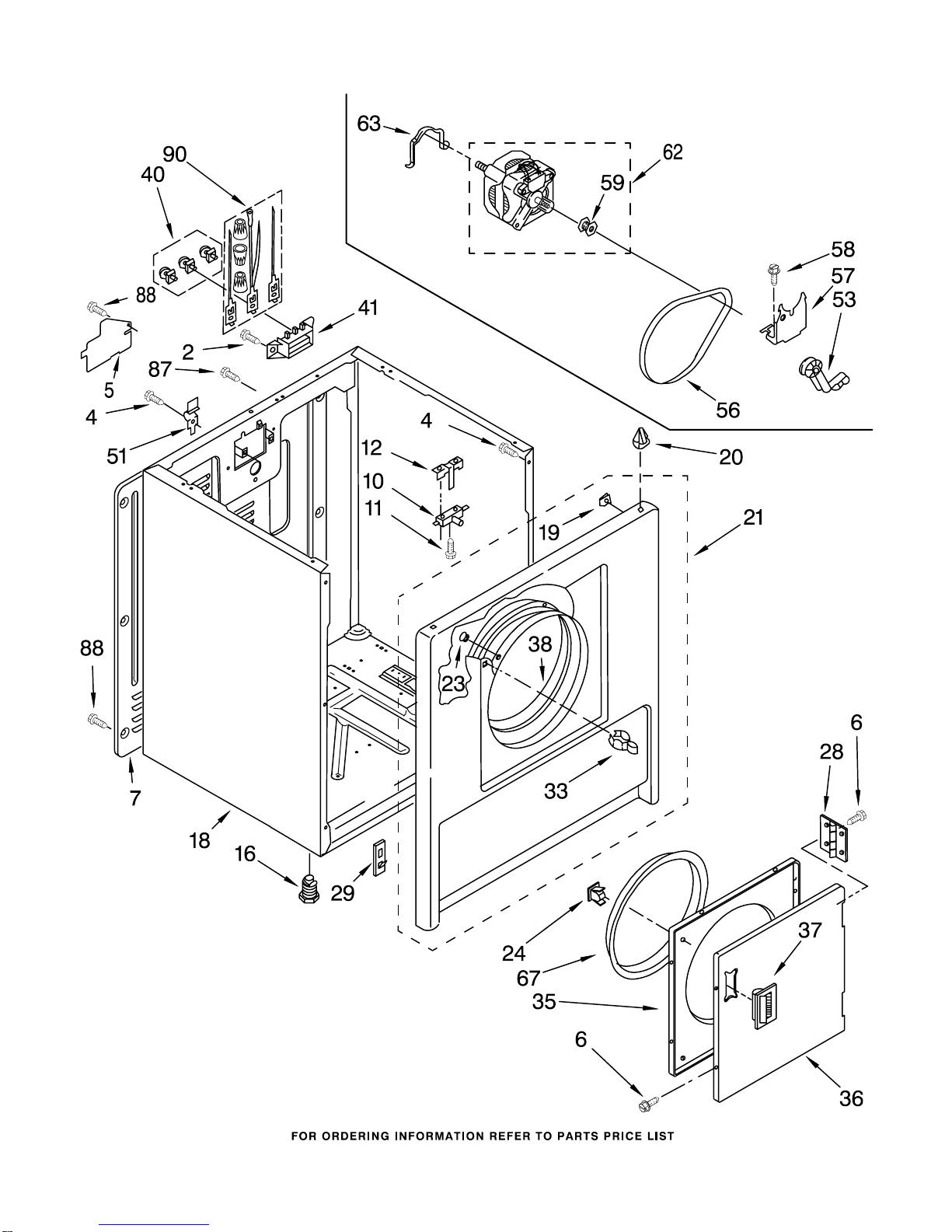

CABINET PARTS

For Models: LER4624DQ0, LER4624DZ0

(Designer White) (Designer Almond)

4377501

CABINET PARTS

For Models: LER4624DQ0, LER4624DZ0

(Designer White) (Designer Almond)

4377501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 3393008 Screw, 10−16 x 1/2

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 694091 Screw

7 3396807 Panel, Rear

10 347207 Switch, Door

11 98129 Screw,

6−20 x 1−3/8 (2)

12 691581 Lever, Door Switch

16 3392100 Foot Dryer

279810 Foot − Optional

(Extended Length

Package of 2)

(Not Included)

18 Cabinet

3399580 White

3399581 Almond

(Includes Illus.

Nos. 5,7,16,29

41 And 57.)

19 98234 Clip, Ground

20 690363 Lock, Front

Top (2)

21 Upper Front

Panel Assembly

693197 White

693198 Almond

23 685203 Clip, Felt Pad

24 3389441 Catch, Door

28 348023 Hinge and Pin

Assembly (2)

29 3394083 Clip, Front

Panel (2)

33 696144 Strike, Door

35 695656 Door, Rear

36 Door Front

348205 White

689314 Almond

37 Handle, Door

686711 White

689308 Almond

38 349462 Seal & Bearing

Assembly

40 279393 Terminal Block

Kit For

Terminal Block

41 690261 Block, Terminal

51 238088 Hinge, Top (2)

53 691366 Idler & Pulley

Assembly

56 660996 Belt, Drive

57 348780 Base, Motor

58 172455 Bolt,

5/16−18 x 3/4

59 3401143 Pulley, 60 Hz.

62 3395652 Motor Assembly

60 Hz.

63 660658 Clamp, Motor

343481 (Alt.)

685441 (Alt.)

67 3390734 Seal, Door

87 697776 Screw, 10−32 x 1/2

(External Ground)

88 693995 Screw, Hex Head

90 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 40)

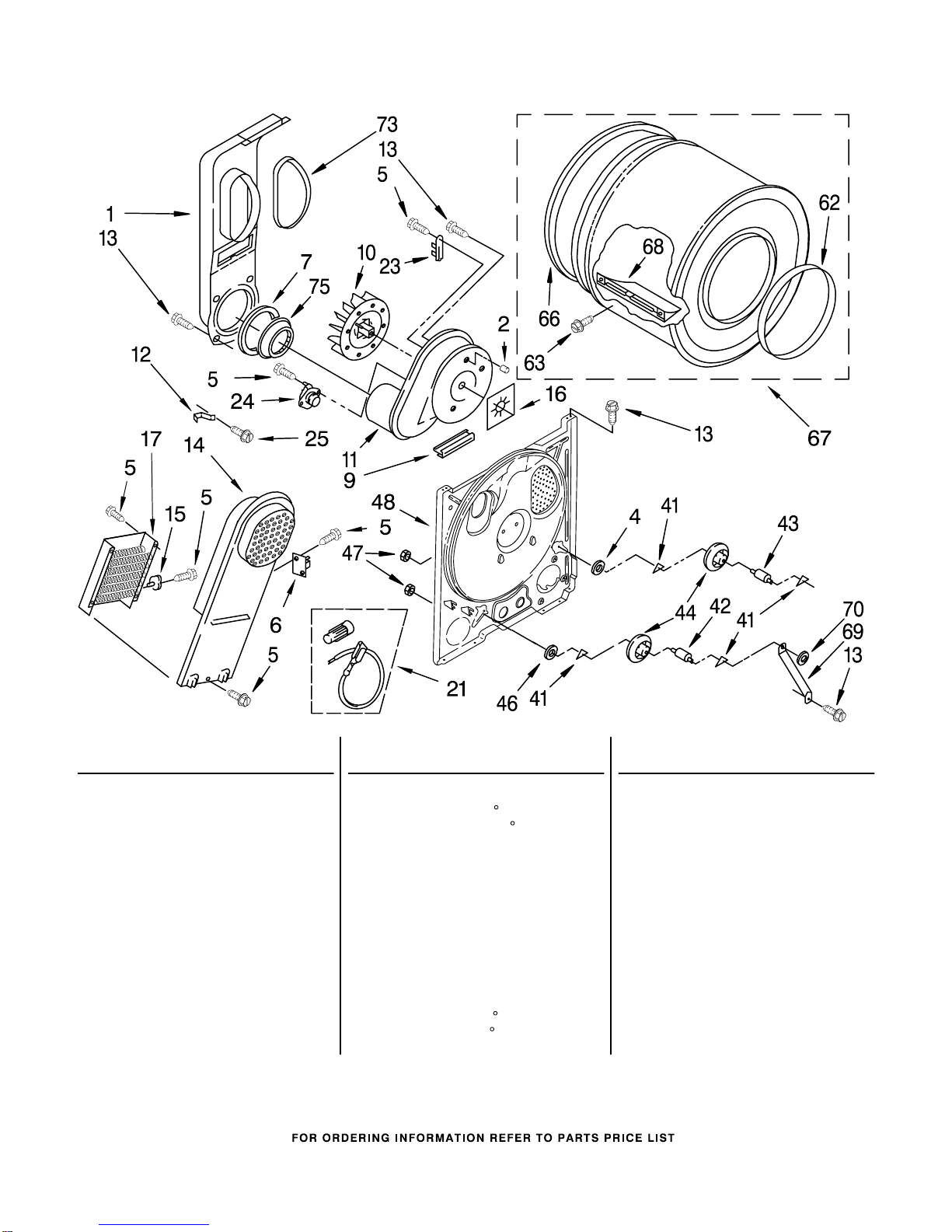

BULKHEAD PARTS

For Models: LER4624DQ0, LER4624DZ0

(Designer White) (Designer Almond)

4377501

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 359702 Cap, Screw

4 3388703 Washer, Support

5 90767 Screw, 8 x 3/8

6 3399848 Thermal Cut−Off

(Hi−Limit

Thermostat Illus.

No.15 Included)

7 347139 Seal, Lint

Chute

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

11 695081 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3390291 Thermostat,

250 F

(121.1 C) (60 Hz.)

16 3392123 Seal, Blower

Shaft

17 3398064 Element, Heater

(For 240 Volt

Installation)

21 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

23 3392519 Fuse, Thermal

24 660039 Thermostat,

150 F

(66 C)

25 3400800 Screw, 8−18 x 3/4

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer, Support

47 3359452 Nut, 3/8−16

48 3397264 Bulkhead

62 3394508 Ring, Bearing

63 97787 Screw, 11−16 x 7/8

66 337449 Seal, Rear Drum

67 3396775 Drum Assembly

68 342847 Baffle, Drum

69 3394133 Bracket, Support

70 90296 Clip

73 339956 Seal

75 696302 Shield, Exhaust
