TOP AND CONSOLE PARTS
1
27" GAS DRYER
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
10−09 Printed in U.S.A. (MP) (psw) Part No. W10177419 Rev. B
TOP AND CONSOLE PARTS
2W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10151582
Use & Care Guide
8578904 Guide,
Quick Start
8578834 Tech Sheet
2 Top
8563730 White
W10129703
Black
W10174561
Ocean Sapphire
3
W10110973
Harness, Main
4 Panel, Console
W10099598
White
W10099631
Black
W10182077
Ocean Sapphire
5 3394427 Clip, Harness
6 8565237 Bracket, Console
7 353424 Connector, Sensor
8 94614 Terminal
9 3936144 Plug, Terminal
10 94613 Terminal
11 3390647 Screw, 8−18 x 1/2
12 Knob
8574974 White
W10129067
Black
W10182079
Ocean Sapphire
13 8574968 Channel, Water
14
W10117943
Badge, Assembly
15 3395683 Connector,
(Motor)
16 3400238 Screw, 2−28 x 1/2
17 8571955 Assembly,
User Interface
18 3400238 Screw, 2−28 x 1/2

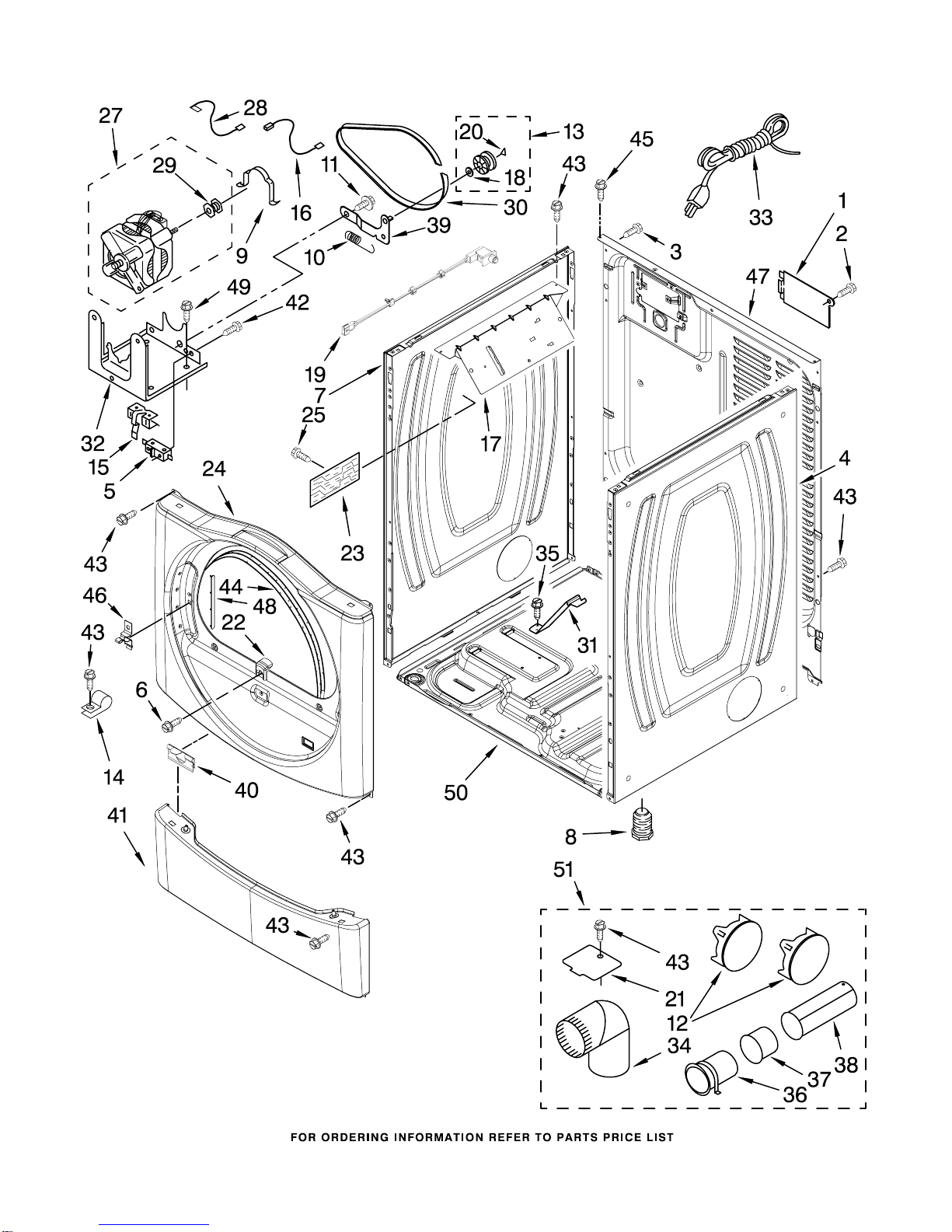

CABINET PARTS
3
W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
CABINET PARTS
4W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8317340 Cover,
Terminal Block
2 3390814 Screw, 8−18 x 3/8
3 8533974 Screw Ground
4 Panel, Side (R.H.)
8565048 White
W10112963
Black
W10174559
Ocean Sapphire
5 3394881 Switch, Broken
Belt
6 3357011 Screw, 10−16 x 1/2
7 Panel, Side (L.H.)
8565054 White
W10112962
Black
W10174558
Ocean Sapphire
8 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
9 660658 Clamp, Motor (2)
10 3387374 Spring, Idler
11 3389420 Retainer, Idler
12 Plug, Multivent
697750 White
3388309 Black
W10151499
Midnight Grey
13 3388672 Pulley Assembly
14 3978776 Bracket,
Gas Pipe
15 8066120 Lever, Snap
Switch
16 8066134 Wire, Belt Switch
17 8563727 Bracket, Control
18
W10121334
Washer, Thrust
19 8574875 Switch, Assembly
Door
20 690997 Tri Ring
21 8066115 Cover−Plate
22 8580015 Ramp, Door
23
W10111606
Control Board
24 Front Panel
(Includes
Illus. 44)
8580257 White
W10129648
Black
W10167863
Ocean Sapphire
25 8533971 Screw, 8−18 x 5/16
27 8538263 Motor Assembly
60 HZ.
28 3398948 Wire, Jumper
(Broken Belt
Switch)
29 8578220 Pulley 60 HZ.
30 3387610 Belt, Drive
31 8529757 Bracket, Burner
32 3387118 Bracket, Motor
33 3401401 Cord, Power
34 49026 4" − 90 Elbow
35 693995 Screw, 8−18 x 3/8
36 3395532 Exhaust Pipe
& Bracket
37 3395534 Exhaust Pipe
(Short)
38 3395535 Exhaust Pipe
(Long)
39 3388674 Idler Bracket
40 8519459 Clip, Toe Panel
41 Toe, Panel
8540621 White
W10112964
Black
W10174590
Ocean Sapphire
42 98129 Screw,
6−20 x 1 1/16
43 3390647 Screw, 8−18 x 1/2
44 3387242 Seal, Front Panel
45 3393008 Screw, 10−16 x 1/2
46 8565122 Strike, Door (1)
47 8565059 Panel, Rear
48 8565043 Plug, Strip
Front Panel
49 343641 Screw, 10−16 x 1/2
50 8565046 Base, Cabinet
Optional Parts Not Included
Dryer Exhaust Kit
(For Side & Bottom Venting)
51 279818 White
279820 Black
W10186596
Midnight Grey
BULKHEAD PARTS
5
W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
BULKHEAD PARTS
6W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8575325 Shaft, R.H. Thread
2 3390647 Screw, 8−18 x 1/2
3
W10153413
Door, Lint
Screen
4 3406653 Harness, Sensor
5 3394346 Air Duct Assembly
6 697813 Seal, Outlet
Housing
7 697814 Seal, Drum Front
8 3934666 Nut,3/8 x 16(R.H.)
9
W10049370
Lint, Screen
10 3402841 Lens,
Drum Light
11 359625 Screw, 8−18 x 1/2
12 8572105 Clip, Exhaust
Pipe
13 8533971 Screw, 8−18 x 5/16
14 697770 Seal, Cover Plate
15 693995 Screw, 8−18 x 3/8
16
W10001120
Nut, 3/8−16 (L.H.)
17
W10080170
Bulkhead, Rear
18 3387459 Washer, Support
19 8575324 Shaft, L.H. Thread
20 690997 Ring, Tri
21 8536973 Roller, Support
22 8563728 Exhaust Pipe
23
W10153423
Housing, Outlet
Assembly
24 489463 Screw, 8−18 x 5/8
25
W10153420
Complete Drum
Assembly
26
W10109200
Screw, 11−16 x 3/4
27 697694 Seal, Drum
28 3401850 Harness−Gas
29 90767 Screw, 8−18 x 3/8
30 3392519 Thermal Fuse
31
W10153412
Grille, Outlet
32 3401707 Wire Jumper
33 3406124 Bulb, Light
34 3387223 Electrode, Sensor
35 8578825 Bracket,
Drum Light
36
W10136369
Socket Assembly
37 697772 Wheel, Blower
38 8573713 Thermal Cut−Off
39 3394986 Spring, Lint
Screen Door
40 8066208 Clip−Spring
41 695240 Screw, 8−18 x 1/2
42 8577274 Thermistor
43 487909 Screw, 8−15 x 1/2
44 8544362 Housing, Blower
45 8066168 Lint Duct Assembly
46 8573824 Funnel, Burner
47 8573028 Thermostat,
High−Limit 205 F
(96 C)
48 338906 Sensor, Radiant
49 3387230 Screw, 10−16 x 1
50
W10153409
Baffle, Drum
51 8565061 Bulkhead, Front
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
8576353 BURNER ASSEMBLY
BA−153A
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
7
W10177419
Illus. Part
No. No. DESCRIPTION
BA−153A
8576353 BURNER ASSEMBLY
USE WITH TYPE 1 − NATURAL
AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES
1 8576353 Burner Assembly
60 Hz.
(Type 1)
(White Rodgers)
2 688617 Tube, Burner
3 694298 Bracket, Ignitor
4 686590 Ignitor
5 3393909 Screw & Washer
(8−32 x 7/8)
6 343641 Screw, 10−16 x 1/2
7 3389871 Base, Burner
8 3387057 Screw,
8−18 x 3/8
9 Orifice, Burner
15418 Type 1
15422 Type 4 (Butane)
234867 Type 4 (Propane)
10
W10118347
Valve, Gas
60 Hz. (Complete)
(Includes Pipe &
Illus. #7).
11 694421 Screw,
8−32 x 1/2 (2)
12 694538 Bracket, Coil
13 694540 Coil, 60 Hz.
(2 Terminal)
(Main)
14 694539 Coil, 60 Hz.
(Split)
(3 Terminal)
(Pilot Position)
15 694424 Leak, Limiter
16 694423 Screw, Regulator
Adjustment
17 694422 Spring, Regulator
18 3390647 Screw, 8−18 x 1/2
20 239822 Plug, Pipe
25 3387561 Clamp, Pipe
26 3389889 Bracket, Support
Following Parts Not Illustrated
8576846 Conversion Kit
(Type (1)
to Type (4) LPG).
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
8W10177419
DOOR PARTS
9
W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8565119 Plug Strip
2 8578887 Door Hinge
Assembly
3 3393258 Screw,
10−16 x 3/64
4 8534044 Screw, 8−18 x 1/2
5 Cover, Hinge
8571839 White
W10129722
Black
W10182078
Ocean Sapphire
6 8579663 Seal, Window
7 8534022 Screw, 8−18 x 1/16
8
W10159996
Screw,
10−24 x 3/64
9 Door Intermediate
Stationary
W10044180
White
W10044190
Grey
W10129704
Ocean Sapphire
10 8578933 Door Assembly
(Inner)
(Includes Illus.
1 & 14 )
11 355515 Screw,
8−18 x 11/16
12 Door, Outer Ring
8571836 White
W10129706
Black
W10182081
Ocean Sapphire
13 8565117 Window
14 690081 Door Catch
Assembly
15 8519354 Retainer−Lower
16 Door,
Intermediate
8571837 White
W10129710
Gray
17 8519356 Retainer−Upper
18 9742177 Screw (5)
OPTIONAL PARTS (NOT INCLUDED)
10 W10177419
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2
(White) (Black) (Ocean Sapphire)
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
72032 Black
W10202940
Ocean Sapphire
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350930 Black
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
799340 Black (Uncut)
ACCESSORY PARTS
8529894 Hold Down Kit
8563738 Dry Rack
8522199 Kit, Dryer
Vent Testing
80047 Kit,
Dryer Repair
