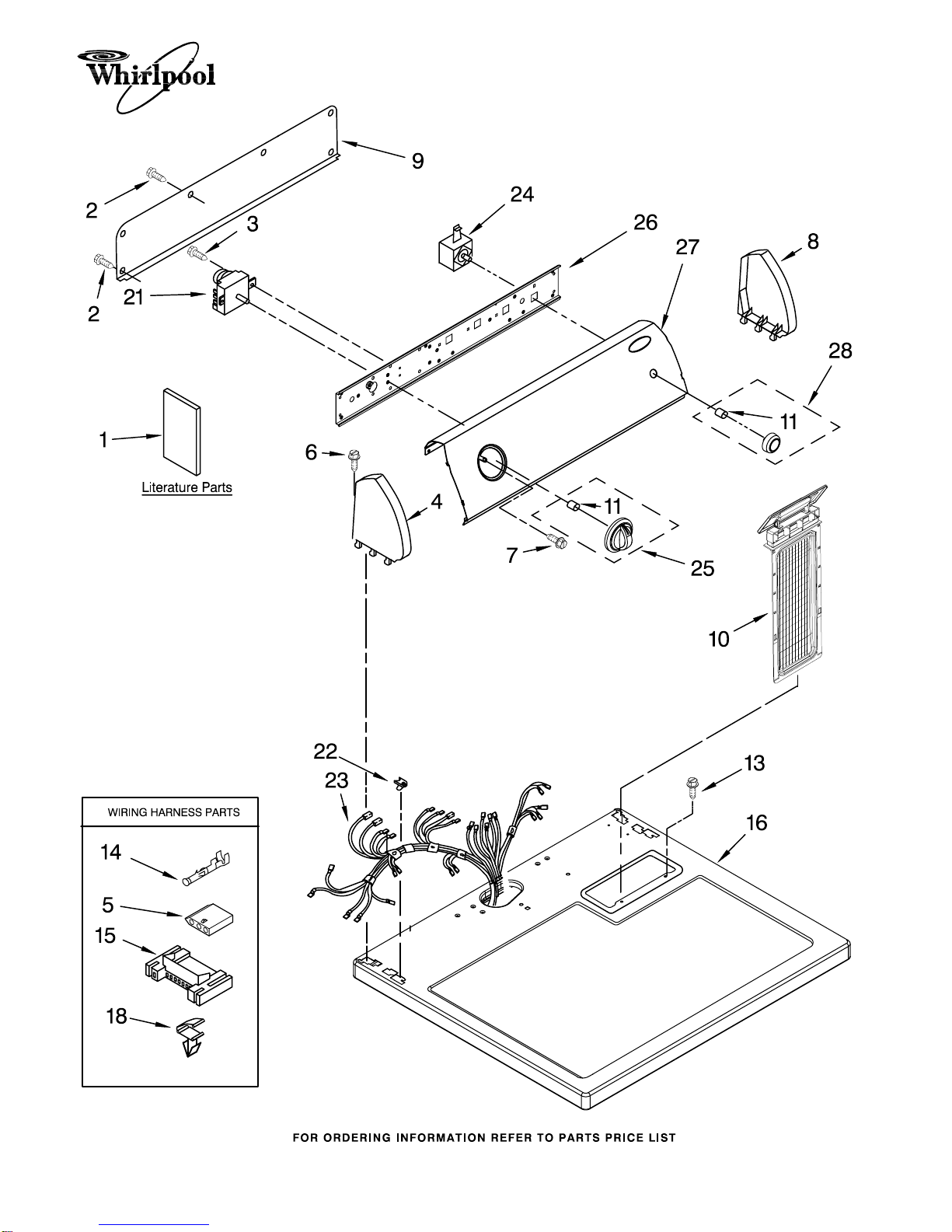

TOP AND CONSOLE PARTS

For Model: WED5100SQ0

(Designer White)

5−06 Litho in U.S.A. (LT) Part No. 8181289

29" ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: WED5100SQ0

(Designer White)

8181289

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8578183 Use & Care Guide

W10042960

Sheet,

Cycle Feature

8577188 Installation

Instructions

8528187 Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677818 Dryer

2 693995 Screw, Hex Head

3 8533971 Screw, 8−18 x 5/16

4 8271365 Cap, End (L.H.)

5 3936144 Connector

6 388326 Screw, Console

7 8533951 Screw, Grounding

8 8271359 Cap, End (R.H.)

9 8274261 Panel, Rear

Console

10 8557861 Screen, Lint

11 8536939 Clip, Spring

13 688983 Screw, 8−18 x 5/8

14 94614 Terminal

15 3395683 Connector

(Motor)

16 8557930 Top

18 3394427 Clip, Harness

21 8299774 Timer, 60 Hz.

22 357213 Nut, Push−In (2)

23 8299865 Harness, Wiring

24 3977456 Switch,

Push−To−Start

25 8566061 Timer Knob

Assembly

26 8544895 Bracket, Control

27 8578845 Panel, Control

28 8566065 Knob,

Push−To−Start

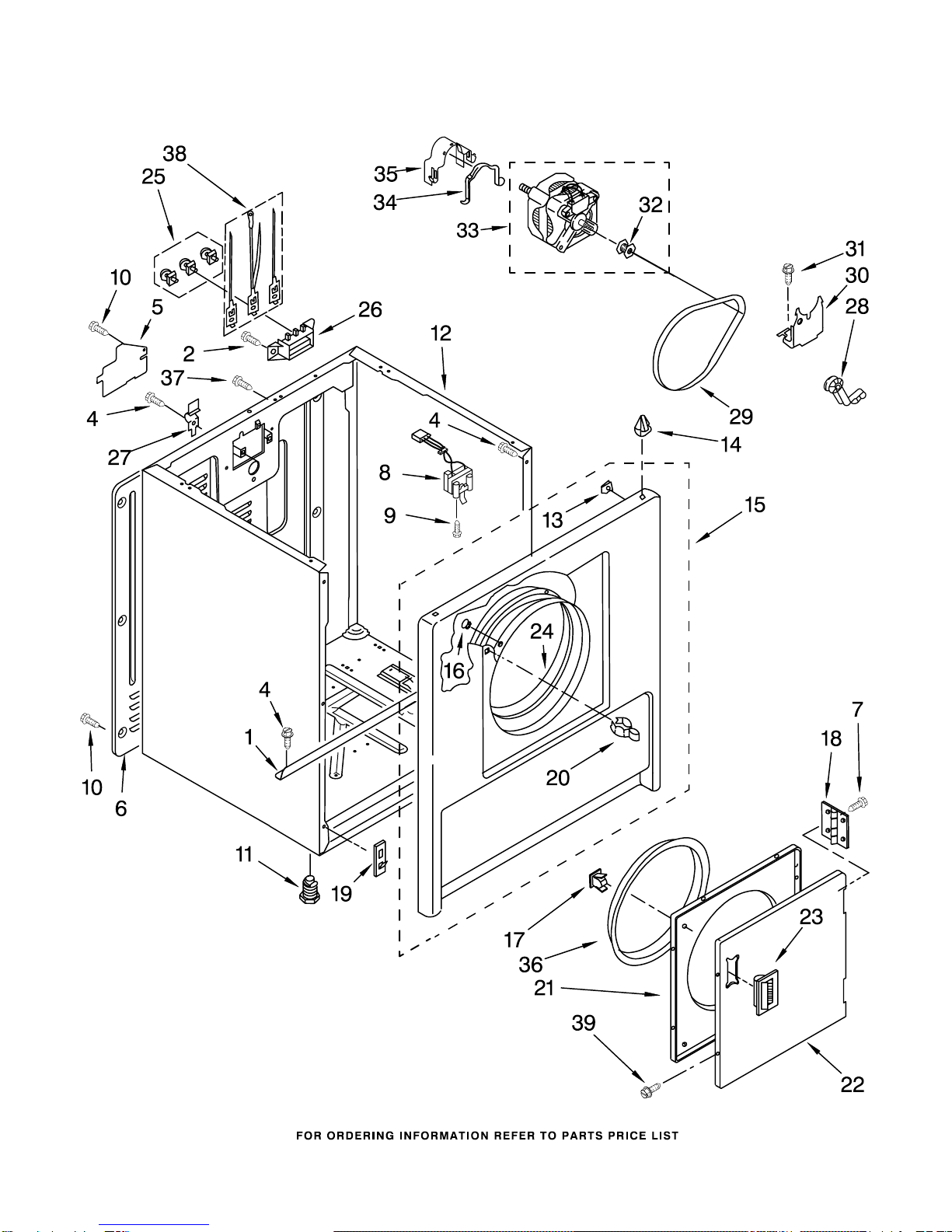

CABINET PARTS

For Model: WED5100SQ0

(Designer White)

8181289

CABINET PARTS

For Model: WED5100SQ0

(Designer White)

8181289

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8541400 Bracket, Cabinet

2 3393008 Screw, 10−16 x 1/2

4 343641 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 3396807 Panel, Rear

7 694091 Screw, 8−18 x 3/8

8 3406102 Door Switch

Assembly

9 697773 Screw, 6−20 x 7/8

10 693995 Screw, Hex

Washer Head

11 3392100 Foot, Dryer (4)

12 8530603 Cabinet

(Includes

Illus. 1)

13 98234 Clip, Ground

14 690363 Lock, Front

Top (2)

15 693197 Front Panel

Assembly

16 685203 Clip, Felt Pad

17 3389441 Catch, Door

18 348023 Hinge and Pin

Assembly (2)

19 3394083 Clip, Front

Panel (2)

20 696144 Strike, Door

21 695656 Door, Rear

22 348205 Door Front

23 686711 Handle, Door

24 8066123 Seal & Bearing

Assembly

25 279393 Terminal Block

Kit (For

Terminal Block)

26 3397659 Block, Terminal

27 8066217 Hinge, Top (2)

28 691366 Idler & Pulley

Assembly

29 8066065 Belt, Drive

30 348780 Base, Motor

31 3400500 Bolt,

5/16−18 x 3/4

32 8066184 Pulley, 60 Hz.

33 8066206 Motor Assembly

60 Hz.

34 660658 Clamp, Motor

35 3404162 Clamp, Motor

(W/Shield)

36 3390734 Seal, Door

37 697776 Screw, 10−32 x 5/8

(External Ground)

38 279318 Terminal, Tinned

& Brass (3)

(Includes

Illus. 25)

39 342055 Screw, 8−18 x 1/2

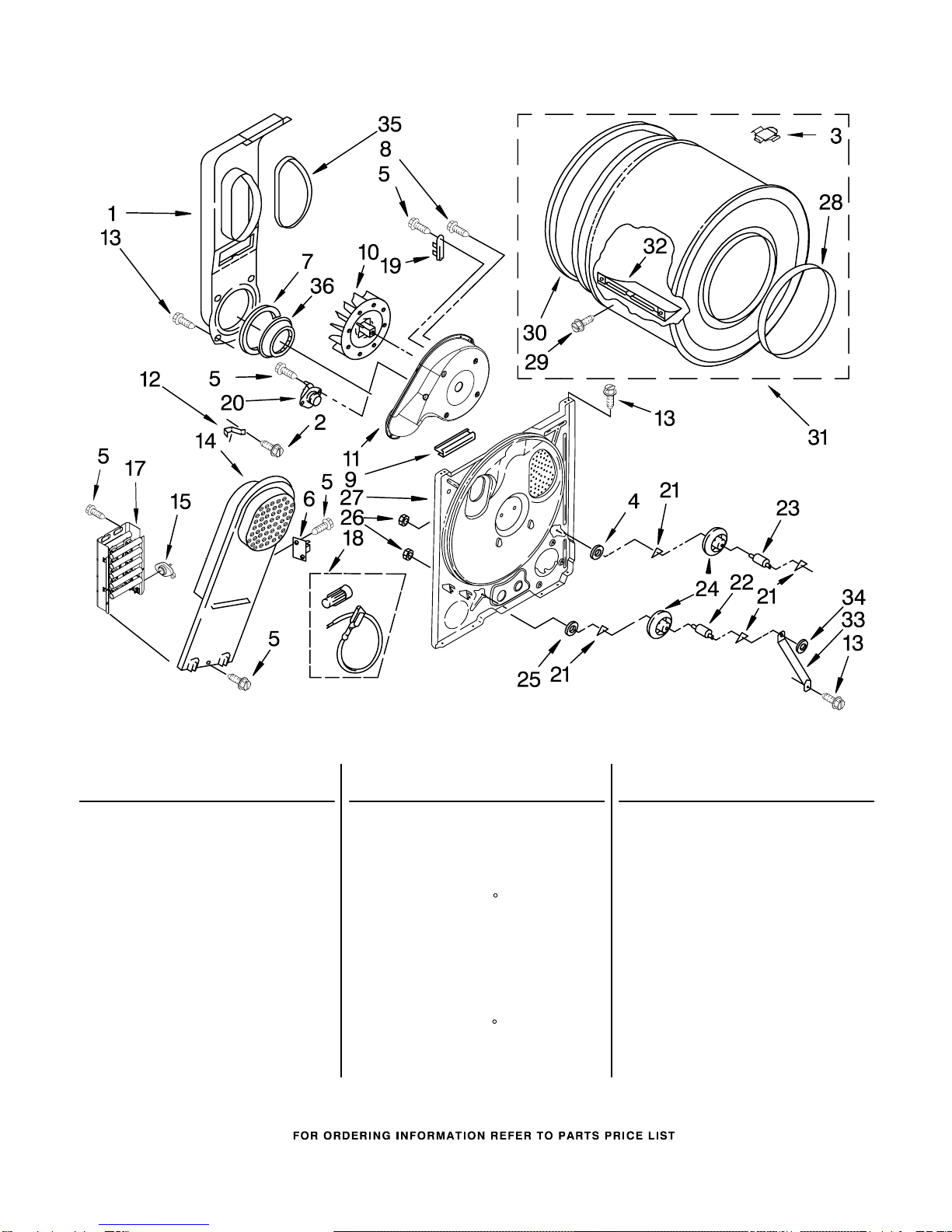

BULKHEAD PARTS

For Model: WED5100SQ0

(Designer White)

8181289

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 694283 Lint Chute Assembly

2 489463 Screw, 8−18 x 5/8

3 8066086 Drum Hole

Plug

4 3388703 Washer, Support

5 90767 Screw, 8−18 x 3/8

6 3977393 Thermal Cut−Off

(Includes

Illus. 15)

7 347139 Seal, Lint

Chute

8 3390647 Screw, 8−18 x 1/2

9 3392247 Pad, Blower

Housing

10 694089 Wheel, Blower

(Includes

Illus. 16)

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

221 F (105C)

17 8565582 Element, Heater

18 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

19 3392519 Fuse, Thermal

20 660039 Thermostat,

150 F (66C)

21 690997 Ring, Tri

22 3399506 Shaft, L.H.

23 3399507 Shaft, R.H.

24 3397590 Roller, Support

25 348197 Washer, Support

26 3359452 Nut, 3/8−16

27 8529955 Bulkhead

28 3394508 Ring, Bearing

29 97787 Screw, 11−16 x 3/4

30 8066085 Seal, Rear Drum

31 3396775 Drum Assembly

32 342847 Baffle, Drum

33 3976435 Bracket, Support

34 90296 Clip

35 339956 Seal

36 696302 Shield, Exhaust

OPTIONAL PARTS (NOT INCLUDED)

For Model: WED5100SQ0

(Designer White)

8181289

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

689790 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)
