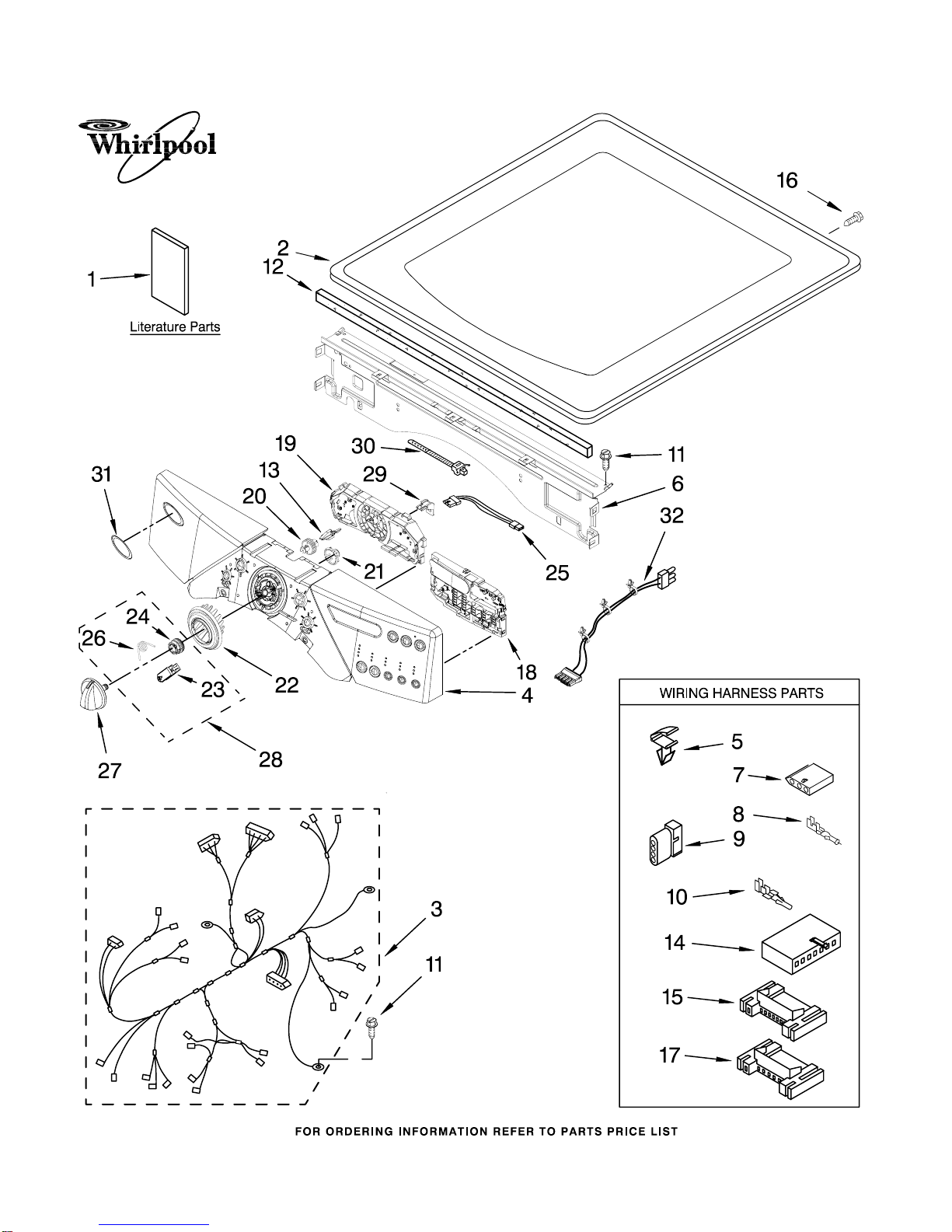

TOP AND CONSOLE PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

2−08 Litho in U.S.A.(LT) Part No. W10116356 Rev. B

ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10110850

Use & Care Guide

W10110638

Tech Sheet

W10111226

Guide,

Quick Start

2 Top

8565021 White

8579997 Black

8519252 Biscuit

W10114785

Ultimate Silver

3 8579739 Harness, Main

4 Panel, Console

(Includes Items:

4,20,21,22,27,28)

W10116695

White

W10116698

Black

W10116696

Biscuit

W10116699

White/Blue

W10116697

Ultimate Silver

5 3394427 Clip, Harness

W10006840

Bracket, Console

(Includes No.12)

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

10 94613 Terminal

11 3390647 Screw, 8−18 x 1/2

W10112267

Foam−Seal

W10030070

Array, Power

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 8281225 Screw, 8−18 x 1/2

17 2203186 Connector,

5−Circuit

W10031430

User Interface

(Right)

W10121375

User Interface

(Center)

(Includes:

Illus. 13 )

W10012430

Encoder−Wheel

W10012440

Retainer−Snap

W10012410

Knob, Light Ring

(Includes:

Illus. 21 )

W10012460

Detent Wheel

(Service Only

With Illus. 28 )

W10095960

Harness,

Communication

W10012820

Knob, Spring (2)

(Service Only

With Illus. 28 )

27 Knob, Control

(Includes:

Illus. 21 )

W10116702

White

W10116705

Black

W10116703

Biscuit

W10116706

Blue

W10116704

Ultimate Silver

28 280230 Encoder, Wheel

Kit.

(Includes Item:

23, 24, & 26 )

W10112268

Clip−Harness (4)

30 3391018 Tie, Cable

W10117943

Badge

W10110976

Cube−Cable

W10012810

Rast, Wheel Holder

(Service Only

With Illus. 28 )

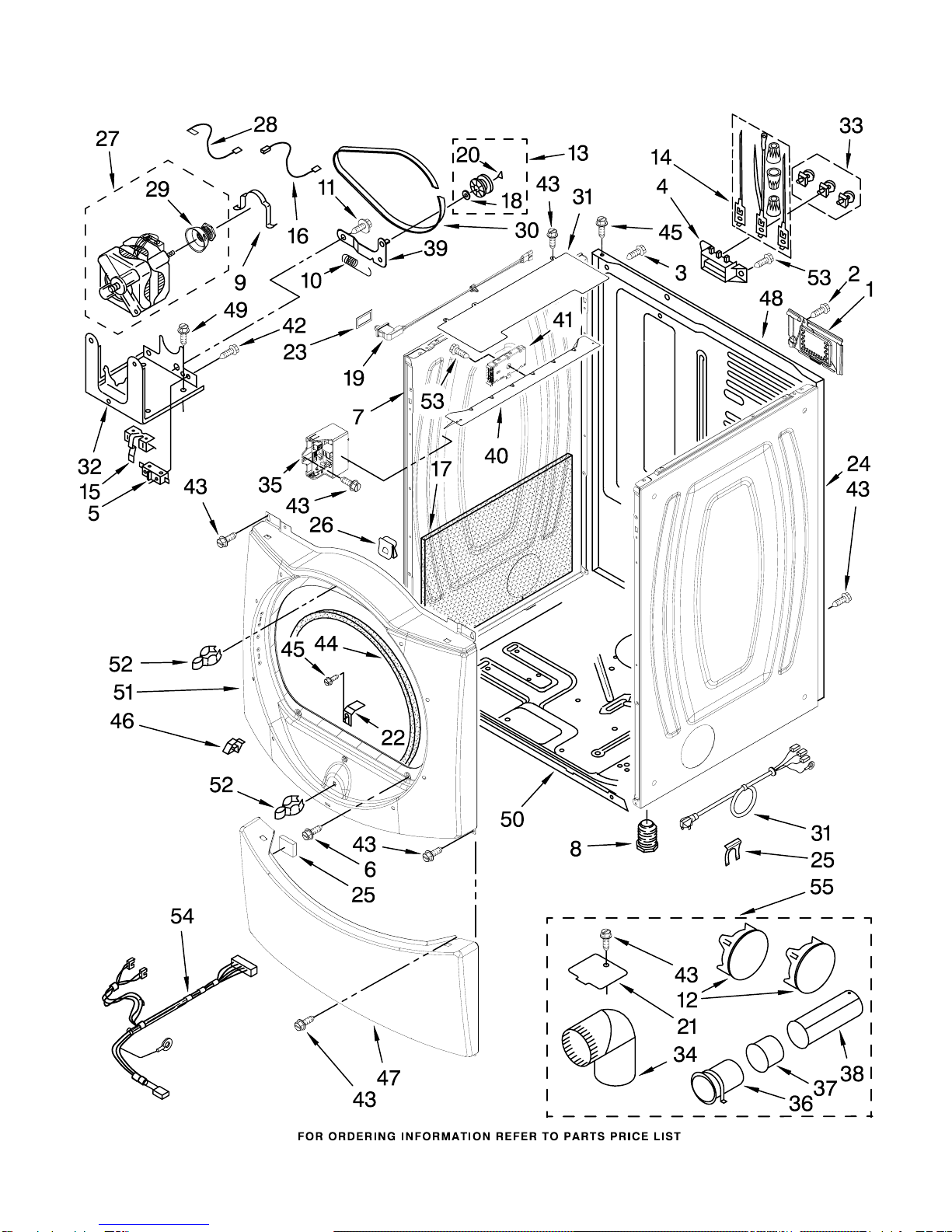

CABINET PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

CABINET PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8576583 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 697776 Screw, 10−32 x 5/8

(Ground)

4 3397659 Block, Terminal

5 3394881 Switch, Broken

Belt

6 3357011 Screw, 10−16 x 1/2

7 Panel, Side (L.H.)

W10138989

White

W10138996

Black

W10138990

Biscuit

W10138995

Silver

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 Plug, Multivent

697750 White

3388309 Black

3388311 Biscuit

8579115 Silver

13 3388672 Pulley Assembly

14 279318 Terminal, Brass

& Tinned (3)

(Includes Illus. 33)

15 8066120 Lever, Snap

Switch

16 3394081 Wire, Belt Switch

W10128772

Sound Panel

18 233520 Washer, Thrust

19 8574875 Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

W10118614

Seal, Door Switch

24 Panel, Side (R.H.)

W10139003

White

W10139010

Black

W10139004

Biscuit

W10139009

Silver

25 3389682 Space−Toe Panel

26 62825 Clip−S Type

27 8538263 Motor, Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

W10118470

Cover,

Control Bracket

32 3387118 Bracket, Motor

33 279393 Terminal Block

Screw Kit (For

Terminal Block)

34 49026 4" − 90 Elbow

35 3407228 Power Cube

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

40 8563727 Bracket, Control

W10110641

Board, Control

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 Toe−Panel

W10116271

White

W10116273

Black

W10116272

Biscuit

W10116277

Silver

W10133207

Panel, Rear

49 343641 Screw, 10−16 x 1/2

50 8519207 Base, Cabinet

51 Front Panel

8578388 White

8578936 Black

8577910 Biscuit

8578940 Silver

52 696144 Strike, Door (2)

53 90767 Screw, 8−18 x 3/8

W10110990

Harness,

Digital Interface

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

55 279818 White

279820 Black

279925 Biscuit

280171 Ultimate Silver

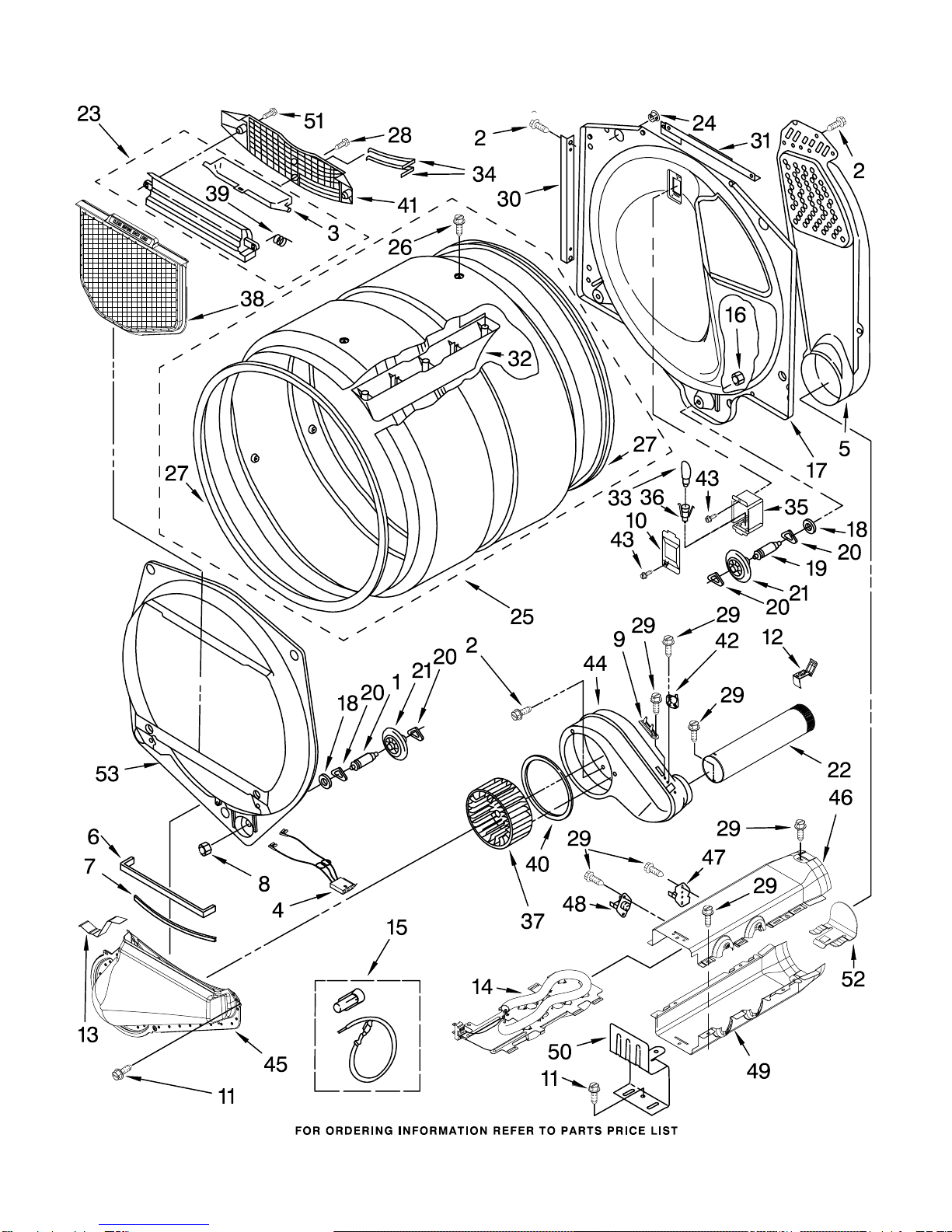

BULKHEAD PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

BULKHEAD PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 3390647 Screw, 8−18 x 1/2

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 697354 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 3392519 Thermal−Fuse

(91 C)

10 3402841 Lens,

Drum Light

11 489463 Screw, 8−18 x 3/8

12 8572105 Clip, Exhaust

Pipe

13 8066208 Clip−Spring

14 8544771 Heater Element

15 279457 Terminal Wire

Kit (For Heater

Element Wiring

Harness Repair)

W10001120

Nut, 3/8−16 (L.H.)

17 8520836 Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

W10121334

Washer

21 8536973 Roller, Support

22 8563745 Exhaust Pipe

23 3394985 Housing, Outlet

24 8529007 Plug,

Rear Bulkhead

W10113138

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 695240 Screw, 8−18 x 1/2

29 8533971 Screw, 8−18 x 3/8

30 8519221 Channel Bracket,

Rear Bulkhead (2)

31 8571651 Bracket, Upper

Rear Bulkhead

W10113136

Baffle, Drum

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 3977373 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

W10049370

Screen, Lint

39 3394986 Spring, Lint

Screen Door

40 697770 Seal, Cover Plate

41 8299979 Grille, Outlet

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8544769 Housing−Slot

Heater Box

47 280148 Thermal Cut−Off

(Includes

Illus. 48)

48 8557403 Thermostat 295 F

(146 C) (Hi−Limit)

49 8544770 Housing−Tab

Heater Box

50 8066099 Bracket,

Heater Box

51 3387230 Screw, 10−16 x 1

52 8544776 Flange−Heater Box

53 8519245 Bulkhead, Front

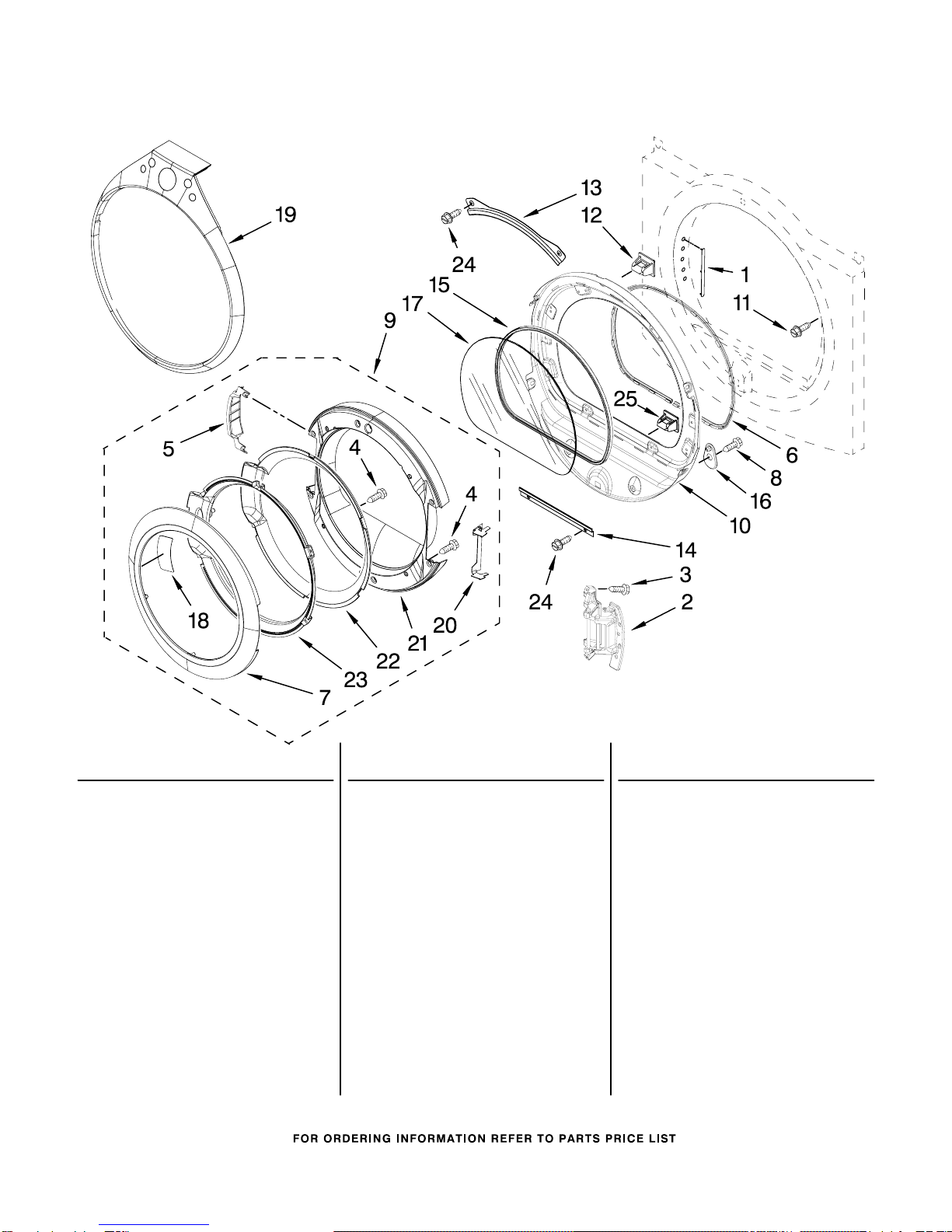

DOOR PARTS

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Label−Hinge

Hole Cover

W10085210

White

W10085230

Silver

W10139920

Door Hinge

Assembly

W10017850

Screw,

10−24 x 3/64

4 9742177 Screw, 8−18 x 5/8

5 8578153 Cover−Hinge (L.H.)

(Following Parts

Not Included)

8578152 Cover−Hinge (R.H.)

W10139457

Seal−Door

7 Handle−Ring

& Pad Assembly

W10048070

Chrome

W10048080

Gold

W10048010

Blue

8 3393008 Screw, 10−16 x 1/2

9 Door Assembly

(Outer)

8579520 Chrome

8579521 Gold

8579514 Blue

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 12 & 25 )

11 355515 Screw,

8−18 x 11/16

12 3398175 Door Catch

Assembly (Upper)

13 8519356 Retainer−Window

(Upper)

14 8519354 Retainer−Window

(Lower)

15 8579662 Seal, Window

W10048910

Screw−Plug

17 8566254 Window

18 8580116 Pad−Handle

19 Tear−Drop Trim

& Clip Assembly

W10099270

White

W10099310

Black

W10099320

Biscuit

W10099280

White/Blue

W10099330

Silver

W10074630

Door−Shield

21 8578157 Door Intermediate

22 8578156 Door Mask

23 8578155 Door Screen

24 3393258 Screw, 10−16 x 1/2

25 690081 Door Catch

Assembly

OPTIONAL PARTS (NOT INCLUDED)

For Models: WED9400SW0, WED9400SB0, WED9400ST0, (WED9400SZ0) (WED9400SU0)

(White/Chrome) (Black/Chrome) (Biscuit/Gold) (White/Blue) (Ultimate Silver)

W10116356

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

72302 Black

4392899 Biscuit

8212605 Ultimate Silver

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

786020 Black

4392901 Biscuit

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

786302 Black (Uncut)

ACCESSORY PARTS

8529894 Kit, Hold Down

8541503 Kit,

Stack Assembly

8579666A Kit,

Door Reversing

80047 Kit,

Dryer Repair

8521957 Dry Rack

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Asciugatrice

Whirlpool

Whirlpool 3LWED4705FW Manuale utente

Whirlpool

Whirlpool LE3000XS Manuale utente

Whirlpool

Whirlpool 3395314 Manuale utente

Whirlpool

Whirlpool Duet Sport WED8300S Manuale

Whirlpool

Whirlpool GGC9858EZ0 Manuale utente

Whirlpool

Whirlpool 8527795 Manuale utente

Whirlpool

Whirlpool LER4624DQ0 Manuale utente

Whirlpool

Whirlpool TEDL640DQ0 Istruzioni per l'installazione

Whirlpool

Whirlpool W10115226B Manuale utente

Whirlpool

Whirlpool WGD9050X Manuale elenco delle parti

Whirlpool

Whirlpool Electric and Gas Dryers Manuale utente

Whirlpool

Whirlpool WED4950HW Manuale utente

Whirlpool

Whirlpool AWZ 3520 WP Manuale utente

Whirlpool

Whirlpool FFT M22 8X2BS BE Manuale utente

Whirlpool

Whirlpool 240-VOLT ELECTRIC DRYER Manuale utente

Whirlpool

Whirlpool GEQ9800LG1 Manuale utente

Whirlpool

Whirlpool LER3622PQ2 Manuale utente

Whirlpool

Whirlpool WED8200YW Manuale utente

Whirlpool

Whirlpool LER7646DW1 Manuale utente

Whirlpool

Whirlpool LEQ8000HQ0 Manuale utente

Whirlpool

Whirlpool L-58 Manuale utente

Whirlpool

Whirlpool CEM2750KQ Manuale utente

Whirlpool

Whirlpool W10301482B Manuale utente

Whirlpool

Whirlpool BYCCD3421W0 Manuale utente

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente
