Whirlpool AKM274/IX Manuale utente

AKM 274 PRODUCT DESCRIPTION SHEET

5019 319 01424

Operation of burners with safety

device and electric ignition

To light one of the burners:

• Press the relative knob and turn it anti-

clockwise to the large flame and star

setting .

• At the same time, keep the knob pressed

against the control panel until the burners

ignites.

• After the burner has ignited, keep the knob

pressed for about 10 seconds.

• Release the knob.

If the burner does not ignite, repeat the operations

described above.

Note:

—Should particular local conditions of the

delivered gas make the ignition of the burner

difficult,itisadvisabletorepeattheoperation

with the knob turned to the small flame

setting .

—The safety device of the burner shuts off the

gas supply to the burner if its flame goes out

accidentally (because of a sudden gust of

wind, an interruption in the gas delivery, the

overflowing of liquids, etc.).

1. Removable panstand grids

2-3. Medium burners

4. Large burner

5. Small burner

6. Medium burner control knob

7. Medium burner control knob

8. Large burner control knob

9. Small burner control knob

10. Electric ignition button

Symbols

Shaded circle Tap closed

Large flame Maximum opening

delivery

Small flame Minimum opening or

reduced delivery

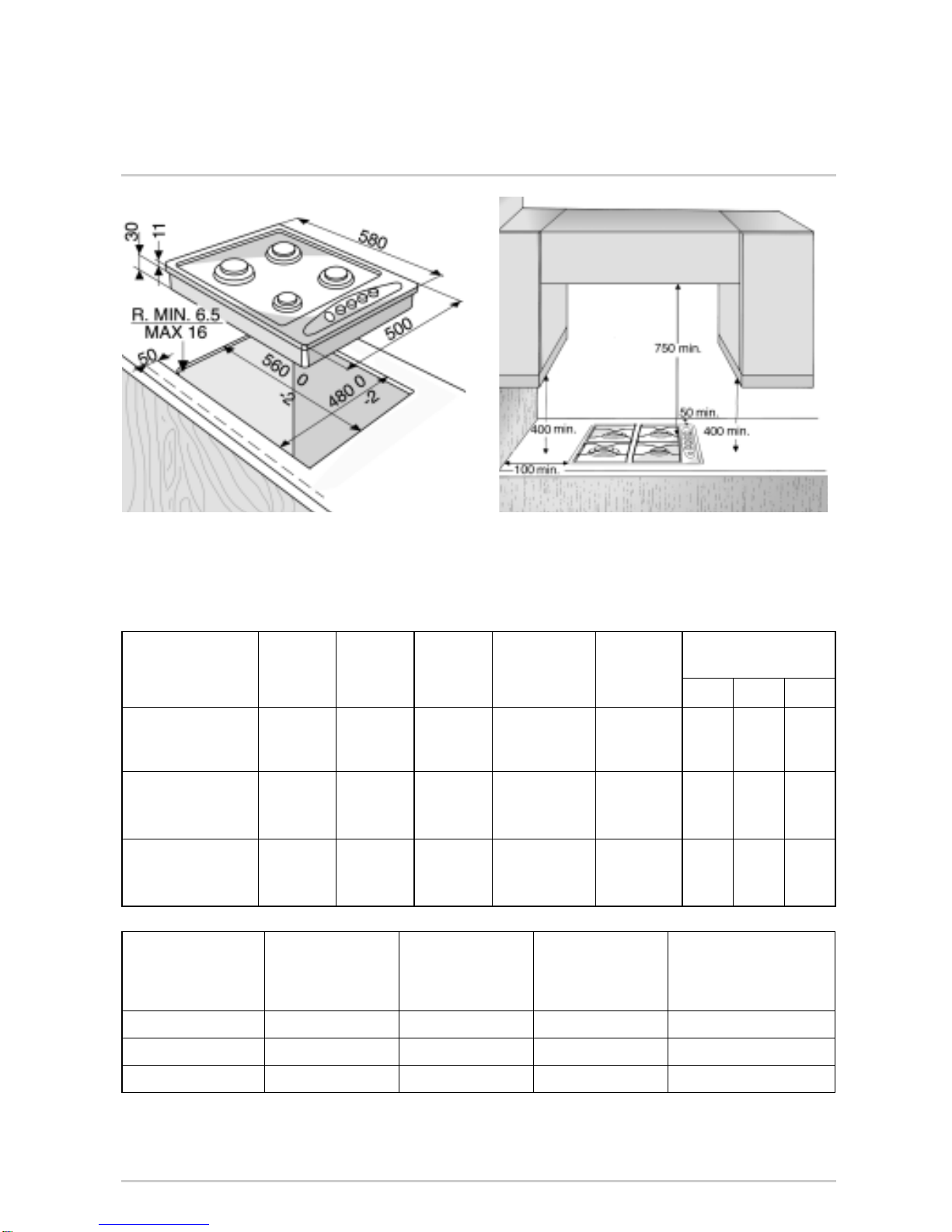

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)

NOTE: In case of installation of a hood above the cooktop, please refer to the hood

instructions for the correct distance.

INJECTORS TABLE CATEGORY II2H3+

ELECTRIC SUPPLY: 230 V ~ 50 Hz

Type of gas used Type of

burner Injector

marking

Rated

heat

capacity

Rated

consumption

Reduced

heat

capacity

Gas pressure

mbar

min. rat. max.

NATURAL GAS

(Methane) G20

large

medium

small

Y 115

H2 98

X 72

3.00

1.65

1.00

286 l/h

157 l/h

95 l/h

0.60

0.35

0.30 17 20 25

LIQUID

PETROLEUM GAS

(Cylinder) G30

large

medium

small

3.00

1.65

1.00

218 l/h

120 l/h

73 l/h

0.60

0.35

0.30 20 28-30 35

LIQUID

PETROLEUM GAS

(Cylinder) G31

large

medium

small

3.00

1.65

1.00

214 l/h

118 l/h

71 l/h

0.60

0.35

0.30 25 37 45

Type of gas used Appliance

model

Total rated heat

capacity

Total rated

consumption

Air necessary (m3) for

the combustion of 1

m3of gas

G20 20 mbar 4 gas 7.30 695 l/h 9.52

G25 28-30 mbar 4 gas 7.30 531 g/h 30.94

G31 37 mbar 4 gas 7.30 521 g/h 23.80
