Whirlpool I 200 Manuale utente

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Golden Service Technical Training 2017

Induction hob

I 200 –UI Alizee

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Induction I 200

UI Alizee

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Table of Contents

Installation

Operation

Components

Repair guide line

Troubleshooting

Marketing information

Chapter List

Induction I 200

UI Alizee

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati
Table of Contents
Induction I 200
•Installation
•Dimensions 65 cm
•Dimensions 77 cm
•Standard Installation
•Full integrated installation
•Electrical connection
•Operation
•Display Description
•Switch ON/OFF
•Stand By Mode
•Minute Minder
•Residual Heat
•Power On a zone
•Depowering
•Select and Deselect Zones
•Set power level & start the cycle
•The Hob is in Run
•Split a Flexi Zone
•Set a Timer
•Set Key Lock
•Set Assisted Cooking Function
•Set Cooking Anywhere Function
•French Plaque Setting
•Pan Detection
•Customize the Hob Setting

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati
Table of Contents
•Marketing Information
•I 200 Product Architecture
•I 200 Cooktop Configurations Overview
•I 200 First Models
•Safety Points
•Troubleshooting
•Demo Mode
•Configuration Mode
•Failure code
•Warning
•Wiring Diagram
Induction I 200
•Repair guide line
•Housing
•Touch control
•Zone
•Fan
•Converter board
•Components
•Exploded view
•Overview components
•Overview converter board
•ESAM connection
•Overview cable connection
•Induction coil overview
•Induction coil power level
•Zone exploded view
•NTC
•User Interface Artemis 2
•Cooling fan

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati
Installation
Dimensions 65 cm
Dimensions 77 cm
Standard Installation
Full integrated installation
Electrical connection
Induction I 200

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

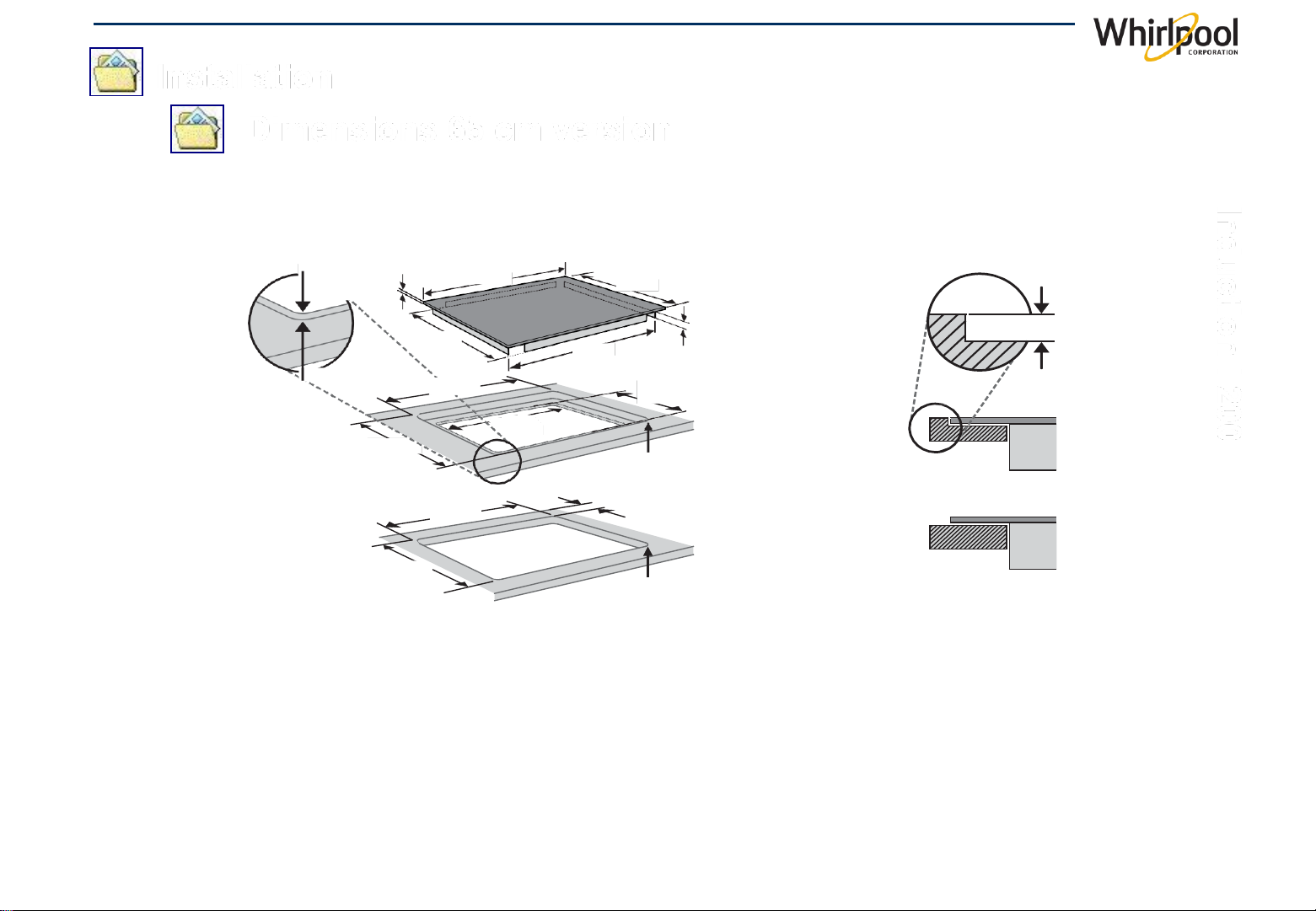

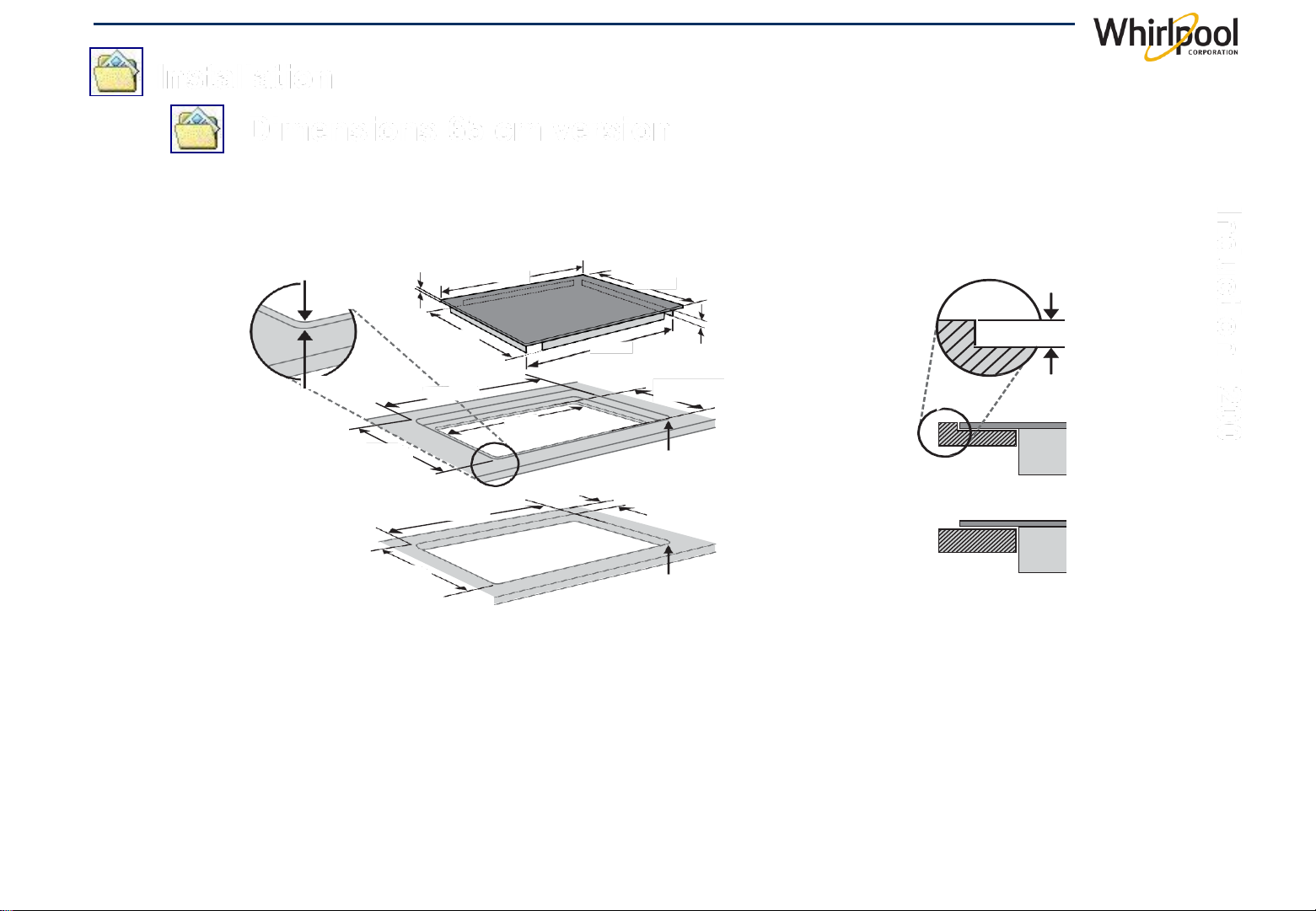

Installation

Dimensions 65 cm version

Induction I 200

Worktop thickness min. 30mm

Idem for 650 mm

560+ 2 mm

R= Min. 6.5 mm

Max. 8 mm

Min. 480mm

Max. 492mm

560+ 2 mm

R= Min. 11.5 mm

Min. 50mm

Min. 480mm

Max. 492mm

6mm

593+

0mm

513+ 2 mm

R= Min. 6.5mm

Max. 8 mm

R= 11.5mm

4mm

553mm

510mm

476mm

590mm

53mm

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Installation

Dimensions 65 cm version

Induction I 200

Worktop thickness min. 30mm

Idem for 650 mm

560+ 2 mm

Min. 50mm

Min. 480mm

Max. 492mm

560+0mm

6mm

653+ 2 mm

513+ 2 mm

R= Min. 6.5 mm

Max. 8 mm

R= Min. 11.5 mm

R= Min. 6.5mm

Max. 8mm

R= 11.5mm Min. 480mm

Max. 492mm

4mm

553mm

510mm

476mm

650mm

53mm

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Installation

Dimensions 77 cm version

Induction I 200

Worktop thickness min. 30mm

750+ 2 mm

Min. 50mm

Min. 480mm

Max. 492mm

750+0mm

6mm

773+ 2 mm

513+ 2 mm

R= Min. 6.5 mm

Max. 8 mm

R= Min. 11.5 mm

R= Min. 6.5mm

Max. 8mm

R= 11.5mm Min. 480mm

Max. 492mm

4mm

743mm

510mm

476mm

770mm

53mm

WHIRLPOOL CORPORATION ▪CONFIDENTIAL ▪EMEA CS&Quality Technical Training and Serviceability Team ▪By Nicola Padula and Nicola Bargagnati

Installation

Standard Installation

Induction I 200

Distance “X” is specified in the hood’s documentation
