Whirlpool GH4155XPB1 Manuale utente

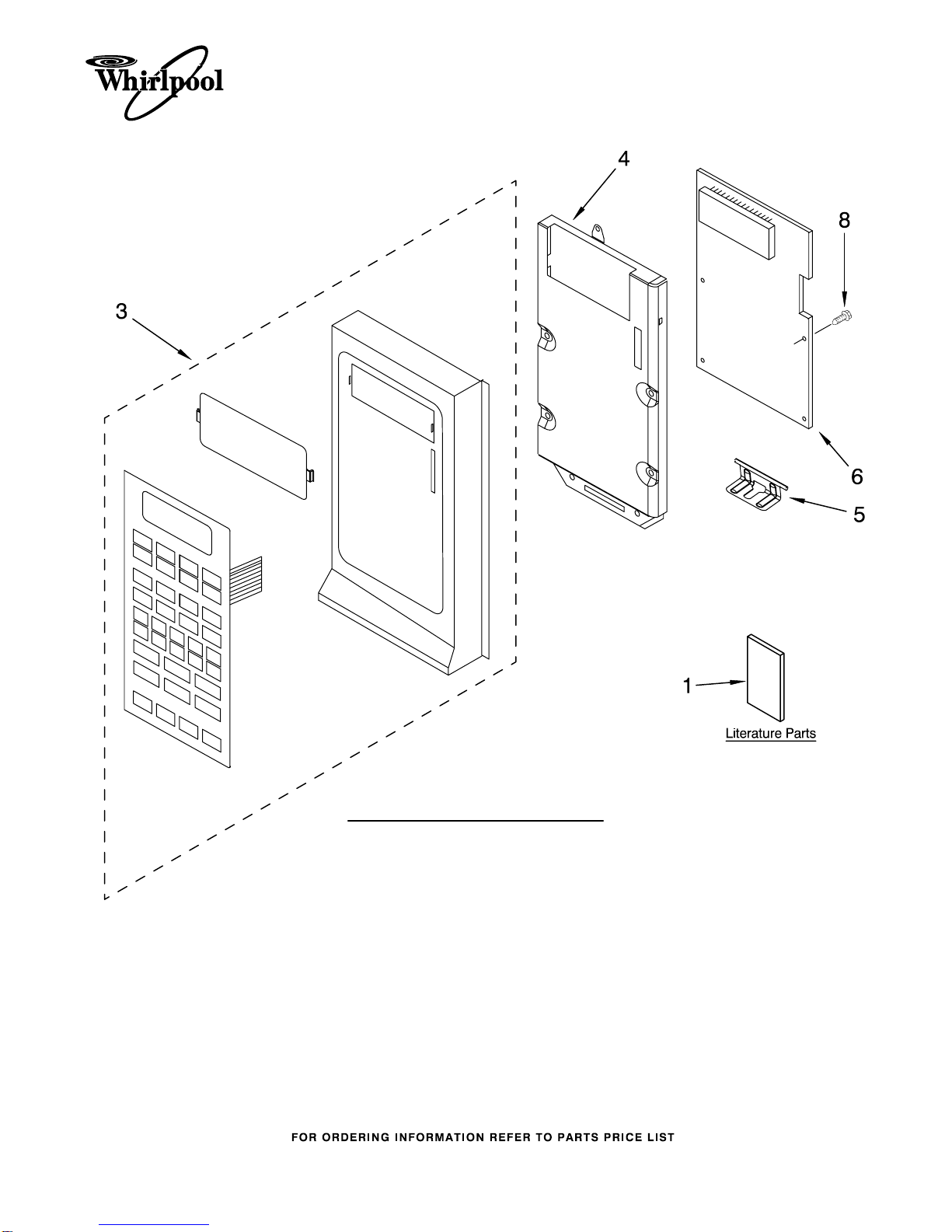

CONTROL PANEL PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

4−05 Litho In U.S.A. (dmm) Part No. 8205851

MICROWAVE

HOOD

COMBINATION

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8204919 Use & Care Guide

8183731 Installation

Instructions

8205611 Tech Sheet

8204929 Guide, Cooking

(Label)

3 Panel, Control

8205330 White

8205331 Black

8205332 Biscuit

4 8183821 Bracket, Control

5 4393744 Plate, Hinge

6 8183726 Microcomputer

8 4393346 Screw

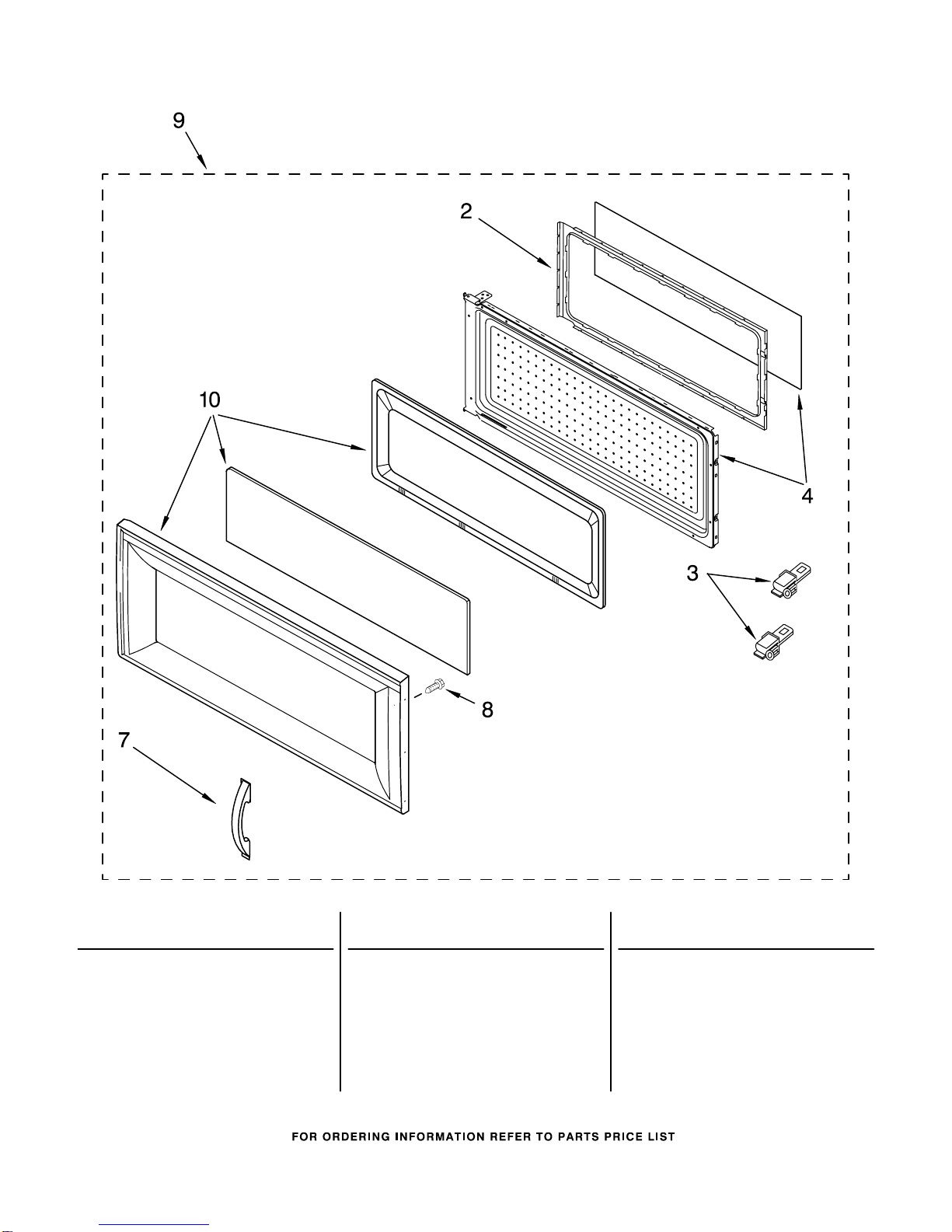

DOOR PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 8169545 Frame, Inner

3 4393913 Latch, Door

4 Body, Door

8185107 White

8185109 Black

8185108 Biscuit

7 Handle, Door

4393777 White

4393782 Black

8169642 Biscuit

8 4393833 Screw

9 Door, Complete

8205327 White

8205328 Black

8205329 Biscuit

10 Frame, Outer

8205324 White

8205325 Black

8205326 Biscuit

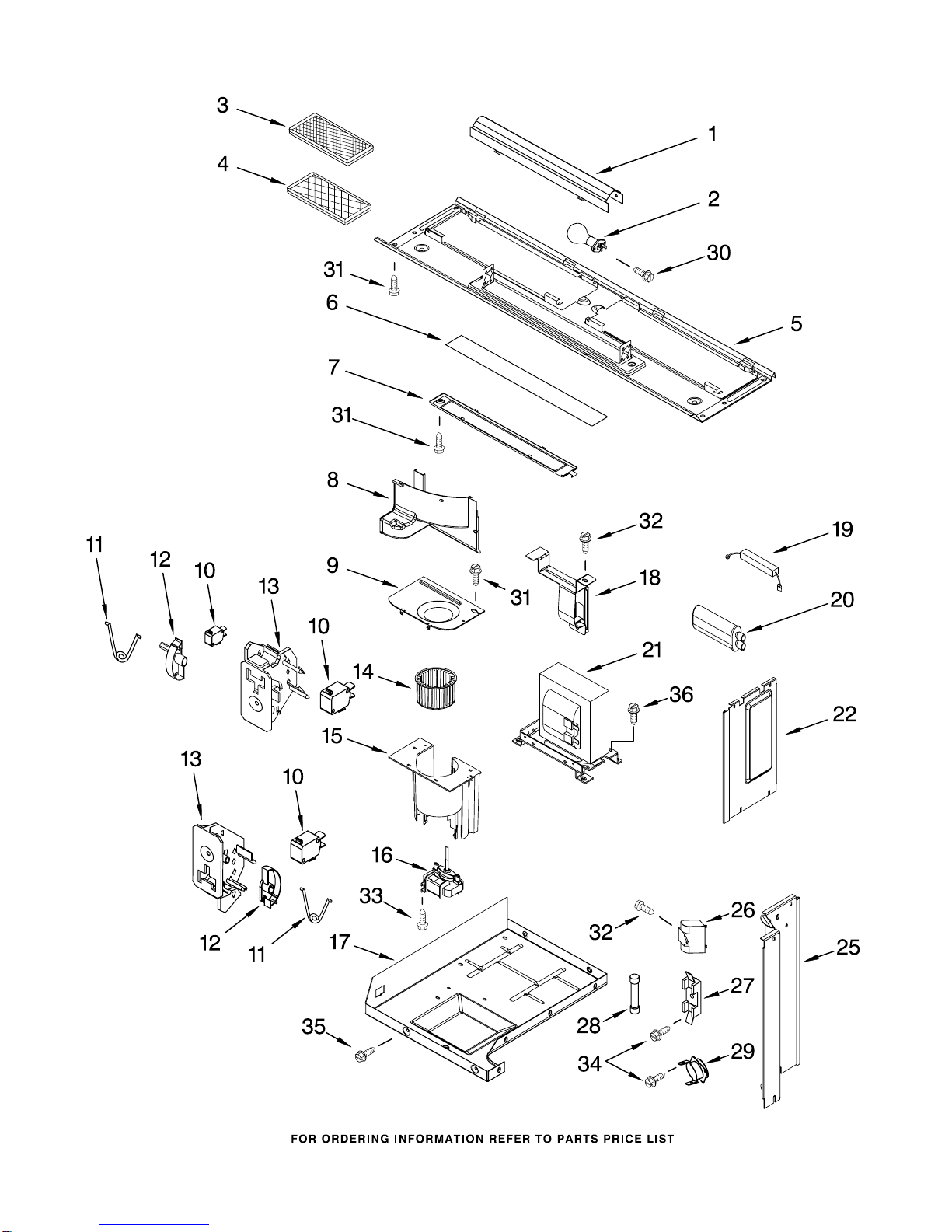

INTERIOR AND VENTILATION PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

INTERIOR AND VENTILATION PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

Illus. Part

No. No. DESCRIPTION

1 4393688 Reflector, Lamp

2 4393681 Lamp (2)

3 8169645 Filter, Charcoal

4 8169758 Filter, Grease

5 8185105 Plate, Bottom

6 8185210 Glass, Lamp

7 8184308 Holder, Glass

8 8205045 Guide, Air

(Magnetron)

9 8183823 Cover, Fan

10 8204656 Switch, Micro (3)

11 8169438 Spring, Interlock (2)

12 8183824 Plate, Cam (2)

13 4393595 Support, Interlock (2)

14 8183825 Wheel, Fan

15 8184310 Housing, Fan

16 8185211 Motor, Fan

17 8185212 Chassis

18 8184311 Holder, Capacitor

19 8184664 Diode, H.V.

20 8169501 Capacitor, H.V.

21 8204844 Transformer, H.V.

22 8204657 Plate, Side (R)

25 8204658 Plate, Side (L)

26 8205553 Capacitor

27 8184312 Holder, Fuse

28 4393308 Fuse

29 8183703 Thermostat

30 8169474 Screw

31 4393835 Screw

32 4393472 Screw

33 4393833 Screw

34 8169478 Screw

35 8169479 Screw

36 4393839 Screw

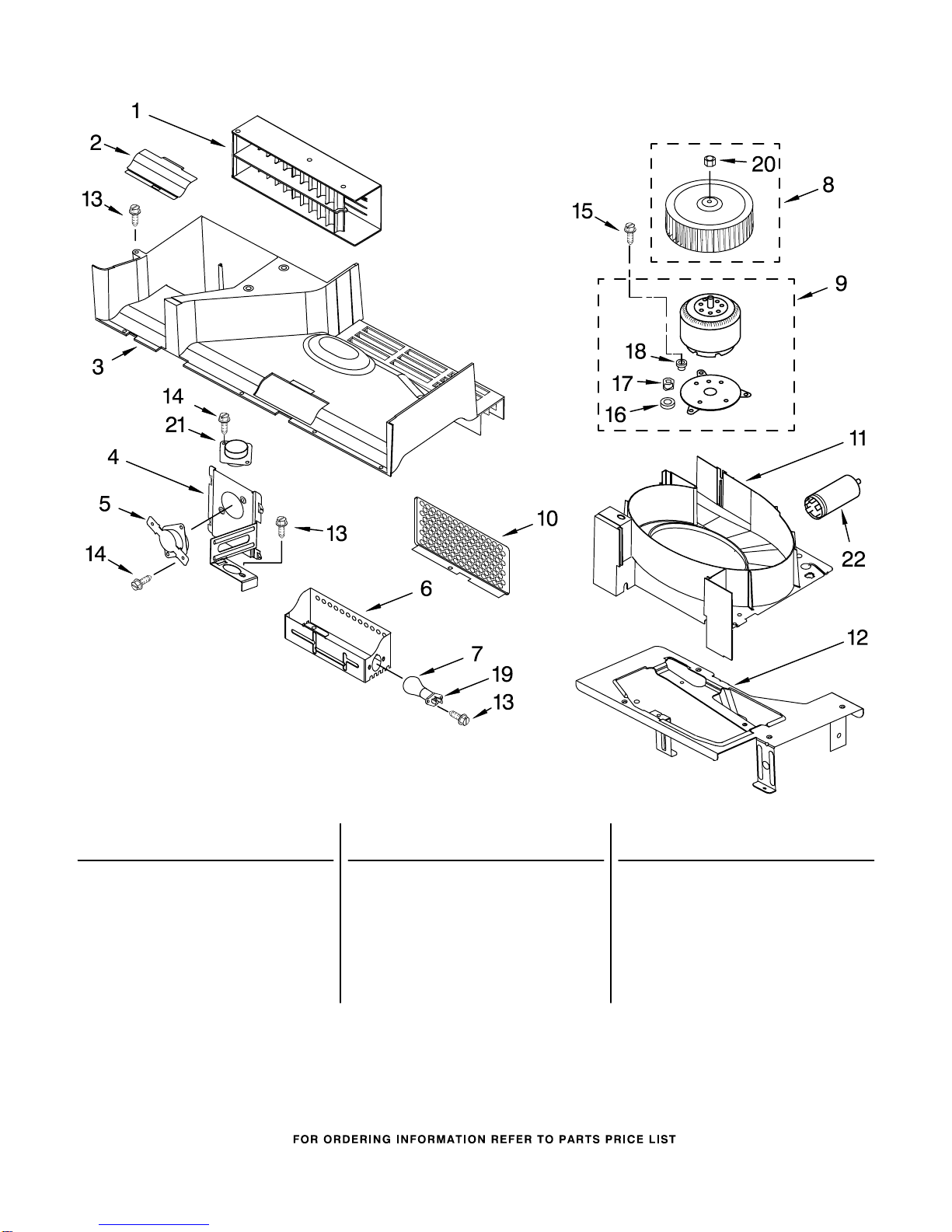

AIR FLOW PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8184638 Deflector, Air

2 8169557 Reflector, Air

3 8185083 Duct, Air

4 8204653 Bracket, Thermostat

5 8183697 Thermostat

6 8184745 Housing, Lamp

7 4393681 Lamp

8 8204694 Wheel, Fan

9 8204751 Motor, Fan

10 8204754 Shield

11 8184624 Housing, Fan

12 Bracket, Fan

(Not Serviced)

13 8169474 Screw

14 8169478 Screw

15 4393830 Screw

16 4393874 Plate. Damper

17 8184129 Spacer,Copper Pipe

18 8169635 Cushion, Mtr

19 8169539 Holder, Lamp

20 8184404 Nut

21 4393808 Sensor, Humidity

22 8169561 Filter

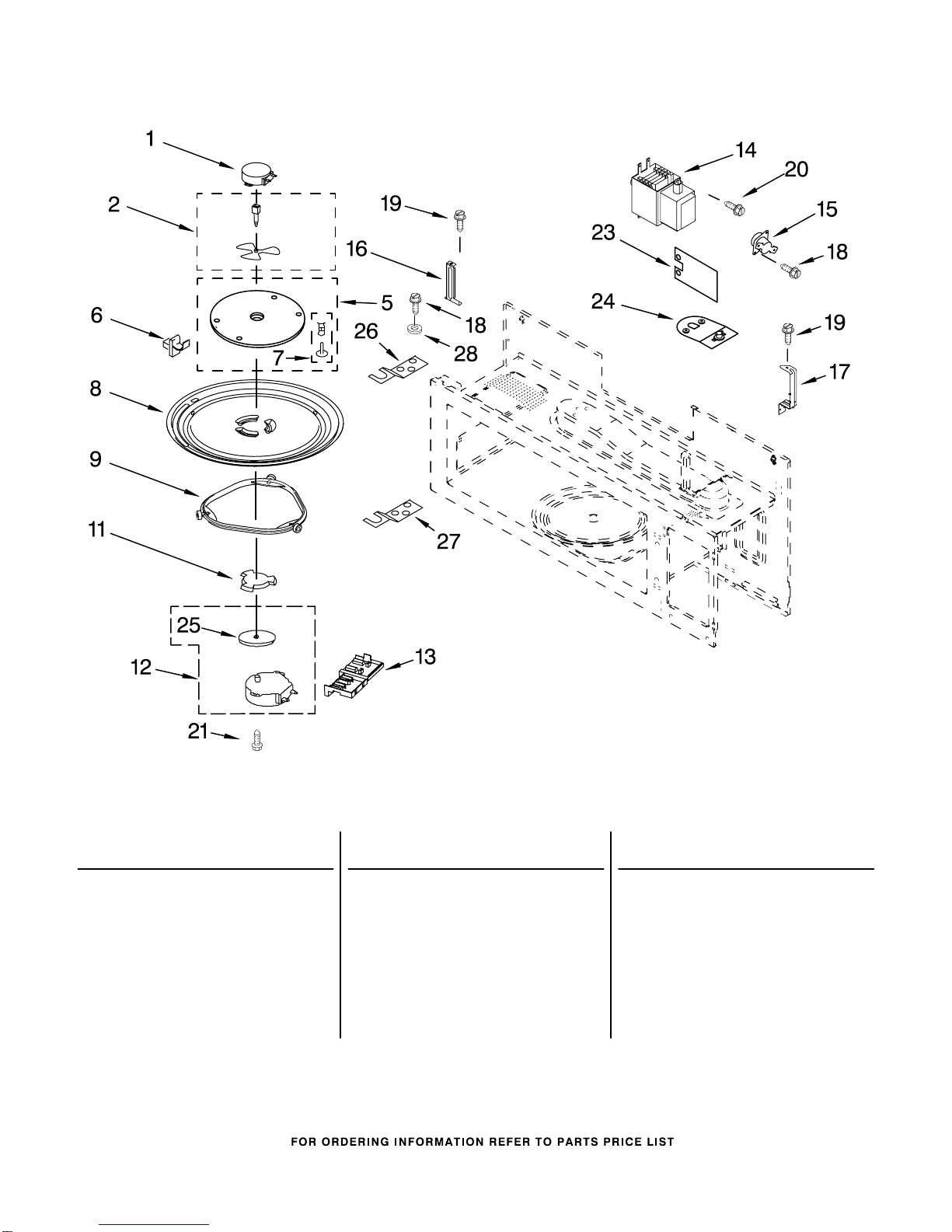

MAGNETRON AND TURNTABLE PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205044 Motor, Stirrer

2 8205315 Stirrer

Shaft/Blade

5 8184476 Cover, Inlet

6 8204662 Hook, Rack (4)

7 8184549 Nails/Bushings

(5 of Each)

8 4393799 Turntable

9 8205778 Ring, Turntable

11 8205779 Driver, Turntable

12 8183953 Motor, Turntable

13 4393756 Cover, Terminal

14 8205791 Magnetron

15 8183698 Thermostat

16 8205792 Holder, Connector (L)

17 8169705 Holder, Connector (R)

18 4393838 Screw

19 8169474 Screw

20 4393831 Screw

21 4393832 Screw

23 8184485 Shield

24 8184585 Thermostat And

Bracket

25 8184109 Spacer

26 8183741 Hinge, Upper

27 8183742 Hinge, Lower

28 8204691 Washer

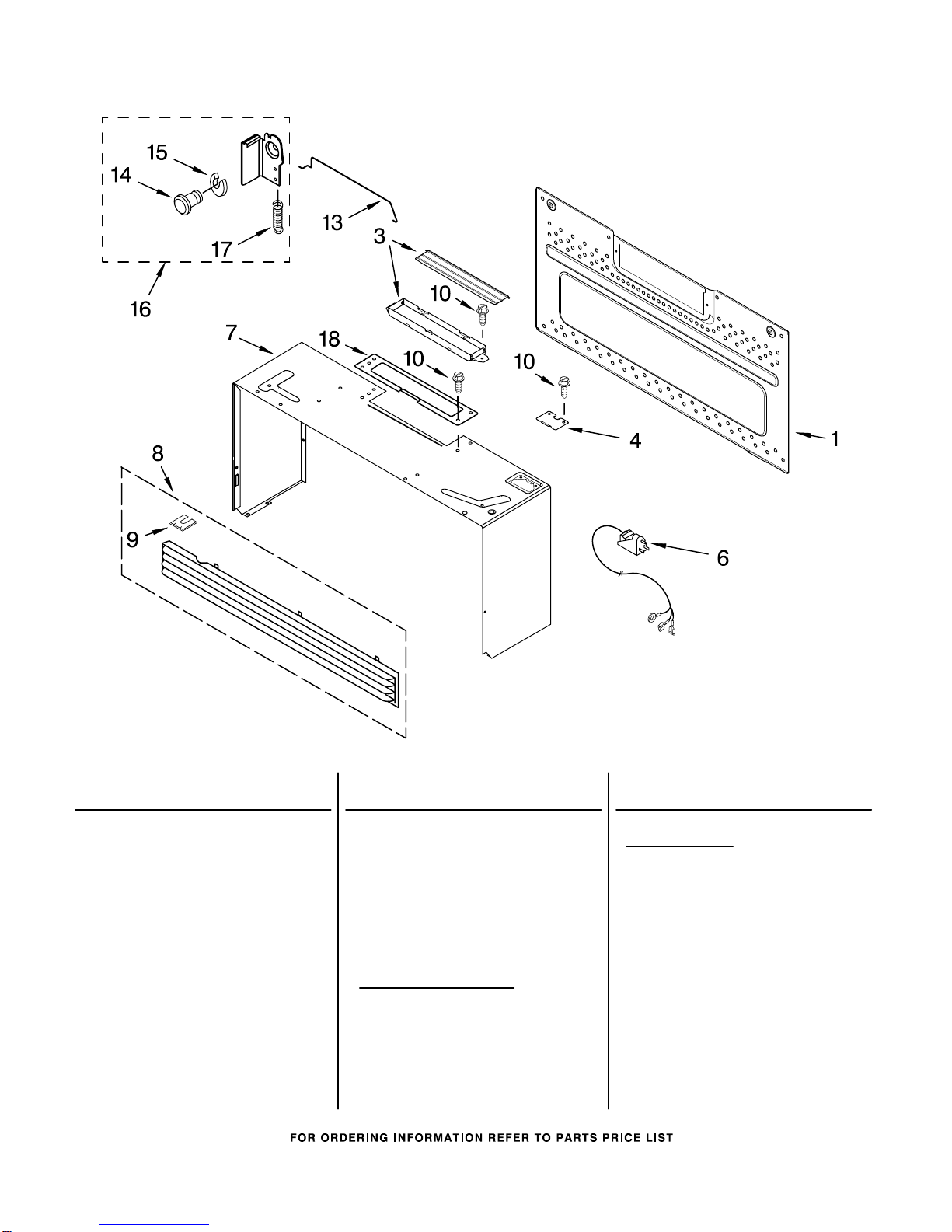

CABINET AND INSTALLATION PARTS

For Models: GH4155XPQ1, GH4155XPB1, GH4155XPT1

(White) (Black) (Biscuit)

8205851

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8205317 Plate, Mounting

3 8205558 Damper Assembly

4 8184313 Lid, Power Cord

6 8184898 Cord, Power

7 Case, Outer

8169660 White

8169661 Black

8169664 Biscuit

8 Grille, Vent

8183948 White

8183851 Black

8183852 Biscuit

9 4393795 Grille, Holder

10 4393833 Screw

13 8169318 Rod

14 8169319 Latch Pivot

15 8169320 E−Ring

16 8185033 Catch

17 8169374 Spring

18 8169697 Plate, Damper

ACCESSORY PARTS

8171337 Filler Kit−White

8171336 Filler Kit−Black

8171338 Filler Kit−Biscuit

Miscellaneous

8169659 Hardware,

Installation

8169704 Screw, Top Mountng

8184781 Upper Template

8183743 Wall Template

8204725 Rack

8205843 Cavity Light

Wire Assembly

8205844 Fan Motor

Wire Assembly

8205845 Stirrer Motor

Wire Assembly

8205846 Hood Light

Wire Assemlby

8205847 H.V. Wire Assy

8205635 Ground Wire Assy
