WHIRLPOOL CONSUMER SERVICES Model MD364/WH

December 2001

All rights strictly reserved. Reproduction or issue to third parties in any form whatsoever is

not permitted without written authority of Whirlpool (Australia) Pty. Limited

Whirlpool is a registered trademark of Whirlpool U.S.A.

This documentation is intended only for qualified technicians who possess the required qualifications and

are aware of the regulatory requirements applicable to servicing electrical appliances.

Whirlpool (Australia) Pty Limited Part No. SM7030

A. B. N. 28 003 578 023

WHIRLPOOL AUSTRALASIA

CONSUMER SERVICES

SERVICE MANUAL

MICROWAVE OVEN

Model MD364/WH

Version 8538 231 53291

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 2 of 10

BLANK PAGE

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 3 of 10

CONTENTS

Page

INTRODUCTION SAFETY 4

TECHNICAL DATA 5

EXPLODED VIEW 6

SPARE PARTS LIST 7 - 8

CIRCUIT DIAGRAM 9

CONTROL CIRCUIT DIAGRAM 10

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 4 of 10

INTRODUCTION SAFETY

INTRODUCTION

Before leaving the factory each oven is carefully checked.

It must, however, be installed and used correctly.

Despite all the steps taken to make the oven safe, the safety is dependent on the correct installation and

the fact that the user understands how to use and maintain the oven.

The information in this section should be used as a reminder that the oven is safe and that anyone who

uses it must first read the instructions for use in order to be able to use the oven correctly and obtain best

results.

SAFETY

To avoid injury to yourself and damage to the appliance always work to the following rules when servicing

an oven.

Always disconnect the plug from the mains before starting work.

If there is no plug switch off the electric supply at the control box.

When you have finished servicing an oven before you reconnect it to the mains, make sure that:

- all the internal connections are correct

- the wires are insulated and not touching the door or the cabinet or anything sharp

- all the earth connections are electrically and mechanically sound

- do not modify or anyway interfere with the safety devices built-in to the oven

- make sure that each replacement part you use conforms to the manufacturer's specifications

Do not start a repair if you have any doubt as to your ability to complete it.

CAUTION - MICROWAVE RADIATION

PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE

FROM THE MAGNETRON, WAVEGUIDE OR ANTENNA IF THEY ARE IMPROPERLY USED OR

CONNECTED. ALL INPUT AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES, FLANGES

AND GASKETS MUST BE SECURE.

NEVER OPERATE THE DEVICE WITHOUT A MICROWAVE ENERGY ABSORBING LOAD

ATTACHED.

NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED.

NEVER OPERATE AN OVEN WITH CABINET OFF WITHOUT MEASURING THE MICROWAVE

LEAKAGE AROUND MAGNETRON AND VISIBLE MICROWAVE CONNECTIONS (WELDING JOINTS).

Do not operate the oven if the following conditions exist:

- the door does not close firmly against the door support because of the door being warped or the hinges

damaged.

- The door trims or seals are damaged.

- If there is any visible damage to the oven.

- if the door does not close properly.

Avoid operating the oven if known components in the interlock system, oven door or microwave

generating assembly are known defective. They must be replaced.

WARNING - HIGH VOLTAGE

IT IS POSSIBLE TO COME IN CONTACT WITH LETHAL HIGH VOLTAGE WHEN WORKING WITH

HV TRANSFORMER, HV CAPACITOR AND MAGNETRON. THEREFORE NEVER TRY TO MEASURE

THE HIGH VOLTAGE. ALWAYS TAKE UTMOST CARE WHEN PERFORMING ELECTRICAL

MEASUREMENTS INSIDE THE OVEN.

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 5 of 10

TECHNICAL DATA

Dimensions of cabinet

Height 330 mm

Width 553 mm

Depth 560 mm

Dimensions of cavity

Height 227 mm

Width 372 mm

Depth 395 mm

Cavity volume 34 l

Turntable diameter 360 mm

Weight

Net 25 kg

Electrical

Voltage 230 - 240 V

Frequency 50 Hz

Power

Power consumption 2400 W

Output power (Microwave) 800 W

Grill 1400 W

Hot air 1500 W

Microwave frequency 2450 ±50 MHz

Timer

90 min

Features

- Quartz grill

- Crisp function

- Jet start

- Jet defrost

- Auto crisp

- 7 power levels

- Cavity inox

- Child lock

- 24 hour clock

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 6 of 10

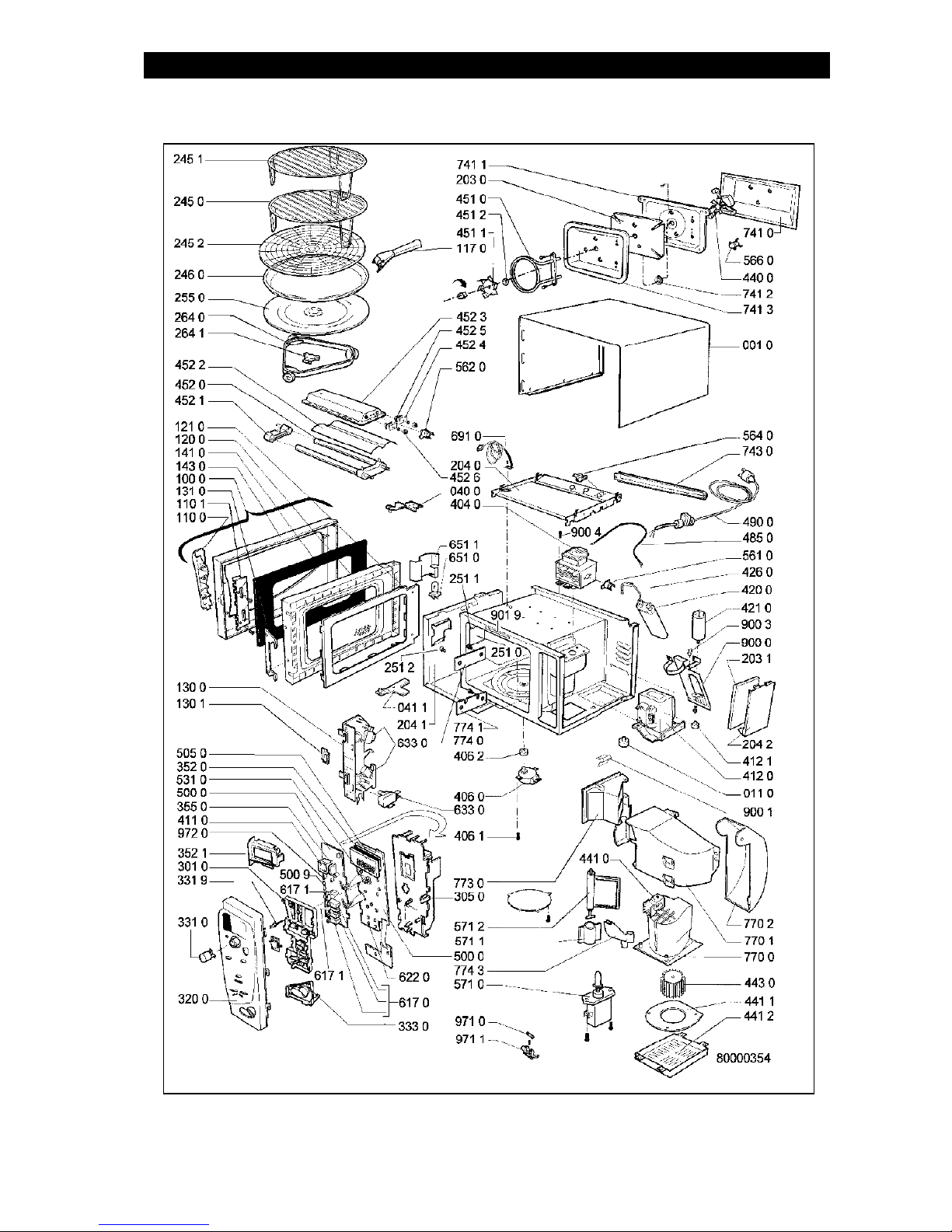

EXPLODED VIEW

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 7 of 10

PARTS LIST

Item Part No Descri

tion

001 0 4819 442 38042 Cabinet, WH

011 0 4819 462 79423 Foot

040 0 4819 417 19384 Hinge, upper

041 1 4819 417 19379 Hinge, lower

100 0 4812 440 98072 Door complete, WH

110 0 4812 462 68032 Door handle, WH

110 1 4812 462 68033 Insert door handle

117 0 4819 498 78366 Handle for crisp plate

120 0 4819 442 38004 Door, inner

121 0 4819 459 48703 Door frame, inner door

130 0 4819 276 38171 Unit,

ushbutton com

lete

130 1 4812 466 88482 Slide block

131 0 4819 535 98529 Door latch

141 0 4812 450 58461 Oven glass, outer

143 0 4812 459 48097 Door frame, outer, WH

203 0 4819 325 18058 Insulation

203 1 4819 325 18057 Insulation

204 0 4819 442 38039 Plate, protection

204 1 4819 466 89241 Plate, protection, heat left

204 2 4819 466 89242 Plate, protection, heat right

245 0 4819 458 19981 Grid hi

245 1 4819 458 58581 Grid low

245 2 4819 458 58562 Grid defrost

246 0 4819 310 18537 Crisp plate VIP34

251 0 4819 462 79799 Cover, lamp

251 1 4819 468 18076 Gasket

251 2 4819 505 18238 Nut self tap

255 0 4819 466 78348 Turntable glass

264 0 4819 520 18029 Ring, set

264 1 4819 462 38767 Crosspiece

301 0 4812 404 78411 Button ass

, WH

305 0 4812 256 98035 Bracket

320 0 4812 453 59264 Panel, control, WH

331 0 4812 410 78072 Knob, timer, WH

331 9 4812 492 58033 Shaft

333 0 4812 401 18502 Button start/sto

, WH

352 0 4812 130 38711 Display

352 1 4812 491 48009 Frame hood for display

355 0 4819 280 18029 Buzzer

404 0 4819 131 58019 Magnetron

406 0 4819 361 18381 Motor TT

406 1 4819 502 18372 Screw for TT-Motor

406 2 4819 532 68686 Gasket ring for TT

411 0 4819 148 68076 Transformer electronics

412 0 4819 145 78217 Transformer, HT 240V

412 1 4819 462 48431 Shock absorber

420 0 4819 121 18299 Capacitor 1,15 m F-2100V

421 0 4819 121 18162 Filter, mains

426 0 4819 218 38039 Diode, HV

440 0 4819 361 18356 Motor hot air

441 0 4819 361 18361 Motor Blower

441 1 4819 462 58146 Bottom fan

441 2 4819 466 98922 Casing

443 0 4819 515 28224 Fan wheel

451 0 4819 259 28888 Tube, heating FA 240V

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 8 of 10

PARTS LIST (Cont.)

Item Part No Description

451 1 4819 515 28223 Fan wheel FC

451 2 4819 532 28256 Washer for motor

452 0 4819 259 28914 Infrared element, 1000W, 240V

452 1 4819 404 78841 Holder quarz tube

452 2 4819 458 58522 Reflector quartz tube

452 3 4819 418 79082 Cover, bar

452 4 4819 532 58263 Washer

452 5 4819 532 58262 Washer ceramic

452 6 4819 505 18248 Nut

485 0 4819 321 18133 Cable, HT

490 0 4819 321 18242 Cable, mains Australia

500 0 4812 214 78796 Control unit

500 9 4819 113 88001 Resistor 100 Ohm

505 0 4812 209 88015 Microprocessor

531 0 4812 101 08807 Potentiometer

561 0 4819 282 48247 Thermostat 145 °C

562 0 4819 282 48277 Thermostat 160 °C

564 0 4819 282 48275 Thermostat 165 °C

566 0 4812 282 48255 Thermostat FC 145 °C

571 0 4819 360 58589 Valve

571 1 4819 502 98002 Screw to valve FC

571 2 4819 360 58588 Valve

617 0 4812 280 68342 Relay 24V DC

617 1 4812 280 68349 Relay

622 0 4819 276 18273 Switch VKS

633 0 4812 271 38406 Microswitch

651 0 4812 134 18008 Lamp

651 1 4819 380 28017 Reflector

691 0 4819 210 78081 Sensor temp.

741 0 4819 462 79801 Cover

741 1 4819 466 89243 Heat shield FC

741 2 4819 532 68722 Shaft seal for motor

741 3 4819 418 79213 Cover FC

743 0 4819 458 58527 Air guide grill

770 0 4819 462 79803 Cover

770 1 4819 462 79797 Air guide

770 2 4819 462 38742 Air guide, magnetron

770 3 4819 462 79798 Air guide

774 0 4819 462 79721 Cover upper

774 1 4819 462 79934 Cover lower

774 3 4819 530 28914 Conveyor

900 0 4812 404 78409 Holder capacitor

900 1 4819 492 68729 Clip

900 3 4819 492 68558 Clip, fix

900 4 4819 502 18374 Screw for magnetron, not shown

901 9 4819 453 49874 Recipe guide General

901 9 4819 453 49875 Recipe guide Europe

971 0 4819 252 28125 Fuse T10A

971 1 4819 256 38016 Bracket for fuse

972 0 4812 452 28129 Fuse T160mA

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 9 of 10

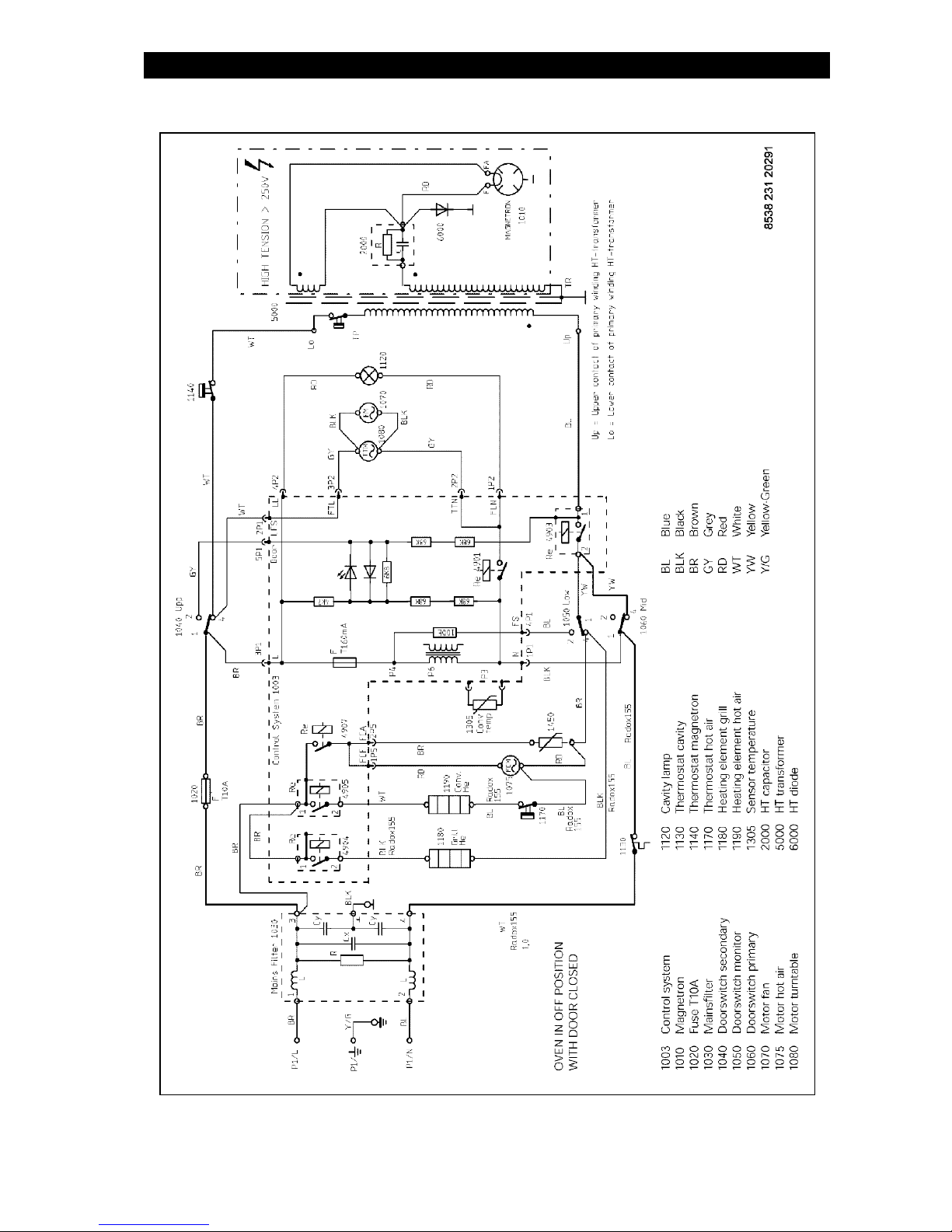

CIRCUIT DIAGRAM

WHIRLPOOL CONSUMER SERVICES Model MD364/WH

Page 10 of 10

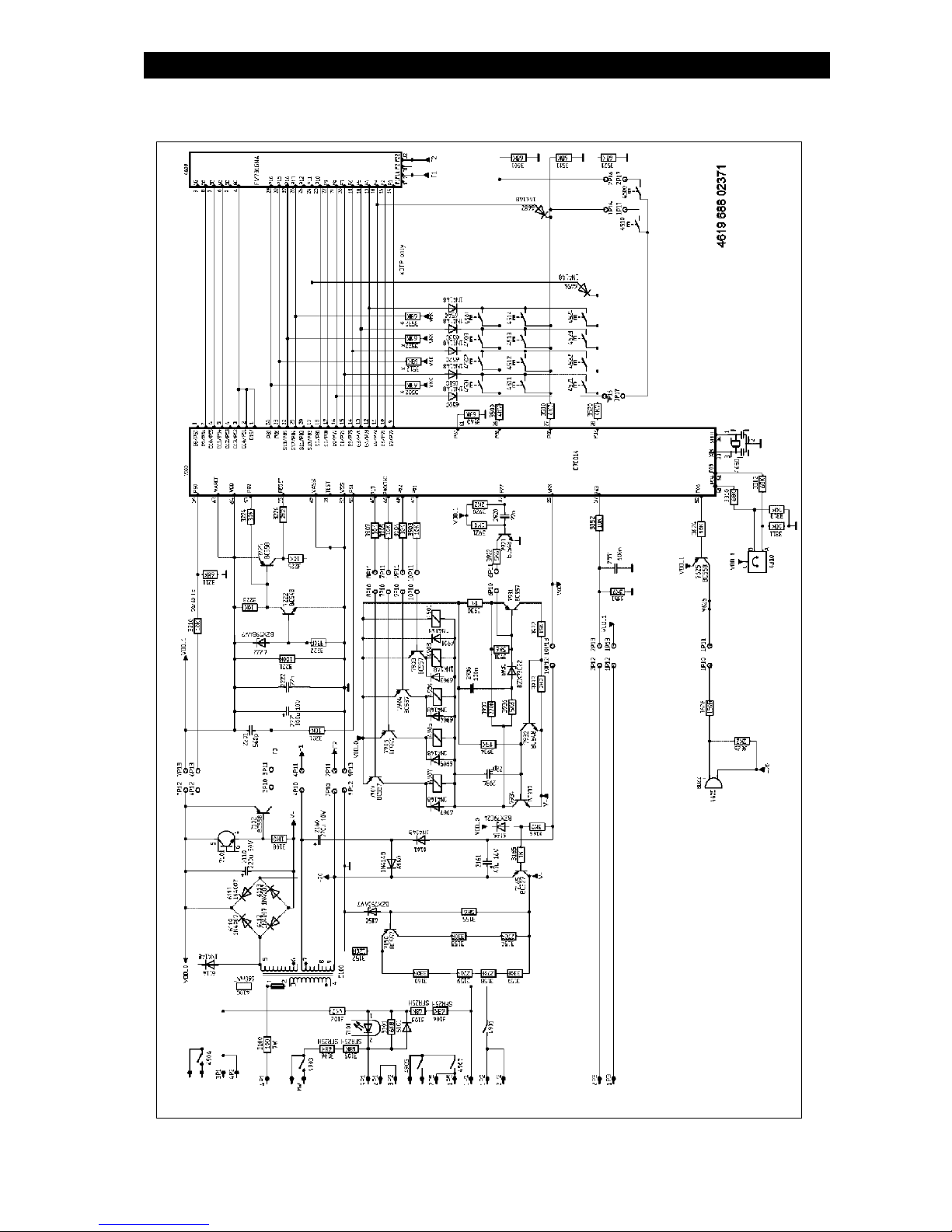

CONTROL CIRCUIT DIAGRAM
